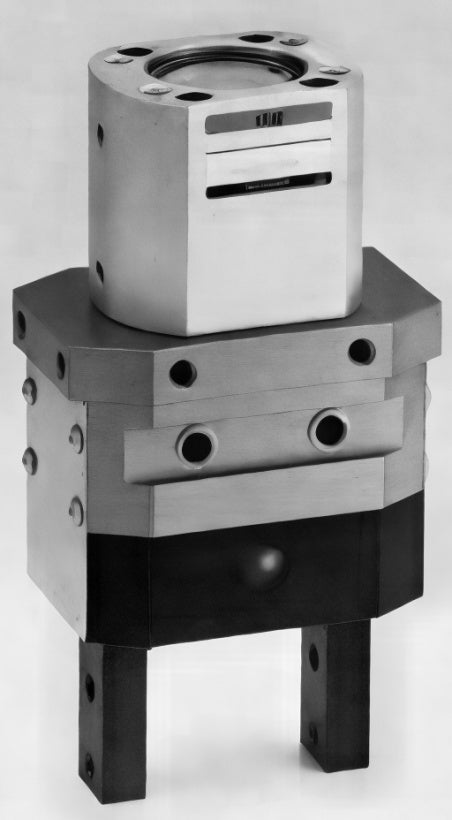

CKD Cross Roller Parallel Hand HKP Series (Double/Single Acting)

CKD Cross Roller Parallel Hand HKP Series (Double/Single Acting)

Large cross roller parallel hand for heavy workpieces, bore 32 to 80 mm.

Key features

  • Codes are the printed base models (standard type, without switch); options such as single acting, long stroke, finger and cylinder switch are added via the catalog ordering code

Specifications

Fluid Compressed air
HKP-32CS Size: 32CS | Bore (mm): 32 | Stroke (mm): 24 | Port: M5 | Mass (kg): 1.36 | Fluid: Compressed air
HKP-40CS Size: 40CS | Bore (mm): 40 | Stroke (mm): 30 | Port: M5 | Mass (kg): 1.95 | Fluid: Compressed air
HKP-50CS Size: 50CS | Bore (mm): 50 | Stroke (mm): 36 | Port: Rc1/8 | Mass (kg): 4.2 | Fluid: Compressed air
HKP-63CS Size: 63CS | Bore (mm): 63 | Stroke (mm): 40 | Port: Rc1/8 | Mass (kg): 5.4 | Fluid: Compressed air
HKP-80CS Size: 80CS | Bore (mm): 80 | Stroke (mm): 60 | Port: Rc1/4 | Mass (kg): 10.6 | Fluid: Compressed air
Pneumatic GrippersCKD
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Cross Roller Parallel Hand HKP Series (Double/Single Acting)

Brand CKD·Pneumatic Grippers

Available part numbers (5)

HKP-32CS, HKP-40CS, HKP-50CS, HKP-63CS, HKP-80CS

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HKP-32CSSize: 32CS | Bore (mm): 32 | Stroke (mm): 24 | Port: M5 | Mass (kg): 1.36 | Fluid: Compressed air
HKP-40CSSize: 40CS | Bore (mm): 40 | Stroke (mm): 30 | Port: M5 | Mass (kg): 1.95 | Fluid: Compressed air
HKP-50CSSize: 50CS | Bore (mm): 50 | Stroke (mm): 36 | Port: Rc1/8 | Mass (kg): 4.2 | Fluid: Compressed air
HKP-63CSSize: 63CS | Bore (mm): 63 | Stroke (mm): 40 | Port: Rc1/8 | Mass (kg): 5.4 | Fluid: Compressed air
HKP-80CSSize: 80CS | Bore (mm): 80 | Stroke (mm): 60 | Port: Rc1/4 | Mass (kg): 10.6 | Fluid: Compressed air
