CKD CV3E/CVS3E Coolant Valve, 3-Port Low Pressure (0.3 MPa)

CKD CV3E/CVS3E Coolant Valve, 3-Port Low Pressure (0.3 MPa)

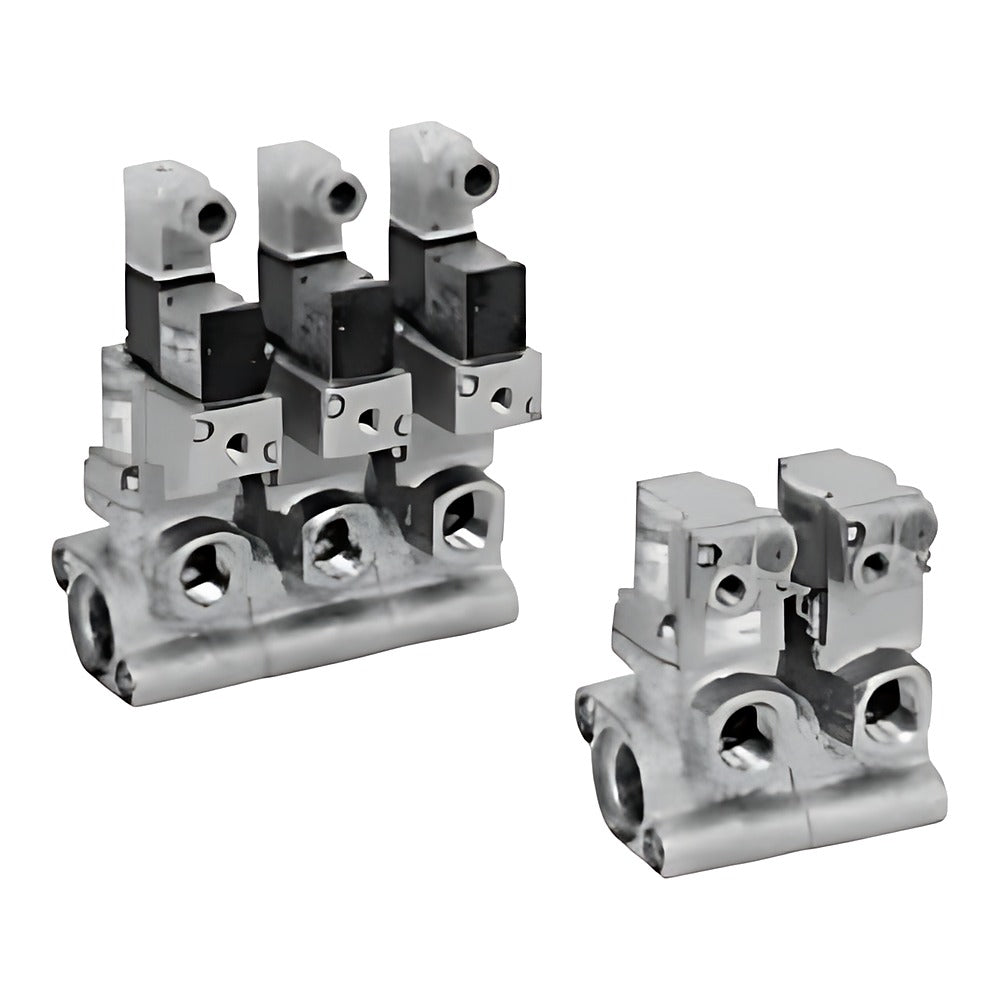

CKD CV3E/CVS3E low-pressure air-operated 3-port directional valves for coolant control, Rc3/4 and Rc1, up to 0.3 MPa.

Key features

  • 3-port directional valve, COM port pressurised
  • CV3E air operated or CVS3E with integrated pilot solenoid valve
  • Nitrile rubber (0) or fluoro rubber (B) packing/gasket
  • DIN terminal box Pg9 (2G) or T-type box G1/2 (3T); AC100V/AC200V/DC24V
  • Lamp coils (2H/3R) and surge killer (S) optional

Specifications

Fluid Coolant
Operating pressure 0 to 0.3 MPa
Proof pressure 2.0 MPa
Fluid temperature -10 to 60 C
Orifice / Cv 22.8/12.5 (20A), 29.3/20 (25A)
Pilot fluid / pressure Air, 0.25 to 0.5 MPa
Pilot port Rc1/4
Protection IPX5 (DIN), IPX6 (T-box)
Source CKD Korea catalog CB-03-1SK-9, p. 962-963
CV3E-20A-03-0 Model: CV3E air operated | Port: Rc3/4 | Packing: Nitrile rubber | Coil: None | Voltage: None
CV3E-20A-03-B Model: CV3E air operated | Port: Rc3/4 | Packing: Fluoro rubber | Coil: None | Voltage: None
CV3E-25A-03-0 Model: CV3E air operated | Port: Rc1 | Packing: Nitrile rubber | Coil: None | Voltage: None
CV3E-25A-03-B Model: CV3E air operated | Port: Rc1 | Packing: Fluoro rubber | Coil: None | Voltage: None
CVS3E-20A-03-02G-1 Model: CVS3E solenoid mounted | Port: Rc3/4 | Packing: Nitrile rubber | Coil: DIN box Pg9 | Voltage: AC100V 50/60Hz, AC110V 60Hz
CVS3E-20A-03-02G-2 Model: CVS3E solenoid mounted | Port: Rc3/4 | Packing: Nitrile rubber | Coil: DIN box Pg9 | Voltage: AC200V 50/60Hz, AC220V 60Hz
CVS3E-20A-03-02G-3 Model: CVS3E solenoid mounted | Port: Rc3/4 | Packing: Nitrile rubber | Coil: DIN box Pg9 | Voltage: DC24V
CVS3E-20A-03-03T-1 Model: CVS3E solenoid mounted | Port: Rc3/4 | Packing: Nitrile rubber | Coil: T-type box G1/2 | Voltage: AC100V 50/60Hz, AC110V 60Hz
CVS3E-20A-03-03T-2 Model: CVS3E solenoid mounted | Port: Rc3/4 | Packing: Nitrile rubber | Coil: T-type box G1/2 | Voltage: AC200V 50/60Hz, AC220V 60Hz
CVS3E-20A-03-03T-3 Model: CVS3E solenoid mounted | Port: Rc3/4 | Packing: Nitrile rubber | Coil: T-type box G1/2 | Voltage: DC24V
CVS3E-20A-03-B2G-1 Model: CVS3E solenoid mounted | Port: Rc3/4 | Packing: Fluoro rubber | Coil: DIN box Pg9 | Voltage: AC100V 50/60Hz, AC110V 60Hz
CVS3E-20A-03-B2G-2 Model: CVS3E solenoid mounted | Port: Rc3/4 | Packing: Fluoro rubber | Coil: DIN box Pg9 | Voltage: AC200V 50/60Hz, AC220V 60Hz
CVS3E-20A-03-B2G-3 Model: CVS3E solenoid mounted | Port: Rc3/4 | Packing: Fluoro rubber | Coil: DIN box Pg9 | Voltage: DC24V
CVS3E-20A-03-B3T-1 Model: CVS3E solenoid mounted | Port: Rc3/4 | Packing: Fluoro rubber | Coil: T-type box G1/2 | Voltage: AC100V 50/60Hz, AC110V 60Hz
CVS3E-20A-03-B3T-2 Model: CVS3E solenoid mounted | Port: Rc3/4 | Packing: Fluoro rubber | Coil: T-type box G1/2 | Voltage: AC200V 50/60Hz, AC220V 60Hz
CVS3E-20A-03-B3T-3 Model: CVS3E solenoid mounted | Port: Rc3/4 | Packing: Fluoro rubber | Coil: T-type box G1/2 | Voltage: DC24V
CVS3E-25A-03-02G-1 Model: CVS3E solenoid mounted | Port: Rc1 | Packing: Nitrile rubber | Coil: DIN box Pg9 | Voltage: AC100V 50/60Hz, AC110V 60Hz
CVS3E-25A-03-02G-2 Model: CVS3E solenoid mounted | Port: Rc1 | Packing: Nitrile rubber | Coil: DIN box Pg9 | Voltage: AC200V 50/60Hz, AC220V 60Hz
CVS3E-25A-03-02G-3 Model: CVS3E solenoid mounted | Port: Rc1 | Packing: Nitrile rubber | Coil: DIN box Pg9 | Voltage: DC24V
CVS3E-25A-03-03T-1 Model: CVS3E solenoid mounted | Port: Rc1 | Packing: Nitrile rubber | Coil: T-type box G1/2 | Voltage: AC100V 50/60Hz, AC110V 60Hz
CVS3E-25A-03-03T-2 Model: CVS3E solenoid mounted | Port: Rc1 | Packing: Nitrile rubber | Coil: T-type box G1/2 | Voltage: AC200V 50/60Hz, AC220V 60Hz
CVS3E-25A-03-03T-3 Model: CVS3E solenoid mounted | Port: Rc1 | Packing: Nitrile rubber | Coil: T-type box G1/2 | Voltage: DC24V
CVS3E-25A-03-B2G-1 Model: CVS3E solenoid mounted | Port: Rc1 | Packing: Fluoro rubber | Coil: DIN box Pg9 | Voltage: AC100V 50/60Hz, AC110V 60Hz
CVS3E-25A-03-B2G-2 Model: CVS3E solenoid mounted | Port: Rc1 | Packing: Fluoro rubber | Coil: DIN box Pg9 | Voltage: AC200V 50/60Hz, AC220V 60Hz
CVS3E-25A-03-B2G-3 Model: CVS3E solenoid mounted | Port: Rc1 | Packing: Fluoro rubber | Coil: DIN box Pg9 | Voltage: DC24V
CVS3E-25A-03-B3T-1 Model: CVS3E solenoid mounted | Port: Rc1 | Packing: Fluoro rubber | Coil: T-type box G1/2 | Voltage: AC100V 50/60Hz, AC110V 60Hz
CVS3E-25A-03-B3T-2 Model: CVS3E solenoid mounted | Port: Rc1 | Packing: Fluoro rubber | Coil: T-type box G1/2 | Voltage: AC200V 50/60Hz, AC220V 60Hz
CVS3E-25A-03-B3T-3 Model: CVS3E solenoid mounted | Port: Rc1 | Packing: Fluoro rubber | Coil: T-type box G1/2 | Voltage: DC24V
