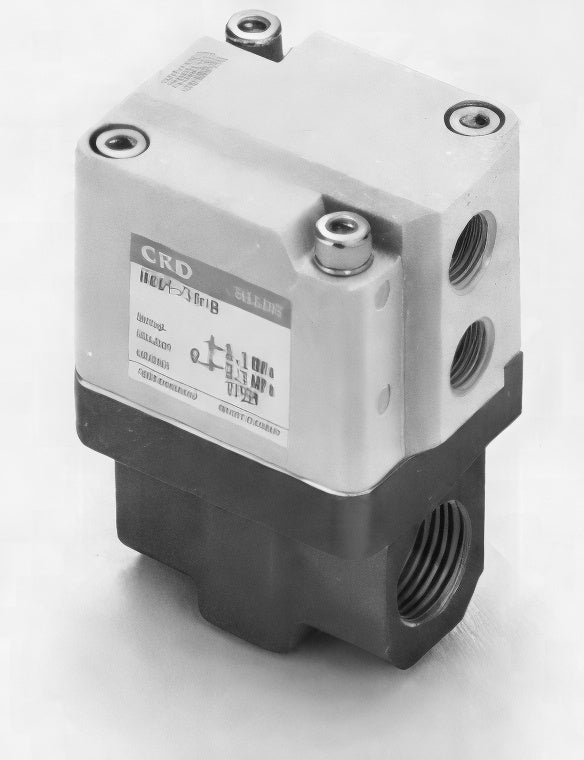

CKD Diaphragm Type Cylinder Valve NAD Series, Single Unit

CKD Diaphragm Type Cylinder Valve NAD Series, Single Unit

Air-operated diaphragm cylinder valve, single unit, for air, inert gas, water and non-corrosive liquids (NAD) or low vacuum (NAD-V).

Key features

  • Normally closed, normally open and double acting types with Rc3/8 port, 7 mm orifice, Cv 1.1
  • Pilot pressure 0.4 to 0.5 MPa

Specifications

Port Rc3/8
Orifice (mm) 7
Cv 1.1
C (dm3/(s·bar)) 4.4
Mass (kg) 0.32
Pilot pressure (MPa) 0.4-0.5
Pilot port Rc1/8
NAD1-10 Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.1 | C (dm3/(s·bar)): 4.4 | b: 0.3 | Working pressure: 0-0.5 MPa (secondary 0.4 MPa max) | Mass (kg): 0.32 | Type: NC (normally closed) | Fluid: air, inert gas, water, non-corrosive liquid | Pilot pressure (MPa): 0.4-0.5 | Pilot port: Rc1/8
NAD2-10 Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.1 | C (dm3/(s·bar)): 4.4 | b: 0.3 | Working pressure: 0-0.5 MPa (secondary 0.4 MPa max) | Mass (kg): 0.32 | Type: NO (normally open) | Fluid: air, inert gas, water, non-corrosive liquid | Pilot pressure (MPa): 0.4-0.5 | Pilot port: Rc1/8
NAD3-10 Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.1 | C (dm3/(s·bar)): 4.4 | b: 0.3 | Working pressure: 0-0.5 MPa (secondary 0.4 MPa max) | Mass (kg): 0.32 | Type: double acting | Fluid: air, inert gas, water, non-corrosive liquid | Pilot pressure (MPa): 0.4-0.5 | Pilot port: Rc1/8
NAD1V-10 Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.1 | C (dm3/(s·bar)): 4.4 | b: 0.1 | Working pressure: 1.3x10^2 to 5x10^5 Pa (abs) | Mass (kg): 0.32 | Type: NC (normally closed) | Fluid: low vacuum (air, water) | Pilot pressure (MPa): 0.4-0.5 | Pilot port: Rc1/8
NAD2V-10 Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.1 | C (dm3/(s·bar)): 4.4 | b: 0.1 | Working pressure: 1.3x10^2 to 5x10^5 Pa (abs) | Mass (kg): 0.32 | Type: NO (normally open) | Fluid: low vacuum (air, water) | Pilot pressure (MPa): 0.4-0.5 | Pilot port: Rc1/8
NAD3V-10 Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.1 | C (dm3/(s·bar)): 4.4 | b: 0.1 | Working pressure: 1.3x10^2 to 5x10^5 Pa (abs) | Mass (kg): 0.32 | Type: double acting | Fluid: low vacuum (air, water) | Pilot pressure (MPa): 0.4-0.5 | Pilot port: Rc1/8
Air Operated ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Diaphragm Type Cylinder Valve NAD Series, Single Unit

Brand CKD·Air Operated Valves

Available part numbers (6)

NAD1-10, NAD2-10, NAD3-10, NAD1V-10, NAD2V-10, NAD3V-10

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NAD1-10Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.1 | C (dm3/(s·bar)): 4.4 | b: 0.3 | Working pressure: 0-0.5 MPa (secondary 0.4 MPa max) | Mass (kg): 0.32 | Type: NC (normally closed) | Fluid: air, inert gas, water, non-corrosive liquid | Pilot pressure (MPa): 0.4-0.5 | Pilot port: Rc1/8
NAD2-10Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.1 | C (dm3/(s·bar)): 4.4 | b: 0.3 | Working pressure: 0-0.5 MPa (secondary 0.4 MPa max) | Mass (kg): 0.32 | Type: NO (normally open) | Fluid: air, inert gas, water, non-corrosive liquid | Pilot pressure (MPa): 0.4-0.5 | Pilot port: Rc1/8
NAD3-10Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.1 | C (dm3/(s·bar)): 4.4 | b: 0.3 | Working pressure: 0-0.5 MPa (secondary 0.4 MPa max) | Mass (kg): 0.32 | Type: double acting | Fluid: air, inert gas, water, non-corrosive liquid | Pilot pressure (MPa): 0.4-0.5 | Pilot port: Rc1/8
NAD1V-10Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.1 | C (dm3/(s·bar)): 4.4 | b: 0.1 | Working pressure: 1.3x10^2 to 5x10^5 Pa (abs) | Mass (kg): 0.32 | Type: NC (normally closed) | Fluid: low vacuum (air, water) | Pilot pressure (MPa): 0.4-0.5 | Pilot port: Rc1/8
NAD2V-10Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.1 | C (dm3/(s·bar)): 4.4 | b: 0.1 | Working pressure: 1.3x10^2 to 5x10^5 Pa (abs) | Mass (kg): 0.32 | Type: NO (normally open) | Fluid: low vacuum (air, water) | Pilot pressure (MPa): 0.4-0.5 | Pilot port: Rc1/8
NAD3V-10Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.1 | C (dm3/(s·bar)): 4.4 | b: 0.1 | Working pressure: 1.3x10^2 to 5x10^5 Pa (abs) | Mass (kg): 0.32 | Type: double acting | Fluid: low vacuum (air, water) | Pilot pressure (MPa): 0.4-0.5 | Pilot port: Rc1/8
