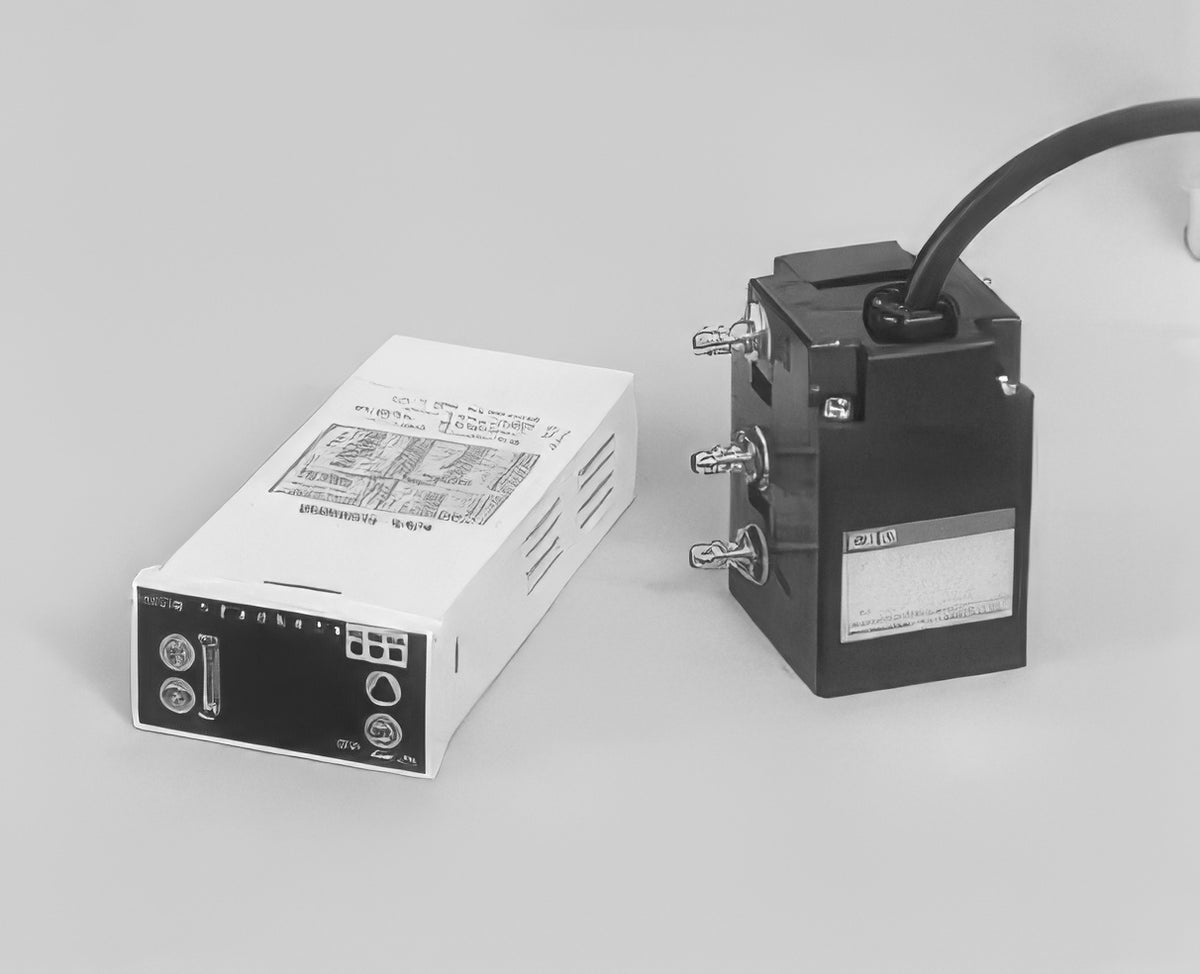

CKD Digital Fine Level Switch KML703 Series

CKD Digital Fine Level Switch KML703 Series

Digital liquid level switch using the purge (bubbler) method with clean air or N2, detecting levels from 1 to 700 mm through a 4 mm ID detection tube.

Key features

  • No detection flow setting required
  • Gauge pressure (G) and differential pressure (D) types with 4-20 mA monitor output and RS485 communication; DC24 V supply

Specifications

Detection level (mm) 1-700
Communication RS485
Sensor cable 5 m
Monitor output DC4-20 mA
Power supply DC24 V
Mass (kg) 0.51
KML703-G-485 Detection method: Gauge pressure | Detection level (mm): 1-700 | Communication: RS485 | Sensor cable: 5 m | Monitor output: DC4-20 mA | Power supply: DC24 V | Mass (kg): 0.51
KML703-D-485 Detection method: Differential pressure | Detection level (mm): 1-700 | Communication: RS485 | Sensor cable: 5 m | Monitor output: DC4-20 mA | Power supply: DC24 V | Mass (kg): 0.51
Level SwitchesCKD
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Digital Fine Level Switch KML703 Series

Brand CKD·Level Switches

Available part numbers (2)

KML703-G-485, KML703-D-485

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KML703-G-485Detection method: Gauge pressure | Detection level (mm): 1-700 | Communication: RS485 | Sensor cable: 5 m | Monitor output: DC4-20 mA | Power supply: DC24 V | Mass (kg): 0.51
KML703-D-485Detection method: Differential pressure | Detection level (mm): 1-700 | Communication: RS485 | Sensor cable: 5 m | Monitor output: DC4-20 mA | Power supply: DC24 V | Mass (kg): 0.51
