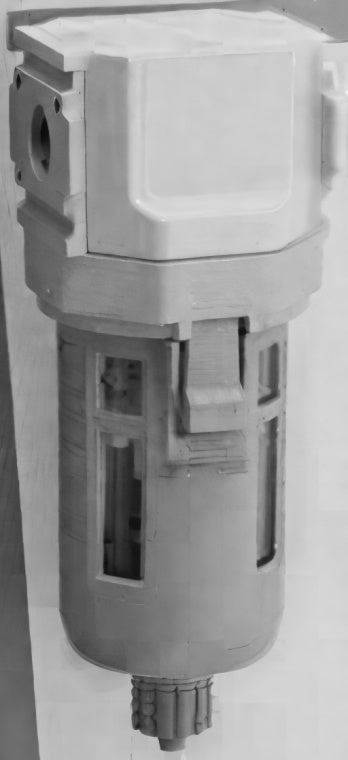

CKD Drain Separator FX Series

CKD Drain Separator FX Series

Lightweight, compact drain separator for compressed air lines (compressors 0.75 to 37 kW) with 99 % water droplet separation efficiency.

Key features

  • Removes liquid water only (water vapour cannot be separated)
  • Options include auto drains (NO/NC), metal or nylon bowls and piping adapters

Specifications

Water separation (%) 99
Working pressure (MPa) 0.1-1.0
Fluid temp. (C) 5-60
FX1004-8-W Port (Rc): 1/4 | Max flow at 0.7 MPa (L/min ANR): 550 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 0.3
FX1004-10-W Port (Rc): 3/8 | Max flow at 0.7 MPa (L/min ANR): 550 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 0.3
FX1011-8-W Port (Rc): 1/4 | Max flow at 0.7 MPa (L/min ANR): 1800 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 0.5
FX1011-10-W Port (Rc): 3/8 | Max flow at 0.7 MPa (L/min ANR): 1800 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 0.5
FX1011-15-W Port (Rc): 1/2 | Max flow at 0.7 MPa (L/min ANR): 1800 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 0.5
FX1037-20-W Port (Rc): 3/4 | Max flow at 0.7 MPa (L/min ANR): 6100 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 1.2
FX1037-25-W Port (Rc): 1 | Max flow at 0.7 MPa (L/min ANR): 6100 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 1.2
Drain SeparatorsCKD
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Drain Separator FX Series

Brand CKD·Drain Separators

Available part numbers (7)

FX1004-8-W, FX1004-10-W, FX1011-8-W, FX1011-10-W, FX1011-15-W, FX1037-20-W, FX1037-25-W

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FX1004-8-WPort (Rc): 1/4 | Max flow at 0.7 MPa (L/min ANR): 550 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 0.3
FX1004-10-WPort (Rc): 3/8 | Max flow at 0.7 MPa (L/min ANR): 550 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 0.3
FX1011-8-WPort (Rc): 1/4 | Max flow at 0.7 MPa (L/min ANR): 1800 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 0.5
FX1011-10-WPort (Rc): 3/8 | Max flow at 0.7 MPa (L/min ANR): 1800 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 0.5
FX1011-15-WPort (Rc): 1/2 | Max flow at 0.7 MPa (L/min ANR): 1800 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 0.5
FX1037-20-WPort (Rc): 3/4 | Max flow at 0.7 MPa (L/min ANR): 6100 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 1.2
FX1037-25-WPort (Rc): 1 | Max flow at 0.7 MPa (L/min ANR): 6100 | Water separation (%): 99 | Working pressure (MPa): 0.1-1.0 | Fluid temp. (C): 5-60 | Mass (kg): 1.2
