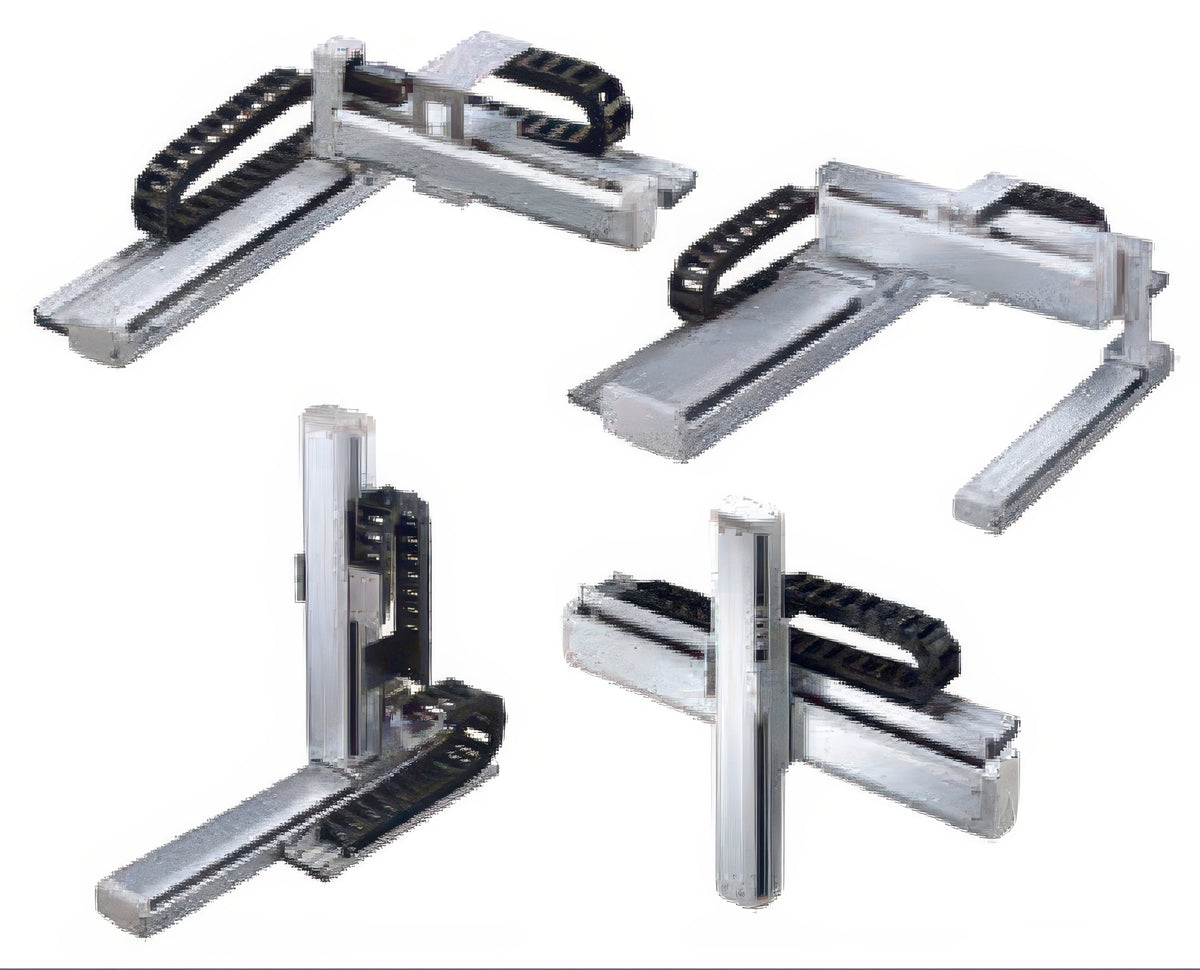

CKD ETS-210A Multi-Axis Actuator (X-Y)

CKD ETS-210A Multi-Axis Actuator (X-Y)

CKD ETS-210A motorless X-Y 2-Axis combination of ETS ball-screw sliders, listed with full order codes by combination direction and both axis strokes.

Key features

  • Pre-engineered 2-axis X-Y combination: 1st axis ETS-06 (lead 10, 100W, straight), 2nd axis ETS-05 (lead 10, 100W)
  • 1st-axis stroke 100-800 mm, 2nd-axis stroke 50-350 mm, both in 50 mm steps
  • Combination directions A1, A2, A3, A4 set motor and grease-nipple orientation
  • Codes shown with motor flange spec M; replace with Y (Yaskawa/Keyence), P (Panasonic) or O (Omron) as required
  • Brake: none (N); home/limit sensors (3 per axis) available by changing the last symbol from N to W
  • Cable carrier assemblies, combination brackets are listed under the ETS Multi-Axis combination parts

Specifications

Series ETS Multi-Axis
Combination Model ETS-210A
Combination Type A: X-Y
1st Axis ETS-06 (lead 10, 100W, straight)
2nd Axis ETS-05 (lead 10, 100W)
Motor Flange Spec (in code) M
Brake (in code) N (none)
Origin/Limit Sensor (in code) N (none); W = with sensors
Compliance RoHS
Source CKD Korea catalog CB-055K, p. 176-177, 178-183
ETS-210A1-010005-MNN Combination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-010010-MNN Combination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-010015-MNN Combination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-010020-MNN Combination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-010025-MNN Combination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-010030-MNN Combination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-010035-MNN Combination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-015005-MNN Combination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-015010-MNN Combination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-015015-MNN Combination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-015020-MNN Combination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-015025-MNN Combination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-015030-MNN Combination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-015035-MNN Combination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-020005-MNN Combination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-020010-MNN Combination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-020015-MNN Combination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-020020-MNN Combination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-020025-MNN Combination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-020030-MNN Combination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-020035-MNN Combination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-025005-MNN Combination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-025010-MNN Combination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-025015-MNN Combination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-025020-MNN Combination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-025025-MNN Combination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-025030-MNN Combination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-025035-MNN Combination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-030005-MNN Combination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-030010-MNN Combination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-030015-MNN Combination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-030020-MNN Combination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-030025-MNN Combination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-030030-MNN Combination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-030035-MNN Combination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-035005-MNN Combination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-035010-MNN Combination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-035015-MNN Combination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-035020-MNN Combination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-035025-MNN Combination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-035030-MNN Combination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-035035-MNN Combination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-040005-MNN Combination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-040010-MNN Combination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-040015-MNN Combination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-040020-MNN Combination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-040025-MNN Combination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-040030-MNN Combination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-040035-MNN Combination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-045005-MNN Combination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-045010-MNN Combination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-045015-MNN Combination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-045020-MNN Combination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-045025-MNN Combination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-045030-MNN Combination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-045035-MNN Combination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-050005-MNN Combination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-050010-MNN Combination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-050015-MNN Combination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-050020-MNN Combination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-050025-MNN Combination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-050030-MNN Combination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-050035-MNN Combination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-055005-MNN Combination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-055010-MNN Combination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-055015-MNN Combination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-055020-MNN Combination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-055025-MNN Combination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-055030-MNN Combination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-055035-MNN Combination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-060005-MNN Combination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-060010-MNN Combination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-060015-MNN Combination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-060020-MNN Combination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-060025-MNN Combination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-060030-MNN Combination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-060035-MNN Combination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-065005-MNN Combination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-065010-MNN Combination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-065015-MNN Combination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-065020-MNN Combination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-065025-MNN Combination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-065030-MNN Combination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-065035-MNN Combination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-070005-MNN Combination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-070010-MNN Combination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-070015-MNN Combination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-070020-MNN Combination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-070025-MNN Combination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-070030-MNN Combination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-070035-MNN Combination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-075005-MNN Combination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-075010-MNN Combination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-075015-MNN Combination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-075020-MNN Combination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-075025-MNN Combination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-075030-MNN Combination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-075035-MNN Combination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-080005-MNN Combination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-080010-MNN Combination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-080015-MNN Combination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-080020-MNN Combination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-080025-MNN Combination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-080030-MNN Combination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-080035-MNN Combination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-010005-MNN Combination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-010010-MNN Combination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-010015-MNN Combination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-010020-MNN Combination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-010025-MNN Combination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-010030-MNN Combination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-010035-MNN Combination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-015005-MNN Combination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-015010-MNN Combination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-015015-MNN Combination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-015020-MNN Combination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-015025-MNN Combination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-015030-MNN Combination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-015035-MNN Combination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-020005-MNN Combination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-020010-MNN Combination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-020015-MNN Combination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-020020-MNN Combination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-020025-MNN Combination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-020030-MNN Combination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-020035-MNN Combination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-025005-MNN Combination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-025010-MNN Combination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-025015-MNN Combination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-025020-MNN Combination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-025025-MNN Combination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-025030-MNN Combination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-025035-MNN Combination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-030005-MNN Combination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-030010-MNN Combination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-030015-MNN Combination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-030020-MNN Combination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-030025-MNN Combination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-030030-MNN Combination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-030035-MNN Combination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-035005-MNN Combination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-035010-MNN Combination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-035015-MNN Combination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-035020-MNN Combination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-035025-MNN Combination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-035030-MNN Combination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-035035-MNN Combination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-040005-MNN Combination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-040010-MNN Combination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-040015-MNN Combination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-040020-MNN Combination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-040025-MNN Combination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-040030-MNN Combination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-040035-MNN Combination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-045005-MNN Combination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-045010-MNN Combination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-045015-MNN Combination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-045020-MNN Combination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-045025-MNN Combination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-045030-MNN Combination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-045035-MNN Combination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-050005-MNN Combination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-050010-MNN Combination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-050015-MNN Combination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-050020-MNN Combination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-050025-MNN Combination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-050030-MNN Combination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-050035-MNN Combination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-055005-MNN Combination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-055010-MNN Combination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-055015-MNN Combination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-055020-MNN Combination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-055025-MNN Combination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-055030-MNN Combination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-055035-MNN Combination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-060005-MNN Combination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-060010-MNN Combination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-060015-MNN Combination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-060020-MNN Combination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-060025-MNN Combination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-060030-MNN Combination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-060035-MNN Combination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-065005-MNN Combination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-065010-MNN Combination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-065015-MNN Combination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-065020-MNN Combination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-065025-MNN Combination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-065030-MNN Combination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-065035-MNN Combination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-070005-MNN Combination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-070010-MNN Combination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-070015-MNN Combination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-070020-MNN Combination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-070025-MNN Combination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-070030-MNN Combination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-070035-MNN Combination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-075005-MNN Combination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-075010-MNN Combination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-075015-MNN Combination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-075020-MNN Combination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-075025-MNN Combination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-075030-MNN Combination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-075035-MNN Combination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-080005-MNN Combination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-080010-MNN Combination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-080015-MNN Combination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-080020-MNN Combination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-080025-MNN Combination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-080030-MNN Combination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-080035-MNN Combination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-010005-MNN Combination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-010010-MNN Combination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-010015-MNN Combination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-010020-MNN Combination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-010025-MNN Combination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-010030-MNN Combination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-010035-MNN Combination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-015005-MNN Combination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-015010-MNN Combination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-015015-MNN Combination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-015020-MNN Combination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-015025-MNN Combination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-015030-MNN Combination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-015035-MNN Combination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-020005-MNN Combination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-020010-MNN Combination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-020015-MNN Combination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-020020-MNN Combination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-020025-MNN Combination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-020030-MNN Combination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-020035-MNN Combination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-025005-MNN Combination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-025010-MNN Combination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-025015-MNN Combination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-025020-MNN Combination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-025025-MNN Combination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-025030-MNN Combination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-025035-MNN Combination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-030005-MNN Combination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-030010-MNN Combination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-030015-MNN Combination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-030020-MNN Combination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-030025-MNN Combination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-030030-MNN Combination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-030035-MNN Combination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-035005-MNN Combination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-035010-MNN Combination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-035015-MNN Combination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-035020-MNN Combination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-035025-MNN Combination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-035030-MNN Combination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-035035-MNN Combination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-040005-MNN Combination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-040010-MNN Combination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-040015-MNN Combination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-040020-MNN Combination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-040025-MNN Combination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-040030-MNN Combination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-040035-MNN Combination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-045005-MNN Combination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-045010-MNN Combination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-045015-MNN Combination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-045020-MNN Combination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-045025-MNN Combination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-045030-MNN Combination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-045035-MNN Combination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-050005-MNN Combination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-050010-MNN Combination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-050015-MNN Combination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-050020-MNN Combination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-050025-MNN Combination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-050030-MNN Combination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-050035-MNN Combination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-055005-MNN Combination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-055010-MNN Combination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-055015-MNN Combination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-055020-MNN Combination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-055025-MNN Combination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-055030-MNN Combination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-055035-MNN Combination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-060005-MNN Combination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-060010-MNN Combination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-060015-MNN Combination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-060020-MNN Combination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-060025-MNN Combination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-060030-MNN Combination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-060035-MNN Combination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-065005-MNN Combination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-065010-MNN Combination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-065015-MNN Combination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-065020-MNN Combination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-065025-MNN Combination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-065030-MNN Combination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-065035-MNN Combination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-070005-MNN Combination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-070010-MNN Combination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-070015-MNN Combination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-070020-MNN Combination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-070025-MNN Combination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-070030-MNN Combination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-070035-MNN Combination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-075005-MNN Combination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-075010-MNN Combination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-075015-MNN Combination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-075020-MNN Combination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-075025-MNN Combination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-075030-MNN Combination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-075035-MNN Combination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-080005-MNN Combination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-080010-MNN Combination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-080015-MNN Combination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-080020-MNN Combination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-080025-MNN Combination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-080030-MNN Combination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-080035-MNN Combination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-010005-MNN Combination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-010010-MNN Combination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-010015-MNN Combination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-010020-MNN Combination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-010025-MNN Combination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-010030-MNN Combination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-010035-MNN Combination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-015005-MNN Combination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-015010-MNN Combination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-015015-MNN Combination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-015020-MNN Combination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-015025-MNN Combination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-015030-MNN Combination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-015035-MNN Combination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-020005-MNN Combination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-020010-MNN Combination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-020015-MNN Combination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-020020-MNN Combination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-020025-MNN Combination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-020030-MNN Combination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-020035-MNN Combination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-025005-MNN Combination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-025010-MNN Combination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-025015-MNN Combination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-025020-MNN Combination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-025025-MNN Combination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-025030-MNN Combination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-025035-MNN Combination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-030005-MNN Combination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-030010-MNN Combination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-030015-MNN Combination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-030020-MNN Combination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-030025-MNN Combination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-030030-MNN Combination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-030035-MNN Combination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-035005-MNN Combination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-035010-MNN Combination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-035015-MNN Combination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-035020-MNN Combination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-035025-MNN Combination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-035030-MNN Combination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-035035-MNN Combination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-040005-MNN Combination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-040010-MNN Combination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-040015-MNN Combination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-040020-MNN Combination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-040025-MNN Combination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-040030-MNN Combination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-040035-MNN Combination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-045005-MNN Combination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-045010-MNN Combination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-045015-MNN Combination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-045020-MNN Combination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-045025-MNN Combination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-045030-MNN Combination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-045035-MNN Combination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-050005-MNN Combination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-050010-MNN Combination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-050015-MNN Combination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-050020-MNN Combination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-050025-MNN Combination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-050030-MNN Combination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-050035-MNN Combination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-055005-MNN Combination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-055010-MNN Combination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-055015-MNN Combination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-055020-MNN Combination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-055025-MNN Combination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-055030-MNN Combination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-055035-MNN Combination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-060005-MNN Combination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-060010-MNN Combination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-060015-MNN Combination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-060020-MNN Combination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-060025-MNN Combination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-060030-MNN Combination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-060035-MNN Combination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-065005-MNN Combination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-065010-MNN Combination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-065015-MNN Combination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-065020-MNN Combination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-065025-MNN Combination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-065030-MNN Combination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-065035-MNN Combination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-070005-MNN Combination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-070010-MNN Combination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-070015-MNN Combination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-070020-MNN Combination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-070025-MNN Combination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-070030-MNN Combination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-070035-MNN Combination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-075005-MNN Combination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-075010-MNN Combination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-075015-MNN Combination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-075020-MNN Combination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-075025-MNN Combination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-075030-MNN Combination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-075035-MNN Combination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-080005-MNN Combination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-080010-MNN Combination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-080015-MNN Combination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-080020-MNN Combination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-080025-MNN Combination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-080030-MNN Combination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-080035-MNN Combination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1 Legacy code: base combination ETS-210A1 | Combination Direction: A1 | 1st-Axis Stroke: All | 2nd-Axis Stroke: All
ETS-210A2 Legacy code: base combination ETS-210A2 | Combination Direction: A2 | 1st-Axis Stroke: All | 2nd-Axis Stroke: All
ETS-210A3 Legacy code: base combination ETS-210A3 | Combination Direction: A3 | 1st-Axis Stroke: All | 2nd-Axis Stroke: All
ETS-210A4 Legacy code: base combination ETS-210A4 | Combination Direction: A4 | 1st-Axis Stroke: All | 2nd-Axis Stroke: All
Electric ActuatorsCKD
424 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD ETS-210A Multi-Axis Actuator (X-Y)

Brand CKD·Electric Actuators

Available part numbers (424)

ETS-210A1-010005-MNN, ETS-210A1-010010-MNN, ETS-210A1-010015-MNN, ETS-210A1-010020-MNN, ETS-210A1-010025-MNN, ETS-210A1-010030-MNN, ETS-210A1-010035-MNN, ETS-210A1-015005-MNN, ETS-210A1-015010-MNN, ETS-210A1-015015-MNN + 414 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ETS-210A1-010005-MNNCombination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-010010-MNNCombination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-010015-MNNCombination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-010020-MNNCombination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-010025-MNNCombination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-010030-MNNCombination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-010035-MNNCombination Direction: A1 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-015005-MNNCombination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-015010-MNNCombination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-015015-MNNCombination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-015020-MNNCombination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-015025-MNNCombination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-015030-MNNCombination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-015035-MNNCombination Direction: A1 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-020005-MNNCombination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-020010-MNNCombination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-020015-MNNCombination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-020020-MNNCombination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-020025-MNNCombination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-020030-MNNCombination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-020035-MNNCombination Direction: A1 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-025005-MNNCombination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-025010-MNNCombination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-025015-MNNCombination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-025020-MNNCombination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-025025-MNNCombination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-025030-MNNCombination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-025035-MNNCombination Direction: A1 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-030005-MNNCombination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-030010-MNNCombination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-030015-MNNCombination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-030020-MNNCombination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-030025-MNNCombination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-030030-MNNCombination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-030035-MNNCombination Direction: A1 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-035005-MNNCombination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-035010-MNNCombination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-035015-MNNCombination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-035020-MNNCombination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-035025-MNNCombination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-035030-MNNCombination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-035035-MNNCombination Direction: A1 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-040005-MNNCombination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-040010-MNNCombination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-040015-MNNCombination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-040020-MNNCombination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-040025-MNNCombination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-040030-MNNCombination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-040035-MNNCombination Direction: A1 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-045005-MNNCombination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-045010-MNNCombination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-045015-MNNCombination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-045020-MNNCombination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-045025-MNNCombination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-045030-MNNCombination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-045035-MNNCombination Direction: A1 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-050005-MNNCombination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-050010-MNNCombination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-050015-MNNCombination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-050020-MNNCombination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-050025-MNNCombination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-050030-MNNCombination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-050035-MNNCombination Direction: A1 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-055005-MNNCombination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-055010-MNNCombination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-055015-MNNCombination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-055020-MNNCombination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-055025-MNNCombination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-055030-MNNCombination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-055035-MNNCombination Direction: A1 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-060005-MNNCombination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-060010-MNNCombination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-060015-MNNCombination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-060020-MNNCombination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-060025-MNNCombination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-060030-MNNCombination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-060035-MNNCombination Direction: A1 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-065005-MNNCombination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-065010-MNNCombination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-065015-MNNCombination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-065020-MNNCombination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-065025-MNNCombination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-065030-MNNCombination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-065035-MNNCombination Direction: A1 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-070005-MNNCombination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-070010-MNNCombination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-070015-MNNCombination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-070020-MNNCombination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-070025-MNNCombination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-070030-MNNCombination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-070035-MNNCombination Direction: A1 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-075005-MNNCombination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-075010-MNNCombination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-075015-MNNCombination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-075020-MNNCombination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-075025-MNNCombination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-075030-MNNCombination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-075035-MNNCombination Direction: A1 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1-080005-MNNCombination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 50 mm
ETS-210A1-080010-MNNCombination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 100 mm
ETS-210A1-080015-MNNCombination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 150 mm
ETS-210A1-080020-MNNCombination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 200 mm
ETS-210A1-080025-MNNCombination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 250 mm
ETS-210A1-080030-MNNCombination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 300 mm
ETS-210A1-080035-MNNCombination Direction: A1 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-010005-MNNCombination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-010010-MNNCombination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-010015-MNNCombination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-010020-MNNCombination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-010025-MNNCombination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-010030-MNNCombination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-010035-MNNCombination Direction: A2 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-015005-MNNCombination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-015010-MNNCombination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-015015-MNNCombination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-015020-MNNCombination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-015025-MNNCombination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-015030-MNNCombination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-015035-MNNCombination Direction: A2 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-020005-MNNCombination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-020010-MNNCombination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-020015-MNNCombination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-020020-MNNCombination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-020025-MNNCombination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-020030-MNNCombination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-020035-MNNCombination Direction: A2 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-025005-MNNCombination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-025010-MNNCombination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-025015-MNNCombination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-025020-MNNCombination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-025025-MNNCombination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-025030-MNNCombination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-025035-MNNCombination Direction: A2 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-030005-MNNCombination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-030010-MNNCombination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-030015-MNNCombination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-030020-MNNCombination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-030025-MNNCombination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-030030-MNNCombination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-030035-MNNCombination Direction: A2 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-035005-MNNCombination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-035010-MNNCombination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-035015-MNNCombination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-035020-MNNCombination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-035025-MNNCombination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-035030-MNNCombination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-035035-MNNCombination Direction: A2 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-040005-MNNCombination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-040010-MNNCombination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-040015-MNNCombination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-040020-MNNCombination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-040025-MNNCombination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-040030-MNNCombination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-040035-MNNCombination Direction: A2 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-045005-MNNCombination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-045010-MNNCombination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-045015-MNNCombination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-045020-MNNCombination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-045025-MNNCombination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-045030-MNNCombination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-045035-MNNCombination Direction: A2 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-050005-MNNCombination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-050010-MNNCombination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-050015-MNNCombination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-050020-MNNCombination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-050025-MNNCombination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-050030-MNNCombination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-050035-MNNCombination Direction: A2 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-055005-MNNCombination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-055010-MNNCombination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-055015-MNNCombination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-055020-MNNCombination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-055025-MNNCombination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-055030-MNNCombination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-055035-MNNCombination Direction: A2 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-060005-MNNCombination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-060010-MNNCombination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-060015-MNNCombination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-060020-MNNCombination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-060025-MNNCombination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-060030-MNNCombination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-060035-MNNCombination Direction: A2 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-065005-MNNCombination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-065010-MNNCombination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-065015-MNNCombination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-065020-MNNCombination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-065025-MNNCombination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-065030-MNNCombination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-065035-MNNCombination Direction: A2 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-070005-MNNCombination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-070010-MNNCombination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-070015-MNNCombination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-070020-MNNCombination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-070025-MNNCombination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-070030-MNNCombination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-070035-MNNCombination Direction: A2 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-075005-MNNCombination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-075010-MNNCombination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-075015-MNNCombination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-075020-MNNCombination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-075025-MNNCombination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-075030-MNNCombination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-075035-MNNCombination Direction: A2 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 350 mm
ETS-210A2-080005-MNNCombination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 50 mm
ETS-210A2-080010-MNNCombination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 100 mm
ETS-210A2-080015-MNNCombination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 150 mm
ETS-210A2-080020-MNNCombination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 200 mm
ETS-210A2-080025-MNNCombination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 250 mm
ETS-210A2-080030-MNNCombination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 300 mm
ETS-210A2-080035-MNNCombination Direction: A2 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-010005-MNNCombination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-010010-MNNCombination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-010015-MNNCombination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-010020-MNNCombination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-010025-MNNCombination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-010030-MNNCombination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-010035-MNNCombination Direction: A3 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-015005-MNNCombination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-015010-MNNCombination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-015015-MNNCombination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-015020-MNNCombination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-015025-MNNCombination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-015030-MNNCombination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-015035-MNNCombination Direction: A3 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-020005-MNNCombination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-020010-MNNCombination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-020015-MNNCombination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-020020-MNNCombination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-020025-MNNCombination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-020030-MNNCombination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-020035-MNNCombination Direction: A3 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-025005-MNNCombination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-025010-MNNCombination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-025015-MNNCombination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-025020-MNNCombination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-025025-MNNCombination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-025030-MNNCombination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-025035-MNNCombination Direction: A3 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-030005-MNNCombination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-030010-MNNCombination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-030015-MNNCombination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-030020-MNNCombination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-030025-MNNCombination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-030030-MNNCombination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-030035-MNNCombination Direction: A3 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-035005-MNNCombination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-035010-MNNCombination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-035015-MNNCombination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-035020-MNNCombination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-035025-MNNCombination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-035030-MNNCombination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-035035-MNNCombination Direction: A3 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-040005-MNNCombination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-040010-MNNCombination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-040015-MNNCombination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-040020-MNNCombination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-040025-MNNCombination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-040030-MNNCombination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-040035-MNNCombination Direction: A3 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-045005-MNNCombination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-045010-MNNCombination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-045015-MNNCombination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-045020-MNNCombination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-045025-MNNCombination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-045030-MNNCombination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-045035-MNNCombination Direction: A3 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-050005-MNNCombination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-050010-MNNCombination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-050015-MNNCombination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-050020-MNNCombination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-050025-MNNCombination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-050030-MNNCombination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-050035-MNNCombination Direction: A3 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-055005-MNNCombination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-055010-MNNCombination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-055015-MNNCombination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-055020-MNNCombination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-055025-MNNCombination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-055030-MNNCombination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-055035-MNNCombination Direction: A3 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-060005-MNNCombination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-060010-MNNCombination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-060015-MNNCombination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-060020-MNNCombination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-060025-MNNCombination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-060030-MNNCombination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-060035-MNNCombination Direction: A3 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-065005-MNNCombination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-065010-MNNCombination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-065015-MNNCombination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-065020-MNNCombination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-065025-MNNCombination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-065030-MNNCombination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-065035-MNNCombination Direction: A3 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-070005-MNNCombination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-070010-MNNCombination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-070015-MNNCombination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-070020-MNNCombination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-070025-MNNCombination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-070030-MNNCombination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-070035-MNNCombination Direction: A3 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-075005-MNNCombination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-075010-MNNCombination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-075015-MNNCombination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-075020-MNNCombination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-075025-MNNCombination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-075030-MNNCombination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-075035-MNNCombination Direction: A3 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 350 mm
ETS-210A3-080005-MNNCombination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 50 mm
ETS-210A3-080010-MNNCombination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 100 mm
ETS-210A3-080015-MNNCombination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 150 mm
ETS-210A3-080020-MNNCombination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 200 mm
ETS-210A3-080025-MNNCombination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 250 mm
ETS-210A3-080030-MNNCombination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 300 mm
ETS-210A3-080035-MNNCombination Direction: A3 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-010005-MNNCombination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-010010-MNNCombination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-010015-MNNCombination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-010020-MNNCombination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-010025-MNNCombination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-010030-MNNCombination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-010035-MNNCombination Direction: A4 | 1st-Axis Stroke: 100 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-015005-MNNCombination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-015010-MNNCombination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-015015-MNNCombination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-015020-MNNCombination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-015025-MNNCombination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-015030-MNNCombination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-015035-MNNCombination Direction: A4 | 1st-Axis Stroke: 150 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-020005-MNNCombination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-020010-MNNCombination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-020015-MNNCombination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-020020-MNNCombination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-020025-MNNCombination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-020030-MNNCombination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-020035-MNNCombination Direction: A4 | 1st-Axis Stroke: 200 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-025005-MNNCombination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-025010-MNNCombination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-025015-MNNCombination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-025020-MNNCombination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-025025-MNNCombination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-025030-MNNCombination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-025035-MNNCombination Direction: A4 | 1st-Axis Stroke: 250 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-030005-MNNCombination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-030010-MNNCombination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-030015-MNNCombination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-030020-MNNCombination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-030025-MNNCombination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-030030-MNNCombination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-030035-MNNCombination Direction: A4 | 1st-Axis Stroke: 300 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-035005-MNNCombination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-035010-MNNCombination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-035015-MNNCombination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-035020-MNNCombination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-035025-MNNCombination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-035030-MNNCombination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-035035-MNNCombination Direction: A4 | 1st-Axis Stroke: 350 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-040005-MNNCombination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-040010-MNNCombination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-040015-MNNCombination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-040020-MNNCombination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-040025-MNNCombination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-040030-MNNCombination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-040035-MNNCombination Direction: A4 | 1st-Axis Stroke: 400 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-045005-MNNCombination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-045010-MNNCombination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-045015-MNNCombination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-045020-MNNCombination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-045025-MNNCombination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-045030-MNNCombination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-045035-MNNCombination Direction: A4 | 1st-Axis Stroke: 450 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-050005-MNNCombination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-050010-MNNCombination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-050015-MNNCombination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-050020-MNNCombination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-050025-MNNCombination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-050030-MNNCombination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-050035-MNNCombination Direction: A4 | 1st-Axis Stroke: 500 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-055005-MNNCombination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-055010-MNNCombination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-055015-MNNCombination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-055020-MNNCombination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-055025-MNNCombination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-055030-MNNCombination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-055035-MNNCombination Direction: A4 | 1st-Axis Stroke: 550 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-060005-MNNCombination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-060010-MNNCombination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-060015-MNNCombination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-060020-MNNCombination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-060025-MNNCombination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-060030-MNNCombination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-060035-MNNCombination Direction: A4 | 1st-Axis Stroke: 600 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-065005-MNNCombination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-065010-MNNCombination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-065015-MNNCombination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-065020-MNNCombination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-065025-MNNCombination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-065030-MNNCombination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-065035-MNNCombination Direction: A4 | 1st-Axis Stroke: 650 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-070005-MNNCombination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-070010-MNNCombination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-070015-MNNCombination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-070020-MNNCombination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-070025-MNNCombination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-070030-MNNCombination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-070035-MNNCombination Direction: A4 | 1st-Axis Stroke: 700 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-075005-MNNCombination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-075010-MNNCombination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-075015-MNNCombination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-075020-MNNCombination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-075025-MNNCombination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-075030-MNNCombination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-075035-MNNCombination Direction: A4 | 1st-Axis Stroke: 750 mm | 2nd-Axis Stroke: 350 mm
ETS-210A4-080005-MNNCombination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 50 mm
ETS-210A4-080010-MNNCombination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 100 mm
ETS-210A4-080015-MNNCombination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 150 mm
ETS-210A4-080020-MNNCombination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 200 mm
ETS-210A4-080025-MNNCombination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 250 mm
ETS-210A4-080030-MNNCombination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 300 mm
ETS-210A4-080035-MNNCombination Direction: A4 | 1st-Axis Stroke: 800 mm | 2nd-Axis Stroke: 350 mm
ETS-210A1Legacy code: base combination ETS-210A1 | Combination Direction: A1 | 1st-Axis Stroke: All | 2nd-Axis Stroke: All
ETS-210A2Legacy code: base combination ETS-210A2 | Combination Direction: A2 | 1st-Axis Stroke: All | 2nd-Axis Stroke: All
ETS-210A3Legacy code: base combination ETS-210A3 | Combination Direction: A3 | 1st-Axis Stroke: All | 2nd-Axis Stroke: All
ETS-210A4Legacy code: base combination ETS-210A4 | Combination Direction: A4 | 1st-Axis Stroke: All | 2nd-Axis Stroke: All

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
