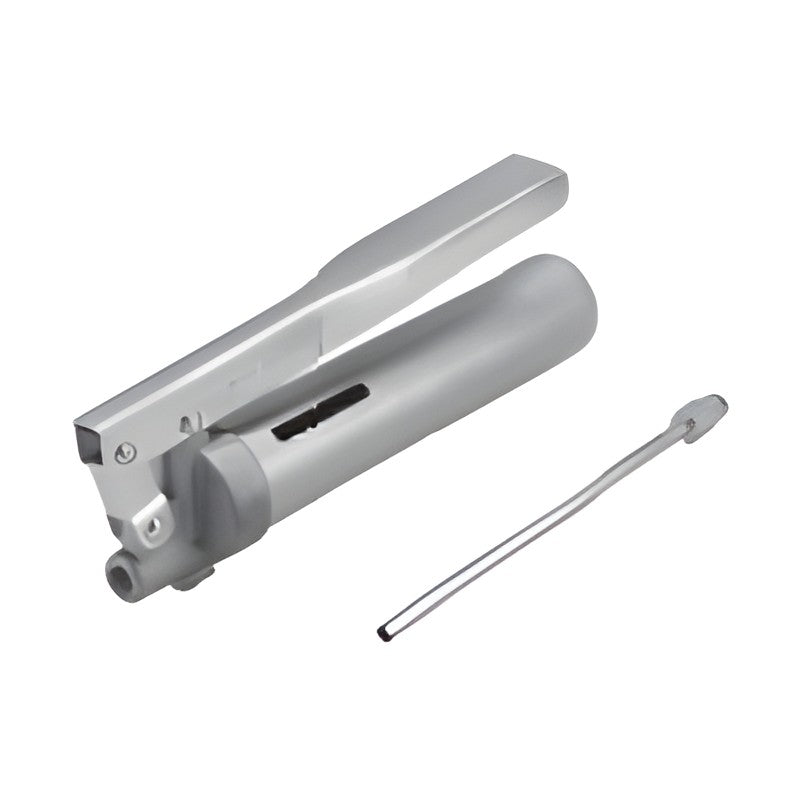

THK MG70 Grease Gun Unit (for 70 g / 80 g Bellows Cartridges)

THK MG70 is a compact grease gun unit dedicated to THK 70 g and 80 g bellows grease cartridges for clean, easy relubrication of LM system products.

Key features

Max discharge pressure 19.6 MPa; 0.6 cm3 per stroke
Slit window shows remaining grease at a glance
Supplied with H-type nozzle, dedicated U-type nozzle and N/P/L-type attachments
Fits nipples of LM guides, cam followers, rod ends and ball screws
Overall length 235 mm, mass 480 g (with nozzle, without grease)

Specifications

Brand	THK
Model	MG70
Cartridge	70 g / 80 g bellows
Discharge pressure	Max 19.6 MPa
Discharge volume	0.6 cm3/stroke
Length	235 mm (without nozzle)
Mass	480 g
Source	THK General Catalog Lubrication (Korean ed. 515-2K), p. A24-33

MG70

Model: MG70 grease gun unit | Cartridge: 70/80 g bellows | Pressure: 19.6 MPa max | Included: H, U nozzles; N/P/L attachments

Lubrication AccessoriesTHK

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK MG70 Grease Gun Unit (for 70 g / 80 g Bellows Cartridges)

Brand THK·Lubrication Accessories

Available part numbers (1)

MG70

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
