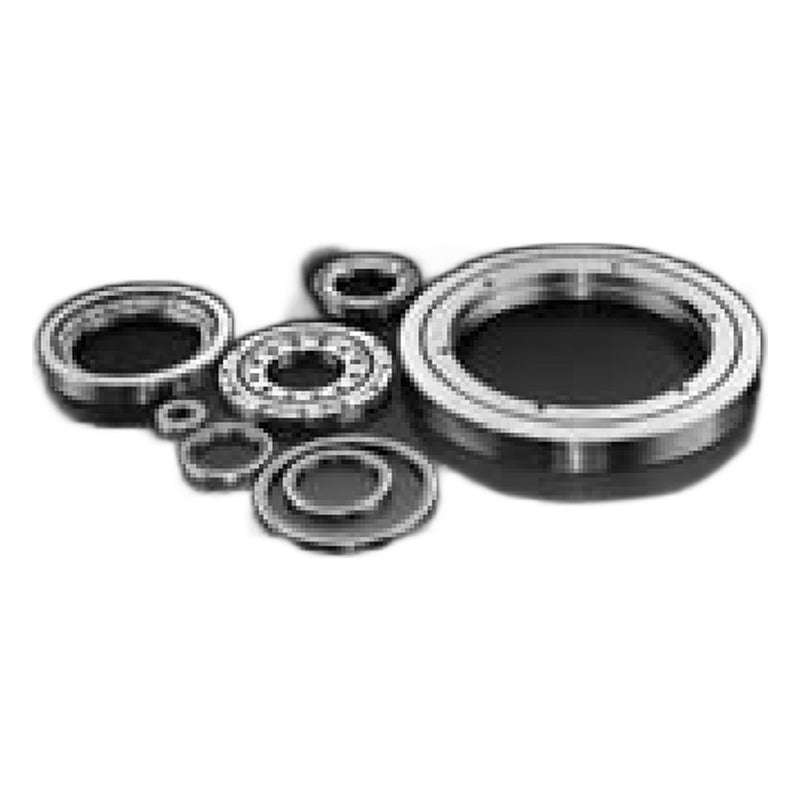

THK RE Cross Roller Ring (Split Inner Ring, Bore 140-300 mm) - Part 2

THK RE Cross Roller Ring (Split Inner Ring, Bore 140-300 mm) - Part 2

THK RE cross roller rings (split inner ring type) carry radial, axial and moment loads with a single bearing; this listing covers bore 140 to 300 mm.

Key features

  • Crossed cylindrical rollers between 90-degree V-grooves support loads in all directions
  • Spacer retainers prevent roller skew and friction, giving low and stable rotational torque
  • Split Inner Ring; the outer ring is one-piece, so use the outer ring for rotation when accuracy matters
  • Compact width saves space compared with combined angular contact bearings
  • Seal options UU (both sides) and U (one side); radial clearance CC0, C0, C1
  • Accuracy classes 0, P6-P2 and PE6-PE2 (rotation + dimensional); grades marked special in the catalog are on request

Specifications

Brand THK
Series RE cross roller ring
Structure Split Inner Ring
Rolling elements Crossed cylindrical rollers with spacer retainer
Size format Bore d x OD D x width B
Code format RE20030 UU CC0 P5 (model, seal, clearance, accuracy)
Source THK General Catalog Cross Roller Ring (Korean ed. 515-2K), p. A18-13-A18-40
RE20025 U C1 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20025 U C1 P6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20025 U C1 P5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20025 U C1 P4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20025 U C1 P2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20025 U C1 PE6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20025 U C1 PE5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20025 U C1 PE4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20025 U C1 PE2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 Base model (specify seal, clearance, accuracy) | Size: 200x280x30 mm | C/C0: 114/200 kN
RE20030 CC0 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE20030 CC0 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE20030 CC0 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE20030 CC0 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE20030 CC0 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE20030 CC0 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 CC0 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 CC0 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 CC0 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 C0 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE20030 C0 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE20030 C0 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE20030 C0 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE20030 C0 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE20030 C0 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 C0 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 C0 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 C0 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 C1 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20030 C1 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20030 C1 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20030 C1 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20030 C1 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20030 C1 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 C1 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 C1 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 C1 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 UU CC0 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE20030 UU CC0 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE20030 UU CC0 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE20030 UU CC0 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE20030 UU CC0 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE20030 UU CC0 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 UU CC0 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 UU CC0 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 UU CC0 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 UU C0 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE20030 UU C0 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE20030 UU C0 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE20030 UU C0 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE20030 UU C0 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE20030 UU C0 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 UU C0 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 UU C0 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 UU C0 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 UU C1 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20030 UU C1 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20030 UU C1 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20030 UU C1 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20030 UU C1 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20030 UU C1 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 UU C1 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 UU C1 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 UU C1 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 U CC0 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE20030 U CC0 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE20030 U CC0 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE20030 U CC0 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE20030 U CC0 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE20030 U CC0 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 U CC0 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 U CC0 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 U CC0 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 U C0 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE20030 U C0 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE20030 U C0 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE20030 U C0 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE20030 U C0 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE20030 U C0 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 U C0 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 U C0 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 U C0 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 U C1 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20030 U C1 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20030 U C1 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20030 U C1 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20030 U C1 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20030 U C1 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 U C1 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 U C1 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 U C1 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 Base model (specify seal, clearance, accuracy) | Size: 200x295x35 mm | C/C0: 151/252 kN
RE20035 CC0 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE20035 CC0 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE20035 CC0 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE20035 CC0 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE20035 CC0 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE20035 CC0 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 CC0 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 CC0 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 CC0 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 C0 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE20035 C0 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE20035 C0 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE20035 C0 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE20035 C0 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE20035 C0 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 C0 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 C0 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 C0 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 C1 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20035 C1 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20035 C1 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20035 C1 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20035 C1 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20035 C1 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 C1 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 C1 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 C1 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 UU CC0 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE20035 UU CC0 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE20035 UU CC0 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE20035 UU CC0 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE20035 UU CC0 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE20035 UU CC0 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 UU CC0 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 UU CC0 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 UU CC0 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 UU C0 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE20035 UU C0 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE20035 UU C0 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE20035 UU C0 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE20035 UU C0 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE20035 UU C0 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 UU C0 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 UU C0 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 UU C0 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 UU C1 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20035 UU C1 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20035 UU C1 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20035 UU C1 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20035 UU C1 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20035 UU C1 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 UU C1 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 UU C1 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 UU C1 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 U CC0 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE20035 U CC0 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE20035 U CC0 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE20035 U CC0 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE20035 U CC0 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE20035 U CC0 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 U CC0 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 U CC0 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 U CC0 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 U C0 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE20035 U C0 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE20035 U C0 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE20035 U C0 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE20035 U C0 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE20035 U C0 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 U C0 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 U C0 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 U C0 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 U C1 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20035 U C1 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20035 U C1 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20035 U C1 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20035 U C1 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20035 U C1 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 U C1 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 U C1 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 U C1 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 Base model (specify seal, clearance, accuracy) | Size: 220x280x25 mm | C/C0: 92.3/171 kN
RE22025 CC0 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE22025 CC0 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE22025 CC0 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE22025 CC0 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE22025 CC0 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE22025 CC0 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 CC0 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 CC0 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 CC0 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 C0 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE22025 C0 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE22025 C0 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE22025 C0 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE22025 C0 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE22025 C0 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 C0 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 C0 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 C0 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 C1 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE22025 C1 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE22025 C1 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE22025 C1 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE22025 C1 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE22025 C1 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 C1 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 C1 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 C1 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 UU CC0 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE22025 UU CC0 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE22025 UU CC0 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE22025 UU CC0 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE22025 UU CC0 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE22025 UU CC0 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 UU CC0 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 UU CC0 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 UU CC0 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 UU C0 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE22025 UU C0 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE22025 UU C0 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE22025 UU C0 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE22025 UU C0 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE22025 UU C0 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 UU C0 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 UU C0 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 UU C0 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 UU C1 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE22025 UU C1 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE22025 UU C1 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE22025 UU C1 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE22025 UU C1 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE22025 UU C1 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 UU C1 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 UU C1 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 UU C1 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 U CC0 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE22025 U CC0 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE22025 U CC0 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE22025 U CC0 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE22025 U CC0 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE22025 U CC0 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 U CC0 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 U CC0 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 U CC0 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 U C0 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE22025 U C0 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE22025 U C0 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE22025 U C0 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE22025 U C0 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE22025 U C0 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 U C0 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 U C0 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 U C0 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 U C1 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE22025 U C1 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE22025 U C1 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE22025 U C1 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE22025 U C1 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE22025 U C1 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 U C1 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 U C1 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 U C1 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 Base model (specify seal, clearance, accuracy) | Size: 240x300x25 mm | C/C0: 68.3/145 kN
RE24025 CC0 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE24025 CC0 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE24025 CC0 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE24025 CC0 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE24025 CC0 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE24025 CC0 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 CC0 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 CC0 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 CC0 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 C0 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE24025 C0 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE24025 C0 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE24025 C0 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE24025 C0 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE24025 C0 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 C0 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 C0 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 C0 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 C1 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE24025 C1 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE24025 C1 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE24025 C1 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE24025 C1 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE24025 C1 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 C1 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 C1 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 C1 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 UU CC0 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE24025 UU CC0 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE24025 UU CC0 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE24025 UU CC0 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE24025 UU CC0 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE24025 UU CC0 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 UU CC0 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 UU CC0 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 UU CC0 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 UU C0 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE24025 UU C0 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE24025 UU C0 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE24025 UU C0 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE24025 UU C0 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE24025 UU C0 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 UU C0 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 UU C0 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 UU C0 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 UU C1 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE24025 UU C1 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE24025 UU C1 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE24025 UU C1 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE24025 UU C1 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE24025 UU C1 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 UU C1 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 UU C1 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 UU C1 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 U CC0 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE24025 U CC0 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE24025 U CC0 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE24025 U CC0 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE24025 U CC0 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE24025 U CC0 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 U CC0 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 U CC0 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 U CC0 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 U C0 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE24025 U C0 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE24025 U C0 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE24025 U C0 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE24025 U C0 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE24025 U C0 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 U C0 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 U C0 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 U C0 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 U C1 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE24025 U C1 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE24025 U C1 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE24025 U C1 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE24025 U C1 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE24025 U C1 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 U C1 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 U C1 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 U C1 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 Base model (specify seal, clearance, accuracy) | Size: 250x310x25 mm | C/C0: 69.3/150 kN
RE25025 CC0 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25025 CC0 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25025 CC0 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25025 CC0 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25025 CC0 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25025 CC0 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 CC0 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 CC0 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 CC0 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 C0 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25025 C0 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25025 C0 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25025 C0 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25025 C0 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25025 C0 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 C0 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 C0 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 C0 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 C1 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25025 C1 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25025 C1 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25025 C1 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25025 C1 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25025 C1 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 C1 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 C1 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 C1 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 UU CC0 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25025 UU CC0 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25025 UU CC0 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25025 UU CC0 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25025 UU CC0 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25025 UU CC0 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 UU CC0 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 UU CC0 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 UU CC0 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 UU C0 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25025 UU C0 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25025 UU C0 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25025 UU C0 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25025 UU C0 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25025 UU C0 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 UU C0 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 UU C0 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 UU C0 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 UU C1 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25025 UU C1 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25025 UU C1 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25025 UU C1 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25025 UU C1 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25025 UU C1 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 UU C1 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 UU C1 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 UU C1 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 U CC0 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25025 U CC0 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25025 U CC0 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25025 U CC0 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25025 U CC0 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25025 U CC0 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 U CC0 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 U CC0 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 U CC0 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 U C0 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25025 U C0 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25025 U C0 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25025 U C0 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25025 U C0 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25025 U C0 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 U C0 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 U C0 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 U C0 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 U C1 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25025 U C1 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25025 U C1 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25025 U C1 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25025 U C1 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25025 U C1 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 U C1 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 U C1 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 U C1 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 Base model (specify seal, clearance, accuracy) | Size: 250x330x30 mm | C/C0: 126/244 kN
RE25030 CC0 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25030 CC0 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25030 CC0 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25030 CC0 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25030 CC0 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25030 CC0 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 CC0 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 CC0 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 CC0 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 C0 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25030 C0 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25030 C0 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25030 C0 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25030 C0 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25030 C0 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 C0 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 C0 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 C0 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 C1 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25030 C1 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25030 C1 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25030 C1 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25030 C1 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25030 C1 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 C1 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 C1 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 C1 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 UU CC0 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25030 UU CC0 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25030 UU CC0 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25030 UU CC0 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25030 UU CC0 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25030 UU CC0 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 UU CC0 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 UU CC0 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 UU CC0 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 UU C0 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25030 UU C0 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25030 UU C0 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25030 UU C0 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25030 UU C0 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25030 UU C0 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 UU C0 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 UU C0 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 UU C0 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 UU C1 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25030 UU C1 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25030 UU C1 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25030 UU C1 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25030 UU C1 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25030 UU C1 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 UU C1 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 UU C1 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 UU C1 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 U CC0 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25030 U CC0 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25030 U CC0 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25030 U CC0 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25030 U CC0 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25030 U CC0 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 U CC0 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 U CC0 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 U CC0 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 U C0 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25030 U C0 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25030 U C0 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25030 U C0 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25030 U C0 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25030 U C0 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 U C0 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 U C0 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 U C0 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 U C1 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25030 U C1 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25030 U C1 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25030 U C1 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25030 U C1 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25030 U C1 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 U C1 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 U C1 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 U C1 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 Base model (specify seal, clearance, accuracy) | Size: 250x355x40 mm | C/C0: 195/348 kN
RE25040 CC0 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25040 CC0 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25040 CC0 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25040 CC0 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25040 CC0 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25040 CC0 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 CC0 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 CC0 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 CC0 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 C0 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25040 C0 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25040 C0 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25040 C0 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25040 C0 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25040 C0 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 C0 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 C0 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 C0 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 C1 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25040 C1 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25040 C1 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25040 C1 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25040 C1 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25040 C1 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 C1 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 C1 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 C1 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 UU CC0 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25040 UU CC0 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25040 UU CC0 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25040 UU CC0 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25040 UU CC0 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25040 UU CC0 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 UU CC0 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 UU CC0 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 UU CC0 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 UU C0 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25040 UU C0 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25040 UU C0 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25040 UU C0 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25040 UU C0 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25040 UU C0 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 UU C0 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 UU C0 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 UU C0 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 UU C1 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25040 UU C1 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25040 UU C1 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25040 UU C1 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25040 UU C1 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25040 UU C1 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 UU C1 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 UU C1 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 UU C1 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 U CC0 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25040 U CC0 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25040 U CC0 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25040 U CC0 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25040 U CC0 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25040 U CC0 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 U CC0 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 U CC0 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 U CC0 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 U C0 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25040 U C0 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25040 U C0 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25040 U C0 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25040 U C0 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25040 U C0 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 U C0 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 U C0 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 U C0 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 U C1 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25040 U C1 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25040 U C1 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25040 U C1 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25040 U C1 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25040 U C1 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 U C1 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 U C1 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 U C1 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 Base model (specify seal, clearance, accuracy) | Size: 300x360x25 mm | C/C0: 75.5/178 kN
RE30025 CC0 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30025 CC0 P6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30025 CC0 P5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30025 CC0 P4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30025 CC0 P2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE30025 CC0 PE6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 CC0 PE5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 CC0 PE4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 CC0 PE2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 C0 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30025 C0 P6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30025 C0 P5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30025 C0 P4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30025 C0 P2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE30025 C0 PE6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 C0 PE5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 C0 PE4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 C0 PE2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 C1 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30025 C1 P6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30025 C1 P5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30025 C1 P4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30025 C1 P2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE30025 C1 PE6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 C1 PE5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 C1 PE4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 C1 PE2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 UU CC0 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30025 UU CC0 P6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30025 UU CC0 P5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30025 UU CC0 P4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30025 UU CC0 P2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE30025 UU CC0 PE6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 UU CC0 PE5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 UU CC0 PE4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 UU CC0 PE2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 UU C0 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30025 UU C0 P6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30025 UU C0 P5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30025 UU C0 P4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30025 UU C0 P2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE30025 UU C0 PE6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 UU C0 PE5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 UU C0 PE4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 UU C0 PE2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 UU C1 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30025 UU C1 P6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30025 UU C1 P5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30025 UU C1 P4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30025 UU C1 P2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE30025 UU C1 PE6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 UU C1 PE5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 UU C1 PE4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 UU C1 PE2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 U CC0 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30025 U CC0 P6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30025 U CC0 P5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30025 U CC0 P4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30025 U CC0 P2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE30025 U CC0 PE6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 U CC0 PE5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 U CC0 PE4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 U CC0 PE2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 U C0 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30025 U C0 P6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30025 U C0 P5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30025 U C0 P4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30025 U C0 P2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE30025 U C0 PE6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 U C0 PE5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 U C0 PE4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 U C0 PE2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 U C1 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30025 U C1 P6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30025 U C1 P5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30025 U C1 P4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30025 U C1 P2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE30025 U C1 PE6 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 U C1 PE5 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 U C1 PE4 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 U C1 PE2 Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 Base model (specify seal, clearance, accuracy) | Size: 300x395x35 mm | C/C0: 183/367 kN
RE30035 CC0 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30035 CC0 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30035 CC0 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30035 CC0 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30035 CC0 P2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE30035 CC0 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 CC0 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 CC0 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 CC0 PE2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 C0 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30035 C0 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30035 C0 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30035 C0 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30035 C0 P2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE30035 C0 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 C0 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 C0 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 C0 PE2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 C1 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30035 C1 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30035 C1 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30035 C1 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30035 C1 P2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE30035 C1 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 C1 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 C1 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 C1 PE2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 UU CC0 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30035 UU CC0 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30035 UU CC0 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30035 UU CC0 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30035 UU CC0 P2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE30035 UU CC0 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 UU CC0 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 UU CC0 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 UU CC0 PE2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 UU C0 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30035 UU C0 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30035 UU C0 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30035 UU C0 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30035 UU C0 P2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE30035 UU C0 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 UU C0 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 UU C0 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 UU C0 PE2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 UU C1 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30035 UU C1 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30035 UU C1 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30035 UU C1 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30035 UU C1 P2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE30035 UU C1 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 UU C1 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 UU C1 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 UU C1 PE2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 U CC0 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30035 U CC0 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30035 U CC0 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30035 U CC0 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30035 U CC0 P2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE30035 U CC0 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 U CC0 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 U CC0 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 U CC0 PE2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 U C0 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30035 U C0 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30035 U C0 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30035 U C0 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30035 U C0 P2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE30035 U C0 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 U C0 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 U C0 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 U C0 PE2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 U C1 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30035 U C1 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30035 U C1 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30035 U C1 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30035 U C1 P2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE30035 U C1 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 U C1 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 U C1 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 U C1 PE2 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30040 Base model (specify seal, clearance, accuracy) | Size: 300x405x40 mm | C/C0: 212/409 kN
RE30040 CC0 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30040 CC0 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30040 CC0 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30040 CC0 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30040 CC0 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 CC0 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 CC0 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 C0 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30040 C0 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30040 C0 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30040 C0 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30040 C0 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 C0 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 C0 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 C1 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30040 C1 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30040 C1 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30040 C1 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30040 C1 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 C1 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 C1 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 UU CC0 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30040 UU CC0 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30040 UU CC0 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30040 UU CC0 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30040 UU CC0 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 UU CC0 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 UU CC0 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 UU C0 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30040 UU C0 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30040 UU C0 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30040 UU C0 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30040 UU C0 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 UU C0 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 UU C0 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 UU C1 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30040 UU C1 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30040 UU C1 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30040 UU C1 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30040 UU C1 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 UU C1 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 UU C1 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 U CC0 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30040 U CC0 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30040 U CC0 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30040 U CC0 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30040 U CC0 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 U CC0 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 U CC0 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 U C0 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30040 U C0 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30040 U C0 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30040 U C0 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30040 U C0 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 U C0 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 U C0 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 U C1 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30040 U C1 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30040 U C1 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30040 U C1 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30040 U C1 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 U C1 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 U C1 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
Cross Roller RingsTHK
811 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK RE Cross Roller Ring (Split Inner Ring, Bore 140-300 mm) - Part 2

Brand THK·Cross Roller Rings

Available part numbers (811)

RE20025 U C1, RE20025 U C1 P6, RE20025 U C1 P5, RE20025 U C1 P4, RE20025 U C1 P2, RE20025 U C1 PE6, RE20025 U C1 PE5, RE20025 U C1 PE4, RE20025 U C1 PE2, RE20030 + 801 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RE20025 U C1Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20025 U C1 P6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20025 U C1 P5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20025 U C1 P4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20025 U C1 P2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20025 U C1 PE6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20025 U C1 PE5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20025 U C1 PE4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20025 U C1 PE2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030Base model (specify seal, clearance, accuracy) | Size: 200x280x30 mm | C/C0: 114/200 kN
RE20030 CC0Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE20030 CC0 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE20030 CC0 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE20030 CC0 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE20030 CC0 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE20030 CC0 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 CC0 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 CC0 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 CC0 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 C0Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE20030 C0 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE20030 C0 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE20030 C0 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE20030 C0 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE20030 C0 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 C0 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 C0 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 C0 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 C1Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20030 C1 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20030 C1 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20030 C1 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20030 C1 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20030 C1 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 C1 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 C1 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 C1 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 UU CC0Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE20030 UU CC0 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE20030 UU CC0 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE20030 UU CC0 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE20030 UU CC0 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE20030 UU CC0 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 UU CC0 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 UU CC0 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 UU CC0 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 UU C0Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE20030 UU C0 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE20030 UU C0 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE20030 UU C0 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE20030 UU C0 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE20030 UU C0 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 UU C0 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 UU C0 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 UU C0 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 UU C1Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20030 UU C1 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20030 UU C1 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20030 UU C1 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20030 UU C1 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20030 UU C1 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 UU C1 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 UU C1 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 UU C1 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 U CC0Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE20030 U CC0 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE20030 U CC0 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE20030 U CC0 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE20030 U CC0 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE20030 U CC0 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 U CC0 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 U CC0 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 U CC0 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 U C0Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE20030 U C0 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE20030 U C0 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE20030 U C0 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE20030 U C0 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE20030 U C0 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 U C0 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 U C0 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 U C0 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20030 U C1Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20030 U C1 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20030 U C1 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20030 U C1 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20030 U C1 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20030 U C1 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20030 U C1 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20030 U C1 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20030 U C1 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035Base model (specify seal, clearance, accuracy) | Size: 200x295x35 mm | C/C0: 151/252 kN
RE20035 CC0Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE20035 CC0 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE20035 CC0 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE20035 CC0 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE20035 CC0 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE20035 CC0 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 CC0 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 CC0 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 CC0 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 C0Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE20035 C0 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE20035 C0 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE20035 C0 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE20035 C0 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE20035 C0 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 C0 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 C0 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 C0 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 C1Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20035 C1 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20035 C1 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20035 C1 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20035 C1 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20035 C1 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 C1 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 C1 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 C1 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 UU CC0Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE20035 UU CC0 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE20035 UU CC0 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE20035 UU CC0 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE20035 UU CC0 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE20035 UU CC0 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 UU CC0 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 UU CC0 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 UU CC0 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 UU C0Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE20035 UU C0 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE20035 UU C0 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE20035 UU C0 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE20035 UU C0 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE20035 UU C0 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 UU C0 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 UU C0 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 UU C0 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 UU C1Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20035 UU C1 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20035 UU C1 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20035 UU C1 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20035 UU C1 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20035 UU C1 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 UU C1 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 UU C1 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 UU C1 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 U CC0Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE20035 U CC0 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE20035 U CC0 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE20035 U CC0 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE20035 U CC0 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE20035 U CC0 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 U CC0 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 U CC0 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 U CC0 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 U C0Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE20035 U C0 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE20035 U C0 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE20035 U C0 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE20035 U C0 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE20035 U C0 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 U C0 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 U C0 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 U C0 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE20035 U C1Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE20035 U C1 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE20035 U C1 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE20035 U C1 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE20035 U C1 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE20035 U C1 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE20035 U C1 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE20035 U C1 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE20035 U C1 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025Base model (specify seal, clearance, accuracy) | Size: 220x280x25 mm | C/C0: 92.3/171 kN
RE22025 CC0Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE22025 CC0 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE22025 CC0 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE22025 CC0 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE22025 CC0 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE22025 CC0 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 CC0 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 CC0 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 CC0 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 C0Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE22025 C0 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE22025 C0 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE22025 C0 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE22025 C0 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE22025 C0 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 C0 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 C0 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 C0 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 C1Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE22025 C1 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE22025 C1 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE22025 C1 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE22025 C1 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE22025 C1 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 C1 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 C1 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 C1 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 UU CC0Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE22025 UU CC0 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE22025 UU CC0 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE22025 UU CC0 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE22025 UU CC0 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE22025 UU CC0 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 UU CC0 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 UU CC0 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 UU CC0 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 UU C0Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE22025 UU C0 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE22025 UU C0 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE22025 UU C0 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE22025 UU C0 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE22025 UU C0 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 UU C0 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 UU C0 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 UU C0 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 UU C1Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE22025 UU C1 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE22025 UU C1 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE22025 UU C1 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE22025 UU C1 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE22025 UU C1 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 UU C1 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 UU C1 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 UU C1 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 U CC0Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE22025 U CC0 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE22025 U CC0 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE22025 U CC0 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE22025 U CC0 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE22025 U CC0 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 U CC0 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 U CC0 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 U CC0 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 U C0Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE22025 U C0 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE22025 U C0 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE22025 U C0 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE22025 U C0 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE22025 U C0 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 U C0 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 U C0 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 U C0 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE22025 U C1Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE22025 U C1 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE22025 U C1 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE22025 U C1 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE22025 U C1 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE22025 U C1 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE22025 U C1 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE22025 U C1 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE22025 U C1 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025Base model (specify seal, clearance, accuracy) | Size: 240x300x25 mm | C/C0: 68.3/145 kN
RE24025 CC0Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE24025 CC0 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE24025 CC0 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE24025 CC0 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE24025 CC0 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE24025 CC0 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 CC0 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 CC0 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 CC0 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 C0Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE24025 C0 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE24025 C0 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE24025 C0 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE24025 C0 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE24025 C0 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 C0 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 C0 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 C0 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 C1Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE24025 C1 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE24025 C1 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE24025 C1 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE24025 C1 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE24025 C1 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 C1 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 C1 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 C1 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 UU CC0Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE24025 UU CC0 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE24025 UU CC0 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE24025 UU CC0 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE24025 UU CC0 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE24025 UU CC0 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 UU CC0 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 UU CC0 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 UU CC0 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 UU C0Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE24025 UU C0 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE24025 UU C0 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE24025 UU C0 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE24025 UU C0 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE24025 UU C0 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 UU C0 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 UU C0 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 UU C0 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 UU C1Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE24025 UU C1 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE24025 UU C1 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE24025 UU C1 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE24025 UU C1 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE24025 UU C1 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 UU C1 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 UU C1 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 UU C1 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 U CC0Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE24025 U CC0 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE24025 U CC0 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE24025 U CC0 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE24025 U CC0 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE24025 U CC0 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 U CC0 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 U CC0 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 U CC0 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 U C0Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE24025 U C0 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE24025 U C0 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE24025 U C0 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE24025 U C0 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE24025 U C0 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 U C0 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 U C0 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 U C0 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE24025 U C1Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE24025 U C1 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE24025 U C1 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE24025 U C1 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE24025 U C1 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE24025 U C1 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE24025 U C1 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE24025 U C1 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE24025 U C1 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025Base model (specify seal, clearance, accuracy) | Size: 250x310x25 mm | C/C0: 69.3/150 kN
RE25025 CC0Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25025 CC0 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25025 CC0 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25025 CC0 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25025 CC0 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25025 CC0 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 CC0 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 CC0 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 CC0 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 C0Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25025 C0 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25025 C0 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25025 C0 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25025 C0 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25025 C0 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 C0 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 C0 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 C0 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 C1Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25025 C1 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25025 C1 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25025 C1 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25025 C1 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25025 C1 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 C1 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 C1 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 C1 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 UU CC0Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25025 UU CC0 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25025 UU CC0 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25025 UU CC0 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25025 UU CC0 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25025 UU CC0 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 UU CC0 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 UU CC0 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 UU CC0 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 UU C0Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25025 UU C0 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25025 UU C0 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25025 UU C0 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25025 UU C0 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25025 UU C0 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 UU C0 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 UU C0 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 UU C0 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 UU C1Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25025 UU C1 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25025 UU C1 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25025 UU C1 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25025 UU C1 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25025 UU C1 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 UU C1 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 UU C1 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 UU C1 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 U CC0Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25025 U CC0 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25025 U CC0 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25025 U CC0 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25025 U CC0 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25025 U CC0 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 U CC0 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 U CC0 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 U CC0 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 U C0Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25025 U C0 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25025 U C0 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25025 U C0 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25025 U C0 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25025 U C0 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 U C0 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 U C0 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 U C0 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25025 U C1Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25025 U C1 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25025 U C1 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25025 U C1 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25025 U C1 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25025 U C1 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25025 U C1 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25025 U C1 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25025 U C1 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030Base model (specify seal, clearance, accuracy) | Size: 250x330x30 mm | C/C0: 126/244 kN
RE25030 CC0Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25030 CC0 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25030 CC0 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25030 CC0 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25030 CC0 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25030 CC0 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 CC0 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 CC0 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 CC0 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 C0Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25030 C0 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25030 C0 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25030 C0 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25030 C0 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25030 C0 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 C0 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 C0 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 C0 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 C1Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25030 C1 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25030 C1 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25030 C1 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25030 C1 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25030 C1 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 C1 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 C1 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 C1 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 UU CC0Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25030 UU CC0 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25030 UU CC0 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25030 UU CC0 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25030 UU CC0 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25030 UU CC0 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 UU CC0 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 UU CC0 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 UU CC0 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 UU C0Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25030 UU C0 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25030 UU C0 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25030 UU C0 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25030 UU C0 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25030 UU C0 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 UU C0 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 UU C0 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 UU C0 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 UU C1Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25030 UU C1 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25030 UU C1 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25030 UU C1 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25030 UU C1 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25030 UU C1 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 UU C1 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 UU C1 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 UU C1 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 U CC0Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25030 U CC0 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25030 U CC0 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25030 U CC0 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25030 U CC0 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25030 U CC0 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 U CC0 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 U CC0 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 U CC0 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 U C0Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25030 U C0 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25030 U C0 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25030 U C0 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25030 U C0 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25030 U C0 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 U C0 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 U C0 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 U C0 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25030 U C1Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25030 U C1 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25030 U C1 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25030 U C1 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25030 U C1 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25030 U C1 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25030 U C1 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25030 U C1 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25030 U C1 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040Base model (specify seal, clearance, accuracy) | Size: 250x355x40 mm | C/C0: 195/348 kN
RE25040 CC0Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25040 CC0 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25040 CC0 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25040 CC0 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25040 CC0 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25040 CC0 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 CC0 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 CC0 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 CC0 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 C0Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25040 C0 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25040 C0 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25040 C0 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25040 C0 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25040 C0 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 C0 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 C0 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 C0 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 C1Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25040 C1 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25040 C1 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25040 C1 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25040 C1 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25040 C1 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 C1 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 C1 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 C1 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 UU CC0Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25040 UU CC0 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25040 UU CC0 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25040 UU CC0 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25040 UU CC0 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25040 UU CC0 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 UU CC0 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 UU CC0 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 UU CC0 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 UU C0Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25040 UU C0 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25040 UU C0 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25040 UU C0 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25040 UU C0 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25040 UU C0 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 UU C0 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 UU C0 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 UU C0 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 UU C1Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25040 UU C1 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25040 UU C1 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25040 UU C1 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25040 UU C1 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25040 UU C1 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 UU C1 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 UU C1 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 UU C1 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 U CC0Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE25040 U CC0 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE25040 U CC0 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE25040 U CC0 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE25040 U CC0 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE25040 U CC0 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 U CC0 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 U CC0 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 U CC0 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 U C0Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE25040 U C0 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE25040 U C0 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE25040 U C0 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE25040 U C0 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE25040 U C0 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 U C0 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 U C0 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 U C0 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE25040 U C1Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE25040 U C1 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE25040 U C1 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE25040 U C1 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE25040 U C1 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE25040 U C1 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE25040 U C1 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE25040 U C1 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE25040 U C1 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025Base model (specify seal, clearance, accuracy) | Size: 300x360x25 mm | C/C0: 75.5/178 kN
RE30025 CC0Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30025 CC0 P6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30025 CC0 P5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30025 CC0 P4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30025 CC0 P2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE30025 CC0 PE6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 CC0 PE5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 CC0 PE4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 CC0 PE2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 C0Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30025 C0 P6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30025 C0 P5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30025 C0 P4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30025 C0 P2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE30025 C0 PE6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 C0 PE5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 C0 PE4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 C0 PE2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 C1Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30025 C1 P6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30025 C1 P5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30025 C1 P4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30025 C1 P2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE30025 C1 PE6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 C1 PE5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 C1 PE4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 C1 PE2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 UU CC0Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30025 UU CC0 P6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30025 UU CC0 P5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30025 UU CC0 P4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30025 UU CC0 P2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE30025 UU CC0 PE6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 UU CC0 PE5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 UU CC0 PE4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 UU CC0 PE2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 UU C0Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30025 UU C0 P6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30025 UU C0 P5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30025 UU C0 P4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30025 UU C0 P2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE30025 UU C0 PE6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 UU C0 PE5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 UU C0 PE4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 UU C0 PE2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 UU C1Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30025 UU C1 P6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30025 UU C1 P5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30025 UU C1 P4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30025 UU C1 P2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE30025 UU C1 PE6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 UU C1 PE5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 UU C1 PE4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 UU C1 PE2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 U CC0Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30025 U CC0 P6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30025 U CC0 P5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30025 U CC0 P4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30025 U CC0 P2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE30025 U CC0 PE6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 U CC0 PE5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 U CC0 PE4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 U CC0 PE2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 U C0Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30025 U C0 P6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30025 U C0 P5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30025 U C0 P4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30025 U C0 P2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE30025 U C0 PE6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 U C0 PE5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 U C0 PE4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 U C0 PE2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30025 U C1Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30025 U C1 P6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30025 U C1 P5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30025 U C1 P4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30025 U C1 P2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE30025 U C1 PE6Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30025 U C1 PE5Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30025 U C1 PE4Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30025 U C1 PE2Size: 300x360x25 mm | C/C0: 75.5/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035Base model (specify seal, clearance, accuracy) | Size: 300x395x35 mm | C/C0: 183/367 kN
RE30035 CC0Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30035 CC0 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30035 CC0 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30035 CC0 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30035 CC0 P2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE30035 CC0 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 CC0 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 CC0 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 CC0 PE2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 C0Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30035 C0 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30035 C0 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30035 C0 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30035 C0 P2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE30035 C0 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 C0 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 C0 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 C0 PE2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 C1Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30035 C1 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30035 C1 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30035 C1 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30035 C1 P2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE30035 C1 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 C1 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 C1 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 C1 PE2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 UU CC0Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30035 UU CC0 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30035 UU CC0 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30035 UU CC0 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30035 UU CC0 P2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE30035 UU CC0 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 UU CC0 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 UU CC0 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 UU CC0 PE2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 UU C0Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30035 UU C0 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30035 UU C0 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30035 UU C0 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30035 UU C0 P2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE30035 UU C0 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 UU C0 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 UU C0 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 UU C0 PE2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 UU C1Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30035 UU C1 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30035 UU C1 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30035 UU C1 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30035 UU C1 P2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE30035 UU C1 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 UU C1 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 UU C1 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 UU C1 PE2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 U CC0Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30035 U CC0 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30035 U CC0 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30035 U CC0 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30035 U CC0 P2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE30035 U CC0 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 U CC0 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 U CC0 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 U CC0 PE2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 U C0Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30035 U C0 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30035 U C0 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30035 U C0 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30035 U C0 P2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE30035 U C0 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 U C0 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 U C0 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 U C0 PE2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30035 U C1Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30035 U C1 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30035 U C1 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30035 U C1 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30035 U C1 P2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE30035 U C1 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30035 U C1 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30035 U C1 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30035 U C1 PE2Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE30040Base model (specify seal, clearance, accuracy) | Size: 300x405x40 mm | C/C0: 212/409 kN
RE30040 CC0Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30040 CC0 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30040 CC0 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30040 CC0 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30040 CC0 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 CC0 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 CC0 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 C0Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30040 C0 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30040 C0 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30040 C0 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30040 C0 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 C0 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 C0 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 C1Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30040 C1 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30040 C1 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30040 C1 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30040 C1 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 C1 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 C1 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 UU CC0Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30040 UU CC0 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30040 UU CC0 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30040 UU CC0 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30040 UU CC0 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 UU CC0 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 UU CC0 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 UU C0Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30040 UU C0 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30040 UU C0 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30040 UU C0 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30040 UU C0 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 UU C0 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 UU C0 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 UU C1Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30040 UU C1 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30040 UU C1 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30040 UU C1 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30040 UU C1 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 UU C1 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 UU C1 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 U CC0Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE30040 U CC0 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE30040 U CC0 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE30040 U CC0 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE30040 U CC0 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 U CC0 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 U CC0 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 U C0Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE30040 U C0 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE30040 U C0 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE30040 U C0 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE30040 U C0 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 U C0 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 U C0 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE30040 U C1Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE30040 U C1 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE30040 U C1 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE30040 U C1 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE30040 U C1 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE30040 U C1 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE30040 U C1 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
