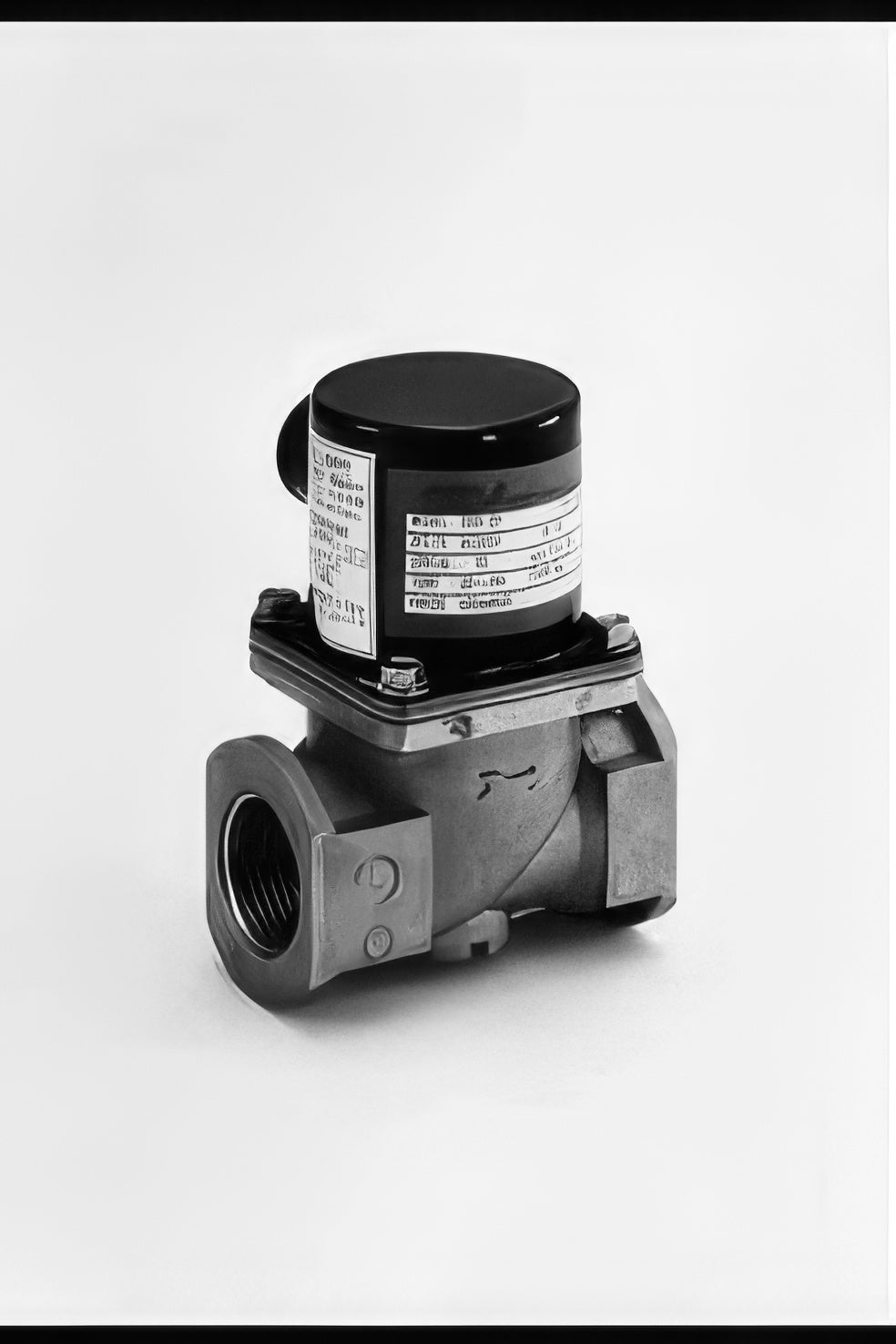

CKD Gas Shut-Off Valve (Quick Open) DSG Series (NC)

CKD Gas Shut-Off Valve (Quick Open) DSG Series (NC)

Normally closed quick-open gas shut-off valve with DC actuator (built-in rectifier) for quiet operation and a built-in strainer.

Key features

  • Rp1/2 to Rp1 ports, working pressure 0 to 5 kPa, JIA type-approved models available

Specifications

Working pressure (kPa) 0-5
Rated voltage AC100V, AC200V
Fluid city gas, natural gas, LPG
DSG-15 Port: Rp1/2 | Flow natural gas, dP 0.25 kPa (m3/h ANR): 9.8 | Cv: 6.6 | Mass (kg): 1.0 | Working pressure (kPa): 0-5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
DSG-20 Port: Rp3/4 | Flow natural gas, dP 0.25 kPa (m3/h ANR): 15.0 | Cv: 10.1 | Mass (kg): 1.2 | Working pressure (kPa): 0-5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
DSG-25 Port: Rp1 | Flow natural gas, dP 0.25 kPa (m3/h ANR): 20.0 | Cv: 13.4 | Mass (kg): 1.2 | Working pressure (kPa): 0-5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
Gas ValvesCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Gas Shut-Off Valve (Quick Open) DSG Series (NC)

Brand CKD·Gas Valves

Available part numbers (3)

DSG-15, DSG-20, DSG-25

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DSG-15Port: Rp1/2 | Flow natural gas, dP 0.25 kPa (m3/h ANR): 9.8 | Cv: 6.6 | Mass (kg): 1.0 | Working pressure (kPa): 0-5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
DSG-20Port: Rp3/4 | Flow natural gas, dP 0.25 kPa (m3/h ANR): 15.0 | Cv: 10.1 | Mass (kg): 1.2 | Working pressure (kPa): 0-5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
DSG-25Port: Rp1 | Flow natural gas, dP 0.25 kPa (m3/h ANR): 20.0 | Cv: 13.4 | Mass (kg): 1.2 | Working pressure (kPa): 0-5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
