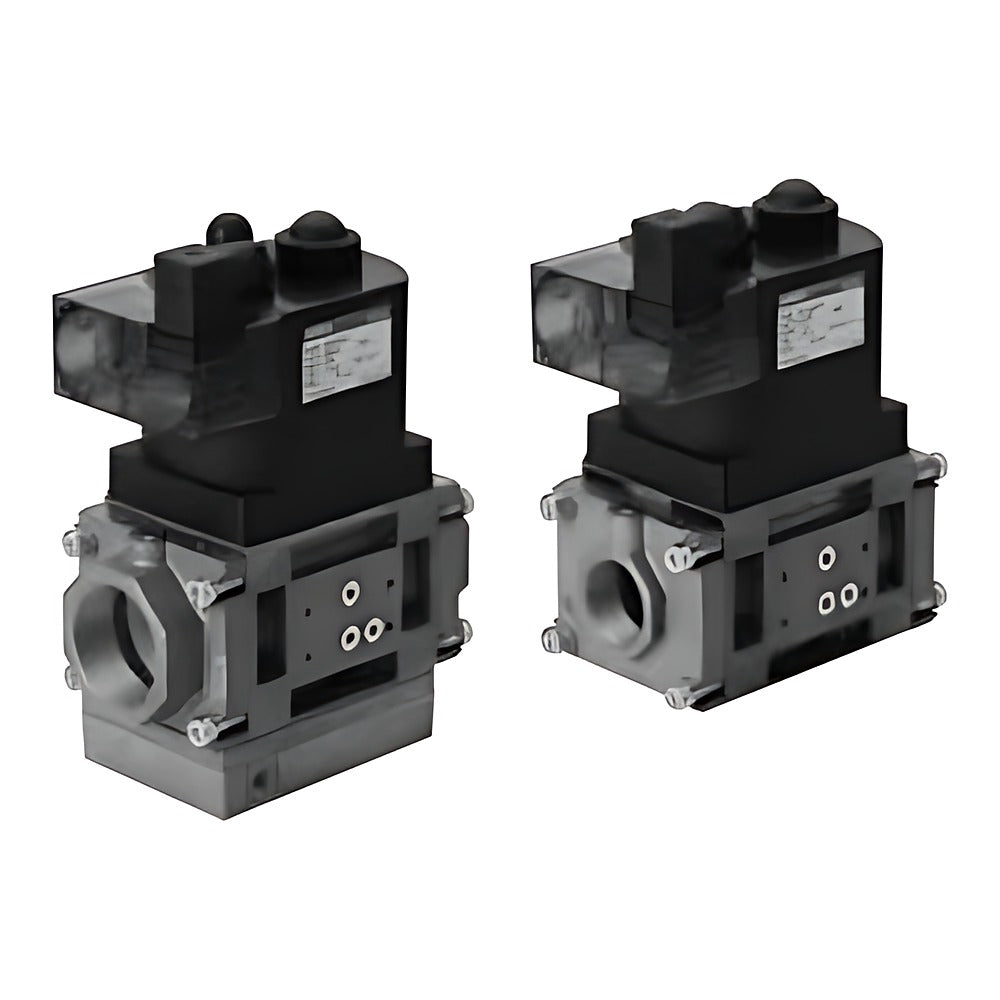

CKD GHV Medium Pressure Gas Combination Valve (NC, Rp1-Rp2)

CKD GHV Medium Pressure Gas Combination Valve (NC, Rp1-Rp2)

Integrated double shut-off gas valve combining two solenoid valves (optionally with built-in governor) in one body for pressures up to 50 kPa.

Key features

  • Two solenoid valves in one body: about 1/3 the footprint (50A, vs CKD conventional)
  • Configurations: G (governor built-in), N (two SVs), L (two SVs, slow open)
  • Flange-changeable connection Rp1 to Rp2; flange sets GHV-FLANGE-D25 to D50
  • Option E: closed-position confirmation switch
  • Conforms to ISO 23551-1 / ISO 23551-2; IP54

Specifications

Function NC
Media City gas, natural gas, LPG
Operating pressure 0 to 50 kPa
Flow 35 to 51 m3/h (ANR, natural gas)
Power consumption 80 VA
Closing time 1.0 s or less
Protection IP54
Source CKD Korea catalog CB-03-1SK-9, p. 1050-1053
GHV-G-D00-AC100V Configuration: Governor SV + SV | Connection: No flange | Closed switch: No | Voltage: AC100V
GHV-G-D00-AC200V Configuration: Governor SV + SV | Connection: No flange | Closed switch: No | Voltage: AC200V
GHV-G-D00-E-AC100V Configuration: Governor SV + SV | Connection: No flange | Closed switch: Yes | Voltage: AC100V
GHV-G-D00-E-AC200V Configuration: Governor SV + SV | Connection: No flange | Closed switch: Yes | Voltage: AC200V
GHV-G-D25-AC100V Configuration: Governor SV + SV | Connection: Rp1 | Closed switch: No | Voltage: AC100V
GHV-G-D25-AC200V Configuration: Governor SV + SV | Connection: Rp1 | Closed switch: No | Voltage: AC200V
GHV-G-D25-E-AC100V Configuration: Governor SV + SV | Connection: Rp1 | Closed switch: Yes | Voltage: AC100V
GHV-G-D25-E-AC200V Configuration: Governor SV + SV | Connection: Rp1 | Closed switch: Yes | Voltage: AC200V
GHV-G-D32-AC100V Configuration: Governor SV + SV | Connection: Rp1-1/4 | Closed switch: No | Voltage: AC100V
GHV-G-D32-AC200V Configuration: Governor SV + SV | Connection: Rp1-1/4 | Closed switch: No | Voltage: AC200V
GHV-G-D32-E-AC100V Configuration: Governor SV + SV | Connection: Rp1-1/4 | Closed switch: Yes | Voltage: AC100V
GHV-G-D32-E-AC200V Configuration: Governor SV + SV | Connection: Rp1-1/4 | Closed switch: Yes | Voltage: AC200V
GHV-G-D40-AC100V Configuration: Governor SV + SV | Connection: Rp1-1/2 | Closed switch: No | Voltage: AC100V
GHV-G-D40-AC200V Configuration: Governor SV + SV | Connection: Rp1-1/2 | Closed switch: No | Voltage: AC200V
GHV-G-D40-E-AC100V Configuration: Governor SV + SV | Connection: Rp1-1/2 | Closed switch: Yes | Voltage: AC100V
GHV-G-D40-E-AC200V Configuration: Governor SV + SV | Connection: Rp1-1/2 | Closed switch: Yes | Voltage: AC200V
GHV-G-D50-AC100V Configuration: Governor SV + SV | Connection: Rp2 | Closed switch: No | Voltage: AC100V
GHV-G-D50-AC200V Configuration: Governor SV + SV | Connection: Rp2 | Closed switch: No | Voltage: AC200V
GHV-G-D50-E-AC100V Configuration: Governor SV + SV | Connection: Rp2 | Closed switch: Yes | Voltage: AC100V
GHV-G-D50-E-AC200V Configuration: Governor SV + SV | Connection: Rp2 | Closed switch: Yes | Voltage: AC200V
GHV-N-D00-AC100V Configuration: SV + SV | Connection: No flange | Closed switch: No | Voltage: AC100V
GHV-N-D00-AC200V Configuration: SV + SV | Connection: No flange | Closed switch: No | Voltage: AC200V
GHV-N-D00-E-AC100V Configuration: SV + SV | Connection: No flange | Closed switch: Yes | Voltage: AC100V
GHV-N-D00-E-AC200V Configuration: SV + SV | Connection: No flange | Closed switch: Yes | Voltage: AC200V
GHV-N-D25-AC100V Configuration: SV + SV | Connection: Rp1 | Closed switch: No | Voltage: AC100V
GHV-N-D25-AC200V Configuration: SV + SV | Connection: Rp1 | Closed switch: No | Voltage: AC200V
GHV-N-D25-E-AC100V Configuration: SV + SV | Connection: Rp1 | Closed switch: Yes | Voltage: AC100V
GHV-N-D25-E-AC200V Configuration: SV + SV | Connection: Rp1 | Closed switch: Yes | Voltage: AC200V
GHV-N-D32-AC100V Configuration: SV + SV | Connection: Rp1-1/4 | Closed switch: No | Voltage: AC100V
GHV-N-D32-AC200V Configuration: SV + SV | Connection: Rp1-1/4 | Closed switch: No | Voltage: AC200V
GHV-N-D32-E-AC100V Configuration: SV + SV | Connection: Rp1-1/4 | Closed switch: Yes | Voltage: AC100V
GHV-N-D32-E-AC200V Configuration: SV + SV | Connection: Rp1-1/4 | Closed switch: Yes | Voltage: AC200V
GHV-N-D40-AC100V Configuration: SV + SV | Connection: Rp1-1/2 | Closed switch: No | Voltage: AC100V
GHV-N-D40-AC200V Configuration: SV + SV | Connection: Rp1-1/2 | Closed switch: No | Voltage: AC200V
GHV-N-D40-E-AC100V Configuration: SV + SV | Connection: Rp1-1/2 | Closed switch: Yes | Voltage: AC100V
GHV-N-D40-E-AC200V Configuration: SV + SV | Connection: Rp1-1/2 | Closed switch: Yes | Voltage: AC200V
GHV-N-D50-AC100V Configuration: SV + SV | Connection: Rp2 | Closed switch: No | Voltage: AC100V
GHV-N-D50-AC200V Configuration: SV + SV | Connection: Rp2 | Closed switch: No | Voltage: AC200V
GHV-N-D50-E-AC100V Configuration: SV + SV | Connection: Rp2 | Closed switch: Yes | Voltage: AC100V
GHV-N-D50-E-AC200V Configuration: SV + SV | Connection: Rp2 | Closed switch: Yes | Voltage: AC200V
GHV-L-D00-AC100V Configuration: SV + SV (slow open) | Connection: No flange | Closed switch: No | Voltage: AC100V
GHV-L-D00-AC200V Configuration: SV + SV (slow open) | Connection: No flange | Closed switch: No | Voltage: AC200V
GHV-L-D00-E-AC100V Configuration: SV + SV (slow open) | Connection: No flange | Closed switch: Yes | Voltage: AC100V
GHV-L-D00-E-AC200V Configuration: SV + SV (slow open) | Connection: No flange | Closed switch: Yes | Voltage: AC200V
GHV-L-D25-AC100V Configuration: SV + SV (slow open) | Connection: Rp1 | Closed switch: No | Voltage: AC100V
GHV-L-D25-AC200V Configuration: SV + SV (slow open) | Connection: Rp1 | Closed switch: No | Voltage: AC200V
GHV-L-D25-E-AC100V Configuration: SV + SV (slow open) | Connection: Rp1 | Closed switch: Yes | Voltage: AC100V
GHV-L-D25-E-AC200V Configuration: SV + SV (slow open) | Connection: Rp1 | Closed switch: Yes | Voltage: AC200V
GHV-L-D32-AC100V Configuration: SV + SV (slow open) | Connection: Rp1-1/4 | Closed switch: No | Voltage: AC100V
GHV-L-D32-AC200V Configuration: SV + SV (slow open) | Connection: Rp1-1/4 | Closed switch: No | Voltage: AC200V
GHV-L-D32-E-AC100V Configuration: SV + SV (slow open) | Connection: Rp1-1/4 | Closed switch: Yes | Voltage: AC100V
GHV-L-D32-E-AC200V Configuration: SV + SV (slow open) | Connection: Rp1-1/4 | Closed switch: Yes | Voltage: AC200V
GHV-L-D40-AC100V Configuration: SV + SV (slow open) | Connection: Rp1-1/2 | Closed switch: No | Voltage: AC100V
GHV-L-D40-AC200V Configuration: SV + SV (slow open) | Connection: Rp1-1/2 | Closed switch: No | Voltage: AC200V
GHV-L-D40-E-AC100V Configuration: SV + SV (slow open) | Connection: Rp1-1/2 | Closed switch: Yes | Voltage: AC100V
GHV-L-D40-E-AC200V Configuration: SV + SV (slow open) | Connection: Rp1-1/2 | Closed switch: Yes | Voltage: AC200V
GHV-L-D50-AC100V Configuration: SV + SV (slow open) | Connection: Rp2 | Closed switch: No | Voltage: AC100V
GHV-L-D50-AC200V Configuration: SV + SV (slow open) | Connection: Rp2 | Closed switch: No | Voltage: AC200V
GHV-L-D50-E-AC100V Configuration: SV + SV (slow open) | Connection: Rp2 | Closed switch: Yes | Voltage: AC100V
GHV-L-D50-E-AC200V Configuration: SV + SV (slow open) | Connection: Rp2 | Closed switch: Yes | Voltage: AC200V
GHV-FLANGE-D25 Configuration: Flange set | Connection: Rp1 | Closed switch: - | Voltage: -
GHV-FLANGE-D32 Configuration: Flange set | Connection: Rp1-1/4 | Closed switch: - | Voltage: -
GHV-FLANGE-D40 Configuration: Flange set | Connection: Rp1-1/2 | Closed switch: - | Voltage: -
GHV-FLANGE-D50 Configuration: Flange set | Connection: Rp2 | Closed switch: - | Voltage: -
Gas ValvesCKD
64 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GHV Medium Pressure Gas Combination Valve (NC, Rp1-Rp2)

Brand CKD·Gas Valves

Available part numbers (64)

GHV-G-D00-AC100V, GHV-G-D00-AC200V, GHV-G-D00-E-AC100V, GHV-G-D00-E-AC200V, GHV-G-D25-AC100V, GHV-G-D25-AC200V, GHV-G-D25-E-AC100V, GHV-G-D25-E-AC200V, GHV-G-D32-AC100V, GHV-G-D32-AC200V + 54 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GHV-G-D00-AC100VConfiguration: Governor SV + SV | Connection: No flange | Closed switch: No | Voltage: AC100V
GHV-G-D00-AC200VConfiguration: Governor SV + SV | Connection: No flange | Closed switch: No | Voltage: AC200V
GHV-G-D00-E-AC100VConfiguration: Governor SV + SV | Connection: No flange | Closed switch: Yes | Voltage: AC100V
GHV-G-D00-E-AC200VConfiguration: Governor SV + SV | Connection: No flange | Closed switch: Yes | Voltage: AC200V
GHV-G-D25-AC100VConfiguration: Governor SV + SV | Connection: Rp1 | Closed switch: No | Voltage: AC100V
GHV-G-D25-AC200VConfiguration: Governor SV + SV | Connection: Rp1 | Closed switch: No | Voltage: AC200V
GHV-G-D25-E-AC100VConfiguration: Governor SV + SV | Connection: Rp1 | Closed switch: Yes | Voltage: AC100V
GHV-G-D25-E-AC200VConfiguration: Governor SV + SV | Connection: Rp1 | Closed switch: Yes | Voltage: AC200V
GHV-G-D32-AC100VConfiguration: Governor SV + SV | Connection: Rp1-1/4 | Closed switch: No | Voltage: AC100V
GHV-G-D32-AC200VConfiguration: Governor SV + SV | Connection: Rp1-1/4 | Closed switch: No | Voltage: AC200V
GHV-G-D32-E-AC100VConfiguration: Governor SV + SV | Connection: Rp1-1/4 | Closed switch: Yes | Voltage: AC100V
GHV-G-D32-E-AC200VConfiguration: Governor SV + SV | Connection: Rp1-1/4 | Closed switch: Yes | Voltage: AC200V
GHV-G-D40-AC100VConfiguration: Governor SV + SV | Connection: Rp1-1/2 | Closed switch: No | Voltage: AC100V
GHV-G-D40-AC200VConfiguration: Governor SV + SV | Connection: Rp1-1/2 | Closed switch: No | Voltage: AC200V
GHV-G-D40-E-AC100VConfiguration: Governor SV + SV | Connection: Rp1-1/2 | Closed switch: Yes | Voltage: AC100V
GHV-G-D40-E-AC200VConfiguration: Governor SV + SV | Connection: Rp1-1/2 | Closed switch: Yes | Voltage: AC200V
GHV-G-D50-AC100VConfiguration: Governor SV + SV | Connection: Rp2 | Closed switch: No | Voltage: AC100V
GHV-G-D50-AC200VConfiguration: Governor SV + SV | Connection: Rp2 | Closed switch: No | Voltage: AC200V
GHV-G-D50-E-AC100VConfiguration: Governor SV + SV | Connection: Rp2 | Closed switch: Yes | Voltage: AC100V
GHV-G-D50-E-AC200VConfiguration: Governor SV + SV | Connection: Rp2 | Closed switch: Yes | Voltage: AC200V
GHV-N-D00-AC100VConfiguration: SV + SV | Connection: No flange | Closed switch: No | Voltage: AC100V
GHV-N-D00-AC200VConfiguration: SV + SV | Connection: No flange | Closed switch: No | Voltage: AC200V
GHV-N-D00-E-AC100VConfiguration: SV + SV | Connection: No flange | Closed switch: Yes | Voltage: AC100V
GHV-N-D00-E-AC200VConfiguration: SV + SV | Connection: No flange | Closed switch: Yes | Voltage: AC200V
GHV-N-D25-AC100VConfiguration: SV + SV | Connection: Rp1 | Closed switch: No | Voltage: AC100V
GHV-N-D25-AC200VConfiguration: SV + SV | Connection: Rp1 | Closed switch: No | Voltage: AC200V
GHV-N-D25-E-AC100VConfiguration: SV + SV | Connection: Rp1 | Closed switch: Yes | Voltage: AC100V
GHV-N-D25-E-AC200VConfiguration: SV + SV | Connection: Rp1 | Closed switch: Yes | Voltage: AC200V
GHV-N-D32-AC100VConfiguration: SV + SV | Connection: Rp1-1/4 | Closed switch: No | Voltage: AC100V
GHV-N-D32-AC200VConfiguration: SV + SV | Connection: Rp1-1/4 | Closed switch: No | Voltage: AC200V
GHV-N-D32-E-AC100VConfiguration: SV + SV | Connection: Rp1-1/4 | Closed switch: Yes | Voltage: AC100V
GHV-N-D32-E-AC200VConfiguration: SV + SV | Connection: Rp1-1/4 | Closed switch: Yes | Voltage: AC200V
GHV-N-D40-AC100VConfiguration: SV + SV | Connection: Rp1-1/2 | Closed switch: No | Voltage: AC100V
GHV-N-D40-AC200VConfiguration: SV + SV | Connection: Rp1-1/2 | Closed switch: No | Voltage: AC200V
GHV-N-D40-E-AC100VConfiguration: SV + SV | Connection: Rp1-1/2 | Closed switch: Yes | Voltage: AC100V
GHV-N-D40-E-AC200VConfiguration: SV + SV | Connection: Rp1-1/2 | Closed switch: Yes | Voltage: AC200V
GHV-N-D50-AC100VConfiguration: SV + SV | Connection: Rp2 | Closed switch: No | Voltage: AC100V
GHV-N-D50-AC200VConfiguration: SV + SV | Connection: Rp2 | Closed switch: No | Voltage: AC200V
GHV-N-D50-E-AC100VConfiguration: SV + SV | Connection: Rp2 | Closed switch: Yes | Voltage: AC100V
GHV-N-D50-E-AC200VConfiguration: SV + SV | Connection: Rp2 | Closed switch: Yes | Voltage: AC200V
GHV-L-D00-AC100VConfiguration: SV + SV (slow open) | Connection: No flange | Closed switch: No | Voltage: AC100V
GHV-L-D00-AC200VConfiguration: SV + SV (slow open) | Connection: No flange | Closed switch: No | Voltage: AC200V
GHV-L-D00-E-AC100VConfiguration: SV + SV (slow open) | Connection: No flange | Closed switch: Yes | Voltage: AC100V
GHV-L-D00-E-AC200VConfiguration: SV + SV (slow open) | Connection: No flange | Closed switch: Yes | Voltage: AC200V
GHV-L-D25-AC100VConfiguration: SV + SV (slow open) | Connection: Rp1 | Closed switch: No | Voltage: AC100V
GHV-L-D25-AC200VConfiguration: SV + SV (slow open) | Connection: Rp1 | Closed switch: No | Voltage: AC200V
GHV-L-D25-E-AC100VConfiguration: SV + SV (slow open) | Connection: Rp1 | Closed switch: Yes | Voltage: AC100V
GHV-L-D25-E-AC200VConfiguration: SV + SV (slow open) | Connection: Rp1 | Closed switch: Yes | Voltage: AC200V
GHV-L-D32-AC100VConfiguration: SV + SV (slow open) | Connection: Rp1-1/4 | Closed switch: No | Voltage: AC100V
GHV-L-D32-AC200VConfiguration: SV + SV (slow open) | Connection: Rp1-1/4 | Closed switch: No | Voltage: AC200V
GHV-L-D32-E-AC100VConfiguration: SV + SV (slow open) | Connection: Rp1-1/4 | Closed switch: Yes | Voltage: AC100V
GHV-L-D32-E-AC200VConfiguration: SV + SV (slow open) | Connection: Rp1-1/4 | Closed switch: Yes | Voltage: AC200V
GHV-L-D40-AC100VConfiguration: SV + SV (slow open) | Connection: Rp1-1/2 | Closed switch: No | Voltage: AC100V
GHV-L-D40-AC200VConfiguration: SV + SV (slow open) | Connection: Rp1-1/2 | Closed switch: No | Voltage: AC200V
GHV-L-D40-E-AC100VConfiguration: SV + SV (slow open) | Connection: Rp1-1/2 | Closed switch: Yes | Voltage: AC100V
GHV-L-D40-E-AC200VConfiguration: SV + SV (slow open) | Connection: Rp1-1/2 | Closed switch: Yes | Voltage: AC200V
GHV-L-D50-AC100VConfiguration: SV + SV (slow open) | Connection: Rp2 | Closed switch: No | Voltage: AC100V
GHV-L-D50-AC200VConfiguration: SV + SV (slow open) | Connection: Rp2 | Closed switch: No | Voltage: AC200V
GHV-L-D50-E-AC100VConfiguration: SV + SV (slow open) | Connection: Rp2 | Closed switch: Yes | Voltage: AC100V
GHV-L-D50-E-AC200VConfiguration: SV + SV (slow open) | Connection: Rp2 | Closed switch: Yes | Voltage: AC200V
GHV-FLANGE-D25Configuration: Flange set | Connection: Rp1 | Closed switch: - | Voltage: -
GHV-FLANGE-D32Configuration: Flange set | Connection: Rp1-1/4 | Closed switch: - | Voltage: -
GHV-FLANGE-D40Configuration: Flange set | Connection: Rp1-1/2 | Closed switch: - | Voltage: -
GHV-FLANGE-D50Configuration: Flange set | Connection: Rp2 | Closed switch: - | Voltage: -
