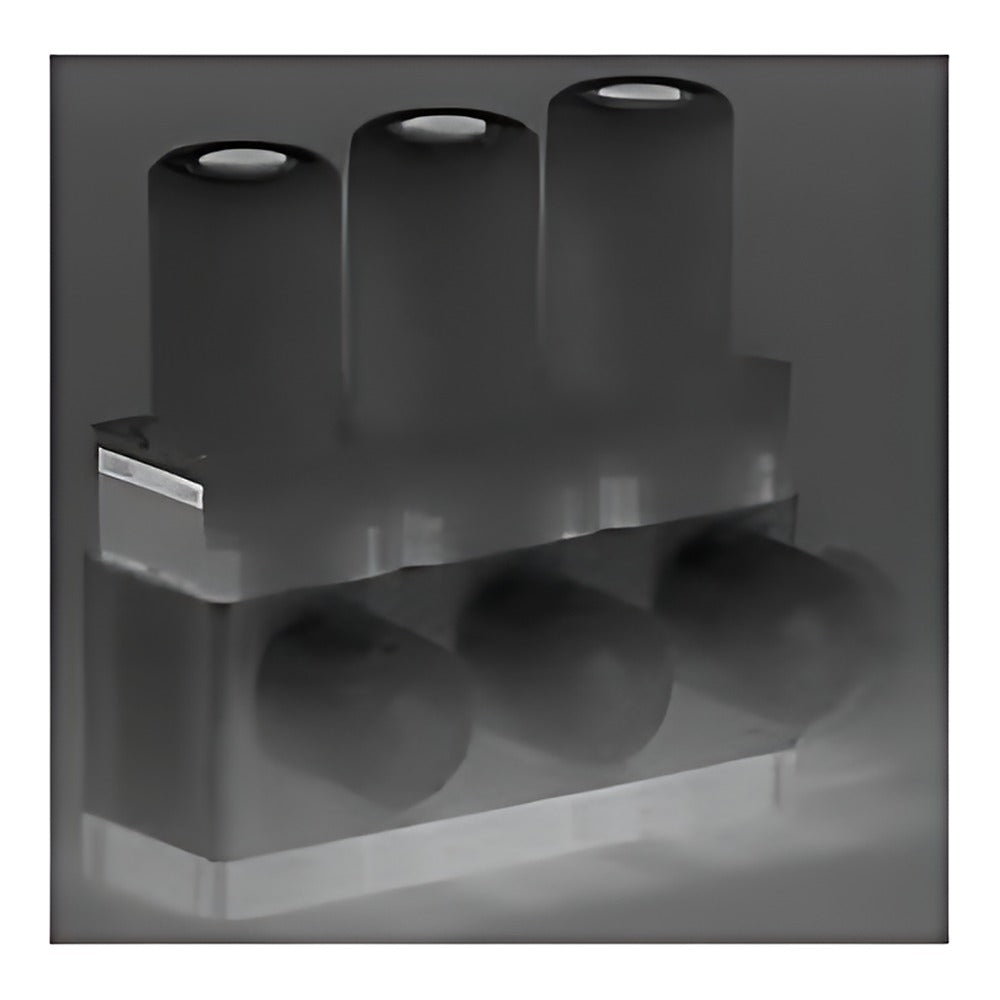

CKD GMMD*02 Chemical Manual Valve Manifold (1-5 Stations)

CKD GMMD*02 Chemical Manual Valve Manifold (1-5 Stations)

CKD GMMD302/402/502 manifold type manual diaphragm valves with seal-stable structure for space-saving chemical branch lines.

Key features

  • PTFE body, PTFE diaphragm, orifice 6-20 mm
  • 1 to 5 stations (GMMD502 1 to 4)
  • A-port position right (no symbol), left (L) or both sides (W)
  • Fittings: Super type Pillar, Super 300 Pillar P, F-LOCK 20A/60, Final Lock, Flare Tech
  • For full open/close use only, not for flow regulation

Specifications

Valve type Manual diaphragm valve manifold (branch valve)
Body PTFE machined
Fluid Chemicals, pure water, air, N2 (symbol U)
Fluid temperature 5 to 90 C
Operating pressure 0-0.4 MPa
Proof pressure 1.2 MPa
Availability Made to order (PTFE machined)
Source CKD Korea catalog CB-031K-15, p. 182-189
GMMD302-10US-1U Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10US-1UL Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10US-1UW Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10US-2U Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10US-2UL Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10US-2UW Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10US-3U Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10US-3UL Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10US-3UW Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10US-4U Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10US-4UL Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10US-4UW Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10US-5U Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10US-5UL Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10US-5UW Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10BUS-1U Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10BUS-1UL Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10BUS-1UW Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10BUS-2U Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10BUS-2UL Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10BUS-2UW Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10BUS-3U Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10BUS-3UL Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10BUS-3UW Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10BUS-4U Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10BUS-4UL Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10BUS-4UW Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10BUS-5U Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10BUS-5UL Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10BUS-5UW Model: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10UP-1U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10UP-1UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10UP-1UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10UP-2U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10UP-2UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10UP-2UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10UP-3U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10UP-3UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10UP-3UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10UP-4U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10UP-4UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10UP-4UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10UP-5U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10UP-5UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10UP-5UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10BUP-1U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10BUP-1UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10BUP-1UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10BUP-2U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10BUP-2UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10BUP-2UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10BUP-3U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10BUP-3UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10BUP-3UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10BUP-4U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10BUP-4UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10BUP-4UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10BUP-5U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10BUP-5UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10BUP-5UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10UA-1U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10UA-1UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10UA-1UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10UA-2U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10UA-2UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10UA-2UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10UA-3U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10UA-3UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10UA-3UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10UA-4U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10UA-4UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10UA-4UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10UA-5U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10UA-5UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10UA-5UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10BUA-1U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10BUA-1UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10BUA-1UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10BUA-2U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10BUA-2UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10BUA-2UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10BUA-3U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10BUA-3UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10BUA-3UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10BUA-4U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10BUA-4UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10BUA-4UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10BUA-5U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10BUA-5UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10BUA-5UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10UR-1U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 1 | A-port position: Right
GMMD302-10UR-1UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 1 | A-port position: Left
GMMD302-10UR-1UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 1 | A-port position: Both sides
GMMD302-10UR-2U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 2 | A-port position: Right
GMMD302-10UR-2UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 2 | A-port position: Left
GMMD302-10UR-2UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 2 | A-port position: Both sides
GMMD302-10UR-3U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 3 | A-port position: Right
GMMD302-10UR-3UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 3 | A-port position: Left
GMMD302-10UR-3UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 3 | A-port position: Both sides
GMMD302-10UR-4U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 4 | A-port position: Right
GMMD302-10UR-4UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 4 | A-port position: Left
GMMD302-10UR-4UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 4 | A-port position: Both sides
GMMD302-10UR-5U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 5 | A-port position: Right
GMMD302-10UR-5UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 5 | A-port position: Left
GMMD302-10UR-5UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 5 | A-port position: Both sides
GMMD302-10BUR-1U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 1 | A-port position: Right
GMMD302-10BUR-1UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 1 | A-port position: Left
GMMD302-10BUR-1UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 1 | A-port position: Both sides
GMMD302-10BUR-2U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 2 | A-port position: Right
GMMD302-10BUR-2UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 2 | A-port position: Left
GMMD302-10BUR-2UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 2 | A-port position: Both sides
GMMD302-10BUR-3U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 3 | A-port position: Right
GMMD302-10BUR-3UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 3 | A-port position: Left
GMMD302-10BUR-3UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 3 | A-port position: Both sides
GMMD302-10BUR-4U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 4 | A-port position: Right
GMMD302-10BUR-4UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 4 | A-port position: Left
GMMD302-10BUR-4UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 4 | A-port position: Both sides
GMMD302-10BUR-5U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 5 | A-port position: Right
GMMD302-10BUR-5UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 5 | A-port position: Left
GMMD302-10BUR-5UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 5 | A-port position: Both sides
GMMD302-10UK-1U Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10UK-1UL Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10UK-1UW Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10UK-2U Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10UK-2UL Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10UK-2UW Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10UK-3U Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10UK-3UL Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10UK-3UW Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10UK-4U Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10UK-4UL Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10UK-4UW Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10UK-5U Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10UK-5UL Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10UK-5UW Model: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10BUK-1U Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10BUK-1UL Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10BUK-1UW Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10BUK-2U Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10BUK-2UL Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10BUK-2UW Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10BUK-3U Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10BUK-3UL Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10BUK-3UW Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10BUK-4U Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10BUK-4UL Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10BUK-4UW Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10BUK-5U Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10BUK-5UL Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10BUK-5UW Model: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10BUW-1U Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 1 | A-port position: Right
GMMD302-10BUW-1UL Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 1 | A-port position: Left
GMMD302-10BUW-1UW Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 1 | A-port position: Both sides
GMMD302-10BUW-2U Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 2 | A-port position: Right
GMMD302-10BUW-2UL Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 2 | A-port position: Left
GMMD302-10BUW-2UW Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 2 | A-port position: Both sides
GMMD302-10BUW-3U Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 3 | A-port position: Right
GMMD302-10BUW-3UL Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 3 | A-port position: Left
GMMD302-10BUW-3UW Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 3 | A-port position: Both sides
GMMD302-10BUW-4U Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 4 | A-port position: Right
GMMD302-10BUW-4UL Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 4 | A-port position: Left
GMMD302-10BUW-4UW Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 4 | A-port position: Both sides
GMMD302-10BUW-5U Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 5 | A-port position: Right
GMMD302-10BUW-5UL Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 5 | A-port position: Left
GMMD302-10BUW-5UW Model: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 5 | A-port position: Both sides
GMMD302-12US-1U Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-12US-1UL Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-12US-1UW Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-12US-2U Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-12US-2UL Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-12US-2UW Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-12US-3U Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-12US-3UL Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-12US-3UW Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-12US-4U Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-12US-4UL Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-12US-4UW Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-12US-5U Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-12US-5UL Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-12US-5UW Model: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-15BUS-1U Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-15BUS-1UL Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-15BUS-1UW Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-15BUS-2U Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-15BUS-2UL Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-15BUS-2UW Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-15BUS-3U Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-15BUS-3UL Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-15BUS-3UW Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-15BUS-4U Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-15BUS-4UL Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-15BUS-4UW Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-15BUS-5U Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-15BUS-5UL Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-15BUS-5UW Model: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-12UP-1U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-12UP-1UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-12UP-1UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-12UP-2U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-12UP-2UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-12UP-2UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-12UP-3U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-12UP-3UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-12UP-3UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-12UP-4U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-12UP-4UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-12UP-4UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-12UP-5U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-12UP-5UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-12UP-5UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-15BUP-1U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-15BUP-1UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-15BUP-1UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-15BUP-2U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-15BUP-2UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-15BUP-2UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-15BUP-3U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-15BUP-3UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-15BUP-3UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-15BUP-4U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-15BUP-4UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-15BUP-4UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-15BUP-5U Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-15BUP-5UL Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-15BUP-5UW Model: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-12UA-1U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-12UA-1UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-12UA-1UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-12UA-2U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-12UA-2UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-12UA-2UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-12UA-3U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-12UA-3UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-12UA-3UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-12UA-4U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-12UA-4UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-12UA-4UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-12UA-5U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-12UA-5UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-12UA-5UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-15BUA-1U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-15BUA-1UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-15BUA-1UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-15BUA-2U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-15BUA-2UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-15BUA-2UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-15BUA-3U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-15BUA-3UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-15BUA-3UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-15BUA-4U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-15BUA-4UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-15BUA-4UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-15BUA-5U Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-15BUA-5UL Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-15BUA-5UW Model: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-12UR-1U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 1 | A-port position: Right
GMMD302-12UR-1UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 1 | A-port position: Left
GMMD302-12UR-1UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 1 | A-port position: Both sides
GMMD302-12UR-2U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 2 | A-port position: Right
GMMD302-12UR-2UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 2 | A-port position: Left
GMMD302-12UR-2UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 2 | A-port position: Both sides
GMMD302-12UR-3U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 3 | A-port position: Right
GMMD302-12UR-3UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 3 | A-port position: Left
GMMD302-12UR-3UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 3 | A-port position: Both sides
GMMD302-12UR-4U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 4 | A-port position: Right
GMMD302-12UR-4UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 4 | A-port position: Left
GMMD302-12UR-4UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 4 | A-port position: Both sides
GMMD302-12UR-5U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 5 | A-port position: Right
GMMD302-12UR-5UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 5 | A-port position: Left
GMMD302-12UR-5UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 5 | A-port position: Both sides
GMMD302-15BUR-1U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 1 | A-port position: Right
GMMD302-15BUR-1UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 1 | A-port position: Left
GMMD302-15BUR-1UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 1 | A-port position: Both sides
GMMD302-15BUR-2U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 2 | A-port position: Right
GMMD302-15BUR-2UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 2 | A-port position: Left
GMMD302-15BUR-2UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 2 | A-port position: Both sides
GMMD302-15BUR-3U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 3 | A-port position: Right
GMMD302-15BUR-3UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 3 | A-port position: Left
GMMD302-15BUR-3UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 3 | A-port position: Both sides
GMMD302-15BUR-4U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 4 | A-port position: Right
GMMD302-15BUR-4UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 4 | A-port position: Left
GMMD302-15BUR-4UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 4 | A-port position: Both sides
GMMD302-15BUR-5U Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 5 | A-port position: Right
GMMD302-15BUR-5UL Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 5 | A-port position: Left
GMMD302-15BUR-5UW Model: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 5 | A-port position: Both sides
GMMD302-12UK-1U Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-12UK-1UL Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-12UK-1UW Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-12UK-2U Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-12UK-2UL Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-12UK-2UW Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-12UK-3U Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-12UK-3UL Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-12UK-3UW Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-12UK-4U Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-12UK-4UL Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-12UK-4UW Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-12UK-5U Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-12UK-5UL Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-12UK-5UW Model: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-15BUK-1U Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-15BUK-1UL Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-15BUK-1UW Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-15BUK-2U Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-15BUK-2UL Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-15BUK-2UW Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-15BUK-3U Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-15BUK-3UL Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-15BUK-3UW Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-15BUK-4U Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-15BUK-4UL Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-15BUK-4UW Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-15BUK-5U Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-15BUK-5UL Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-15BUK-5UW Model: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-15BUW-1U Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 1 | A-port position: Right
GMMD302-15BUW-1UL Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 1 | A-port position: Left
GMMD302-15BUW-1UW Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 1 | A-port position: Both sides
GMMD302-15BUW-2U Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 2 | A-port position: Right
GMMD302-15BUW-2UL Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 2 | A-port position: Left
GMMD302-15BUW-2UW Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 2 | A-port position: Both sides
GMMD302-15BUW-3U Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 3 | A-port position: Right
GMMD302-15BUW-3UL Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 3 | A-port position: Left
GMMD302-15BUW-3UW Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 3 | A-port position: Both sides
GMMD302-15BUW-4U Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 4 | A-port position: Right
GMMD302-15BUW-4UL Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 4 | A-port position: Left
GMMD302-15BUW-4UW Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 4 | A-port position: Both sides
GMMD302-15BUW-5U Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 5 | A-port position: Right
GMMD302-15BUW-5UL Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 5 | A-port position: Left
GMMD302-15BUW-5UW Model: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 5 | A-port position: Both sides
GMMD402-20BUS-1U Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Right
GMMD402-20BUS-1UL Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Left
GMMD402-20BUS-1UW Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Both sides
GMMD402-20BUS-2U Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Right
GMMD402-20BUS-2UL Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Left
GMMD402-20BUS-2UW Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Both sides
GMMD402-20BUS-3U Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Right
GMMD402-20BUS-3UL Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Left
GMMD402-20BUS-3UW Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Both sides
GMMD402-20BUS-4U Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Right
GMMD402-20BUS-4UL Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Left
GMMD402-20BUS-4UW Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Both sides
GMMD402-20BUS-5U Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Right
GMMD402-20BUS-5UL Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Left
GMMD402-20BUS-5UW Model: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Both sides
GMMD402-20BUP-1U Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Right
GMMD402-20BUP-1UL Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Left
GMMD402-20BUP-1UW Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Both sides
GMMD402-20BUP-2U Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Right
GMMD402-20BUP-2UL Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Left
GMMD402-20BUP-2UW Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Both sides
GMMD402-20BUP-3U Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Right
GMMD402-20BUP-3UL Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Left
GMMD402-20BUP-3UW Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Both sides
GMMD402-20BUP-4U Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Right
GMMD402-20BUP-4UL Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Left
GMMD402-20BUP-4UW Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Both sides
GMMD402-20BUP-5U Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Right
GMMD402-20BUP-5UL Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Left
GMMD402-20BUP-5UW Model: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Both sides
GMMD402-20BUA-1U Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Right
GMMD402-20BUA-1UL Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Left
GMMD402-20BUA-1UW Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Both sides
GMMD402-20BUA-2U Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Right
GMMD402-20BUA-2UL Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Left
GMMD402-20BUA-2UW Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Both sides
GMMD402-20BUA-3U Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Right
GMMD402-20BUA-3UL Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Left
GMMD402-20BUA-3UW Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Both sides
GMMD402-20BUA-4U Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Right
GMMD402-20BUA-4UL Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Left
GMMD402-20BUA-4UW Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Both sides
GMMD402-20BUA-5U Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Right
GMMD402-20BUA-5UL Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Left
GMMD402-20BUA-5UW Model: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Both sides
GMMD402-20BUR-1U Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 1 | A-port position: Right
GMMD402-20BUR-1UL Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 1 | A-port position: Left
GMMD402-20BUR-1UW Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 1 | A-port position: Both sides
GMMD402-20BUR-2U Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 2 | A-port position: Right
GMMD402-20BUR-2UL Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 2 | A-port position: Left
GMMD402-20BUR-2UW Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 2 | A-port position: Both sides
GMMD402-20BUR-3U Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 3 | A-port position: Right
GMMD402-20BUR-3UL Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 3 | A-port position: Left
GMMD402-20BUR-3UW Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 3 | A-port position: Both sides
GMMD402-20BUR-4U Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 4 | A-port position: Right
GMMD402-20BUR-4UL Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 4 | A-port position: Left
GMMD402-20BUR-4UW Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 4 | A-port position: Both sides
GMMD402-20BUR-5U Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 5 | A-port position: Right
GMMD402-20BUR-5UL Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 5 | A-port position: Left
GMMD402-20BUR-5UW Model: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 5 | A-port position: Both sides
GMMD402-20BUK-1U Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Right
GMMD402-20BUK-1UL Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Left
GMMD402-20BUK-1UW Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Both sides
GMMD402-20BUK-2U Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Right
GMMD402-20BUK-2UL Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Left
GMMD402-20BUK-2UW Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Both sides
GMMD402-20BUK-3U Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Right
GMMD402-20BUK-3UL Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Left
GMMD402-20BUK-3UW Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Both sides
GMMD402-20BUK-4U Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Right
GMMD402-20BUK-4UL Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Left
GMMD402-20BUK-4UW Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Both sides
GMMD402-20BUK-5U Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Right
GMMD402-20BUK-5UL Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Left
GMMD402-20BUK-5UW Model: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Both sides
GMMD402-20BUW-1U Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 1 | A-port position: Right
GMMD402-20BUW-1UL Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 1 | A-port position: Left
GMMD402-20BUW-1UW Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 1 | A-port position: Both sides
GMMD402-20BUW-2U Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 2 | A-port position: Right
GMMD402-20BUW-2UL Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 2 | A-port position: Left
GMMD402-20BUW-2UW Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 2 | A-port position: Both sides
GMMD402-20BUW-3U Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 3 | A-port position: Right
GMMD402-20BUW-3UL Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 3 | A-port position: Left
GMMD402-20BUW-3UW Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 3 | A-port position: Both sides
GMMD402-20BUW-4U Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 4 | A-port position: Right
GMMD402-20BUW-4UL Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 4 | A-port position: Left
GMMD402-20BUW-4UW Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 4 | A-port position: Both sides
GMMD402-20BUW-5U Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 5 | A-port position: Right
GMMD402-20BUW-5UL Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 5 | A-port position: Left
GMMD402-20BUW-5UW Model: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 5 | A-port position: Both sides
GMMD502-25US-1U Model: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25US-1UL Model: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25US-1UW Model: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25US-2U Model: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25US-2UL Model: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25US-2UW Model: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25US-3U Model: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25US-3UL Model: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25US-3UW Model: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25US-4U Model: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25US-4UL Model: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25US-4UW Model: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25BUS-1U Model: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25BUS-1UL Model: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25BUS-1UW Model: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25BUS-2U Model: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25BUS-2UL Model: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25BUS-2UW Model: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25BUS-3U Model: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25BUS-3UL Model: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25BUS-3UW Model: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25BUS-4U Model: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25BUS-4UL Model: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25BUS-4UW Model: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25UP-1U Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25UP-1UL Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25UP-1UW Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25UP-2U Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25UP-2UL Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25UP-2UW Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25UP-3U Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25UP-3UL Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25UP-3UW Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25UP-4U Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25UP-4UL Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25UP-4UW Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25BUP-1U Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25BUP-1UL Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25BUP-1UW Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25BUP-2U Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25BUP-2UL Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25BUP-2UW Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25BUP-3U Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25BUP-3UL Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25BUP-3UW Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25BUP-4U Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25BUP-4UL Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25BUP-4UW Model: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25BUA-1U Model: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25BUA-1UL Model: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25BUA-1UW Model: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25BUA-2U Model: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25BUA-2UL Model: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25BUA-2UW Model: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25BUA-3U Model: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25BUA-3UL Model: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25BUA-3UW Model: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25BUA-4U Model: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25BUA-4UL Model: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25BUA-4UW Model: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25UR-1U Model: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25UR-1UL Model: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25UR-1UW Model: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25UR-2U Model: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25UR-2UL Model: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25UR-2UW Model: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25UR-3U Model: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25UR-3UL Model: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25UR-3UW Model: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25UR-4U Model: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25UR-4UL Model: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25UR-4UW Model: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25BUR-1U Model: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25BUR-1UL Model: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25BUR-1UW Model: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25BUR-2U Model: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25BUR-2UL Model: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25BUR-2UW Model: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25BUR-3U Model: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25BUR-3UL Model: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25BUR-3UW Model: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25BUR-4U Model: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25BUR-4UL Model: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25BUR-4UW Model: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25UK-1U Model: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25UK-1UL Model: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25UK-1UW Model: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25UK-2U Model: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25UK-2UL Model: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25UK-2UW Model: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25UK-3U Model: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25UK-3UL Model: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25UK-3UW Model: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25UK-4U Model: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25UK-4UL Model: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25UK-4UW Model: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25BUK-1U Model: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25BUK-1UL Model: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25BUK-1UW Model: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25BUK-2U Model: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25BUK-2UL Model: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25BUK-2UW Model: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25BUK-3U Model: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25BUK-3UL Model: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25BUK-3UW Model: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25BUK-4U Model: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25BUK-4UL Model: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25BUK-4UW Model: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25BUW-1U Model: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25BUW-1UL Model: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25BUW-1UW Model: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25BUW-2U Model: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25BUW-2UL Model: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25BUW-2UW Model: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25BUW-3U Model: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25BUW-3UL Model: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25BUW-3UW Model: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25BUW-4U Model: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25BUW-4UL Model: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25BUW-4UW Model: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
Chemical ValvesCKD
540 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GMMD*02 Chemical Manual Valve Manifold (1-5 Stations)

Brand CKD·Chemical Valves

Available part numbers (540)

GMMD302-10US-1U, GMMD302-10US-1UL, GMMD302-10US-1UW, GMMD302-10US-2U, GMMD302-10US-2UL, GMMD302-10US-2UW, GMMD302-10US-3U, GMMD302-10US-3UL, GMMD302-10US-3UW, GMMD302-10US-4U + 530 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GMMD302-10US-1UModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10US-1ULModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10US-1UWModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10US-2UModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10US-2ULModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10US-2UWModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10US-3UModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10US-3ULModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10US-3UWModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10US-4UModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10US-4ULModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10US-4UWModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10US-5UModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10US-5ULModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10US-5UWModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10BUS-1UModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10BUS-1ULModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10BUS-1UWModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10BUS-2UModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10BUS-2ULModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10BUS-2UWModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10BUS-3UModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10BUS-3ULModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10BUS-3UWModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10BUS-4UModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10BUS-4ULModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10BUS-4UWModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10BUS-5UModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10BUS-5ULModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10BUS-5UWModel: GMMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10UP-1UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10UP-1ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10UP-1UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10UP-2UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10UP-2ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10UP-2UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10UP-3UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10UP-3ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10UP-3UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10UP-4UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10UP-4ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10UP-4UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10UP-5UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10UP-5ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10UP-5UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10BUP-1UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10BUP-1ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10BUP-1UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10BUP-2UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10BUP-2ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10BUP-2UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10BUP-3UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10BUP-3ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10BUP-3UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10BUP-4UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10BUP-4ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10BUP-4UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10BUP-5UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10BUP-5ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10BUP-5UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10UA-1UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10UA-1ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10UA-1UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10UA-2UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10UA-2ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10UA-2UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10UA-3UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10UA-3ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10UA-3UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10UA-4UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10UA-4ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10UA-4UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10UA-5UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10UA-5ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10UA-5UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10BUA-1UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10BUA-1ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10BUA-1UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10BUA-2UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10BUA-2ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10BUA-2UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10BUA-3UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10BUA-3ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10BUA-3UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10BUA-4UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10BUA-4ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10BUA-4UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10BUA-5UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10BUA-5ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10BUA-5UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10UR-1UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 1 | A-port position: Right
GMMD302-10UR-1ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 1 | A-port position: Left
GMMD302-10UR-1UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 1 | A-port position: Both sides
GMMD302-10UR-2UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 2 | A-port position: Right
GMMD302-10UR-2ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 2 | A-port position: Left
GMMD302-10UR-2UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 2 | A-port position: Both sides
GMMD302-10UR-3UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 3 | A-port position: Right
GMMD302-10UR-3ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 3 | A-port position: Left
GMMD302-10UR-3UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 3 | A-port position: Both sides
GMMD302-10UR-4UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 4 | A-port position: Right
GMMD302-10UR-4ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 4 | A-port position: Left
GMMD302-10UR-4UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 4 | A-port position: Both sides
GMMD302-10UR-5UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 5 | A-port position: Right
GMMD302-10UR-5ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 5 | A-port position: Left
GMMD302-10UR-5UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 5 | A-port position: Both sides
GMMD302-10BUR-1UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 1 | A-port position: Right
GMMD302-10BUR-1ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 1 | A-port position: Left
GMMD302-10BUR-1UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 1 | A-port position: Both sides
GMMD302-10BUR-2UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 2 | A-port position: Right
GMMD302-10BUR-2ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 2 | A-port position: Left
GMMD302-10BUR-2UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 2 | A-port position: Both sides
GMMD302-10BUR-3UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 3 | A-port position: Right
GMMD302-10BUR-3ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 3 | A-port position: Left
GMMD302-10BUR-3UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 3 | A-port position: Both sides
GMMD302-10BUR-4UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 4 | A-port position: Right
GMMD302-10BUR-4ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 4 | A-port position: Left
GMMD302-10BUR-4UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 4 | A-port position: Both sides
GMMD302-10BUR-5UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 5 | A-port position: Right
GMMD302-10BUR-5ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 5 | A-port position: Left
GMMD302-10BUR-5UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 5 | A-port position: Both sides
GMMD302-10UK-1UModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10UK-1ULModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10UK-1UWModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10UK-2UModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10UK-2ULModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10UK-2UWModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10UK-3UModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10UK-3ULModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10UK-3UWModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10UK-4UModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10UK-4ULModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10UK-4UWModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10UK-5UModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10UK-5ULModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10UK-5UWModel: GMMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10BUK-1UModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD302-10BUK-1ULModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD302-10BUK-1UWModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD302-10BUK-2UModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD302-10BUK-2ULModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD302-10BUK-2UWModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD302-10BUK-3UModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD302-10BUK-3ULModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD302-10BUK-3UWModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD302-10BUK-4UModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD302-10BUK-4ULModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD302-10BUK-4UWModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD302-10BUK-5UModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD302-10BUK-5ULModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD302-10BUK-5UWModel: GMMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD302-10BUW-1UModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 1 | A-port position: Right
GMMD302-10BUW-1ULModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 1 | A-port position: Left
GMMD302-10BUW-1UWModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 1 | A-port position: Both sides
GMMD302-10BUW-2UModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 2 | A-port position: Right
GMMD302-10BUW-2ULModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 2 | A-port position: Left
GMMD302-10BUW-2UWModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 2 | A-port position: Both sides
GMMD302-10BUW-3UModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 3 | A-port position: Right
GMMD302-10BUW-3ULModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 3 | A-port position: Left
GMMD302-10BUW-3UWModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 3 | A-port position: Both sides
GMMD302-10BUW-4UModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 4 | A-port position: Right
GMMD302-10BUW-4ULModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 4 | A-port position: Left
GMMD302-10BUW-4UWModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 4 | A-port position: Both sides
GMMD302-10BUW-5UModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 5 | A-port position: Right
GMMD302-10BUW-5ULModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 5 | A-port position: Left
GMMD302-10BUW-5UWModel: GMMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Stations: 5 | A-port position: Both sides
GMMD302-12US-1UModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-12US-1ULModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-12US-1UWModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-12US-2UModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-12US-2ULModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-12US-2UWModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-12US-3UModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-12US-3ULModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-12US-3UWModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-12US-4UModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-12US-4ULModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-12US-4UWModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-12US-5UModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-12US-5ULModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-12US-5UWModel: GMMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-15BUS-1UModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-15BUS-1ULModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-15BUS-1UWModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-15BUS-2UModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-15BUS-2ULModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-15BUS-2UWModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-15BUS-3UModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-15BUS-3ULModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-15BUS-3UWModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-15BUS-4UModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-15BUS-4ULModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-15BUS-4UWModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-15BUS-5UModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-15BUS-5ULModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-15BUS-5UWModel: GMMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-12UP-1UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-12UP-1ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-12UP-1UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-12UP-2UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-12UP-2ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-12UP-2UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-12UP-3UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-12UP-3ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-12UP-3UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-12UP-4UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-12UP-4ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-12UP-4UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-12UP-5UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-12UP-5ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-12UP-5UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-15BUP-1UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-15BUP-1ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-15BUP-1UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-15BUP-2UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-15BUP-2ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-15BUP-2UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-15BUP-3UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-15BUP-3ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-15BUP-3UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-15BUP-4UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-15BUP-4ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-15BUP-4UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-15BUP-5UModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-15BUP-5ULModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-15BUP-5UWModel: GMMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-12UA-1UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-12UA-1ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-12UA-1UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-12UA-2UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-12UA-2ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-12UA-2UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-12UA-3UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-12UA-3ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-12UA-3UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-12UA-4UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-12UA-4ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-12UA-4UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-12UA-5UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-12UA-5ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-12UA-5UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-15BUA-1UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-15BUA-1ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-15BUA-1UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-15BUA-2UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-15BUA-2ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-15BUA-2UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-15BUA-3UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-15BUA-3ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-15BUA-3UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-15BUA-4UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-15BUA-4ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-15BUA-4UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-15BUA-5UModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-15BUA-5ULModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-15BUA-5UWModel: GMMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-12UR-1UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 1 | A-port position: Right
GMMD302-12UR-1ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 1 | A-port position: Left
GMMD302-12UR-1UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 1 | A-port position: Both sides
GMMD302-12UR-2UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 2 | A-port position: Right
GMMD302-12UR-2ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 2 | A-port position: Left
GMMD302-12UR-2UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 2 | A-port position: Both sides
GMMD302-12UR-3UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 3 | A-port position: Right
GMMD302-12UR-3ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 3 | A-port position: Left
GMMD302-12UR-3UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 3 | A-port position: Both sides
GMMD302-12UR-4UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 4 | A-port position: Right
GMMD302-12UR-4ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 4 | A-port position: Left
GMMD302-12UR-4UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 4 | A-port position: Both sides
GMMD302-12UR-5UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 5 | A-port position: Right
GMMD302-12UR-5ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 5 | A-port position: Left
GMMD302-12UR-5UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Stations: 5 | A-port position: Both sides
GMMD302-15BUR-1UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 1 | A-port position: Right
GMMD302-15BUR-1ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 1 | A-port position: Left
GMMD302-15BUR-1UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 1 | A-port position: Both sides
GMMD302-15BUR-2UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 2 | A-port position: Right
GMMD302-15BUR-2ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 2 | A-port position: Left
GMMD302-15BUR-2UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 2 | A-port position: Both sides
GMMD302-15BUR-3UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 3 | A-port position: Right
GMMD302-15BUR-3ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 3 | A-port position: Left
GMMD302-15BUR-3UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 3 | A-port position: Both sides
GMMD302-15BUR-4UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 4 | A-port position: Right
GMMD302-15BUR-4ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 4 | A-port position: Left
GMMD302-15BUR-4UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 4 | A-port position: Both sides
GMMD302-15BUR-5UModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 5 | A-port position: Right
GMMD302-15BUR-5ULModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 5 | A-port position: Left
GMMD302-15BUR-5UWModel: GMMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Stations: 5 | A-port position: Both sides
GMMD302-12UK-1UModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-12UK-1ULModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-12UK-1UWModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-12UK-2UModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-12UK-2ULModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-12UK-2UWModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-12UK-3UModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-12UK-3ULModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-12UK-3UWModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-12UK-4UModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-12UK-4ULModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-12UK-4UWModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-12UK-5UModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-12UK-5ULModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-12UK-5UWModel: GMMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-15BUK-1UModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD302-15BUK-1ULModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD302-15BUK-1UWModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD302-15BUK-2UModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD302-15BUK-2ULModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD302-15BUK-2UWModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD302-15BUK-3UModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD302-15BUK-3ULModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD302-15BUK-3UWModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD302-15BUK-4UModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD302-15BUK-4ULModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD302-15BUK-4UWModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD302-15BUK-5UModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD302-15BUK-5ULModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD302-15BUK-5UWModel: GMMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD302-15BUW-1UModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 1 | A-port position: Right
GMMD302-15BUW-1ULModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 1 | A-port position: Left
GMMD302-15BUW-1UWModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 1 | A-port position: Both sides
GMMD302-15BUW-2UModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 2 | A-port position: Right
GMMD302-15BUW-2ULModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 2 | A-port position: Left
GMMD302-15BUW-2UWModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 2 | A-port position: Both sides
GMMD302-15BUW-3UModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 3 | A-port position: Right
GMMD302-15BUW-3ULModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 3 | A-port position: Left
GMMD302-15BUW-3UWModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 3 | A-port position: Both sides
GMMD302-15BUW-4UModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 4 | A-port position: Right
GMMD302-15BUW-4ULModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 4 | A-port position: Left
GMMD302-15BUW-4UWModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 4 | A-port position: Both sides
GMMD302-15BUW-5UModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 5 | A-port position: Right
GMMD302-15BUW-5ULModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 5 | A-port position: Left
GMMD302-15BUW-5UWModel: GMMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Stations: 5 | A-port position: Both sides
GMMD402-20BUS-1UModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Right
GMMD402-20BUS-1ULModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Left
GMMD402-20BUS-1UWModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Both sides
GMMD402-20BUS-2UModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Right
GMMD402-20BUS-2ULModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Left
GMMD402-20BUS-2UWModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Both sides
GMMD402-20BUS-3UModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Right
GMMD402-20BUS-3ULModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Left
GMMD402-20BUS-3UWModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Both sides
GMMD402-20BUS-4UModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Right
GMMD402-20BUS-4ULModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Left
GMMD402-20BUS-4UWModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Both sides
GMMD402-20BUS-5UModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Right
GMMD402-20BUS-5ULModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Left
GMMD402-20BUS-5UWModel: GMMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Both sides
GMMD402-20BUP-1UModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Right
GMMD402-20BUP-1ULModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Left
GMMD402-20BUP-1UWModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Both sides
GMMD402-20BUP-2UModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Right
GMMD402-20BUP-2ULModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Left
GMMD402-20BUP-2UWModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Both sides
GMMD402-20BUP-3UModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Right
GMMD402-20BUP-3ULModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Left
GMMD402-20BUP-3UWModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Both sides
GMMD402-20BUP-4UModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Right
GMMD402-20BUP-4ULModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Left
GMMD402-20BUP-4UWModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Both sides
GMMD402-20BUP-5UModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Right
GMMD402-20BUP-5ULModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Left
GMMD402-20BUP-5UWModel: GMMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Both sides
GMMD402-20BUA-1UModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Right
GMMD402-20BUA-1ULModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Left
GMMD402-20BUA-1UWModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Both sides
GMMD402-20BUA-2UModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Right
GMMD402-20BUA-2ULModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Left
GMMD402-20BUA-2UWModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Both sides
GMMD402-20BUA-3UModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Right
GMMD402-20BUA-3ULModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Left
GMMD402-20BUA-3UWModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Both sides
GMMD402-20BUA-4UModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Right
GMMD402-20BUA-4ULModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Left
GMMD402-20BUA-4UWModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Both sides
GMMD402-20BUA-5UModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Right
GMMD402-20BUA-5ULModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Left
GMMD402-20BUA-5UWModel: GMMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Both sides
GMMD402-20BUR-1UModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 1 | A-port position: Right
GMMD402-20BUR-1ULModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 1 | A-port position: Left
GMMD402-20BUR-1UWModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 1 | A-port position: Both sides
GMMD402-20BUR-2UModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 2 | A-port position: Right
GMMD402-20BUR-2ULModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 2 | A-port position: Left
GMMD402-20BUR-2UWModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 2 | A-port position: Both sides
GMMD402-20BUR-3UModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 3 | A-port position: Right
GMMD402-20BUR-3ULModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 3 | A-port position: Left
GMMD402-20BUR-3UWModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 3 | A-port position: Both sides
GMMD402-20BUR-4UModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 4 | A-port position: Right
GMMD402-20BUR-4ULModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 4 | A-port position: Left
GMMD402-20BUR-4UWModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 4 | A-port position: Both sides
GMMD402-20BUR-5UModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 5 | A-port position: Right
GMMD402-20BUR-5ULModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 5 | A-port position: Left
GMMD402-20BUR-5UWModel: GMMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Stations: 5 | A-port position: Both sides
GMMD402-20BUK-1UModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Right
GMMD402-20BUK-1ULModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Left
GMMD402-20BUK-1UWModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Both sides
GMMD402-20BUK-2UModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Right
GMMD402-20BUK-2ULModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Left
GMMD402-20BUK-2UWModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Both sides
GMMD402-20BUK-3UModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Right
GMMD402-20BUK-3ULModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Left
GMMD402-20BUK-3UWModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Both sides
GMMD402-20BUK-4UModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Right
GMMD402-20BUK-4ULModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Left
GMMD402-20BUK-4UWModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Both sides
GMMD402-20BUK-5UModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Right
GMMD402-20BUK-5ULModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Left
GMMD402-20BUK-5UWModel: GMMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Both sides
GMMD402-20BUW-1UModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 1 | A-port position: Right
GMMD402-20BUW-1ULModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 1 | A-port position: Left
GMMD402-20BUW-1UWModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 1 | A-port position: Both sides
GMMD402-20BUW-2UModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 2 | A-port position: Right
GMMD402-20BUW-2ULModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 2 | A-port position: Left
GMMD402-20BUW-2UWModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 2 | A-port position: Both sides
GMMD402-20BUW-3UModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 3 | A-port position: Right
GMMD402-20BUW-3ULModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 3 | A-port position: Left
GMMD402-20BUW-3UWModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 3 | A-port position: Both sides
GMMD402-20BUW-4UModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 4 | A-port position: Right
GMMD402-20BUW-4ULModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 4 | A-port position: Left
GMMD402-20BUW-4UWModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 4 | A-port position: Both sides
GMMD402-20BUW-5UModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 5 | A-port position: Right
GMMD402-20BUW-5ULModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 5 | A-port position: Left
GMMD402-20BUW-5UWModel: GMMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Stations: 5 | A-port position: Both sides
GMMD502-25US-1UModel: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25US-1ULModel: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25US-1UWModel: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25US-2UModel: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25US-2ULModel: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25US-2UWModel: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25US-3UModel: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25US-3ULModel: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25US-3UWModel: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25US-4UModel: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25US-4ULModel: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25US-4UWModel: GMMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25BUS-1UModel: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25BUS-1ULModel: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25BUS-1UWModel: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25BUS-2UModel: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25BUS-2ULModel: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25BUS-2UWModel: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25BUS-3UModel: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25BUS-3ULModel: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25BUS-3UWModel: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25BUS-4UModel: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25BUS-4ULModel: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25BUS-4UWModel: GMMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25UP-1UModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25UP-1ULModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25UP-1UWModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25UP-2UModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25UP-2ULModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25UP-2UWModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25UP-3UModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25UP-3ULModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25UP-3UWModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25UP-4UModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25UP-4ULModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25UP-4UWModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25BUP-1UModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25BUP-1ULModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25BUP-1UWModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25BUP-2UModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25BUP-2ULModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25BUP-2UWModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25BUP-3UModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25BUP-3ULModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25BUP-3UWModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25BUP-4UModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25BUP-4ULModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25BUP-4UWModel: GMMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25BUA-1UModel: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25BUA-1ULModel: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25BUA-1UWModel: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25BUA-2UModel: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25BUA-2ULModel: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25BUA-2UWModel: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25BUA-3UModel: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25BUA-3ULModel: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25BUA-3UWModel: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25BUA-4UModel: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25BUA-4ULModel: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25BUA-4UWModel: GMMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25UR-1UModel: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25UR-1ULModel: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25UR-1UWModel: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25UR-2UModel: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25UR-2ULModel: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25UR-2UWModel: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25UR-3UModel: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25UR-3ULModel: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25UR-3UWModel: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25UR-4UModel: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25UR-4ULModel: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25UR-4UWModel: GMMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25BUR-1UModel: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25BUR-1ULModel: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25BUR-1UWModel: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25BUR-2UModel: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25BUR-2ULModel: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25BUR-2UWModel: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25BUR-3UModel: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25BUR-3ULModel: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25BUR-3UWModel: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25BUR-4UModel: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25BUR-4ULModel: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25BUR-4UWModel: GMMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25UK-1UModel: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25UK-1ULModel: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25UK-1UWModel: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25UK-2UModel: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25UK-2ULModel: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25UK-2UWModel: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25UK-3UModel: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25UK-3ULModel: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25UK-3UWModel: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25UK-4UModel: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25UK-4ULModel: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25UK-4UWModel: GMMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25BUK-1UModel: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25BUK-1ULModel: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25BUK-1UWModel: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25BUK-2UModel: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25BUK-2ULModel: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25BUK-2UWModel: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25BUK-3UModel: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25BUK-3ULModel: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25BUK-3UWModel: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25BUK-4UModel: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25BUK-4ULModel: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25BUK-4UWModel: GMMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD502-25BUW-1UModel: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD502-25BUW-1ULModel: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD502-25BUW-1UWModel: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD502-25BUW-2UModel: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD502-25BUW-2ULModel: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD502-25BUW-2UWModel: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD502-25BUW-3UModel: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD502-25BUW-3ULModel: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD502-25BUW-3UWModel: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD502-25BUW-4UModel: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD502-25BUW-4ULModel: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD502-25BUW-4UWModel: GMMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
