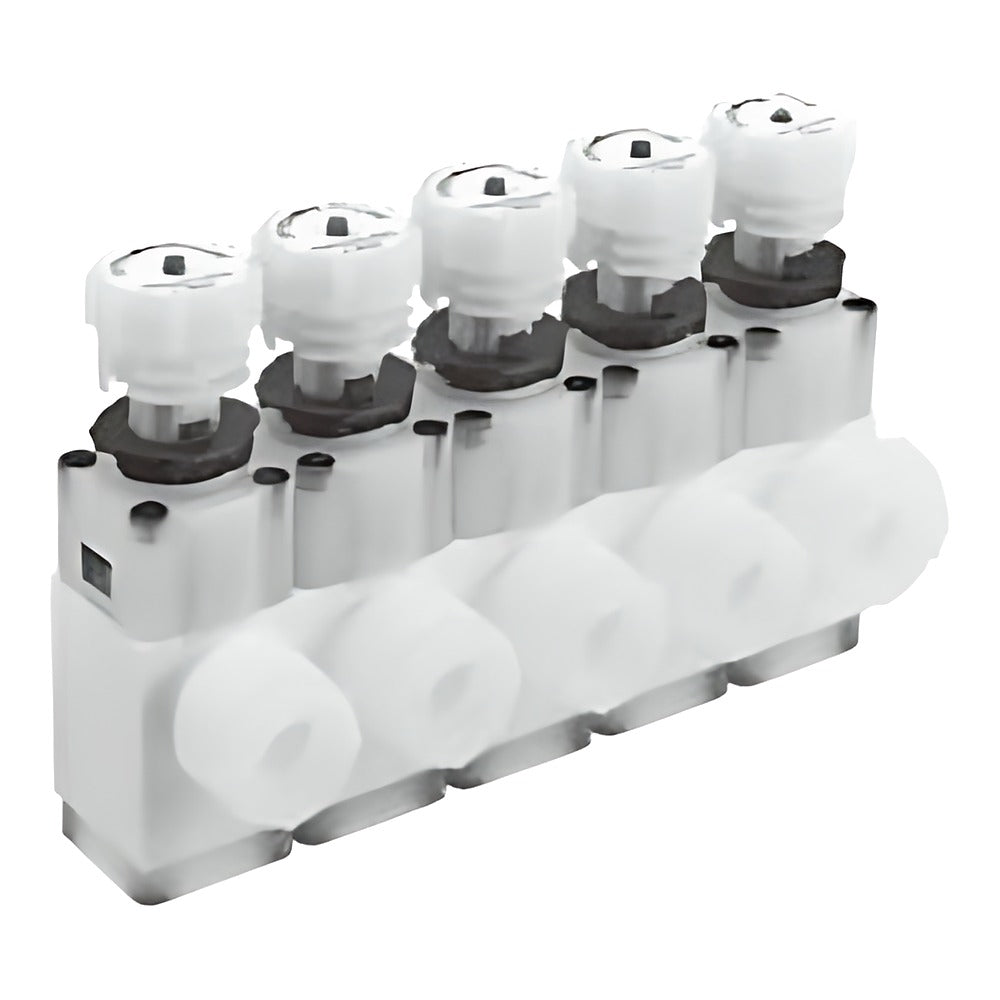

CKD GMMD*03RN Chemical Manual Valve Manifold (1-5 Stations)

CKD GMMD*03RN Chemical Manual Valve Manifold (1-5 Stations)

CKD GMMD303RN/403RN/503RN manifold type manual diaphragm valves for branching chemical and pure water lines.

Key features

  • PTFE body, PTFE diaphragm, PVDF mounting plate
  • 1 to 5 stations (GMMD503RN 1 to 4)
  • A-port position left (L), right (R) or both sides (W)
  • Super 300 Pillar P or F-LOCK 60 fittings, tube 10-25 mm and 3/8-1 in
  • Anti-misoperation cover not available for GMMD*03RN

Specifications

Valve type Manual diaphragm valve manifold (branch valve)
Body PTFE
Fluid Chemicals, pure water, air, N2
Fluid temperature 5 to 120 C (F-LOCK60 5-100 C)
Operating pressure 0-0.5 MPa
Proof pressure 1.0 MPa
Availability Made to order
Source CKD Korea catalog CB-031K-15, p. 164-167
GMMD303RN-10UP-1L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD303RN-10UP-1R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD303RN-10UP-1W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-10UP-2L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD303RN-10UP-2R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD303RN-10UP-2W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-10UP-3L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD303RN-10UP-3R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD303RN-10UP-3W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-10UP-4L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD303RN-10UP-4R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD303RN-10UP-4W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-10UP-5L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD303RN-10UP-5R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD303RN-10UP-5W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-10BUP-1L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD303RN-10BUP-1R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD303RN-10BUP-1W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-10BUP-2L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD303RN-10BUP-2R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD303RN-10BUP-2W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-10BUP-3L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD303RN-10BUP-3R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD303RN-10BUP-3W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-10BUP-4L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD303RN-10BUP-4R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD303RN-10BUP-4W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-10BUP-5L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD303RN-10BUP-5R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD303RN-10BUP-5W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-12UP-1L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD303RN-12UP-1R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD303RN-12UP-1W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-12UP-2L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD303RN-12UP-2R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD303RN-12UP-2W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-12UP-3L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD303RN-12UP-3R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD303RN-12UP-3W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-12UP-4L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD303RN-12UP-4R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD303RN-12UP-4W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-12UP-5L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD303RN-12UP-5R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD303RN-12UP-5W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-15BUP-1L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD303RN-15BUP-1R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD303RN-15BUP-1W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-15BUP-2L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD303RN-15BUP-2R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD303RN-15BUP-2W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-15BUP-3L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD303RN-15BUP-3R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD303RN-15BUP-3W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-15BUP-4L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD303RN-15BUP-4R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD303RN-15BUP-4W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-15BUP-5L Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD303RN-15BUP-5R Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD303RN-15BUP-5W Model: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-10UR-1L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 1 | A-port position: Left
GMMD303RN-10UR-1R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 1 | A-port position: Right
GMMD303RN-10UR-1W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-10UR-2L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 2 | A-port position: Left
GMMD303RN-10UR-2R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 2 | A-port position: Right
GMMD303RN-10UR-2W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-10UR-3L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 3 | A-port position: Left
GMMD303RN-10UR-3R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 3 | A-port position: Right
GMMD303RN-10UR-3W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-10UR-4L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 4 | A-port position: Left
GMMD303RN-10UR-4R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 4 | A-port position: Right
GMMD303RN-10UR-4W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-10UR-5L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 5 | A-port position: Left
GMMD303RN-10UR-5R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 5 | A-port position: Right
GMMD303RN-10UR-5W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-10BUR-1L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 1 | A-port position: Left
GMMD303RN-10BUR-1R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 1 | A-port position: Right
GMMD303RN-10BUR-1W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-10BUR-2L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 2 | A-port position: Left
GMMD303RN-10BUR-2R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 2 | A-port position: Right
GMMD303RN-10BUR-2W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-10BUR-3L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 3 | A-port position: Left
GMMD303RN-10BUR-3R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 3 | A-port position: Right
GMMD303RN-10BUR-3W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-10BUR-4L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 4 | A-port position: Left
GMMD303RN-10BUR-4R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 4 | A-port position: Right
GMMD303RN-10BUR-4W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-10BUR-5L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 5 | A-port position: Left
GMMD303RN-10BUR-5R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 5 | A-port position: Right
GMMD303RN-10BUR-5W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-12UR-1L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 1 | A-port position: Left
GMMD303RN-12UR-1R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 1 | A-port position: Right
GMMD303RN-12UR-1W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-12UR-2L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 2 | A-port position: Left
GMMD303RN-12UR-2R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 2 | A-port position: Right
GMMD303RN-12UR-2W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-12UR-3L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 3 | A-port position: Left
GMMD303RN-12UR-3R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 3 | A-port position: Right
GMMD303RN-12UR-3W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-12UR-4L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 4 | A-port position: Left
GMMD303RN-12UR-4R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 4 | A-port position: Right
GMMD303RN-12UR-4W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-12UR-5L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 5 | A-port position: Left
GMMD303RN-12UR-5R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 5 | A-port position: Right
GMMD303RN-12UR-5W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-15BUR-1L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 1 | A-port position: Left
GMMD303RN-15BUR-1R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 1 | A-port position: Right
GMMD303RN-15BUR-1W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-15BUR-2L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 2 | A-port position: Left
GMMD303RN-15BUR-2R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 2 | A-port position: Right
GMMD303RN-15BUR-2W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-15BUR-3L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 3 | A-port position: Left
GMMD303RN-15BUR-3R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 3 | A-port position: Right
GMMD303RN-15BUR-3W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-15BUR-4L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 4 | A-port position: Left
GMMD303RN-15BUR-4R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 4 | A-port position: Right
GMMD303RN-15BUR-4W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-15BUR-5L Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 5 | A-port position: Left
GMMD303RN-15BUR-5R Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 5 | A-port position: Right
GMMD303RN-15BUR-5W Model: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 5 | A-port position: Both sides
GMMD403RN-20BUP-1L Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Left
GMMD403RN-20BUP-1R Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Right
GMMD403RN-20BUP-1W Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Both sides
GMMD403RN-20BUP-2L Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Left
GMMD403RN-20BUP-2R Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Right
GMMD403RN-20BUP-2W Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Both sides
GMMD403RN-20BUP-3L Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Left
GMMD403RN-20BUP-3R Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Right
GMMD403RN-20BUP-3W Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Both sides
GMMD403RN-20BUP-4L Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Left
GMMD403RN-20BUP-4R Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Right
GMMD403RN-20BUP-4W Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Both sides
GMMD403RN-20BUP-5L Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Left
GMMD403RN-20BUP-5R Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Right
GMMD403RN-20BUP-5W Model: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Both sides
GMMD403RN-20BUR-1L Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 1 | A-port position: Left
GMMD403RN-20BUR-1R Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 1 | A-port position: Right
GMMD403RN-20BUR-1W Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 1 | A-port position: Both sides
GMMD403RN-20BUR-2L Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 2 | A-port position: Left
GMMD403RN-20BUR-2R Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 2 | A-port position: Right
GMMD403RN-20BUR-2W Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 2 | A-port position: Both sides
GMMD403RN-20BUR-3L Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 3 | A-port position: Left
GMMD403RN-20BUR-3R Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 3 | A-port position: Right
GMMD403RN-20BUR-3W Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 3 | A-port position: Both sides
GMMD403RN-20BUR-4L Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 4 | A-port position: Left
GMMD403RN-20BUR-4R Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 4 | A-port position: Right
GMMD403RN-20BUR-4W Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 4 | A-port position: Both sides
GMMD403RN-20BUR-5L Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 5 | A-port position: Left
GMMD403RN-20BUR-5R Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 5 | A-port position: Right
GMMD403RN-20BUR-5W Model: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 5 | A-port position: Both sides
GMMD503RN-25UP-1L Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD503RN-25UP-1R Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD503RN-25UP-1W Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD503RN-25UP-2L Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD503RN-25UP-2R Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD503RN-25UP-2W Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD503RN-25UP-3L Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD503RN-25UP-3R Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD503RN-25UP-3W Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD503RN-25UP-4L Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD503RN-25UP-4R Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD503RN-25UP-4W Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD503RN-25BUP-1L Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD503RN-25BUP-1R Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD503RN-25BUP-1W Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD503RN-25BUP-2L Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD503RN-25BUP-2R Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD503RN-25BUP-2W Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD503RN-25BUP-3L Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD503RN-25BUP-3R Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD503RN-25BUP-3W Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD503RN-25BUP-4L Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD503RN-25BUP-4R Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD503RN-25BUP-4W Model: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD503RN-25UR-1L Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD503RN-25UR-1R Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD503RN-25UR-1W Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD503RN-25UR-2L Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD503RN-25UR-2R Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD503RN-25UR-2W Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD503RN-25UR-3L Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD503RN-25UR-3R Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD503RN-25UR-3W Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD503RN-25UR-4L Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD503RN-25UR-4R Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD503RN-25UR-4W Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD503RN-25BUR-1L Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD503RN-25BUR-1R Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD503RN-25BUR-1W Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD503RN-25BUR-2L Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD503RN-25BUR-2R Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD503RN-25BUR-2W Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD503RN-25BUR-3L Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD503RN-25BUR-3R Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD503RN-25BUR-3W Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD503RN-25BUR-4L Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD503RN-25BUR-4R Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD503RN-25BUR-4W Model: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
Chemical ValvesCKD
198 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GMMD*03RN Chemical Manual Valve Manifold (1-5 Stations)

Brand CKD·Chemical Valves

Available part numbers (198)

GMMD303RN-10UP-1L, GMMD303RN-10UP-1R, GMMD303RN-10UP-1W, GMMD303RN-10UP-2L, GMMD303RN-10UP-2R, GMMD303RN-10UP-2W, GMMD303RN-10UP-3L, GMMD303RN-10UP-3R, GMMD303RN-10UP-3W, GMMD303RN-10UP-4L + 188 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GMMD303RN-10UP-1LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD303RN-10UP-1RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD303RN-10UP-1WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-10UP-2LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD303RN-10UP-2RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD303RN-10UP-2WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-10UP-3LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD303RN-10UP-3RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD303RN-10UP-3WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-10UP-4LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD303RN-10UP-4RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD303RN-10UP-4WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-10UP-5LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD303RN-10UP-5RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD303RN-10UP-5WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-10BUP-1LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Left
GMMD303RN-10BUP-1RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Right
GMMD303RN-10BUP-1WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-10BUP-2LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Left
GMMD303RN-10BUP-2RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Right
GMMD303RN-10BUP-2WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-10BUP-3LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Left
GMMD303RN-10BUP-3RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Right
GMMD303RN-10BUP-3WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-10BUP-4LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Left
GMMD303RN-10BUP-4RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Right
GMMD303RN-10BUP-4WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-10BUP-5LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Left
GMMD303RN-10BUP-5RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Right
GMMD303RN-10BUP-5WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-12UP-1LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD303RN-12UP-1RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD303RN-12UP-1WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-12UP-2LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD303RN-12UP-2RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD303RN-12UP-2WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-12UP-3LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD303RN-12UP-3RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD303RN-12UP-3WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-12UP-4LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD303RN-12UP-4RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD303RN-12UP-4WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-12UP-5LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD303RN-12UP-5RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD303RN-12UP-5WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-15BUP-1LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Left
GMMD303RN-15BUP-1RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Right
GMMD303RN-15BUP-1WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-15BUP-2LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Left
GMMD303RN-15BUP-2RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Right
GMMD303RN-15BUP-2WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-15BUP-3LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Left
GMMD303RN-15BUP-3RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Right
GMMD303RN-15BUP-3WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-15BUP-4LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Left
GMMD303RN-15BUP-4RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Right
GMMD303RN-15BUP-4WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-15BUP-5LModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Left
GMMD303RN-15BUP-5RModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Right
GMMD303RN-15BUP-5WModel: GMMD303RN | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-10UR-1LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 1 | A-port position: Left
GMMD303RN-10UR-1RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 1 | A-port position: Right
GMMD303RN-10UR-1WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-10UR-2LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 2 | A-port position: Left
GMMD303RN-10UR-2RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 2 | A-port position: Right
GMMD303RN-10UR-2WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-10UR-3LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 3 | A-port position: Left
GMMD303RN-10UR-3RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 3 | A-port position: Right
GMMD303RN-10UR-3WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-10UR-4LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 4 | A-port position: Left
GMMD303RN-10UR-4RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 4 | A-port position: Right
GMMD303RN-10UR-4WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-10UR-5LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 5 | A-port position: Left
GMMD303RN-10UR-5RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 5 | A-port position: Right
GMMD303RN-10UR-5WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-10BUR-1LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 1 | A-port position: Left
GMMD303RN-10BUR-1RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 1 | A-port position: Right
GMMD303RN-10BUR-1WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-10BUR-2LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 2 | A-port position: Left
GMMD303RN-10BUR-2RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 2 | A-port position: Right
GMMD303RN-10BUR-2WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-10BUR-3LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 3 | A-port position: Left
GMMD303RN-10BUR-3RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 3 | A-port position: Right
GMMD303RN-10BUR-3WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-10BUR-4LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 4 | A-port position: Left
GMMD303RN-10BUR-4RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 4 | A-port position: Right
GMMD303RN-10BUR-4WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-10BUR-5LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 5 | A-port position: Left
GMMD303RN-10BUR-5RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 5 | A-port position: Right
GMMD303RN-10BUR-5WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-12UR-1LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 1 | A-port position: Left
GMMD303RN-12UR-1RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 1 | A-port position: Right
GMMD303RN-12UR-1WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-12UR-2LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 2 | A-port position: Left
GMMD303RN-12UR-2RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 2 | A-port position: Right
GMMD303RN-12UR-2WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-12UR-3LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 3 | A-port position: Left
GMMD303RN-12UR-3RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 3 | A-port position: Right
GMMD303RN-12UR-3WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-12UR-4LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 4 | A-port position: Left
GMMD303RN-12UR-4RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 4 | A-port position: Right
GMMD303RN-12UR-4WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-12UR-5LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 5 | A-port position: Left
GMMD303RN-12UR-5RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 5 | A-port position: Right
GMMD303RN-12UR-5WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9 mm | Stations: 5 | A-port position: Both sides
GMMD303RN-15BUR-1LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 1 | A-port position: Left
GMMD303RN-15BUR-1RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 1 | A-port position: Right
GMMD303RN-15BUR-1WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 1 | A-port position: Both sides
GMMD303RN-15BUR-2LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 2 | A-port position: Left
GMMD303RN-15BUR-2RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 2 | A-port position: Right
GMMD303RN-15BUR-2WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 2 | A-port position: Both sides
GMMD303RN-15BUR-3LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 3 | A-port position: Left
GMMD303RN-15BUR-3RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 3 | A-port position: Right
GMMD303RN-15BUR-3WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 3 | A-port position: Both sides
GMMD303RN-15BUR-4LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 4 | A-port position: Left
GMMD303RN-15BUR-4RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 4 | A-port position: Right
GMMD303RN-15BUR-4WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 4 | A-port position: Both sides
GMMD303RN-15BUR-5LModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 5 | A-port position: Left
GMMD303RN-15BUR-5RModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 5 | A-port position: Right
GMMD303RN-15BUR-5WModel: GMMD303RN | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9 mm | Stations: 5 | A-port position: Both sides
GMMD403RN-20BUP-1LModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Left
GMMD403RN-20BUP-1RModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Right
GMMD403RN-20BUP-1WModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 1 | A-port position: Both sides
GMMD403RN-20BUP-2LModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Left
GMMD403RN-20BUP-2RModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Right
GMMD403RN-20BUP-2WModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 2 | A-port position: Both sides
GMMD403RN-20BUP-3LModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Left
GMMD403RN-20BUP-3RModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Right
GMMD403RN-20BUP-3WModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 3 | A-port position: Both sides
GMMD403RN-20BUP-4LModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Left
GMMD403RN-20BUP-4RModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Right
GMMD403RN-20BUP-4WModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 4 | A-port position: Both sides
GMMD403RN-20BUP-5LModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Left
GMMD403RN-20BUP-5RModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Right
GMMD403RN-20BUP-5WModel: GMMD403RN | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Stations: 5 | A-port position: Both sides
GMMD403RN-20BUR-1LModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 1 | A-port position: Left
GMMD403RN-20BUR-1RModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 1 | A-port position: Right
GMMD403RN-20BUR-1WModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 1 | A-port position: Both sides
GMMD403RN-20BUR-2LModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 2 | A-port position: Left
GMMD403RN-20BUR-2RModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 2 | A-port position: Right
GMMD403RN-20BUR-2WModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 2 | A-port position: Both sides
GMMD403RN-20BUR-3LModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 3 | A-port position: Left
GMMD403RN-20BUR-3RModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 3 | A-port position: Right
GMMD403RN-20BUR-3WModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 3 | A-port position: Both sides
GMMD403RN-20BUR-4LModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 4 | A-port position: Left
GMMD403RN-20BUR-4RModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 4 | A-port position: Right
GMMD403RN-20BUR-4WModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 4 | A-port position: Both sides
GMMD403RN-20BUR-5LModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 5 | A-port position: Left
GMMD403RN-20BUR-5RModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 5 | A-port position: Right
GMMD403RN-20BUR-5WModel: GMMD403RN | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15 mm | Stations: 5 | A-port position: Both sides
GMMD503RN-25UP-1LModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD503RN-25UP-1RModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD503RN-25UP-1WModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD503RN-25UP-2LModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD503RN-25UP-2RModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD503RN-25UP-2WModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD503RN-25UP-3LModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD503RN-25UP-3RModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD503RN-25UP-3WModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD503RN-25UP-4LModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD503RN-25UP-4RModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD503RN-25UP-4WModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD503RN-25BUP-1LModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD503RN-25BUP-1RModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD503RN-25BUP-1WModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD503RN-25BUP-2LModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD503RN-25BUP-2RModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD503RN-25BUP-2WModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD503RN-25BUP-3LModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD503RN-25BUP-3RModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD503RN-25BUP-3WModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD503RN-25BUP-4LModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD503RN-25BUP-4RModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD503RN-25BUP-4WModel: GMMD503RN | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD503RN-25UR-1LModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD503RN-25UR-1RModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD503RN-25UR-1WModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD503RN-25UR-2LModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD503RN-25UR-2RModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD503RN-25UR-2WModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD503RN-25UR-3LModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD503RN-25UR-3RModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD503RN-25UR-3WModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD503RN-25UR-4LModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD503RN-25UR-4RModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD503RN-25UR-4WModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Stations: 4 | A-port position: Both sides
GMMD503RN-25BUR-1LModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Left
GMMD503RN-25BUR-1RModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Right
GMMD503RN-25BUR-1WModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 1 | A-port position: Both sides
GMMD503RN-25BUR-2LModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Left
GMMD503RN-25BUR-2RModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Right
GMMD503RN-25BUR-2WModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 2 | A-port position: Both sides
GMMD503RN-25BUR-3LModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Left
GMMD503RN-25BUR-3RModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Right
GMMD503RN-25BUR-3WModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 3 | A-port position: Both sides
GMMD503RN-25BUR-4LModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Left
GMMD503RN-25BUR-4RModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Right
GMMD503RN-25BUR-4WModel: GMMD503RN | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Stations: 4 | A-port position: Both sides

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
