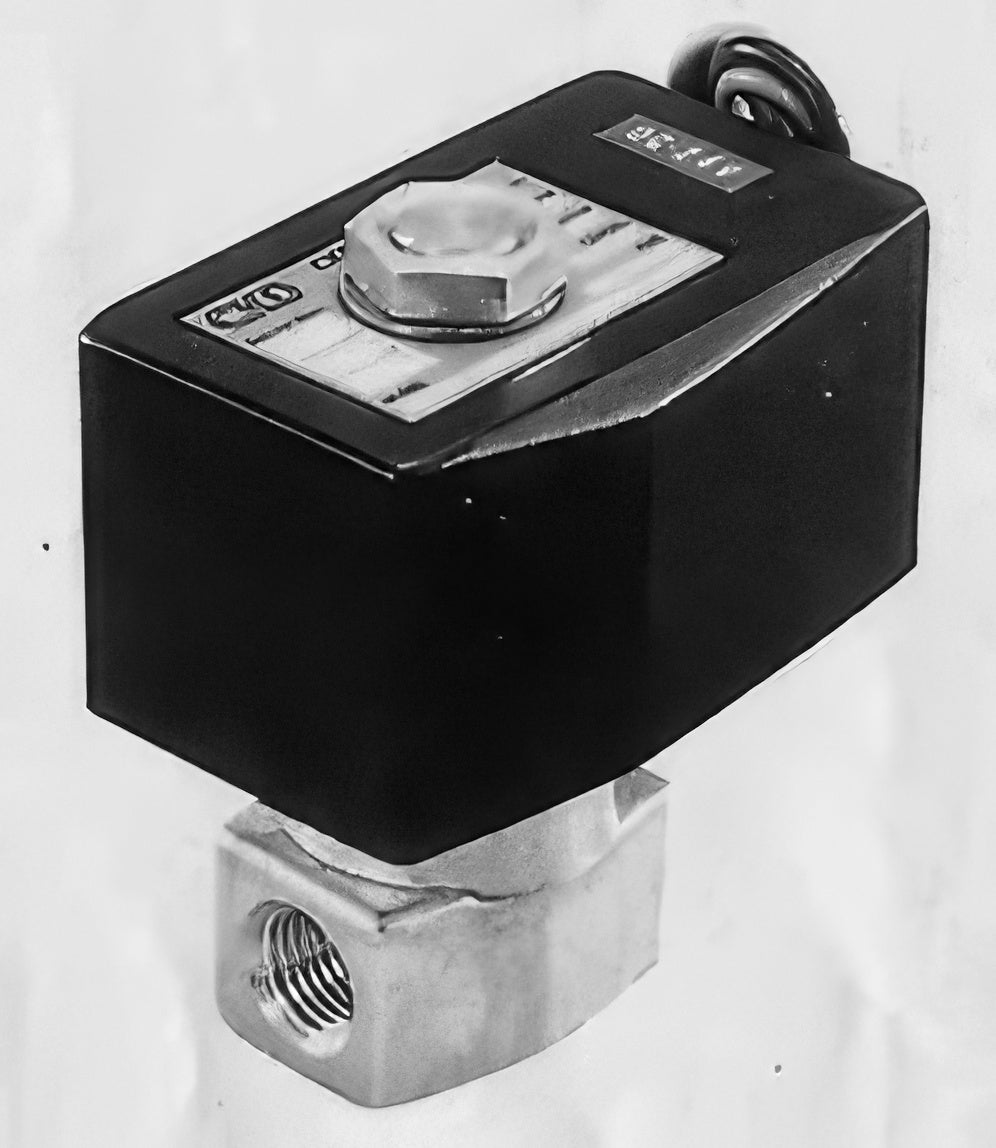

CKD High-Frequency 2-Port Solenoid Valve A2-5201 (Direct Acting), A2-5202 (Pilot Operated) (Made to Order)

CKD High-Frequency 2-Port Solenoid Valve A2-5201 (Direct Acting), A2-5202 (Pilot Operated) (Made to Order)

High-cycle 2-port solenoid valves with excellent response and response stability, durability more than ten times that of conventional products.

Key features

  • For compressed air, dry gas and inert gas; normally closed, DC24V intermittent rating

Specifications

Type NC
Fluid compressed air, dry gas, inert gas
Rated voltage DC24V (intermittent, ON<=OFF, max 10 s continuous)
A2-5201-01-3 Port: Rc1/8 | Orifice (mm): 3 | Working pressure (MPa): 0-0.7 | Mass (kg): 0.46 | Valve: direct acting | Type: NC | Fluid: compressed air, dry gas, inert gas | Rated voltage: DC24V (intermittent, ON<=OFF, max 10 s continuous)
A2-5201-01-4 Port: Rc1/8 | Orifice (mm): 4 | Working pressure (MPa): 0-0.5 | Mass (kg): 0.46 | Valve: direct acting | Type: NC | Fluid: compressed air, dry gas, inert gas | Rated voltage: DC24V (intermittent, ON<=OFF, max 10 s continuous)
A2-5201-02-3 Port: Rc1/4 | Orifice (mm): 3 | Working pressure (MPa): 0-0.7 | Mass (kg): 0.45 | Valve: direct acting | Type: NC | Fluid: compressed air, dry gas, inert gas | Rated voltage: DC24V (intermittent, ON<=OFF, max 10 s continuous)
A2-5201-02-4 Port: Rc1/4 | Orifice (mm): 4 | Working pressure (MPa): 0-0.5 | Mass (kg): 0.45 | Valve: direct acting | Type: NC | Fluid: compressed air, dry gas, inert gas | Rated voltage: DC24V (intermittent, ON<=OFF, max 10 s continuous)
A2-5202-02-7 Port: Rc1/4 | Orifice (mm): 7 | Working pressure (MPa): 0.02-0.7 | Mass (kg): 0.52 | Valve: pilot operated | Type: NC | Fluid: compressed air, dry gas, inert gas | Rated voltage: DC24V (intermittent, ON<=OFF, max 10 s continuous)
A2-5202-03-7 Port: Rc3/8 | Orifice (mm): 7 | Working pressure (MPa): 0.02-0.7 | Mass (kg): 0.52 | Valve: pilot operated | Type: NC | Fluid: compressed air, dry gas, inert gas | Rated voltage: DC24V (intermittent, ON<=OFF, max 10 s continuous)
Solenoid ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD High-Frequency 2-Port Solenoid Valve A2-5201 (Direct Acting), A2-5202 (Pilot Operated) (Made to Order)

Brand CKD·Solenoid Valves

Available part numbers (6)

A2-5201-01-3, A2-5201-01-4, A2-5201-02-3, A2-5201-02-4, A2-5202-02-7, A2-5202-03-7

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A2-5201-01-3Port: Rc1/8 | Orifice (mm): 3 | Working pressure (MPa): 0-0.7 | Mass (kg): 0.46 | Valve: direct acting | Type: NC | Fluid: compressed air, dry gas, inert gas | Rated voltage: DC24V (intermittent, ON<=OFF, max 10 s continuous)
A2-5201-01-4Port: Rc1/8 | Orifice (mm): 4 | Working pressure (MPa): 0-0.5 | Mass (kg): 0.46 | Valve: direct acting | Type: NC | Fluid: compressed air, dry gas, inert gas | Rated voltage: DC24V (intermittent, ON<=OFF, max 10 s continuous)
A2-5201-02-3Port: Rc1/4 | Orifice (mm): 3 | Working pressure (MPa): 0-0.7 | Mass (kg): 0.45 | Valve: direct acting | Type: NC | Fluid: compressed air, dry gas, inert gas | Rated voltage: DC24V (intermittent, ON<=OFF, max 10 s continuous)
A2-5201-02-4Port: Rc1/4 | Orifice (mm): 4 | Working pressure (MPa): 0-0.5 | Mass (kg): 0.45 | Valve: direct acting | Type: NC | Fluid: compressed air, dry gas, inert gas | Rated voltage: DC24V (intermittent, ON<=OFF, max 10 s continuous)
A2-5202-02-7Port: Rc1/4 | Orifice (mm): 7 | Working pressure (MPa): 0.02-0.7 | Mass (kg): 0.52 | Valve: pilot operated | Type: NC | Fluid: compressed air, dry gas, inert gas | Rated voltage: DC24V (intermittent, ON<=OFF, max 10 s continuous)
A2-5202-03-7Port: Rc3/8 | Orifice (mm): 7 | Working pressure (MPa): 0.02-0.7 | Mass (kg): 0.52 | Valve: pilot operated | Type: NC | Fluid: compressed air, dry gas, inert gas | Rated voltage: DC24V (intermittent, ON<=OFF, max 10 s continuous)
