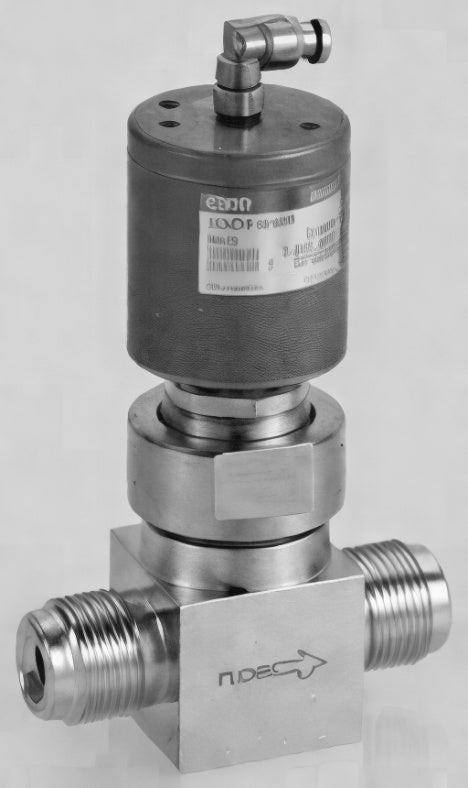

CKD High Temperature High Durability Gas Valve AGD21R-A Series

CKD High Temperature High Durability Gas Valve AGD21R-A Series

Normally closed metal diaphragm air operated valve for high temperature process gas (fluid 150 to 200 C).

Key features

  • Ni-Co alloy diaphragm, PFA seat and SUS316L body; Cv 0.4 or more at 200 C under vacuum. 3/8 in JXR or bite fitting connection

Specifications

Operation Normally closed
Cv 0.4 or more
Fluid temp. (C) 150-200
Mass (kg) 0.7
Wetted parts Ni-Co alloy diaphragm, PFA seat, SUS316L body
AGD21R-A-6RM Connection: 3/8 in JXR male fitting | Operation: Normally closed | Cv: 0.4 or more | Fluid temp. (C): 150-200 | Mass (kg): 0.7 | Wetted parts: Ni-Co alloy diaphragm, PFA seat, SUS316L body
AGD21R-A-6R Connection: 3/8 in JXR female fitting | Operation: Normally closed | Cv: 0.4 or more | Fluid temp. (C): 150-200 | Mass (kg): 0.7 | Wetted parts: Ni-Co alloy diaphragm, PFA seat, SUS316L body
AGD21R-A-6S Connection: 3/8 in bite fitting | Operation: Normally closed | Cv: 0.4 or more | Fluid temp. (C): 150-200 | Mass (kg): 0.7 | Wetted parts: Ni-Co alloy diaphragm, PFA seat, SUS316L body
Process Gas ValvesCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD High Temperature High Durability Gas Valve AGD21R-A Series

Brand CKD·Process Gas Valves

Available part numbers (3)

AGD21R-A-6RM, AGD21R-A-6R, AGD21R-A-6S

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AGD21R-A-6RMConnection: 3/8 in JXR male fitting | Operation: Normally closed | Cv: 0.4 or more | Fluid temp. (C): 150-200 | Mass (kg): 0.7 | Wetted parts: Ni-Co alloy diaphragm, PFA seat, SUS316L body
AGD21R-A-6RConnection: 3/8 in JXR female fitting | Operation: Normally closed | Cv: 0.4 or more | Fluid temp. (C): 150-200 | Mass (kg): 0.7 | Wetted parts: Ni-Co alloy diaphragm, PFA seat, SUS316L body
AGD21R-A-6SConnection: 3/8 in bite fitting | Operation: Normally closed | Cv: 0.4 or more | Fluid temp. (C): 150-200 | Mass (kg): 0.7 | Wetted parts: Ni-Co alloy diaphragm, PFA seat, SUS316L body
