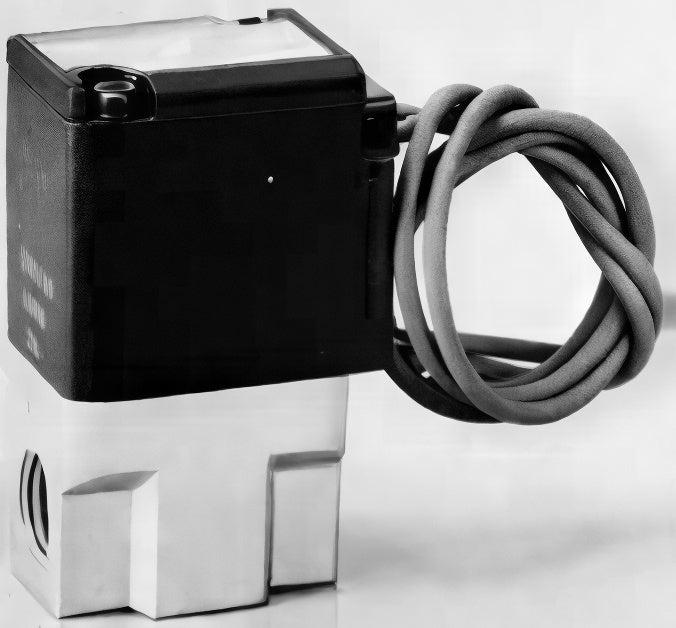

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Compressed Air FAB Series (Single Unit)

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Compressed Air FAB Series (Single Unit)

Direct-acting poppet 2-port solenoid valve for compressed air, single-unit type, from the JUST FIT fluid-specific range.

Key features

  • Available normally closed (FAB*1) and normally open (FAB*2), M5 to Rc1/2 ports, IP65 equivalent
  • Codes give body size, port size and orifice; coil option and voltage are added when ordering

Specifications

Fluid compressed air
Coil voltage AC100V, AC200V, DC24V, DC12V
FAB11-M5-Z Port: M5 | Orifice (mm): 1 | C (dm3/(s·bar)) / b: 0.12/0.64 | Max operating pressure differential AC/DC (MPa): 0.7/0.7 | Max working pressure (MPa): 1.0 | Mass (kg): 0.07 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB11-M5-1 Port: M5 | Orifice (mm): 1.5 | C (dm3/(s·bar)) / b: 0.28/0.52 | Max operating pressure differential AC/DC (MPa): 0.3/0.3 | Max working pressure (MPa): 1.0 | Mass (kg): 0.07 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB21-6-1 Port: Rc1/8 | Orifice (mm): 1.5 | C (dm3/(s·bar)) / b: 0.28/0.52 | Max operating pressure differential AC/DC (MPa): 1.0/1.0 | Max working pressure (MPa): 1.0 | Mass (kg): 0.12 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB21-6-2 Port: Rc1/8 | Orifice (mm): 2 | C (dm3/(s·bar)) / b: 0.55/0.59 | Max operating pressure differential AC/DC (MPa): 0.6/0.6 | Max working pressure (MPa): 1.0 | Mass (kg): 0.12 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB31-6-2 Port: Rc1/8 | Orifice (mm): 2 | C (dm3/(s·bar)) / b: 0.55/0.56 | Max operating pressure differential AC/DC (MPa): 1.4/1.4 | Max working pressure (MPa): 1.4 | Mass (kg): 0.21 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB31-8-2 Port: Rc1/4 | Orifice (mm): 2 | C (dm3/(s·bar)) / b: 0.55/0.56 | Max operating pressure differential AC/DC (MPa): 1.4/1.4 | Max working pressure (MPa): 1.4 | Mass (kg): 0.21 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB31-6-3 Port: Rc1/8 | Orifice (mm): 3 | C (dm3/(s·bar)) / b: 1.2/0.56 | Max operating pressure differential AC/DC (MPa): 1.0/0.6 | Max working pressure (MPa): 1.4 | Mass (kg): 0.21 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB31-8-3 Port: Rc1/4 | Orifice (mm): 3 | C (dm3/(s·bar)) / b: 1.2/0.56 | Max operating pressure differential AC/DC (MPa): 1.0/0.6 | Max working pressure (MPa): 1.4 | Mass (kg): 0.21 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB31-6-6 Port: Rc1/8 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.1/0.50 | Max operating pressure differential AC/DC (MPa): 0.3/0.15 | Max working pressure (MPa): 1.4 | Mass (kg): 0.21 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB31-8-6 Port: Rc1/4 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.1/0.50 | Max operating pressure differential AC/DC (MPa): 0.3/0.15 | Max working pressure (MPa): 1.4 | Mass (kg): 0.21 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB41-8-3 Port: Rc1/4 | Orifice (mm): 3 | C (dm3/(s·bar)) / b: 1.2/0.56 | Max operating pressure differential AC/DC (MPa): 1.4/1.4 | Max working pressure (MPa): 1.4 | Mass (kg): 0.37 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB41-10-3 Port: Rc3/8 | Orifice (mm): 3 | C (dm3/(s·bar)) / b: 1.2/0.56 | Max operating pressure differential AC/DC (MPa): 1.4/1.4 | Max working pressure (MPa): 1.4 | Mass (kg): 0.37 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB41-8-5 Port: Rc1/4 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.1/0.54 | Max operating pressure differential AC/DC (MPa): 1.0/0.9 | Max working pressure (MPa): 1.4 | Mass (kg): 0.37 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB41-10-5 Port: Rc3/8 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.1/0.54 | Max operating pressure differential AC/DC (MPa): 1.0/0.9 | Max working pressure (MPa): 1.4 | Mass (kg): 0.37 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB41-8-7 Port: Rc1/4 | Orifice (mm): 7 | C (dm3/(s·bar)) / b: 5.7/0.48 | Max operating pressure differential AC/DC (MPa): 0.25/0.15 | Max working pressure (MPa): 1.4 | Mass (kg): 0.37 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB41-10-7 Port: Rc3/8 | Orifice (mm): 7 | C (dm3/(s·bar)) / b: 5.7/0.48 | Max operating pressure differential AC/DC (MPa): 0.25/0.15 | Max working pressure (MPa): 1.4 | Mass (kg): 0.37 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB51-10-5 Port: Rc3/8 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.1/0.54 | Max operating pressure differential AC/DC (MPa): 1.2/1.2 | Max working pressure (MPa): 1.4 | Mass (kg): 0.6 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB51-10-6 Port: Rc3/8 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.1/0.50 | Max operating pressure differential AC/DC (MPa): 0.7/0.8 | Max working pressure (MPa): 1.4 | Mass (kg): 0.6 | Type: NC | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB32-6-2 Port: Rc1/8 | Orifice (mm): 2 | C (dm3/(s·bar)) / b: 0.57/0.53 | Max operating pressure differential AC/DC (MPa): 1.1/1.1 | Max working pressure (MPa): 1.4 | Mass (kg): 0.31 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB32-8-2 Port: Rc1/4 | Orifice (mm): 2 | C (dm3/(s·bar)) / b: 0.57/0.53 | Max operating pressure differential AC/DC (MPa): 1.1/1.1 | Max working pressure (MPa): 1.4 | Mass (kg): 0.31 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB32-6-3 Port: Rc1/8 | Orifice (mm): 3 | C (dm3/(s·bar)) / b: 1.2/0.57 | Max operating pressure differential AC/DC (MPa): 0.55/0.55 | Max working pressure (MPa): 1.4 | Mass (kg): 0.31 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB32-8-3 Port: Rc1/4 | Orifice (mm): 3 | C (dm3/(s·bar)) / b: 1.2/0.57 | Max operating pressure differential AC/DC (MPa): 0.55/0.55 | Max working pressure (MPa): 1.4 | Mass (kg): 0.31 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB32-6-6 Port: Rc1/8 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.0/0.48 | Max operating pressure differential AC/DC (MPa): 0.2/0.2 | Max working pressure (MPa): 1.4 | Mass (kg): 0.31 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB32-8-6 Port: Rc1/4 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.0/0.48 | Max operating pressure differential AC/DC (MPa): 0.2/0.2 | Max working pressure (MPa): 1.4 | Mass (kg): 0.31 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB42-8-3 Port: Rc1/4 | Orifice (mm): 3 | C (dm3/(s·bar)) / b: 1.2/0.50 | Max operating pressure differential AC/DC (MPa): 0.9/0.9 | Max working pressure (MPa): 1.4 | Mass (kg): 0.54 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB42-10-3 Port: Rc3/8 | Orifice (mm): 3 | C (dm3/(s·bar)) / b: 1.2/0.50 | Max operating pressure differential AC/DC (MPa): 0.9/0.9 | Max working pressure (MPa): 1.4 | Mass (kg): 0.54 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB42-8-5 Port: Rc1/4 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.1/0.54 | Max operating pressure differential AC/DC (MPa): 0.55/0.55 | Max working pressure (MPa): 1.4 | Mass (kg): 0.54 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB42-10-5 Port: Rc3/8 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.1/0.54 | Max operating pressure differential AC/DC (MPa): 0.55/0.55 | Max working pressure (MPa): 1.4 | Mass (kg): 0.54 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB42-8-7 Port: Rc1/4 | Orifice (mm): 7 | C (dm3/(s·bar)) / b: 5.2/0.41 | Max operating pressure differential AC/DC (MPa): 0.15/0.15 | Max working pressure (MPa): 1.4 | Mass (kg): 0.54 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB42-10-7 Port: Rc3/8 | Orifice (mm): 7 | C (dm3/(s·bar)) / b: 5.2/0.41 | Max operating pressure differential AC/DC (MPa): 0.15/0.15 | Max working pressure (MPa): 1.4 | Mass (kg): 0.54 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB52-8-5 Port: Rc1/4 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.1/0.54 | Max operating pressure differential AC/DC (MPa): 0.8/0.8 | Max working pressure (MPa): 1.4 | Mass (kg): 0.71 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB52-10-5 Port: Rc3/8 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.1/0.54 | Max operating pressure differential AC/DC (MPa): 0.8/0.8 | Max working pressure (MPa): 1.4 | Mass (kg): 0.71 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB52-8-6 Port: Rc1/4 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.0/0.52 | Max operating pressure differential AC/DC (MPa): 0.5/0.5 | Max working pressure (MPa): 1.4 | Mass (kg): 0.71 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB52-10-6 Port: Rc3/8 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.0/0.52 | Max operating pressure differential AC/DC (MPa): 0.5/0.5 | Max working pressure (MPa): 1.4 | Mass (kg): 0.71 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB52-8-7 Port: Rc1/4 | Orifice (mm): 7 | C (dm3/(s·bar)) / b: 5.2/0.41 | Max operating pressure differential AC/DC (MPa): 0.25/0.25 | Max working pressure (MPa): 1.4 | Mass (kg): 0.71 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FAB52-10-7 Port: Rc3/8 | Orifice (mm): 7 | C (dm3/(s·bar)) / b: 5.2/0.41 | Max operating pressure differential AC/DC (MPa): 0.25/0.25 | Max working pressure (MPa): 1.4 | Mass (kg): 0.71 | Type: NO | Fluid: compressed air | Coil voltage: AC100V, AC200V, DC24V, DC12V
Solenoid ValvesCKD
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Compressed Air FAB Series (Single Unit)

Brand CKD·Solenoid Valves

Available part numbers (36)

FAB11-M5-Z, FAB11-M5-1, FAB21-6-1, FAB21-6-2, FAB31-6-2, FAB31-8-2, FAB31-6-3, FAB31-8-3, FAB31-6-6, FAB31-8-6 + 26 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
