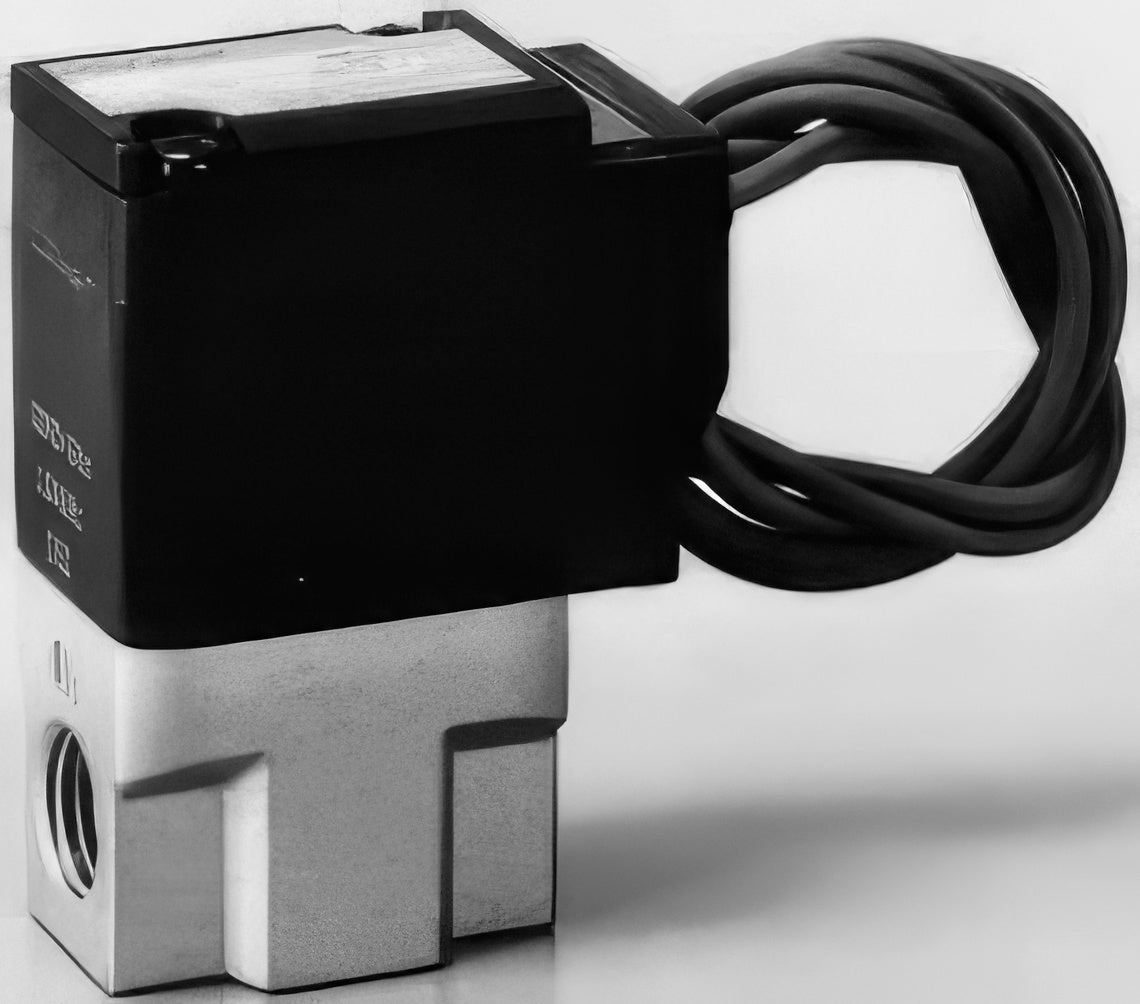

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Dry Air FGB Series (Single Unit)

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Dry Air FGB Series (Single Unit)

Direct-acting poppet 2-port solenoid valve for dry air, single-unit type, from the JUST FIT range.

Key features

  • Normally closed, Rc1/8 to Rc1/2 ports, IP65 equivalent
  • Codes give body size, port size and orifice; coil option and voltage are added when ordering

Specifications

Type NC
Fluid dry air
Coil voltage AC100V, AC200V, DC24V, DC12V
FGB21-6-1 Port: Rc1/8 | Orifice (mm): 1.5 | C/b: 0.28/0.52 | Max operating pressure differential (MPa): 1.0/1.0 (AC/DC) | Max working pressure (MPa): 1.0 | Mass (kg): 0.13 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB21-6-2 Port: Rc1/8 | Orifice (mm): 2 | C/b: 0.55/0.59 | Max operating pressure differential (MPa): 0.6/0.6 (AC/DC) | Max working pressure (MPa): 1.0 | Mass (kg): 0.13 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB31-6-2 Port: Rc1/8 | Orifice (mm): 2 | C/b: 0.55/0.56 | Max operating pressure differential (MPa): 1.4/1.4 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.22 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB31-8-2 Port: Rc1/4 | Orifice (mm): 2 | C/b: 0.55/0.56 | Max operating pressure differential (MPa): 1.4/1.4 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.22 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB31-6-3 Port: Rc1/8 | Orifice (mm): 3 | C/b: 1.2/0.56 | Max operating pressure differential (MPa): 0.6/0.6 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.22 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB31-8-3 Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.56 | Max operating pressure differential (MPa): 0.6/0.6 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.22 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB31-6-6 Port: Rc1/8 | Orifice (mm): 5 | C/b: 3.1/0.50 | Max operating pressure differential (MPa): 0.15/0.15 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.22 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB31-8-6 Port: Rc1/4 | Orifice (mm): 5 | C/b: 3.1/0.50 | Max operating pressure differential (MPa): 0.15/0.15 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.22 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB41-8-3 Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.56 | Max operating pressure differential (MPa): 1.2/1.2 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.39 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB41-10-3 Port: Rc3/8 | Orifice (mm): 3 | C/b: 1.2/0.56 | Max operating pressure differential (MPa): 1.2/1.2 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.39 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB41-8-5 Port: Rc1/4 | Orifice (mm): 4 | C/b: 2.1/0.54 | Max operating pressure differential (MPa): 0.5/0.5 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.39 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB41-10-5 Port: Rc3/8 | Orifice (mm): 4 | C/b: 2.1/0.54 | Max operating pressure differential (MPa): 0.5/0.5 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.39 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB41-8-7 Port: Rc1/4 | Orifice (mm): 7 | C/b: 5.7/0.48 | Max operating pressure differential (MPa): 0.1/0.1 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.39 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB41-10-7 Port: Rc3/8 | Orifice (mm): 7 | C/b: 5.7/0.48 | Max operating pressure differential (MPa): 0.1/0.1 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.39 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB51-10-5 Port: Rc3/8 | Orifice (mm): 4 | C/b: 2.1/0.54 | Max operating pressure differential (MPa): 1.0/1.2 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.62 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB51-10-6 Port: Rc3/8 | Orifice (mm): 5 | C/b: 3.1/0.50 | Max operating pressure differential (MPa): 0.5/0.6 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.62 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB51-10-7 Port: Rc3/8 | Orifice (mm): 7 | C/b: 5.7/0.48 | Max operating pressure differential (MPa): 0.2/0.25 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.62 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB51-15-7 Port: Rc1/2 | Orifice (mm): 7 | C/b: 5.7/0.48 | Max operating pressure differential (MPa): 0.2/0.25 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.62 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB51-10-8 Port: Rc3/8 | Orifice (mm): 10 | C/b: 5.5/0.41 | Max operating pressure differential (MPa): 0.08/0.1 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.62 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB51-15-8 Port: Rc1/2 | Orifice (mm): 10 | C/b: 5.5/0.41 | Max operating pressure differential (MPa): 0.08/0.1 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.62 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
Solenoid ValvesCKD
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Dry Air FGB Series (Single Unit)

Brand CKD·Solenoid Valves

Available part numbers (20)

FGB21-6-1, FGB21-6-2, FGB31-6-2, FGB31-8-2, FGB31-6-3, FGB31-8-3, FGB31-6-6, FGB31-8-6, FGB41-8-3, FGB41-10-3 + 10 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FGB21-6-1Port: Rc1/8 | Orifice (mm): 1.5 | C/b: 0.28/0.52 | Max operating pressure differential (MPa): 1.0/1.0 (AC/DC) | Max working pressure (MPa): 1.0 | Mass (kg): 0.13 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB21-6-2Port: Rc1/8 | Orifice (mm): 2 | C/b: 0.55/0.59 | Max operating pressure differential (MPa): 0.6/0.6 (AC/DC) | Max working pressure (MPa): 1.0 | Mass (kg): 0.13 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB31-6-2Port: Rc1/8 | Orifice (mm): 2 | C/b: 0.55/0.56 | Max operating pressure differential (MPa): 1.4/1.4 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.22 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB31-8-2Port: Rc1/4 | Orifice (mm): 2 | C/b: 0.55/0.56 | Max operating pressure differential (MPa): 1.4/1.4 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.22 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB31-6-3Port: Rc1/8 | Orifice (mm): 3 | C/b: 1.2/0.56 | Max operating pressure differential (MPa): 0.6/0.6 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.22 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB31-8-3Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.56 | Max operating pressure differential (MPa): 0.6/0.6 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.22 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB31-6-6Port: Rc1/8 | Orifice (mm): 5 | C/b: 3.1/0.50 | Max operating pressure differential (MPa): 0.15/0.15 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.22 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB31-8-6Port: Rc1/4 | Orifice (mm): 5 | C/b: 3.1/0.50 | Max operating pressure differential (MPa): 0.15/0.15 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.22 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB41-8-3Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.56 | Max operating pressure differential (MPa): 1.2/1.2 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.39 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB41-10-3Port: Rc3/8 | Orifice (mm): 3 | C/b: 1.2/0.56 | Max operating pressure differential (MPa): 1.2/1.2 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.39 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB41-8-5Port: Rc1/4 | Orifice (mm): 4 | C/b: 2.1/0.54 | Max operating pressure differential (MPa): 0.5/0.5 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.39 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB41-10-5Port: Rc3/8 | Orifice (mm): 4 | C/b: 2.1/0.54 | Max operating pressure differential (MPa): 0.5/0.5 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.39 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB41-8-7Port: Rc1/4 | Orifice (mm): 7 | C/b: 5.7/0.48 | Max operating pressure differential (MPa): 0.1/0.1 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.39 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB41-10-7Port: Rc3/8 | Orifice (mm): 7 | C/b: 5.7/0.48 | Max operating pressure differential (MPa): 0.1/0.1 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.39 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB51-10-5Port: Rc3/8 | Orifice (mm): 4 | C/b: 2.1/0.54 | Max operating pressure differential (MPa): 1.0/1.2 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.62 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB51-10-6Port: Rc3/8 | Orifice (mm): 5 | C/b: 3.1/0.50 | Max operating pressure differential (MPa): 0.5/0.6 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.62 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB51-10-7Port: Rc3/8 | Orifice (mm): 7 | C/b: 5.7/0.48 | Max operating pressure differential (MPa): 0.2/0.25 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.62 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB51-15-7Port: Rc1/2 | Orifice (mm): 7 | C/b: 5.7/0.48 | Max operating pressure differential (MPa): 0.2/0.25 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.62 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB51-10-8Port: Rc3/8 | Orifice (mm): 10 | C/b: 5.5/0.41 | Max operating pressure differential (MPa): 0.08/0.1 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.62 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGB51-15-8Port: Rc1/2 | Orifice (mm): 10 | C/b: 5.5/0.41 | Max operating pressure differential (MPa): 0.08/0.1 (AC/DC) | Max working pressure (MPa): 1.4 | Mass (kg): 0.62 | Type: NC | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
