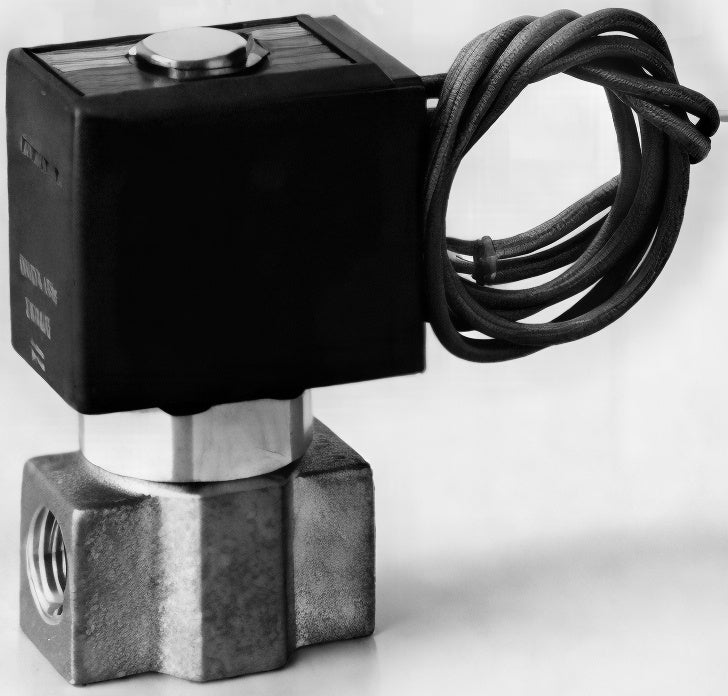

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Hot Water FHB Series (Single Unit)

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Hot Water FHB Series (Single Unit)

Direct-acting poppet 2-port solenoid valve for hot water, single-unit type, from the JUST FIT range.

Key features

  • Normally closed, class H equivalent coil, Rc1/8 to Rc1/2 ports, AC coils
  • Codes give body size, port size and orifice; coil option and voltage are added when ordering

Specifications

Type NC
Fluid hot water
Coil voltage AC100V, AC200V
FHB21-6-Z Port: Rc1/8 | Orifice (mm): 1 | Cv: 0.035 | Max operating pressure differential (MPa): 1.5 | Max working pressure (MPa): 1.5 | Mass (kg): 0.16 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB21-6-2 Port: Rc1/8 | Orifice (mm): 2 | Cv: 0.15 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.5 | Mass (kg): 0.16 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB31-6-3 Port: Rc1/8 | Orifice (mm): 3 | Cv: 0.31 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.5 | Mass (kg): 0.31 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB31-8-3 Port: Rc1/4 | Orifice (mm): 3 | Cv: 0.31 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.5 | Mass (kg): 0.31 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB31-6-5 Port: Rc1/8 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 0.4 | Max working pressure (MPa): 1.5 | Mass (kg): 0.31 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB31-8-5 Port: Rc1/4 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 0.4 | Max working pressure (MPa): 1.5 | Mass (kg): 0.31 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB31-6-6 Port: Rc1/8 | Orifice (mm): 5 | Cv: 0.75 | Max operating pressure differential (MPa): 0.25 | Max working pressure (MPa): 1.5 | Mass (kg): 0.31 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB31-8-6 Port: Rc1/4 | Orifice (mm): 5 | Cv: 0.75 | Max operating pressure differential (MPa): 0.25 | Max working pressure (MPa): 1.5 | Mass (kg): 0.31 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB41-8-5 Port: Rc1/4 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 0.8 | Max working pressure (MPa): 1.5 | Mass (kg): 0.51 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB41-10-5 Port: Rc3/8 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 0.8 | Max working pressure (MPa): 1.5 | Mass (kg): 0.51 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB41-8-6 Port: Rc1/4 | Orifice (mm): 5 | Cv: 0.80 | Max operating pressure differential (MPa): 0.5 | Max working pressure (MPa): 1.5 | Mass (kg): 0.51 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB41-10-6 Port: Rc3/8 | Orifice (mm): 5 | Cv: 0.80 | Max operating pressure differential (MPa): 0.5 | Max working pressure (MPa): 1.5 | Mass (kg): 0.51 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB41-8-7 Port: Rc1/4 | Orifice (mm): 7 | Cv: 1.10 | Max operating pressure differential (MPa): 0.2 | Max working pressure (MPa): 0.3 | Mass (kg): 0.51 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB41-10-7 Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.10 | Max operating pressure differential (MPa): 0.2 | Max working pressure (MPa): 0.3 | Mass (kg): 0.51 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB41-10-8 Port: Rc3/8 | Orifice (mm): 10 | Cv: 1.88 | Max operating pressure differential (MPa): 0.1 | Max working pressure (MPa): 0.3 | Mass (kg): 0.6 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB41-15-8 Port: Rc1/2 | Orifice (mm): 10 | Cv: 1.88 | Max operating pressure differential (MPa): 0.1 | Max working pressure (MPa): 0.3 | Mass (kg): 0.6 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB51-8-5 Port: Rc1/4 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 1.1 | Max working pressure (MPa): 1.5 | Mass (kg): 0.69 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB51-10-5 Port: Rc3/8 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 1.1 | Max working pressure (MPa): 1.5 | Mass (kg): 0.69 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB51-8-6 Port: Rc1/4 | Orifice (mm): 5 | Cv: 0.80 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.5 | Mass (kg): 0.69 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB51-10-6 Port: Rc3/8 | Orifice (mm): 5 | Cv: 0.80 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.5 | Mass (kg): 0.69 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB51-8-7 Port: Rc1/4 | Orifice (mm): 7 | Cv: 1.10 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 0.3 | Mass (kg): 0.69 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB51-10-7 Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.10 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 0.3 | Mass (kg): 0.69 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB51-10-8 Port: Rc3/8 | Orifice (mm): 10 | Cv: 1.88 | Max operating pressure differential (MPa): 0.12 | Max working pressure (MPa): 0.3 | Mass (kg): 0.79 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
FHB51-15-8 Port: Rc1/2 | Orifice (mm): 10 | Cv: 1.88 | Max operating pressure differential (MPa): 0.12 | Max working pressure (MPa): 0.3 | Mass (kg): 0.79 | Type: NC | Fluid: hot water | Coil voltage: AC100V, AC200V
