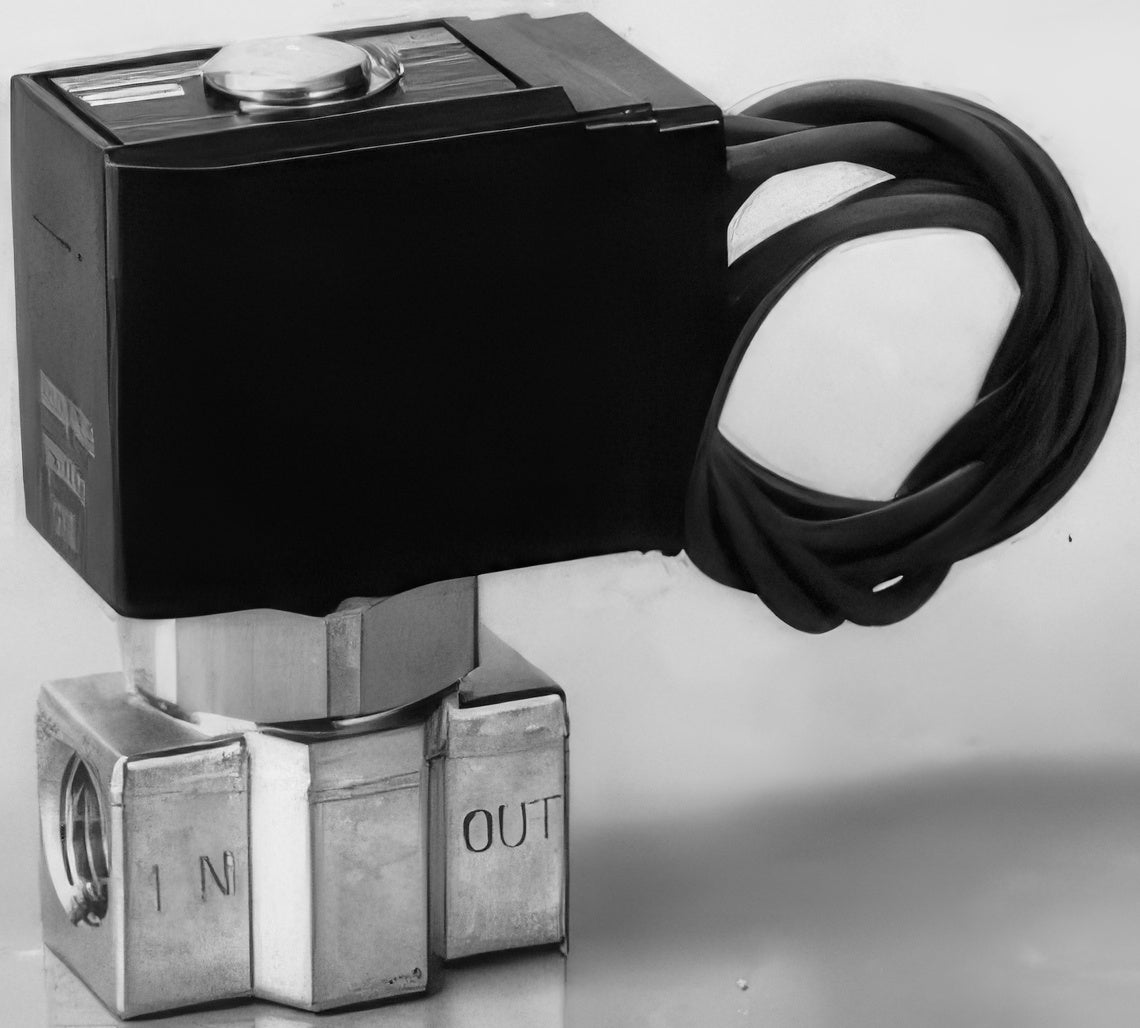

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Medium Vacuum FVB Series (Single Unit)

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Medium Vacuum FVB Series (Single Unit)

Direct-acting poppet 2-port solenoid valve for medium vacuum, single-unit type, from the JUST FIT range.

Key features

  • Normally closed with FKM seals, seat leakage 1.33x10^-6 Pa·m3/s or less, Rc1/8 to Rc3/8 ports
  • Codes give body size, port size and orifice; coil option and voltage are added when ordering

Specifications

Type NC
Fluid medium vacuum
Coil voltage AC100V, AC200V, DC24V, DC12V
FVB21-6-Z Port: Rc1/8 | Orifice (mm): 1 | C (dm3/(s·bar)) / b: 0.14/0.49 | Working pressure (Pa abs): 1.3x10^-2 to 1x10^6 | Max operating pressure differential (MPa): 1 | Mass (kg): 0.16 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB21-6-2 Port: Rc1/8 | Orifice (mm): 2 | C (dm3/(s·bar)) / b: 0.55/0.56 | Working pressure (Pa abs): 1.3x10^-2 to 0.3x10^6 | Max operating pressure differential (MPa): 0.3 | Mass (kg): 0.16 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB31-6-3 Port: Rc1/8 | Orifice (mm): 3 | C (dm3/(s·bar)) / b: 1.2/0.57 | Working pressure (Pa abs): 1.3x10^-2 to 0.4x10^6 | Max operating pressure differential (MPa): 0.4 | Mass (kg): 0.29 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB31-8-3 Port: Rc1/4 | Orifice (mm): 3 | C (dm3/(s·bar)) / b: 1.2/0.57 | Working pressure (Pa abs): 1.3x10^-2 to 0.4x10^6 | Max operating pressure differential (MPa): 0.4 | Mass (kg): 0.29 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB31-6-5 Port: Rc1/8 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.15x10^6 | Max operating pressure differential (MPa): 0.15 | Mass (kg): 0.29 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB31-8-5 Port: Rc1/4 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.15x10^6 | Max operating pressure differential (MPa): 0.15 | Mass (kg): 0.29 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB41-8-5 Port: Rc1/4 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.3x10^6 | Max operating pressure differential (MPa): 0.3 | Mass (kg): 0.5 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB41-10-5 Port: Rc3/8 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.3x10^6 | Max operating pressure differential (MPa): 0.3 | Mass (kg): 0.5 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB41-8-6 Port: Rc1/4 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.12x10^6 | Max operating pressure differential (MPa): 0.1 | Mass (kg): 0.5 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB41-10-6 Port: Rc3/8 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.12x10^6 | Max operating pressure differential (MPa): 0.1 | Mass (kg): 0.5 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB51-8-5 Port: Rc1/4 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.5x10^6 | Max operating pressure differential (MPa): 0.5 | Mass (kg): 0.69 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB51-10-5 Port: Rc3/8 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.5x10^6 | Max operating pressure differential (MPa): 0.5 | Mass (kg): 0.69 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB51-8-6 Port: Rc1/4 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.3x10^6 | Max operating pressure differential (MPa): 0.3 | Mass (kg): 0.69 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB51-10-6 Port: Rc3/8 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.3x10^6 | Max operating pressure differential (MPa): 0.3 | Mass (kg): 0.69 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB51-8-7 Port: Rc1/4 | Orifice (mm): 7 | C (dm3/(s·bar)) / b: 5.2/0.38 | Working pressure (Pa abs): 1.3x10^-2 to 0.15x10^6 | Max operating pressure differential (MPa): 0.15 | Mass (kg): 0.69 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB51-10-7 Port: Rc3/8 | Orifice (mm): 7 | C (dm3/(s·bar)) / b: 5.2/0.38 | Working pressure (Pa abs): 1.3x10^-2 to 0.15x10^6 | Max operating pressure differential (MPa): 0.15 | Mass (kg): 0.69 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
Solenoid ValvesCKD
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Medium Vacuum FVB Series (Single Unit)

Brand CKD·Solenoid Valves

Available part numbers (16)

FVB21-6-Z, FVB21-6-2, FVB31-6-3, FVB31-8-3, FVB31-6-5, FVB31-8-5, FVB41-8-5, FVB41-10-5, FVB41-8-6, FVB41-10-6 + 6 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FVB21-6-ZPort: Rc1/8 | Orifice (mm): 1 | C (dm3/(s·bar)) / b: 0.14/0.49 | Working pressure (Pa abs): 1.3x10^-2 to 1x10^6 | Max operating pressure differential (MPa): 1 | Mass (kg): 0.16 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB21-6-2Port: Rc1/8 | Orifice (mm): 2 | C (dm3/(s·bar)) / b: 0.55/0.56 | Working pressure (Pa abs): 1.3x10^-2 to 0.3x10^6 | Max operating pressure differential (MPa): 0.3 | Mass (kg): 0.16 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB31-6-3Port: Rc1/8 | Orifice (mm): 3 | C (dm3/(s·bar)) / b: 1.2/0.57 | Working pressure (Pa abs): 1.3x10^-2 to 0.4x10^6 | Max operating pressure differential (MPa): 0.4 | Mass (kg): 0.29 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB31-8-3Port: Rc1/4 | Orifice (mm): 3 | C (dm3/(s·bar)) / b: 1.2/0.57 | Working pressure (Pa abs): 1.3x10^-2 to 0.4x10^6 | Max operating pressure differential (MPa): 0.4 | Mass (kg): 0.29 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB31-6-5Port: Rc1/8 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.15x10^6 | Max operating pressure differential (MPa): 0.15 | Mass (kg): 0.29 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB31-8-5Port: Rc1/4 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.15x10^6 | Max operating pressure differential (MPa): 0.15 | Mass (kg): 0.29 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB41-8-5Port: Rc1/4 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.3x10^6 | Max operating pressure differential (MPa): 0.3 | Mass (kg): 0.5 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB41-10-5Port: Rc3/8 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.3x10^6 | Max operating pressure differential (MPa): 0.3 | Mass (kg): 0.5 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB41-8-6Port: Rc1/4 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.12x10^6 | Max operating pressure differential (MPa): 0.1 | Mass (kg): 0.5 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB41-10-6Port: Rc3/8 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.12x10^6 | Max operating pressure differential (MPa): 0.1 | Mass (kg): 0.5 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB51-8-5Port: Rc1/4 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.5x10^6 | Max operating pressure differential (MPa): 0.5 | Mass (kg): 0.69 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB51-10-5Port: Rc3/8 | Orifice (mm): 4 | C (dm3/(s·bar)) / b: 2.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.5x10^6 | Max operating pressure differential (MPa): 0.5 | Mass (kg): 0.69 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB51-8-6Port: Rc1/4 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.3x10^6 | Max operating pressure differential (MPa): 0.3 | Mass (kg): 0.69 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB51-10-6Port: Rc3/8 | Orifice (mm): 5 | C (dm3/(s·bar)) / b: 3.2/0.50 | Working pressure (Pa abs): 1.3x10^-2 to 0.3x10^6 | Max operating pressure differential (MPa): 0.3 | Mass (kg): 0.69 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB51-8-7Port: Rc1/4 | Orifice (mm): 7 | C (dm3/(s·bar)) / b: 5.2/0.38 | Working pressure (Pa abs): 1.3x10^-2 to 0.15x10^6 | Max operating pressure differential (MPa): 0.15 | Mass (kg): 0.69 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
FVB51-10-7Port: Rc3/8 | Orifice (mm): 7 | C (dm3/(s·bar)) / b: 5.2/0.38 | Working pressure (Pa abs): 1.3x10^-2 to 0.15x10^6 | Max operating pressure differential (MPa): 0.15 | Mass (kg): 0.69 | Type: NC | Fluid: medium vacuum | Coil voltage: AC100V, AC200V, DC24V, DC12V
