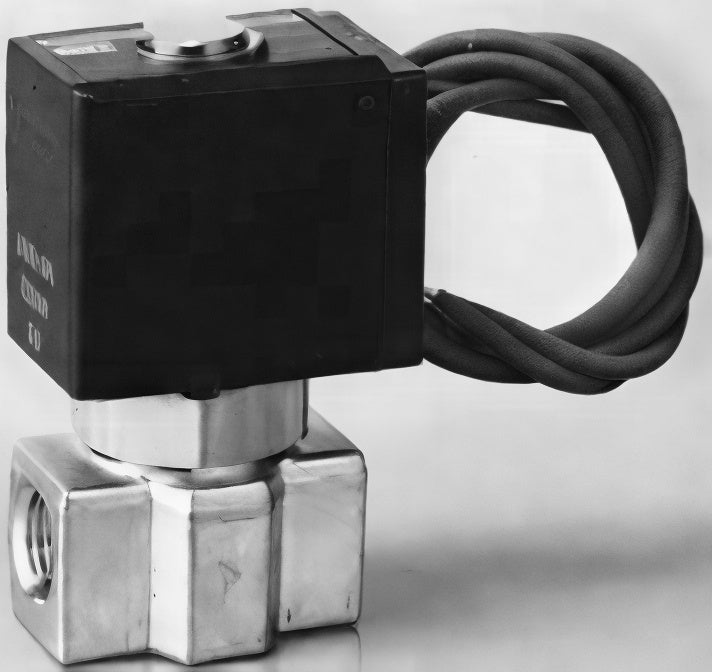

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Oil FLB Series (Single Unit)

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Oil FLB Series (Single Unit)

Direct-acting poppet 2-port solenoid valve for oil, single-unit type, from the JUST FIT range.

Key features

  • Normally closed, Rc1/8 to Rc1/2 ports, zero seat leakage with oil
  • Codes give body size, port size and orifice; coil option and voltage are added when ordering

Specifications

Type NC
Fluid oil
Coil voltage AC100V, AC200V, DC24V, DC12V
FLB21-6-Z Port: Rc1/8 | Orifice (mm): 1 | Cv: 0.036 | Max operating pressure differential (MPa): 1.5/1.0 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.16 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB21-6-2 Port: Rc1/8 | Orifice (mm): 2 | Cv: 0.15 | Max operating pressure differential (MPa): 0.6/0.25 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.16 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB31-6-3 Port: Rc1/8 | Orifice (mm): 3 | Cv: 0.31 | Max operating pressure differential (MPa): 0.8/0.5 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.3 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB31-8-3 Port: Rc1/4 | Orifice (mm): 3 | Cv: 0.31 | Max operating pressure differential (MPa): 0.8/0.5 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.3 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB31-6-5 Port: Rc1/8 | Orifice (mm): 4 | Cv: 0.50 | Max operating pressure differential (MPa): 0.4/0.15 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.3 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB31-8-5 Port: Rc1/4 | Orifice (mm): 4 | Cv: 0.50 | Max operating pressure differential (MPa): 0.4/0.15 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.3 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB31-6-6 Port: Rc1/8 | Orifice (mm): 5 | Cv: 0.65 | Max operating pressure differential (MPa): 0.25/0.05 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.3 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB31-8-6 Port: Rc1/4 | Orifice (mm): 5 | Cv: 0.65 | Max operating pressure differential (MPa): 0.25/0.05 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.3 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-8-5 Port: Rc1/4 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 0.8/0.45 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.49 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-10-5 Port: Rc3/8 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 0.8/0.45 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.49 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-8-6 Port: Rc1/4 | Orifice (mm): 5 | Cv: 0.80 | Max operating pressure differential (MPa): 0.5/0.2 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.49 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-10-6 Port: Rc3/8 | Orifice (mm): 5 | Cv: 0.80 | Max operating pressure differential (MPa): 0.5/0.2 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.49 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-8-7 Port: Rc1/4 | Orifice (mm): 7 | Cv: 1.10 | Max operating pressure differential (MPa): 0.2/0.09 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.49 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-10-7 Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.10 | Max operating pressure differential (MPa): 0.2/0.09 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.49 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-10-8 Port: Rc3/8 | Orifice (mm): 10 | Cv: 1.88 | Max operating pressure differential (MPa): 0.1/0.04 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.6 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-15-8 Port: Rc1/2 | Orifice (mm): 10 | Cv: 1.88 | Max operating pressure differential (MPa): 0.1/0.04 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.6 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-8-5 Port: Rc1/4 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 1.1/1.3 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.68 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-10-5 Port: Rc3/8 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 1.1/1.3 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.68 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-8-6 Port: Rc1/4 | Orifice (mm): 5 | Cv: 0.80 | Max operating pressure differential (MPa): 0.7/0.7 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.68 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-10-6 Port: Rc3/8 | Orifice (mm): 5 | Cv: 0.80 | Max operating pressure differential (MPa): 0.7/0.7 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.68 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-8-7 Port: Rc1/4 | Orifice (mm): 7 | Cv: 1.10 | Max operating pressure differential (MPa): 0.3/0.25 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.68 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-10-7 Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.10 | Max operating pressure differential (MPa): 0.3/0.25 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.68 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-10-8 Port: Rc3/8 | Orifice (mm): 10 | Cv: 1.88 | Max operating pressure differential (MPa): 0.12/0.1 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.81 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-15-8 Port: Rc1/2 | Orifice (mm): 10 | Cv: 1.88 | Max operating pressure differential (MPa): 0.12/0.1 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.81 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
Solenoid ValvesCKD
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JUST FIT Direct Acting 2-Port Solenoid Valve for Oil FLB Series (Single Unit)

Brand CKD·Solenoid Valves

Available part numbers (24)

FLB21-6-Z, FLB21-6-2, FLB31-6-3, FLB31-8-3, FLB31-6-5, FLB31-8-5, FLB31-6-6, FLB31-8-6, FLB41-8-5, FLB41-10-5 + 14 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FLB21-6-ZPort: Rc1/8 | Orifice (mm): 1 | Cv: 0.036 | Max operating pressure differential (MPa): 1.5/1.0 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.16 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB21-6-2Port: Rc1/8 | Orifice (mm): 2 | Cv: 0.15 | Max operating pressure differential (MPa): 0.6/0.25 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.16 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB31-6-3Port: Rc1/8 | Orifice (mm): 3 | Cv: 0.31 | Max operating pressure differential (MPa): 0.8/0.5 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.3 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB31-8-3Port: Rc1/4 | Orifice (mm): 3 | Cv: 0.31 | Max operating pressure differential (MPa): 0.8/0.5 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.3 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB31-6-5Port: Rc1/8 | Orifice (mm): 4 | Cv: 0.50 | Max operating pressure differential (MPa): 0.4/0.15 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.3 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB31-8-5Port: Rc1/4 | Orifice (mm): 4 | Cv: 0.50 | Max operating pressure differential (MPa): 0.4/0.15 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.3 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB31-6-6Port: Rc1/8 | Orifice (mm): 5 | Cv: 0.65 | Max operating pressure differential (MPa): 0.25/0.05 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.3 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB31-8-6Port: Rc1/4 | Orifice (mm): 5 | Cv: 0.65 | Max operating pressure differential (MPa): 0.25/0.05 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.3 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-8-5Port: Rc1/4 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 0.8/0.45 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.49 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-10-5Port: Rc3/8 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 0.8/0.45 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.49 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-8-6Port: Rc1/4 | Orifice (mm): 5 | Cv: 0.80 | Max operating pressure differential (MPa): 0.5/0.2 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.49 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-10-6Port: Rc3/8 | Orifice (mm): 5 | Cv: 0.80 | Max operating pressure differential (MPa): 0.5/0.2 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.49 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-8-7Port: Rc1/4 | Orifice (mm): 7 | Cv: 1.10 | Max operating pressure differential (MPa): 0.2/0.09 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.49 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-10-7Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.10 | Max operating pressure differential (MPa): 0.2/0.09 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.49 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-10-8Port: Rc3/8 | Orifice (mm): 10 | Cv: 1.88 | Max operating pressure differential (MPa): 0.1/0.04 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.6 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB41-15-8Port: Rc1/2 | Orifice (mm): 10 | Cv: 1.88 | Max operating pressure differential (MPa): 0.1/0.04 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.6 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-8-5Port: Rc1/4 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 1.1/1.3 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.68 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-10-5Port: Rc3/8 | Orifice (mm): 4 | Cv: 0.54 | Max operating pressure differential (MPa): 1.1/1.3 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.68 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-8-6Port: Rc1/4 | Orifice (mm): 5 | Cv: 0.80 | Max operating pressure differential (MPa): 0.7/0.7 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.68 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-10-6Port: Rc3/8 | Orifice (mm): 5 | Cv: 0.80 | Max operating pressure differential (MPa): 0.7/0.7 (AC/DC) | Max working pressure (MPa): 1.5 | Mass (kg): 0.68 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-8-7Port: Rc1/4 | Orifice (mm): 7 | Cv: 1.10 | Max operating pressure differential (MPa): 0.3/0.25 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.68 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-10-7Port: Rc3/8 | Orifice (mm): 7 | Cv: 1.10 | Max operating pressure differential (MPa): 0.3/0.25 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.68 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-10-8Port: Rc3/8 | Orifice (mm): 10 | Cv: 1.88 | Max operating pressure differential (MPa): 0.12/0.1 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.81 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
FLB51-15-8Port: Rc1/2 | Orifice (mm): 10 | Cv: 1.88 | Max operating pressure differential (MPa): 0.12/0.1 (AC/DC) | Max working pressure (MPa): 0.3 | Mass (kg): 0.81 | Type: NC | Fluid: oil | Coil voltage: AC100V, AC200V, DC24V, DC12V
