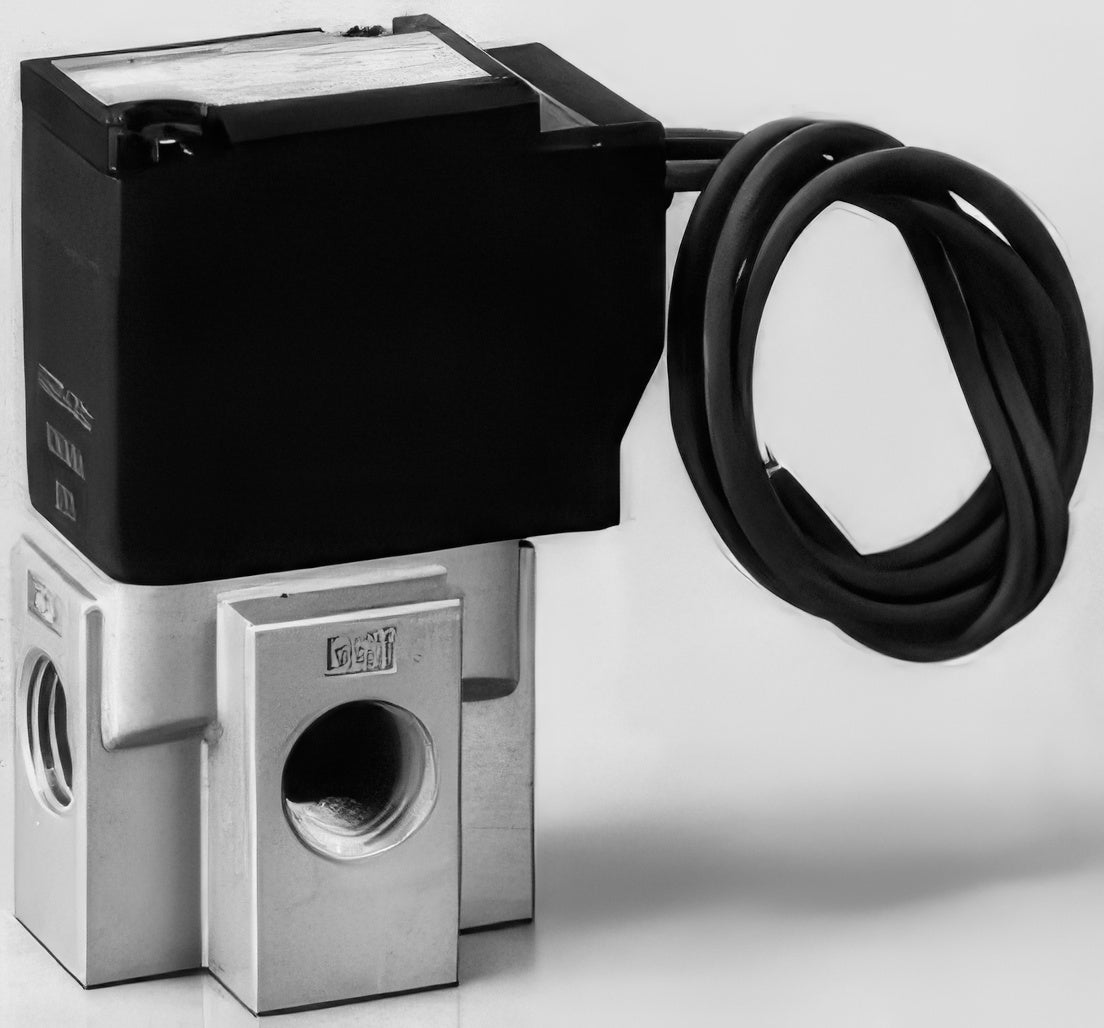

CKD JUST FIT Direct Acting 3-Port Solenoid Valve for Dry Air FGG Series (Single Unit)

CKD JUST FIT Direct Acting 3-Port Solenoid Valve for Dry Air FGG Series (Single Unit)

Direct-acting poppet 3-port solenoid valve for dry air, single-unit type, from the JUST FIT range.

Key features

  • Universal type (FGG*1) and NC-pressurized type (FGG*3), Rc1/8 to Rc3/8 ports
  • Codes give body size, port size and orifice; coil option and voltage are added when ordering

Specifications

Fluid dry air
Coil voltage AC100V, AC200V, DC24V, DC12V
FGG21-6-Z Port: Rc1/8 | Orifice (mm): 1 | C/b: 0.13/0.58 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.0 | Mass (kg): 0.15 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG21-6-1 Port: Rc1/8 | Orifice (mm): 2 | C/b: 0.52/0.54 | Max operating pressure differential (MPa): 0.15 | Max working pressure (MPa): 1.0 | Mass (kg): 0.15 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG31-6-0 Port: Rc1/8 | Orifice (mm): 1.5 | C/b: 0.32/0.58 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG31-8-0 Port: Rc1/4 | Orifice (mm): 1.5 | C/b: 0.32/0.58 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG31-6-1 Port: Rc1/8 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 0.4 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG31-8-1 Port: Rc1/4 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 0.4 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG31-6-4 Port: Rc1/8 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.2 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG31-8-4 Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.2 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG41-8-1 Port: Rc1/4 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG41-10-1 Port: Rc3/8 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG41-8-4 Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG41-10-4 Port: Rc3/8 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG41-8-8 Port: Rc1/4 | Orifice (mm): 4 | C/b: 2.1/0.48 | Max operating pressure differential (MPa): 0.15 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG41-10-8 Port: Rc3/8 | Orifice (mm): 4 | C/b: 2.1/0.48 | Max operating pressure differential (MPa): 0.15 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG51-8-1 Port: Rc1/4 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 1.2 (NO pressurized 0.6) | Max working pressure (MPa): 1.4 | Mass (kg): 0.65 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG51-10-1 Port: Rc3/8 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 1.2 (NO pressurized 0.6) | Max working pressure (MPa): 1.4 | Mass (kg): 0.65 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG51-8-4 Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.6 (NO pressurized 0.3) | Max working pressure (MPa): 1.4 | Mass (kg): 0.65 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG51-10-4 Port: Rc3/8 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.6 (NO pressurized 0.3) | Max working pressure (MPa): 1.4 | Mass (kg): 0.65 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG51-8-8 Port: Rc1/4 | Orifice (mm): 4 | C/b: 2.1/0.48 | Max operating pressure differential (MPa): 0.3 (NO pressurized 0.15) | Max working pressure (MPa): 1.4 | Mass (kg): 0.65 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG51-10-8 Port: Rc3/8 | Orifice (mm): 4 | C/b: 2.1/0.48 | Max operating pressure differential (MPa): 0.3 (NO pressurized 0.15) | Max working pressure (MPa): 1.4 | Mass (kg): 0.65 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG33-6-0 Port: Rc1/8 | Orifice (mm): 1.5 | C/b: 0.32/0.58 | Max operating pressure differential (MPa): 1.0 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG33-8-0 Port: Rc1/4 | Orifice (mm): 1.5 | C/b: 0.32/0.58 | Max operating pressure differential (MPa): 1.0 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG33-6-1 Port: Rc1/8 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG33-8-1 Port: Rc1/4 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG33-6-4 Port: Rc1/8 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG33-8-4 Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG43-8-1 Port: Rc1/4 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 1.2 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG43-10-1 Port: Rc3/8 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 1.2 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG43-8-4 Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.6 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG43-10-4 Port: Rc3/8 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.6 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG43-8-8 Port: Rc1/4 | Orifice (mm): 4 | C/b: 2.1/0.48 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG43-10-8 Port: Rc3/8 | Orifice (mm): 4 | C/b: 2.1/0.48 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
Solenoid ValvesCKD
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JUST FIT Direct Acting 3-Port Solenoid Valve for Dry Air FGG Series (Single Unit)

Brand CKD·Solenoid Valves

Available part numbers (32)

FGG21-6-Z, FGG21-6-1, FGG31-6-0, FGG31-8-0, FGG31-6-1, FGG31-8-1, FGG31-6-4, FGG31-8-4, FGG41-8-1, FGG41-10-1 + 22 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FGG21-6-ZPort: Rc1/8 | Orifice (mm): 1 | C/b: 0.13/0.58 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.0 | Mass (kg): 0.15 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG21-6-1Port: Rc1/8 | Orifice (mm): 2 | C/b: 0.52/0.54 | Max operating pressure differential (MPa): 0.15 | Max working pressure (MPa): 1.0 | Mass (kg): 0.15 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG31-6-0Port: Rc1/8 | Orifice (mm): 1.5 | C/b: 0.32/0.58 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG31-8-0Port: Rc1/4 | Orifice (mm): 1.5 | C/b: 0.32/0.58 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG31-6-1Port: Rc1/8 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 0.4 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG31-8-1Port: Rc1/4 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 0.4 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG31-6-4Port: Rc1/8 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.2 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG31-8-4Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.2 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG41-8-1Port: Rc1/4 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG41-10-1Port: Rc3/8 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG41-8-4Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG41-10-4Port: Rc3/8 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG41-8-8Port: Rc1/4 | Orifice (mm): 4 | C/b: 2.1/0.48 | Max operating pressure differential (MPa): 0.15 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG41-10-8Port: Rc3/8 | Orifice (mm): 4 | C/b: 2.1/0.48 | Max operating pressure differential (MPa): 0.15 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG51-8-1Port: Rc1/4 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 1.2 (NO pressurized 0.6) | Max working pressure (MPa): 1.4 | Mass (kg): 0.65 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG51-10-1Port: Rc3/8 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 1.2 (NO pressurized 0.6) | Max working pressure (MPa): 1.4 | Mass (kg): 0.65 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG51-8-4Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.6 (NO pressurized 0.3) | Max working pressure (MPa): 1.4 | Mass (kg): 0.65 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG51-10-4Port: Rc3/8 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.6 (NO pressurized 0.3) | Max working pressure (MPa): 1.4 | Mass (kg): 0.65 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG51-8-8Port: Rc1/4 | Orifice (mm): 4 | C/b: 2.1/0.48 | Max operating pressure differential (MPa): 0.3 (NO pressurized 0.15) | Max working pressure (MPa): 1.4 | Mass (kg): 0.65 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG51-10-8Port: Rc3/8 | Orifice (mm): 4 | C/b: 2.1/0.48 | Max operating pressure differential (MPa): 0.3 (NO pressurized 0.15) | Max working pressure (MPa): 1.4 | Mass (kg): 0.65 | Type: universal | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG33-6-0Port: Rc1/8 | Orifice (mm): 1.5 | C/b: 0.32/0.58 | Max operating pressure differential (MPa): 1.0 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG33-8-0Port: Rc1/4 | Orifice (mm): 1.5 | C/b: 0.32/0.58 | Max operating pressure differential (MPa): 1.0 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG33-6-1Port: Rc1/8 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG33-8-1Port: Rc1/4 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 0.7 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG33-6-4Port: Rc1/8 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG33-8-4Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 1.4 | Mass (kg): 0.25 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG43-8-1Port: Rc1/4 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 1.2 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG43-10-1Port: Rc3/8 | Orifice (mm): 2 | C/b: 0.55/0.48 | Max operating pressure differential (MPa): 1.2 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG43-8-4Port: Rc1/4 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.6 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG43-10-4Port: Rc3/8 | Orifice (mm): 3 | C/b: 1.2/0.57 | Max operating pressure differential (MPa): 0.6 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG43-8-8Port: Rc1/4 | Orifice (mm): 4 | C/b: 2.1/0.48 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
FGG43-10-8Port: Rc3/8 | Orifice (mm): 4 | C/b: 2.1/0.48 | Max operating pressure differential (MPa): 0.3 | Max working pressure (MPa): 1.4 | Mass (kg): 0.45 | Type: NC pressurized | Fluid: dry air | Coil voltage: AC100V, AC200V, DC24V, DC12V
