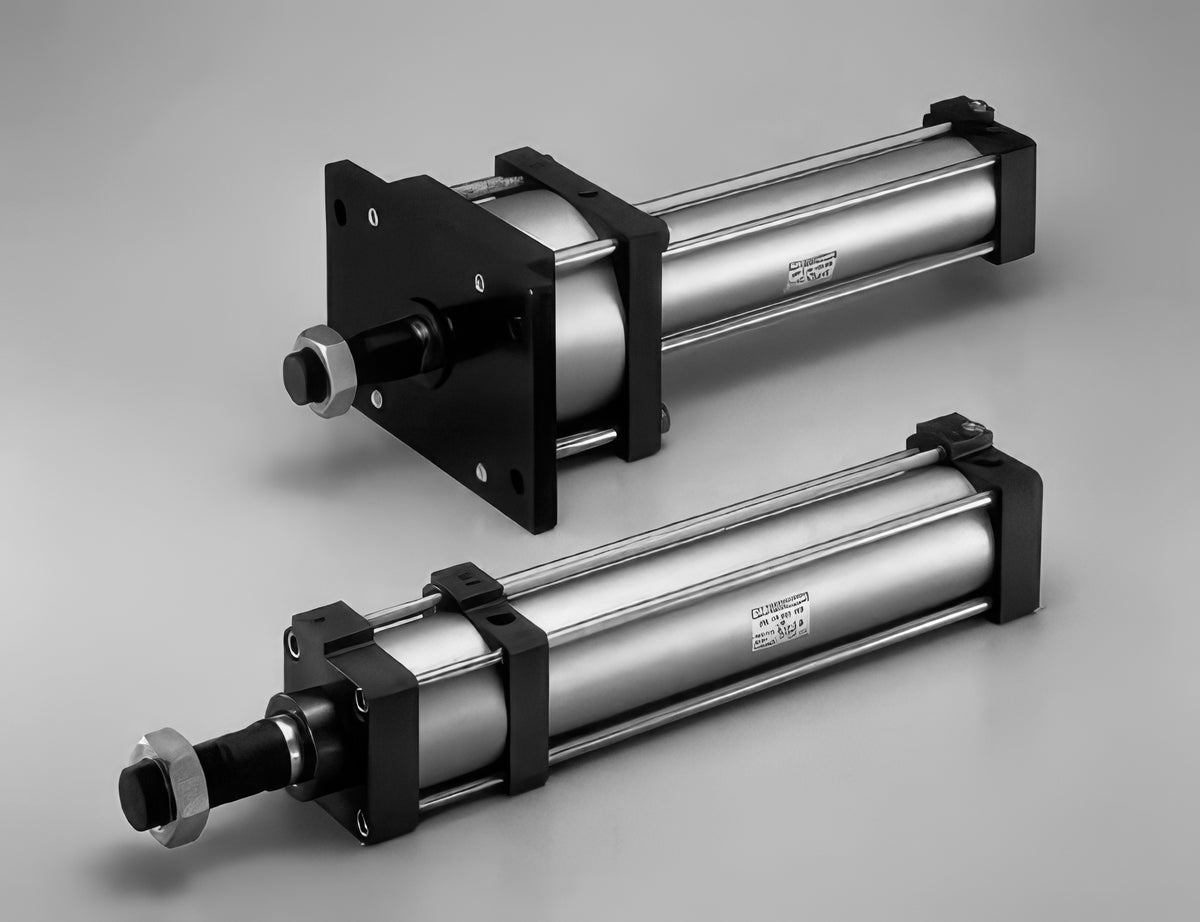

CKD Knuckles, Second Brackets and Pins for SHC Shock-absorbing Cylinders

CKD Knuckles, Second Brackets and Pins for SHC Shock-absorbing Cylinders

Mounting accessories for CKD SHC / SHC-K shock-absorbing (Shovic) cylinders, bore 40 to 100 mm.

Key features

  • Includes single and double rod end knuckles, second brackets for the cylinder clevis (B11/B21) and for the rod knuckle (B12/B22), and pins
  • S1-P-40/63/80 pins are also used and are listed in the S1 accessory family
SHC-I-40 Type: Single knuckle (I) | Applicable bore (mm): 40 | Rod thread KK: M22x1.5 | Pin hole CD (mm): 20 | Mass (kg): 0.83
SHC-I-50 Type: Single knuckle (I) | Applicable bore (mm): 50 | Rod thread KK: M26x1.5 | Pin hole CD (mm): 20 | Mass (kg): 0.83
SHC-I-63 Type: Single knuckle (I) | Applicable bore (mm): 63 | Rod thread KK: M30x1.5 | Pin hole CD (mm): 25 | Mass (kg): 1.2
SHC-I-80 Type: Single knuckle (I) | Applicable bore (mm): 80 | Rod thread KK: M36x1.5 | Pin hole CD (mm): 32 | Mass (kg): 2.5
SHC-I-100 Type: Single knuckle (I) | Applicable bore (mm): 100 | Rod thread KK: M45x1.5 | Pin hole CD (mm): 40 | Mass (kg): 4.2
SHC-Y-40 Type: Double knuckle (Y) | Applicable bore (mm): 40 | Rod thread KK: M22x1.5 | Pin dia. CD (mm): 20 | Mass (kg): 0.7
SHC-Y-50 Type: Double knuckle (Y) | Applicable bore (mm): 50 | Rod thread KK: M26x1.5 | Pin dia. CD (mm): 20 | Mass (kg): 0.7
SHC-Y-63 Type: Double knuckle (Y) | Applicable bore (mm): 63 | Rod thread KK: M30x1.5 | Pin dia. CD (mm): 25 | Mass (kg): 1
SHC-Y-80 Type: Double knuckle (Y) | Applicable bore (mm): 80 | Rod thread KK: M36x1.5 | Pin dia. CD (mm): 32 | Mass (kg): 2
SHC-Y-100 Type: Double knuckle (Y) | Applicable bore (mm): 100 | Rod thread KK: M45x1.5 | Pin dia. CD (mm): 40 | Mass (kg): 3.7
SHC-B11-40 Type: Second bracket, single (B11) for cylinder clevis | Applicable bore (mm): 40 | Pin hole CD (mm): 12 H10 | Mass (kg): 0.27
SHC-B11-50 Type: Second bracket, single (B11) for cylinder clevis | Applicable bore (mm): 50 | Pin hole CD (mm): 12 H10 | Mass (kg): 0.33
SHC-B11-63 Type: Second bracket, single (B11) for cylinder clevis | Applicable bore (mm): 63 | Pin hole CD (mm): 14 H10 | Mass (kg): 0.54
SHC-B11-80 Type: Second bracket, single (B11) for cylinder clevis | Applicable bore (mm): 80 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.3
SHC-B11-100 Type: Second bracket, single (B11) for cylinder clevis | Applicable bore (mm): 100 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.7
SHC-B12-40 Type: Second bracket, single (B12) for rod end knuckle | Applicable bore (mm): 40 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.3
SHC-B12-50 Type: Second bracket, single (B12) for rod end knuckle | Applicable bore (mm): 50 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.7
SHC-B12-63 Type: Second bracket, single (B12) for rod end knuckle | Applicable bore (mm): 63 | Pin hole CD (mm): 25 H10 | Mass (kg): 2.3
SHC-B12-80 Type: Second bracket, single (B12) for rod end knuckle | Applicable bore (mm): 80 | Pin hole CD (mm): 32 H10 | Mass (kg): 4.6
SHC-B12-100 Type: Second bracket, single (B12) for rod end knuckle | Applicable bore (mm): 100 | Pin hole CD (mm): 40 H10 | Mass (kg): 8.9
SHC-B21-40 Type: Second bracket, double (B21) for cylinder clevis | Applicable bore (mm): 40 | Pin hole CD (mm): 12 H10 | Mass (kg): 0.28
SHC-B21-50 Type: Second bracket, double (B21) for cylinder clevis | Applicable bore (mm): 50 | Pin hole CD (mm): 12 H10 | Mass (kg): 0.33
SHC-B21-63 Type: Second bracket, double (B21) for cylinder clevis | Applicable bore (mm): 63 | Pin hole CD (mm): 14 H10 | Mass (kg): 0.53
SHC-B21-80 Type: Second bracket, double (B21) for cylinder clevis | Applicable bore (mm): 80 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.3
SHC-B21-100 Type: Second bracket, double (B21) for cylinder clevis | Applicable bore (mm): 100 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.7
SHC-B22-40 Type: Second bracket, double (B22) for rod end knuckle | Applicable bore (mm): 40 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.3
SHC-B22-50 Type: Second bracket, double (B22) for rod end knuckle | Applicable bore (mm): 50 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.7
SHC-B22-63 Type: Second bracket, double (B22) for rod end knuckle | Applicable bore (mm): 63 | Pin hole CD (mm): 25 H10 | Mass (kg): 2.6
SHC-B22-80 Type: Second bracket, double (B22) for rod end knuckle | Applicable bore (mm): 80 | Pin hole CD (mm): 32 H10 | Mass (kg): 5
SHC-B22-100 Type: Second bracket, double (B22) for rod end knuckle | Applicable bore (mm): 100 | Pin hole CD (mm): 40 H10 | Mass (kg): 9.2
SCS-125-P Type: Pin with C-type snap rings | Applicable bore (mm): 63 | Pin dia. CD (mm): 25 | Mass (kg): 0.27
SCS-160-P Type: Pin with C-type snap rings | Applicable bore (mm): 80 | Pin dia. CD (mm): 32 | Mass (kg): 0.56
SCS-180-P Type: Pin with C-type snap rings | Applicable bore (mm): 100 | Pin dia. CD (mm): 40 | Mass (kg): 1.1
Cylinder AccessoriesCKD
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Knuckles, Second Brackets and Pins for SHC Shock-absorbing Cylinders

Brand CKD·Cylinder Accessories

Available part numbers (33)

SHC-I-40, SHC-I-50, SHC-I-63, SHC-I-80, SHC-I-100, SHC-Y-40, SHC-Y-50, SHC-Y-63, SHC-Y-80, SHC-Y-100 + 23 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SHC-I-40Type: Single knuckle (I) | Applicable bore (mm): 40 | Rod thread KK: M22x1.5 | Pin hole CD (mm): 20 | Mass (kg): 0.83
SHC-I-50Type: Single knuckle (I) | Applicable bore (mm): 50 | Rod thread KK: M26x1.5 | Pin hole CD (mm): 20 | Mass (kg): 0.83
SHC-I-63Type: Single knuckle (I) | Applicable bore (mm): 63 | Rod thread KK: M30x1.5 | Pin hole CD (mm): 25 | Mass (kg): 1.2
SHC-I-80Type: Single knuckle (I) | Applicable bore (mm): 80 | Rod thread KK: M36x1.5 | Pin hole CD (mm): 32 | Mass (kg): 2.5
SHC-I-100Type: Single knuckle (I) | Applicable bore (mm): 100 | Rod thread KK: M45x1.5 | Pin hole CD (mm): 40 | Mass (kg): 4.2
SHC-Y-40Type: Double knuckle (Y) | Applicable bore (mm): 40 | Rod thread KK: M22x1.5 | Pin dia. CD (mm): 20 | Mass (kg): 0.7
SHC-Y-50Type: Double knuckle (Y) | Applicable bore (mm): 50 | Rod thread KK: M26x1.5 | Pin dia. CD (mm): 20 | Mass (kg): 0.7
SHC-Y-63Type: Double knuckle (Y) | Applicable bore (mm): 63 | Rod thread KK: M30x1.5 | Pin dia. CD (mm): 25 | Mass (kg): 1
SHC-Y-80Type: Double knuckle (Y) | Applicable bore (mm): 80 | Rod thread KK: M36x1.5 | Pin dia. CD (mm): 32 | Mass (kg): 2
SHC-Y-100Type: Double knuckle (Y) | Applicable bore (mm): 100 | Rod thread KK: M45x1.5 | Pin dia. CD (mm): 40 | Mass (kg): 3.7
SHC-B11-40Type: Second bracket, single (B11) for cylinder clevis | Applicable bore (mm): 40 | Pin hole CD (mm): 12 H10 | Mass (kg): 0.27
SHC-B11-50Type: Second bracket, single (B11) for cylinder clevis | Applicable bore (mm): 50 | Pin hole CD (mm): 12 H10 | Mass (kg): 0.33
SHC-B11-63Type: Second bracket, single (B11) for cylinder clevis | Applicable bore (mm): 63 | Pin hole CD (mm): 14 H10 | Mass (kg): 0.54
SHC-B11-80Type: Second bracket, single (B11) for cylinder clevis | Applicable bore (mm): 80 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.3
SHC-B11-100Type: Second bracket, single (B11) for cylinder clevis | Applicable bore (mm): 100 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.7
SHC-B12-40Type: Second bracket, single (B12) for rod end knuckle | Applicable bore (mm): 40 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.3
SHC-B12-50Type: Second bracket, single (B12) for rod end knuckle | Applicable bore (mm): 50 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.7
SHC-B12-63Type: Second bracket, single (B12) for rod end knuckle | Applicable bore (mm): 63 | Pin hole CD (mm): 25 H10 | Mass (kg): 2.3
SHC-B12-80Type: Second bracket, single (B12) for rod end knuckle | Applicable bore (mm): 80 | Pin hole CD (mm): 32 H10 | Mass (kg): 4.6
SHC-B12-100Type: Second bracket, single (B12) for rod end knuckle | Applicable bore (mm): 100 | Pin hole CD (mm): 40 H10 | Mass (kg): 8.9
SHC-B21-40Type: Second bracket, double (B21) for cylinder clevis | Applicable bore (mm): 40 | Pin hole CD (mm): 12 H10 | Mass (kg): 0.28
SHC-B21-50Type: Second bracket, double (B21) for cylinder clevis | Applicable bore (mm): 50 | Pin hole CD (mm): 12 H10 | Mass (kg): 0.33
SHC-B21-63Type: Second bracket, double (B21) for cylinder clevis | Applicable bore (mm): 63 | Pin hole CD (mm): 14 H10 | Mass (kg): 0.53
SHC-B21-80Type: Second bracket, double (B21) for cylinder clevis | Applicable bore (mm): 80 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.3
SHC-B21-100Type: Second bracket, double (B21) for cylinder clevis | Applicable bore (mm): 100 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.7
SHC-B22-40Type: Second bracket, double (B22) for rod end knuckle | Applicable bore (mm): 40 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.3
SHC-B22-50Type: Second bracket, double (B22) for rod end knuckle | Applicable bore (mm): 50 | Pin hole CD (mm): 20 H10 | Mass (kg): 1.7
SHC-B22-63Type: Second bracket, double (B22) for rod end knuckle | Applicable bore (mm): 63 | Pin hole CD (mm): 25 H10 | Mass (kg): 2.6
SHC-B22-80Type: Second bracket, double (B22) for rod end knuckle | Applicable bore (mm): 80 | Pin hole CD (mm): 32 H10 | Mass (kg): 5
SHC-B22-100Type: Second bracket, double (B22) for rod end knuckle | Applicable bore (mm): 100 | Pin hole CD (mm): 40 H10 | Mass (kg): 9.2
SCS-125-PType: Pin with C-type snap rings | Applicable bore (mm): 63 | Pin dia. CD (mm): 25 | Mass (kg): 0.27
SCS-160-PType: Pin with C-type snap rings | Applicable bore (mm): 80 | Pin dia. CD (mm): 32 | Mass (kg): 0.56
SCS-180-PType: Pin with C-type snap rings | Applicable bore (mm): 100 | Pin dia. CD (mm): 40 | Mass (kg): 1.1
