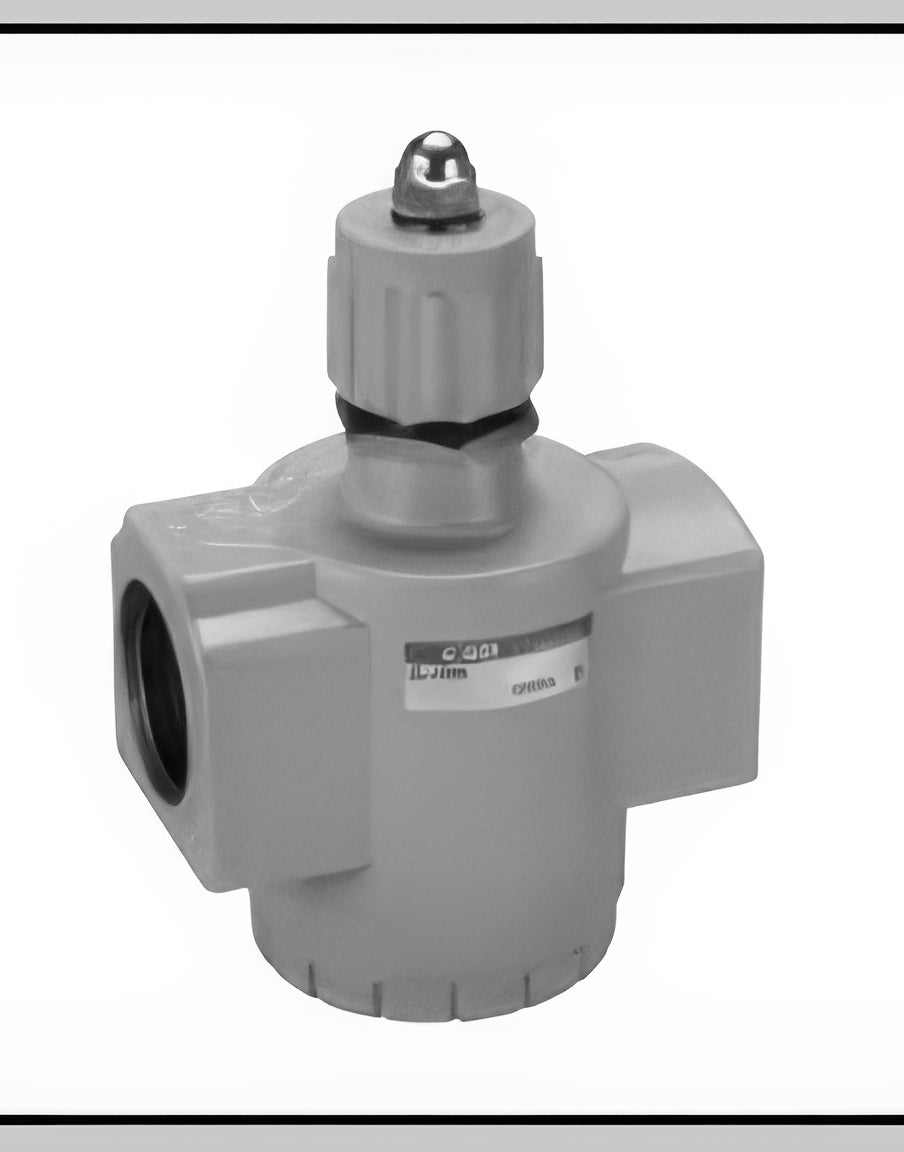

• CKD Large Bore Speed Controller SC Series (Rc3/4 to Rc2)
1 1

CKD Large Bore Speed Controller SC Series (Rc3/4 to Rc2)

CKD Large Bore Speed Controller SC Series (Rc3/4 to Rc2)

Large bore speed controller.

Specifications

Fluid Compressed air
Needle turns 10
SC-20A Fluid: Compressed air | Port size (Rc): 3/4 | Mass (kg): 0.5 | Applicable cylinder bore (mm): φ100~φ200 | Needle turns: 10 | Effective area, free flow (mm2): 155 | Effective area, controlled flow (mm2): 125
SC-25A Fluid: Compressed air | Port size (Rc): 1 | Mass (kg): 0.9 | Applicable cylinder bore (mm): φ140~φ250 | Needle turns: 10 | Effective area, free flow (mm2): 260 | Effective area, controlled flow (mm2): 280
SC-32A Fluid: Compressed air | Port size (Rc): 1 1/4 | Mass (kg): 4.0 | Applicable cylinder bore (mm): φ300~φ450 | Needle turns: 10 | Effective area, free flow (mm2): 1000 | Effective area, controlled flow (mm2): 1000 | Port size: Rc1¼ | Dim. A (mm): 210 | Dim. B (mm): 77 | Dim. C (mm): 92 | Dim. D (mm): 75
SC-40A Fluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.05 | Proof pressure (MPa): 1.05 | Port size (Rc): 1 1/2 | Mass (kg): 4.0 | Applicable cylinder bore (mm): φ300~φ450 | Needle turns: 10 | Effective area, free flow (mm2): 1000 | Effective area, controlled flow (mm2): 1000 | Port size: Rc1½ | Dim. A (mm): 210
SC-50A Fluid: Compressed air | Port size (Rc): 2 | Mass (kg): 4.0 | Applicable cylinder bore (mm): φ450~ | Needle turns: 10 | Effective area, free flow (mm2): 1500 | Effective area, controlled flow (mm2): 1400 | Port size: Rc2 | Dim. A (mm): 222 | Dim. B (mm): 79 | Dim. C (mm): 96 | Dim. D (mm): 84
Speed ControllersCKD
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Large Bore Speed Controller SC Series (Rc3/4 to Rc2)

Brand CKD·Speed Controllers

Available part numbers (5)

SC-20A, SC-25A, SC-32A, SC-40A, SC-50A

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC-20AFluid: Compressed air | Port size (Rc): 3/4 | Mass (kg): 0.5 | Applicable cylinder bore (mm): φ100~φ200 | Needle turns: 10 | Effective area, free flow (mm2): 155 | Effective area, controlled flow (mm2): 125
SC-25AFluid: Compressed air | Port size (Rc): 1 | Mass (kg): 0.9 | Applicable cylinder bore (mm): φ140~φ250 | Needle turns: 10 | Effective area, free flow (mm2): 260 | Effective area, controlled flow (mm2): 280
SC-32AFluid: Compressed air | Port size (Rc): 1 1/4 | Mass (kg): 4.0 | Applicable cylinder bore (mm): φ300~φ450 | Needle turns: 10 | Effective area, free flow (mm2): 1000 | Effective area, controlled flow (mm2): 1000 | Port size: Rc1¼ | Dim. A (mm): 210 | Dim. B (mm): 77 | Dim. C (mm): 92 | Dim. D (mm): 75
SC-40AFluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.05 | Proof pressure (MPa): 1.05 | Port size (Rc): 1 1/2 | Mass (kg): 4.0 | Applicable cylinder bore (mm): φ300~φ450 | Needle turns: 10 | Effective area, free flow (mm2): 1000 | Effective area, controlled flow (mm2): 1000 | Port size: Rc1½ | Dim. A (mm): 210
SC-50AFluid: Compressed air | Port size (Rc): 2 | Mass (kg): 4.0 | Applicable cylinder bore (mm): φ450~ | Needle turns: 10 | Effective area, free flow (mm2): 1500 | Effective area, controlled flow (mm2): 1400 | Port size: Rc2 | Dim. A (mm): 222 | Dim. B (mm): 79 | Dim. C (mm): 96 | Dim. D (mm): 84
