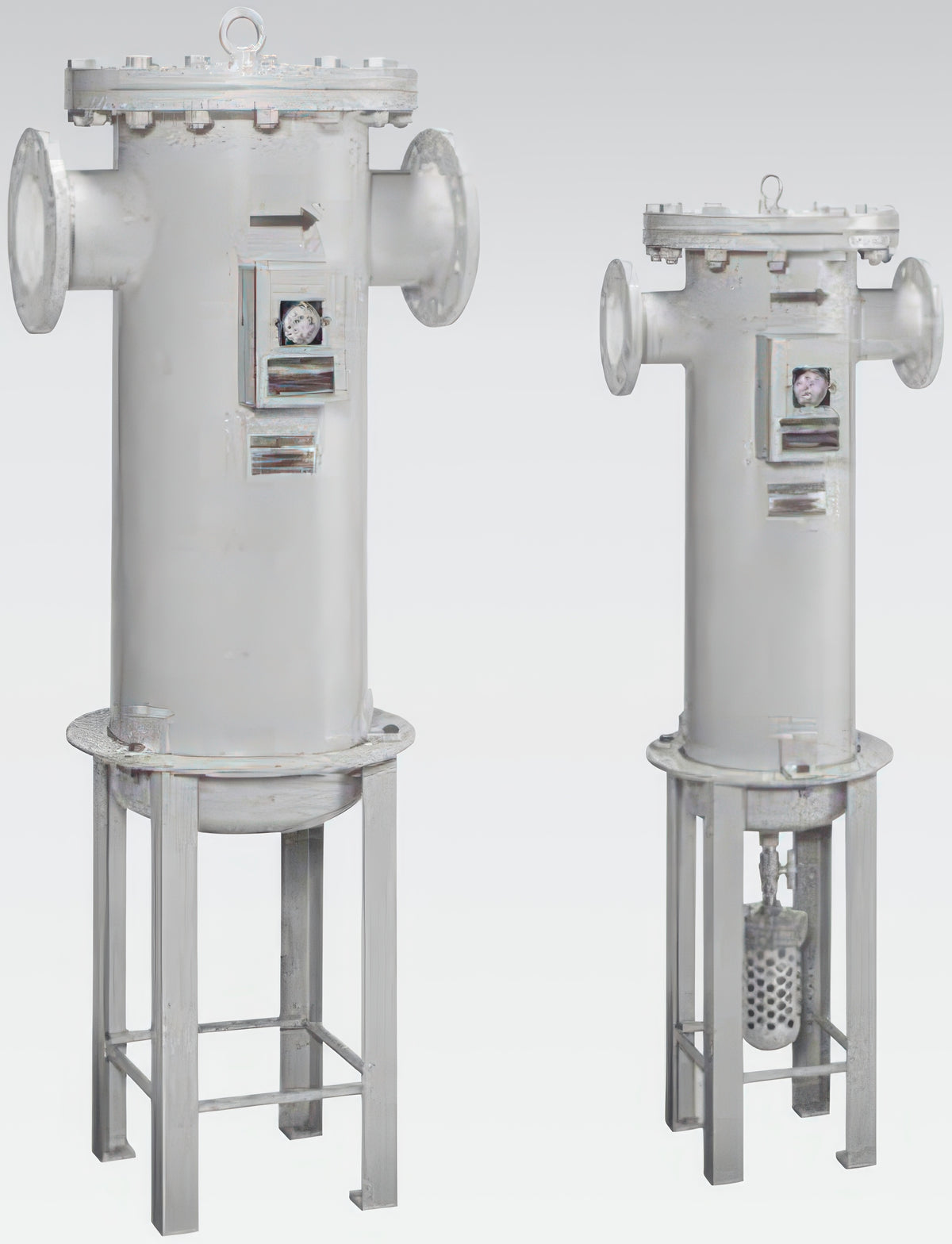

CKD Large Main Line Filter AF3000P Series (Pre-filter)

CKD Large Main Line Filter AF3000P Series (Pre-filter)

Large flanged main line pre-filter with 3 um filtration for compressed air systems from 16 to 256 m3/min (ANR).

Key features

  • Working pressure 0.07 to 1.0 MPa, 10K flange connections 2B to 8B, with differential pressure gauge GA5102 as standard
  • Heavy-duty drain 5100-4C is standard equipment

Specifications

Filtration (um) 3
Working pressure (MPa) 0.07-1.0
Auto drain 5100-4C
AF3016P-50 Air flow (m3/min ANR): 16 | Elements: 1 | Port: Flange 2B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 45 | Auto drain: 5100-4C
AF3032P-80 Air flow (m3/min ANR): 32 | Elements: 2 | Port: Flange 3B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 95 | Auto drain: 5100-4C
AF3048P-100 Air flow (m3/min ANR): 48 | Elements: 3 | Port: Flange 4B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 98 | Auto drain: 5100-4C
AF3064P-100 Air flow (m3/min ANR): 64 | Elements: 4 | Port: Flange 4B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 130 | Auto drain: 5100-4C
AF3080P-150 Air flow (m3/min ANR): 80 | Elements: 5 | Port: Flange 6B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 160 | Auto drain: 5100-4C
AF3096P-150 Air flow (m3/min ANR): 96 | Elements: 6 | Port: Flange 6B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 190 | Auto drain: 5100-4C
AF3128P-150 Air flow (m3/min ANR): 128 | Elements: 8 | Port: Flange 6B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 250 | Auto drain: 5100-4C
AF3160P-200 Air flow (m3/min ANR): 160 | Elements: 10 | Port: Flange 8B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 260 | Auto drain: 5100-4C
AF3192P-200 Air flow (m3/min ANR): 192 | Elements: 12 | Port: Flange 8B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 300 | Auto drain: 5100-4C
AF3256P-200 Air flow (m3/min ANR): 256 | Elements: 16 | Port: Flange 8B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 350 | Auto drain: 5100-4C
Air FiltersCKD
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Large Main Line Filter AF3000P Series (Pre-filter)

Brand CKD·Air Filters

Available part numbers (10)

AF3016P-50, AF3032P-80, AF3048P-100, AF3064P-100, AF3080P-150, AF3096P-150, AF3128P-150, AF3160P-200, AF3192P-200, AF3256P-200

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AF3016P-50Air flow (m3/min ANR): 16 | Elements: 1 | Port: Flange 2B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 45 | Auto drain: 5100-4C
AF3032P-80Air flow (m3/min ANR): 32 | Elements: 2 | Port: Flange 3B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 95 | Auto drain: 5100-4C
AF3048P-100Air flow (m3/min ANR): 48 | Elements: 3 | Port: Flange 4B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 98 | Auto drain: 5100-4C
AF3064P-100Air flow (m3/min ANR): 64 | Elements: 4 | Port: Flange 4B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 130 | Auto drain: 5100-4C
AF3080P-150Air flow (m3/min ANR): 80 | Elements: 5 | Port: Flange 6B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 160 | Auto drain: 5100-4C
AF3096P-150Air flow (m3/min ANR): 96 | Elements: 6 | Port: Flange 6B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 190 | Auto drain: 5100-4C
AF3128P-150Air flow (m3/min ANR): 128 | Elements: 8 | Port: Flange 6B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 250 | Auto drain: 5100-4C
AF3160P-200Air flow (m3/min ANR): 160 | Elements: 10 | Port: Flange 8B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 260 | Auto drain: 5100-4C
AF3192P-200Air flow (m3/min ANR): 192 | Elements: 12 | Port: Flange 8B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 300 | Auto drain: 5100-4C
AF3256P-200Air flow (m3/min ANR): 256 | Elements: 16 | Port: Flange 8B (10K) | Filtration (um): 3 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 350 | Auto drain: 5100-4C
