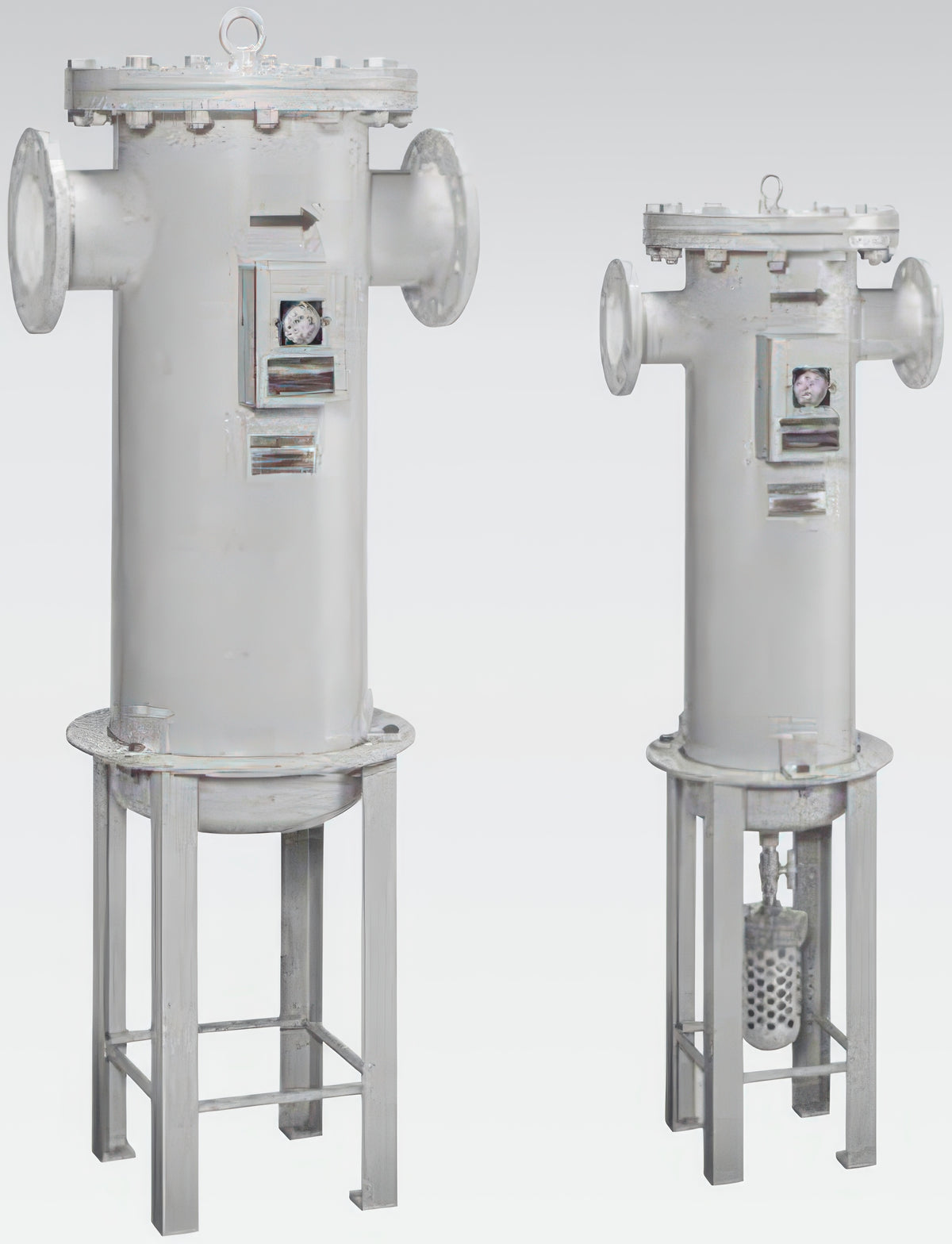

CKD Large Main Line Filter AF3000X Series (Odour removal (activated carbon))

CKD Large Main Line Filter AF3000X Series (Odour removal (activated carbon))

Large flanged main line odour removal filter using activated carbon; outlet oil concentration 0.03 mg/m3.

Key features

  • Always install an AF3000M filter upstream
  • Working pressure 0.07 to 1.0 MPa, 10K flange connections 2B to 8B, with differential pressure gauge GA5102 as standard

Specifications

Outlet oil concentration (mg/m3) 0.03
Working pressure (MPa) 0.07-1.0
AF3016X-50 Air flow (m3/min ANR): 16 | Elements: 1 | Port: Flange 2B (10K) | Outlet oil concentration (mg/m3): 0.03 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 45
AF3032X-80 Air flow (m3/min ANR): 32 | Elements: 2 | Port: Flange 3B (10K) | Outlet oil concentration (mg/m3): 0.03 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 95
AF3048X-100 Air flow (m3/min ANR): 48 | Elements: 3 | Port: Flange 4B (10K) | Outlet oil concentration (mg/m3): 0.03 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 98
AF3064X-100 Air flow (m3/min ANR): 64 | Elements: 4 | Port: Flange 4B (10K) | Outlet oil concentration (mg/m3): 0.03 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 130
AF3080X-150 Air flow (m3/min ANR): 80 | Elements: 5 | Port: Flange 6B (10K) | Outlet oil concentration (mg/m3): 0.03 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 160
AF3096X-150 Air flow (m3/min ANR): 96 | Elements: 6 | Port: Flange 6B (10K) | Outlet oil concentration (mg/m3): 0.03 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 190
AF3128X-150 Air flow (m3/min ANR): 128 | Elements: 8 | Port: Flange 6B (10K) | Outlet oil concentration (mg/m3): 0.03 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 250
AF3160X-200 Air flow (m3/min ANR): 160 | Elements: 10 | Port: Flange 8B (10K) | Outlet oil concentration (mg/m3): 0.03 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 260
AF3192X-200 Air flow (m3/min ANR): 192 | Elements: 12 | Port: Flange 8B (10K) | Outlet oil concentration (mg/m3): 0.03 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 300
AF3256X-200 Air flow (m3/min ANR): 256 | Elements: 16 | Port: Flange 8B (10K) | Outlet oil concentration (mg/m3): 0.03 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 350
Air FiltersCKD
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Large Main Line Filter AF3000X Series (Odour removal (activated carbon))

Brand CKD·Air Filters

Available part numbers (10)

AF3016X-50, AF3032X-80, AF3048X-100, AF3064X-100, AF3080X-150, AF3096X-150, AF3128X-150, AF3160X-200, AF3192X-200, AF3256X-200

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
