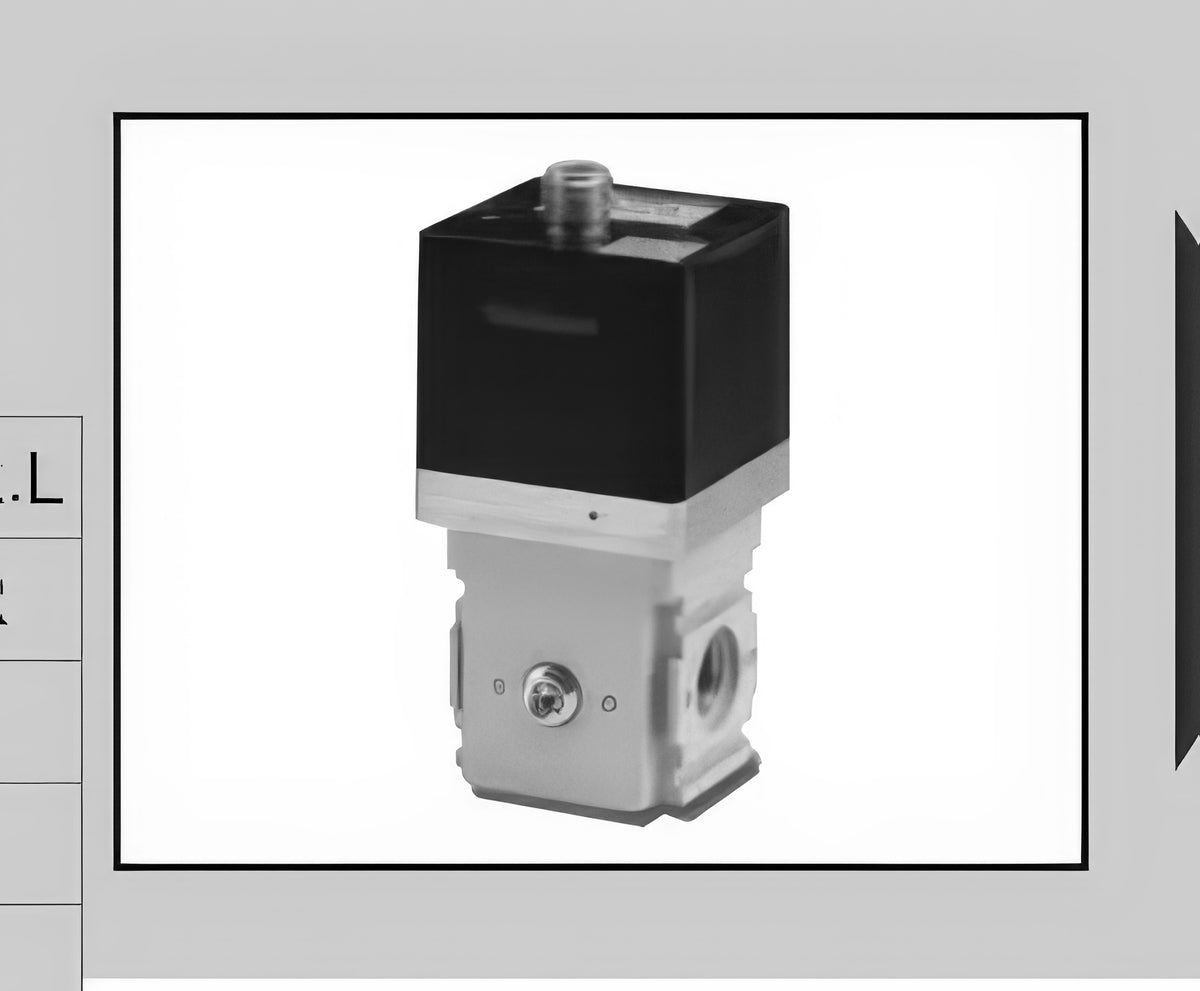

CKD Low Pressure Electro-Pneumatic Regulator EVL Series

CKD Low Pressure Electro-Pneumatic Regulator EVL Series

Low pressure electro-pneumatic regulator with pressure control range 0 to 50 kPa.

Specifications

Max. working pressure 160kPa
Min. working pressure 140kPa
Pressure control range 0~50kPa
Hysteresis 0.5%F.S. or less
Linearity ±0.5%F.S. or less
Repeatability 0.5%F.S. or less
Max. flow 100ℓ/min(ANR)
Air consumption 4ℓ/min(ANR)
Ambient temp. 5~50℃
Mass 315g
EVL-1050 Max. working pressure: 160kPa | Min. working pressure: 140kPa | Pressure control range: 0~50kPa | Hysteresis: 0.5%F.S. or less | Linearity: ±0.5%F.S. or less | Repeatability: 0.5%F.S. or less | Max. flow: 100ℓ/min(ANR) | Air consumption: 4ℓ/min(ANR) | Ambient temp.: 5~50℃ | Mass: 315g
Electro-Pneumatic RegulatorsCKD
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Low Pressure Electro-Pneumatic Regulator EVL Series

Brand CKD·Electro-Pneumatic Regulators

Available part numbers (1)

EVL-1050

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EVL-1050Max. working pressure: 160kPa | Min. working pressure: 140kPa | Pressure control range: 0~50kPa | Hysteresis: 0.5%F.S. or less | Linearity: ±0.5%F.S. or less | Repeatability: 0.5%F.S. or less | Max. flow: 100ℓ/min(ANR) | Air consumption: 4ℓ/min(ANR) | Ambient temp.: 5~50℃ | Mass: 315g
