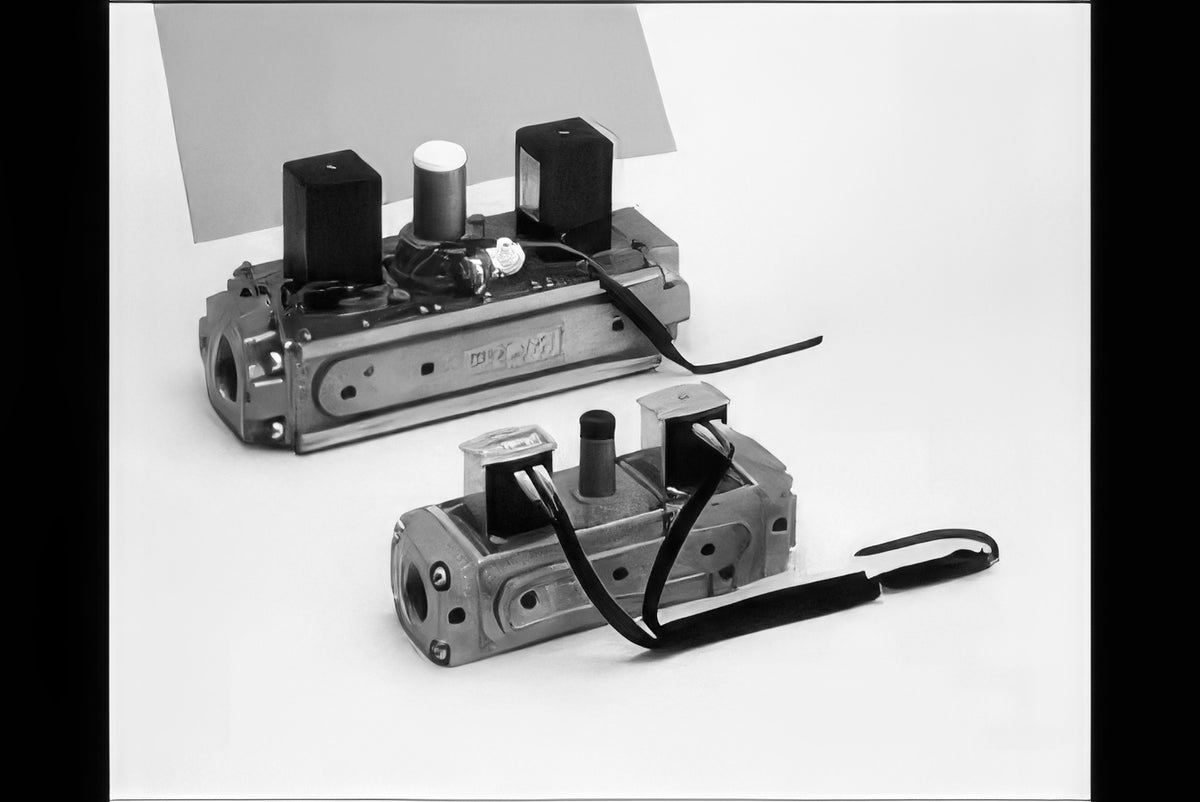

CKD Low Pressure Gas Combination Valve GAV Series (NC)

CKD Low Pressure Gas Combination Valve GAV Series (NC)

Compact low-pressure gas combination valve integrating two solenoid valves and a governor for double shut-off with improved safety; reduces piping work compared with separate components.

Key features

  • Rp3/4 to Rp1-1/2 ports, inlet pressure 0 to 5 kPa
  • Codes give port size and arrangement; voltage is added when ordering

Specifications

Configuration solenoid valve + governor + solenoid valve
Working pressure (kPa) 0-5
Secondary pressure (kPa) 0.5-1.5
Rated voltage AC100V, AC200V
Fluid city gas, natural gas, LPG
GAV-20-A Port: Rp3/4 | Max flow natural gas (m3/h ANR): 10.0 | Power (VA): 10x2 | Mass (kg): 2.4 | Configuration: solenoid valve + governor + solenoid valve | Working pressure (kPa): 0-5 | Secondary pressure (kPa): 0.5-1.5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
GAV-25-A Port: Rp1 | Max flow natural gas (m3/h ANR): 10.0 | Power (VA): 10x2 | Mass (kg): 2.4 | Configuration: solenoid valve + governor + solenoid valve | Working pressure (kPa): 0-5 | Secondary pressure (kPa): 0.5-1.5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
GAV-32-A Port: Rp1-1/4 | Max flow natural gas (m3/h ANR): 28.0 | Power (VA): 27x2 | Mass (kg): 5.4 | Configuration: solenoid valve + governor + solenoid valve | Working pressure (kPa): 0-5 | Secondary pressure (kPa): 0.5-1.5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
GAV-40-A Port: Rp1-1/2 | Max flow natural gas (m3/h ANR): 28.0 | Power (VA): 27x2 | Mass (kg): 5.4 | Configuration: solenoid valve + governor + solenoid valve | Working pressure (kPa): 0-5 | Secondary pressure (kPa): 0.5-1.5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
Gas ValvesCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Low Pressure Gas Combination Valve GAV Series (NC)

Brand CKD·Gas Valves

Available part numbers (4)

GAV-20-A, GAV-25-A, GAV-32-A, GAV-40-A

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAV-20-APort: Rp3/4 | Max flow natural gas (m3/h ANR): 10.0 | Power (VA): 10x2 | Mass (kg): 2.4 | Configuration: solenoid valve + governor + solenoid valve | Working pressure (kPa): 0-5 | Secondary pressure (kPa): 0.5-1.5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
GAV-25-APort: Rp1 | Max flow natural gas (m3/h ANR): 10.0 | Power (VA): 10x2 | Mass (kg): 2.4 | Configuration: solenoid valve + governor + solenoid valve | Working pressure (kPa): 0-5 | Secondary pressure (kPa): 0.5-1.5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
GAV-32-APort: Rp1-1/4 | Max flow natural gas (m3/h ANR): 28.0 | Power (VA): 27x2 | Mass (kg): 5.4 | Configuration: solenoid valve + governor + solenoid valve | Working pressure (kPa): 0-5 | Secondary pressure (kPa): 0.5-1.5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
GAV-40-APort: Rp1-1/2 | Max flow natural gas (m3/h ANR): 28.0 | Power (VA): 27x2 | Mass (kg): 5.4 | Configuration: solenoid valve + governor + solenoid valve | Working pressure (kPa): 0-5 | Secondary pressure (kPa): 0.5-1.5 | Rated voltage: AC100V, AC200V | Fluid: city gas, natural gas, LPG
