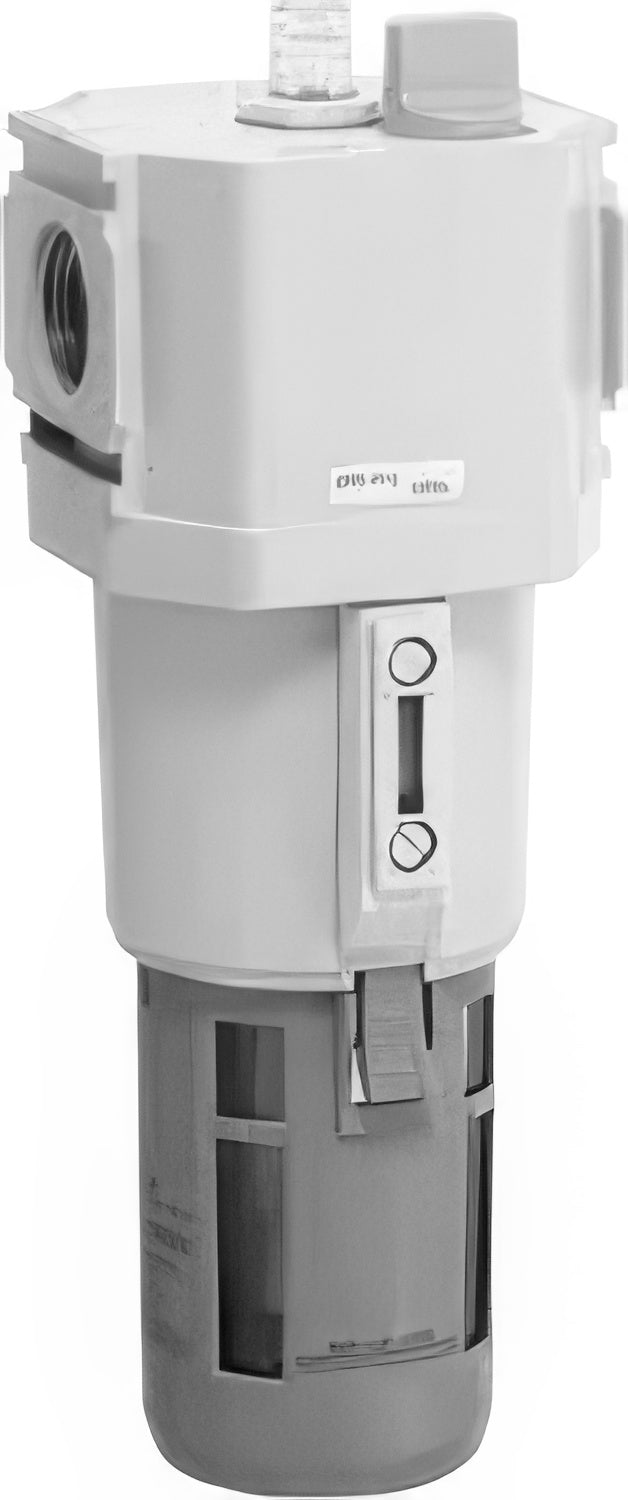

CKD Lubricator L1000-W to L8000-W Series (Port 1/8 to 1)

CKD Lubricator L1000-W to L8000-W Series (Port 1/8 to 1)

Lubricator supplying fine oil mist to pneumatic equipment; uses ISO VG32 turbine oil.

Key features

  • Standard white series modular (SELEX FRL) design; units connect with joiners and brackets

Specifications

Fluid Compressed air
Max. working pressure (MPa) 1.0
Proof pressure (MPa) 1.5
Ambient/fluid temp. (℃) 5~60
L1000-W Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Min. drip flow (m3/min(ANR)): 0.015 | Oil capacity (cm3): 20 | Mass (kg): 0.1
L3000-W Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Min. drip flow (m3/min(ANR)): 0.03 | Oil capacity (cm3): 85 | Mass (kg): 0.28
L4000-W Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Min. drip flow (m3/min(ANR)): 0.065 | Oil capacity (cm3): 170 | Mass (kg): 0.45
L8000-W Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Min. drip flow (m3/min(ANR)): 0.065 | Oil capacity (cm3): 170(MAX360) | Mass (kg): 1.4
LubricatorsCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Lubricator L1000-W to L8000-W Series (Port 1/8 to 1)

Brand CKD·Lubricators

Available part numbers (4)

L1000-W, L3000-W, L4000-W, L8000-W

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
L1000-WFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Min. drip flow (m3/min(ANR)): 0.015 | Oil capacity (cm3): 20 | Mass (kg): 0.1
L3000-WFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Min. drip flow (m3/min(ANR)): 0.03 | Oil capacity (cm3): 85 | Mass (kg): 0.28
L4000-WFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Min. drip flow (m3/min(ANR)): 0.065 | Oil capacity (cm3): 170 | Mass (kg): 0.45
L8000-WFluid: Compressed air | Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.5 | Ambient/fluid temp. (℃): 5~60 | Min. drip flow (m3/min(ANR)): 0.065 | Oil capacity (cm3): 170(MAX360) | Mass (kg): 1.4
