CKD MAGD-R-HD/HDF High Durability Air Operated Valve (Made to Order)

CKD MAGD-R-HD/HDF High Durability Air Operated Valve (Made to Order)

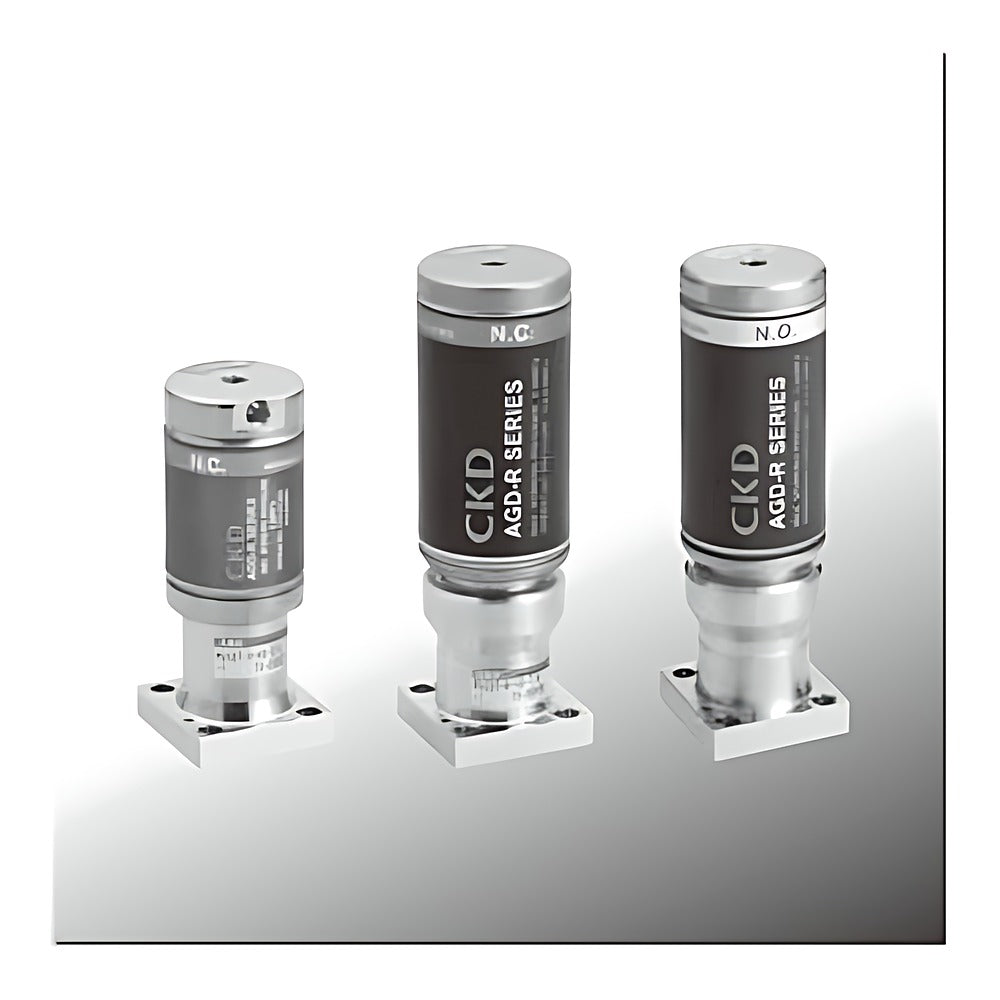

Made-to-order high-durability diaphragm air operated valve for integrated (surface-mount) gas supply systems.

Key features

  • Special actuator coating for stable response; durability guaranteed 10 million cycles
  • MAGD-R-HD: 5-80 C, Cv 0.1/0.26, W seal flange
  • MAGD-HDF: high temperature 20-200 C, Cv 0.3/0.65, W seal or C seal flange
  • MAGD-A: 150-200 C fluid, NC, Cv 0.4 or more, optional 4 mm push-in fitting on pilot port
  • Pilot port M5; NC 0.4-0.6 MPa, NO 0.4-0.5 MPa

Specifications

Fluid Inert gas, process gas
External leak 2.8x10^-12 Pa m3/s (He)
Connection Integrated gas system flange
Pilot port M5
Storage temperature -10 to 80 C
Durability 10 million cycles (guaranteed)
Source CKD Korea catalog CB-035K, p. 94-95
MAGD5-R-HD-11D Type: R-HD standard temp | Fluid temp: 5-80 C | Seal: 1.125 in W seal
MAGD5-HDF-11D Type: HDF high temp | Fluid temp: 20-200 C | Seal: 1.125 in W seal
MAGD4-A Type: A high temp NC | Fluid temp: 150-200 C | Seal: 3/8 in W seal
