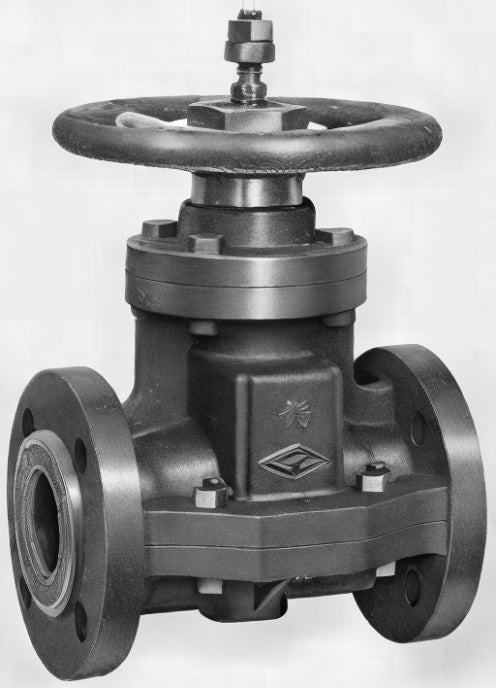

CKD Manual Pinch Valve HPV Series

CKD Manual Pinch Valve HPV Series

Manually operated pinch valve for water, slurry and powder with a replaceable rubber sleeve as the only consumable.

Key features

  • Fully sealed construction, no clogging; JIS 10K flanges 25A to 100A
  • Codes give the flange size; sleeve material (T natural rubber, N chloroprene) is added when ordering

Specifications

Fluid water, slurry, powder (non-corrosive)
Operating pressure (MPa) 0.05-0.5
Proof pressure (MPa) 1.0
Fluid temperature (C) 5-60
HPV-25A Port: 25A flange (JIS 10K) | Bore (mm): 25 | Cv: 35 | Fluid: water, slurry, powder (non-corrosive) | Operating pressure (MPa): 0.05-0.5 | Proof pressure (MPa): 1.0 | Fluid temperature (C): 5-60
HPV-40A Port: 40A flange (JIS 10K) | Bore (mm): 40 | Cv: 90 | Fluid: water, slurry, powder (non-corrosive) | Operating pressure (MPa): 0.05-0.5 | Proof pressure (MPa): 1.0 | Fluid temperature (C): 5-60
HPV-50A Port: 50A flange (JIS 10K) | Bore (mm): 50 | Cv: 200 | Fluid: water, slurry, powder (non-corrosive) | Operating pressure (MPa): 0.05-0.5 | Proof pressure (MPa): 1.0 | Fluid temperature (C): 5-60
HPV-65A Port: 65A flange (JIS 10K) | Bore (mm): 65 | Cv: 350 | Fluid: water, slurry, powder (non-corrosive) | Operating pressure (MPa): 0.05-0.5 | Proof pressure (MPa): 1.0 | Fluid temperature (C): 5-60
HPV-80A Port: 80A flange (JIS 10K) | Bore (mm): 80 | Cv: 490 | Fluid: water, slurry, powder (non-corrosive) | Operating pressure (MPa): 0.05-0.5 | Proof pressure (MPa): 1.0 | Fluid temperature (C): 5-60
HPV-100A Port: 100A flange (JIS 10K) | Bore (mm): 100 | Cv: 620 | Fluid: water, slurry, powder (non-corrosive) | Operating pressure (MPa): 0.05-0.5 | Proof pressure (MPa): 1.0 | Fluid temperature (C): 5-60
Pinch ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Manual Pinch Valve HPV Series

Brand CKD·Pinch Valves

Available part numbers (6)

HPV-25A, HPV-40A, HPV-50A, HPV-65A, HPV-80A, HPV-100A

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HPV-25APort: 25A flange (JIS 10K) | Bore (mm): 25 | Cv: 35 | Fluid: water, slurry, powder (non-corrosive) | Operating pressure (MPa): 0.05-0.5 | Proof pressure (MPa): 1.0 | Fluid temperature (C): 5-60
HPV-40APort: 40A flange (JIS 10K) | Bore (mm): 40 | Cv: 90 | Fluid: water, slurry, powder (non-corrosive) | Operating pressure (MPa): 0.05-0.5 | Proof pressure (MPa): 1.0 | Fluid temperature (C): 5-60
HPV-50APort: 50A flange (JIS 10K) | Bore (mm): 50 | Cv: 200 | Fluid: water, slurry, powder (non-corrosive) | Operating pressure (MPa): 0.05-0.5 | Proof pressure (MPa): 1.0 | Fluid temperature (C): 5-60
HPV-65APort: 65A flange (JIS 10K) | Bore (mm): 65 | Cv: 350 | Fluid: water, slurry, powder (non-corrosive) | Operating pressure (MPa): 0.05-0.5 | Proof pressure (MPa): 1.0 | Fluid temperature (C): 5-60
HPV-80APort: 80A flange (JIS 10K) | Bore (mm): 80 | Cv: 490 | Fluid: water, slurry, powder (non-corrosive) | Operating pressure (MPa): 0.05-0.5 | Proof pressure (MPa): 1.0 | Fluid temperature (C): 5-60
HPV-100APort: 100A flange (JIS 10K) | Bore (mm): 100 | Cv: 620 | Fluid: water, slurry, powder (non-corrosive) | Operating pressure (MPa): 0.05-0.5 | Proof pressure (MPa): 1.0 | Fluid temperature (C): 5-60
