CKD MCGP5/MCGP4 Check Valve for Integrated Gas System IAGD

CKD MCGP5/MCGP4 Check Valve for Integrated Gas System IAGD

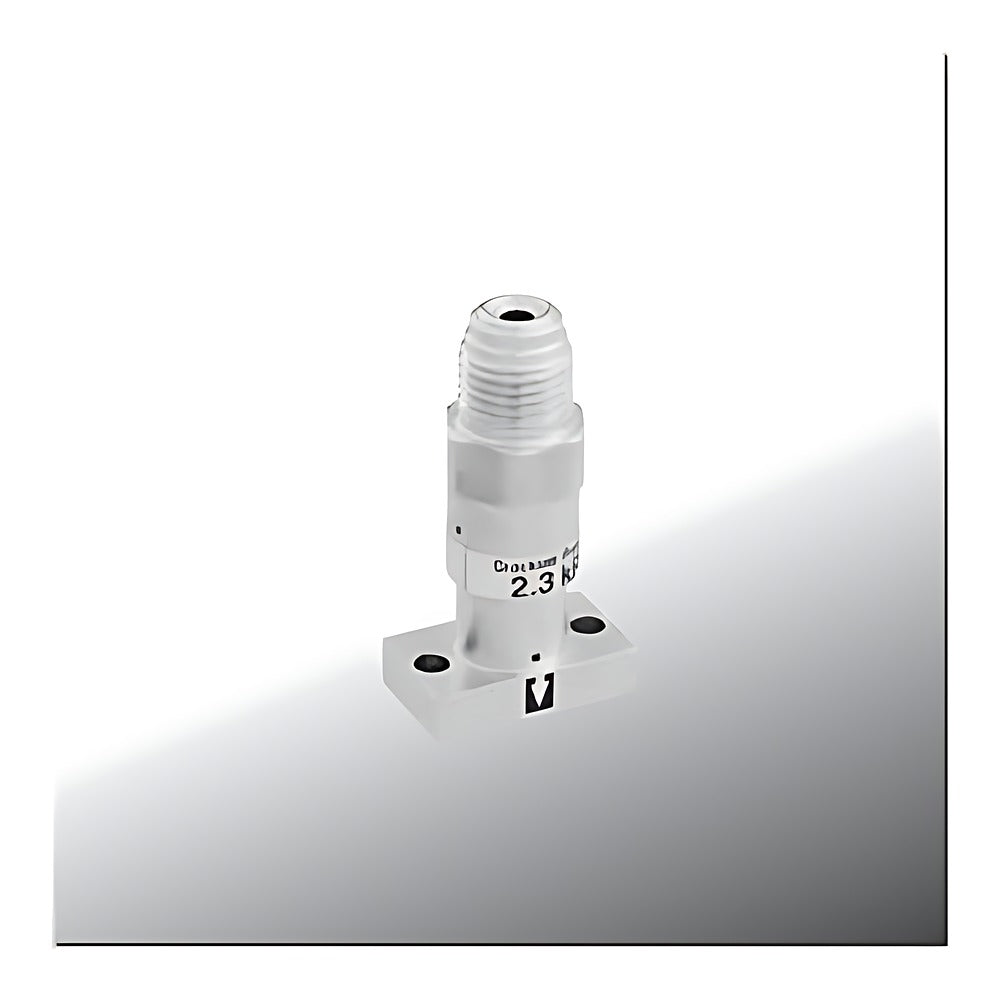

CKD MCGP5/MCGP4 piston check valve with Kalrez seat for IAGD5 and IAGD4 integrated gas supply systems.

Key features

  • Cracking pressure 2.3 kPa, Cv (max.) 0.25
  • Kalrez valve seat, SUS316L body
  • 1-block D type (W seal both sides) or flange type with 1/4" JXR male port (F1/F2 flow direction)
  • Seat leakage 4.7x10^-8 Pa.m3/s (He) or less
  • Mounting bolts and gaskets ordered separately

Specifications

Fluid Inert gas / process gas
Operating pressure 1.3x10^-6 Pa(abs) to 0.7 MPa(G)
Fluid / ambient temperature -10 to 80 C
Cracking pressure 2.3 kPa
Cv (max.) 0.25
Seat material Kalrez
Availability Made to order
Source CKD Korea catalog CB-035K, p. 84-91
MCGP5-01D-W-023-KA System: IAGD5 (1.125" W seal) | Shape: 1-block D, 2-port | Connection: W seal both sides
MCGP5-F1-023-KA System: IAGD5 (1.125" W seal) | Shape: Flange type, JXR side to W seal side | Connection: W seal + 1/4" JXR male
MCGP5-F2-023-KA System: IAGD5 (1.125" W seal) | Shape: Flange type, W seal side to JXR side | Connection: W seal + 1/4" JXR male
MCGP4-01D-W-023-KA System: IAGD4 (1.5" W seal) | Shape: 1-block D, 2-port | Connection: W seal seal code
MCGP4-01D-L-023-KA System: IAGD4 (1.5" W seal) | Shape: 1-block D, 2-port | Connection: 1/4" JXR male seal code
MCGP4-F1-W-023-KA System: IAGD4 (1.5" W seal) | Shape: Flange type, JXR side to W seal side | Connection: W seal seal code
MCGP4-F1-L-023-KA System: IAGD4 (1.5" W seal) | Shape: Flange type, JXR side to W seal side | Connection: 1/4" JXR male seal code
MCGP4-F2-W-023-KA System: IAGD4 (1.5" W seal) | Shape: Flange type, W seal side to JXR side | Connection: W seal seal code
MCGP4-F2-L-023-KA System: IAGD4 (1.5" W seal) | Shape: Flange type, W seal side to JXR side | Connection: 1/4" JXR male seal code
