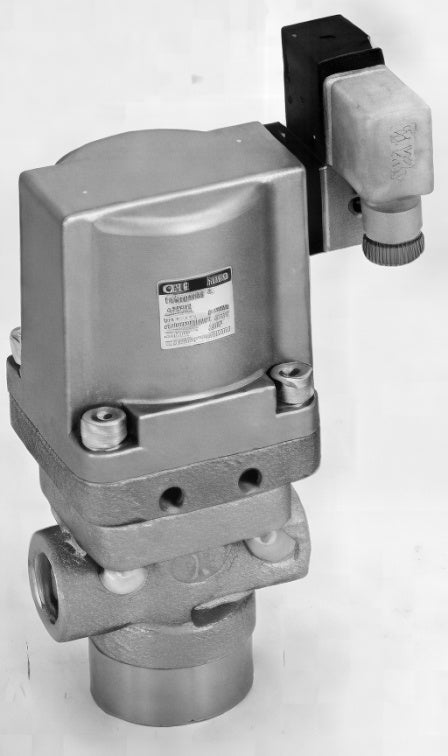

CKD Medium/High Pressure Air Operated 3-Port Valve (Coolant Valve) CVE3, CVSE3 Series

CKD Medium/High Pressure Air Operated 3-Port Valve (Coolant Valve) CVE3, CVSE3 Series

Air-operated 3-port directional valve (C port pressurized only) for machine-tool coolant at medium and high pressure, 3.5 MPa (-35) and 7.0 MPa (-70) versions.

Key features

  • CVE3 is air operated and CVSE3 has a mounted pilot solenoid valve; Rc3/8 to Rc2 ports

Specifications

Fluid coolant, other non-corrosive liquid
Pilot port Rc1/8
CVE3-10A-35 Port: Rc3/8 | Orifice NC/NO (mm): approx. 5.8/4.5 | Cv NC/NO: 1.3/1 | Operating pressure (MPa): 0-3.5 | Mass (kg): 1.0 | Type: air operated | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVSE3-10A-35 Port: Rc3/8 | Orifice NC/NO (mm): approx. 5.8/4.5 | Cv NC/NO: 1.3/1 | Operating pressure (MPa): 0-3.5 | Mass (kg): 1.1 | Type: solenoid valve mounted | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVE3-15A-35 Port: Rc1/2 | Orifice NC/NO (mm): approx. 7.1/6 | Cv NC/NO: 2.2/1.8 | Operating pressure (MPa): 0-3.5 | Mass (kg): 1.6 | Type: air operated | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVSE3-15A-35 Port: Rc1/2 | Orifice NC/NO (mm): approx. 7.1/6 | Cv NC/NO: 2.2/1.8 | Operating pressure (MPa): 0-3.5 | Mass (kg): 1.7 | Type: solenoid valve mounted | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVE3-20A-35 Port: Rc3/4 | Orifice NC/NO (mm): approx. 8.9/8 | Cv NC/NO: 3.6/3 | Operating pressure (MPa): 0-3.5 | Mass (kg): 2.7 | Type: air operated | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVSE3-20A-35 Port: Rc3/4 | Orifice NC/NO (mm): approx. 8.9/8 | Cv NC/NO: 3.6/3 | Operating pressure (MPa): 0-3.5 | Mass (kg): 2.8 | Type: solenoid valve mounted | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVE3-25A-35 Port: Rc1 | Orifice NC/NO (mm): approx. 13.2/9 | Cv NC/NO: 6/3.8 | Operating pressure (MPa): 0-3.5 | Mass (kg): 4.3 | Type: air operated | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVSE3-25A-35 Port: Rc1 | Orifice NC/NO (mm): approx. 13.2/9 | Cv NC/NO: 6/3.8 | Operating pressure (MPa): 0-3.5 | Mass (kg): 4.4 | Type: solenoid valve mounted | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVE3-32A-35 Port: Rc1-1/4 | Orifice NC/NO (mm): approx. 22/20 | Cv NC/NO: 23/18.5 | Operating pressure (MPa): 0-3.5 | Mass (kg): 13.8 | Type: air operated | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVSE3-32A-35 Port: Rc1-1/4 | Orifice NC/NO (mm): approx. 22/20 | Cv NC/NO: 23/18.5 | Operating pressure (MPa): 0-3.5 | Mass (kg): 13.9 | Type: solenoid valve mounted | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVE3-40A-35 Port: Rc1-1/2 | Orifice NC/NO (mm): approx. 22/20 | Cv NC/NO: 23/17 | Operating pressure (MPa): 0-3.5 | Mass (kg): 13.5 | Type: air operated | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVSE3-40A-35 Port: Rc1-1/2 | Orifice NC/NO (mm): approx. 22/20 | Cv NC/NO: 23/17 | Operating pressure (MPa): 0-3.5 | Mass (kg): 13.6 | Type: solenoid valve mounted | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVE3-50A-35 Port: Rc2 | Orifice NC/NO (mm): approx. 28.5/26 | Cv NC/NO: 31/27 | Operating pressure (MPa): 0-3.5 | Mass (kg): 22.7 | Type: air operated | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVSE3-50A-35 Port: Rc2 | Orifice NC/NO (mm): approx. 28.5/26 | Cv NC/NO: 31/27 | Operating pressure (MPa): 0-3.5 | Mass (kg): 22.8 | Type: solenoid valve mounted | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVE3-10A-70 Port: Rc3/8 | Orifice NC/NO (mm): approx. 5.8/4.5 | Cv NC/NO: 1.3/1 | Operating pressure (MPa): 0-7.0 | Mass (kg): 1.4 | Type: air operated | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVSE3-10A-70 Port: Rc3/8 | Orifice NC/NO (mm): approx. 5.8/4.5 | Cv NC/NO: 1.3/1 | Operating pressure (MPa): 0-7.0 | Mass (kg): 1.5 | Type: solenoid valve mounted | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVE3-15A-70 Port: Rc1/2 | Orifice NC/NO (mm): approx. 7.1/6 | Cv NC/NO: 2.2/1.8 | Operating pressure (MPa): 0-7.0 | Mass (kg): 2.4 | Type: air operated | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVSE3-15A-70 Port: Rc1/2 | Orifice NC/NO (mm): approx. 7.1/6 | Cv NC/NO: 2.2/1.8 | Operating pressure (MPa): 0-7.0 | Mass (kg): 2.5 | Type: solenoid valve mounted | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVE3-20A-70 Port: Rc3/4 | Orifice NC/NO (mm): approx. 8.9/8 | Cv NC/NO: 3.6/3 | Operating pressure (MPa): 0-7.0 | Mass (kg): 3.9 | Type: air operated | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVSE3-20A-70 Port: Rc3/4 | Orifice NC/NO (mm): approx. 8.9/8 | Cv NC/NO: 3.6/3 | Operating pressure (MPa): 0-7.0 | Mass (kg): 3.9 | Type: solenoid valve mounted | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVE3-25A-70 Port: Rc1 | Orifice NC/NO (mm): approx. 10.7/9 | Cv NC/NO: 4.9/3.8 | Operating pressure (MPa): 0-7.0 | Mass (kg): 6.1 | Type: air operated | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
CVSE3-25A-70 Port: Rc1 | Orifice NC/NO (mm): approx. 10.7/9 | Cv NC/NO: 4.9/3.8 | Operating pressure (MPa): 0-7.0 | Mass (kg): 6.1 | Type: solenoid valve mounted | Fluid: coolant, other non-corrosive liquid | Pilot port: Rc1/8
