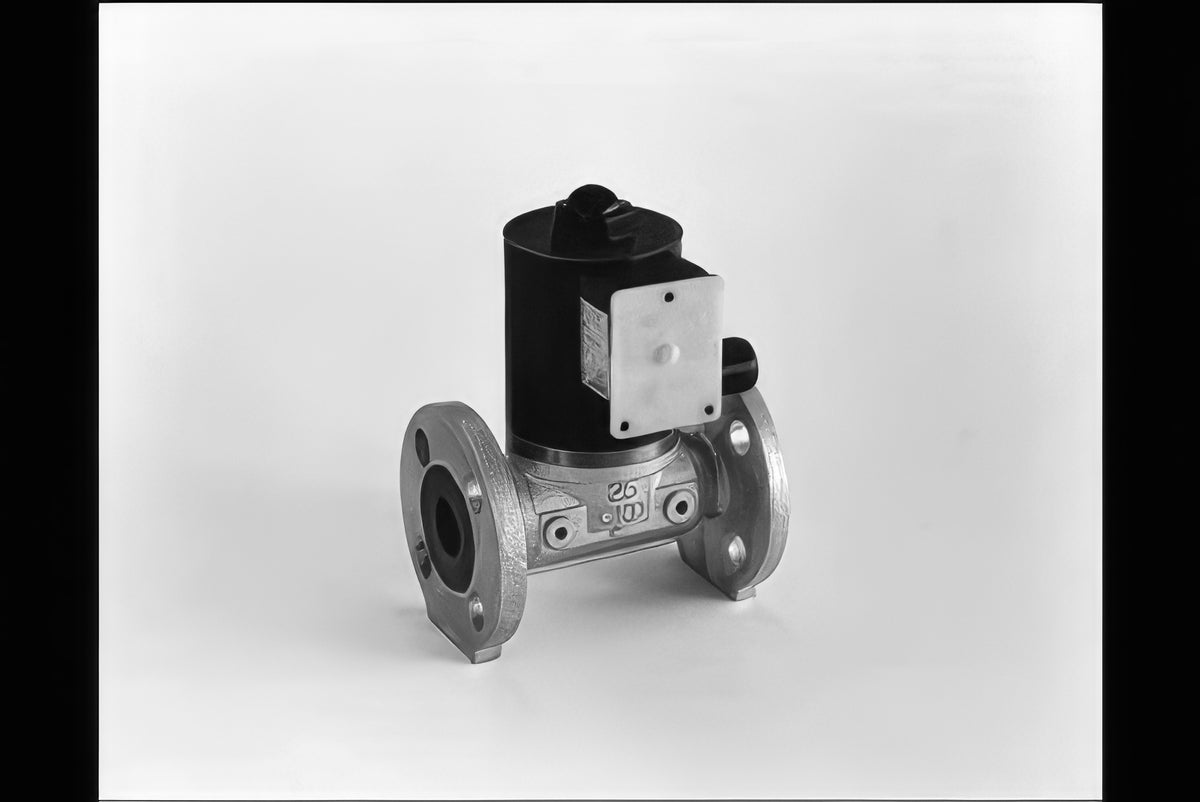

CKD Medium Pressure Gas Shut-Off Valve VNM-25, VLM-25, VNM-25-K

CKD Medium Pressure Gas Shut-Off Valve VNM-25, VLM-25, VNM-25-K

Lightweight, compact medium-pressure gas safety shut-off valves using a solenoid-valve drive, with 25A JIS flange connection and ports for pressure switch and gauge.

Key features

  • VNM-25 quick open, VLM-25 slow open with start-gas adjustment, VNM-25-K fire-resistant version for emergency shut-off

Specifications

Port 25A JIS flange
Working pressure (MPa) 0-0.3
Cv 12.8
Fluid city gas, natural gas, LPG
VNM-25 Port: 25A JIS flange | Working pressure (MPa): 0-0.3 | Flow natural gas (m3/h ANR): 19 | Cv: 12.8 | Mass (kg): 7.7 | Type: quick open | Fluid: city gas, natural gas, LPG
VLM-25 Port: 25A JIS flange | Working pressure (MPa): 0-0.3 | Flow natural gas (m3/h ANR): 19 | Cv: 12.8 | Start gas adjustment: 0-50% | Mass (kg): 7.8 | Type: slow open | Fluid: city gas, natural gas, LPG
VNM-25-K Port: 25A JIS flange | Working pressure (MPa): 0-0.3 | Cv: 12.8 | Mass (kg): 10 | Type: fire-resistant safety shut-off | Fluid: city gas, natural gas, LPG
Gas ValvesCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Medium Pressure Gas Shut-Off Valve VNM-25, VLM-25, VNM-25-K

Brand CKD·Gas Valves

Available part numbers (3)

VNM-25, VLM-25, VNM-25-K

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VNM-25Port: 25A JIS flange | Working pressure (MPa): 0-0.3 | Flow natural gas (m3/h ANR): 19 | Cv: 12.8 | Mass (kg): 7.7 | Type: quick open | Fluid: city gas, natural gas, LPG
VLM-25Port: 25A JIS flange | Working pressure (MPa): 0-0.3 | Flow natural gas (m3/h ANR): 19 | Cv: 12.8 | Start gas adjustment: 0-50% | Mass (kg): 7.8 | Type: slow open | Fluid: city gas, natural gas, LPG
VNM-25-KPort: 25A JIS flange | Working pressure (MPa): 0-0.3 | Cv: 12.8 | Mass (kg): 10 | Type: fire-resistant safety shut-off | Fluid: city gas, natural gas, LPG
