• CKD Metal-Free 2/3-Port Solenoid Valve MAB1, MAG1 Series
1 1

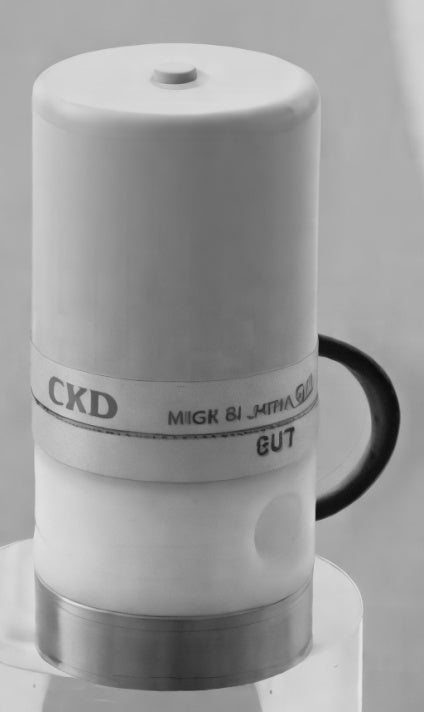

CKD Metal-Free 2/3-Port Solenoid Valve MAB1, MAG1 Series

CKD Metal-Free 2/3-Port Solenoid Valve MAB1, MAG1 Series

Metal-free 2-port (MAB1, NC) and 3-port (MAG1, universal) solenoid valve for water, pure water and chemicals, M6 port, DC24V.

Specifications

Port M6
Orifice (mm) approx. 1.6
Cv 0.045
Mass (kg) 0.13
Power (W) 2.3
Rated voltage DC24V
Fluid water, pure water, chemicals (compatible with wetted materials)
MAB1-M6-DC24V Type: 2-port NC | Port: M6 | Orifice (mm): approx. 1.6 | Cv: 0.045 | Working pressure IN (MPa): 0-0.3 | Mass (kg): 0.13 | Power (W): 2.3 | Rated voltage: DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
MAG1-M6-DC24V Type: 3-port universal | Port: M6 | Orifice (mm): approx. 1.6 | Cv: 0.045 | Working pressure COM (MPa): 0-0.3 | Mass (kg): 0.13 | Power (W): 2.3 | Rated voltage: DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
Solenoid ValvesCKD
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Metal-Free 2/3-Port Solenoid Valve MAB1, MAG1 Series

Brand CKD·Solenoid Valves

Available part numbers (2)

MAB1-M6-DC24V, MAG1-M6-DC24V

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MAB1-M6-DC24VType: 2-port NC | Port: M6 | Orifice (mm): approx. 1.6 | Cv: 0.045 | Working pressure IN (MPa): 0-0.3 | Mass (kg): 0.13 | Power (W): 2.3 | Rated voltage: DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
MAG1-M6-DC24VType: 3-port universal | Port: M6 | Orifice (mm): approx. 1.6 | Cv: 0.045 | Working pressure COM (MPa): 0-0.3 | Mass (kg): 0.13 | Power (W): 2.3 | Rated voltage: DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
