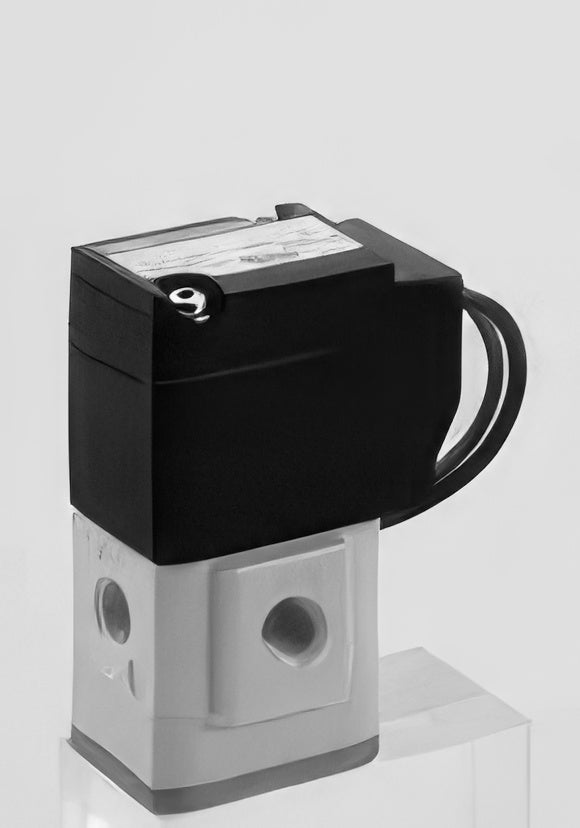

CKD Metal-Free 2/3-Port Solenoid Valve MEB2, MEG2 Series

CKD Metal-Free 2/3-Port Solenoid Valve MEB2, MEG2 Series

Metal-free 2-port (MEB2, NC) and 3-port (MEG2, universal) solenoid valve with Rc1/8 port for water, pure water and chemicals.

Key features

  • Codes are the base models

Specifications

Port Rc1/8
Orifice (mm) approx. 3.0
Cv 0.18
Rated voltage DC24V, AC100V
Fluid water, pure water, chemicals (compatible with wetted materials)
MEB2-6 Type: 2-port NC | Port: Rc1/8 | Orifice (mm): approx. 3.0 | Cv: 0.18 | Working pressure IN (MPa): 0-0.2 | Mass (kg): 0.22 | Rated voltage: DC24V, AC100V | Fluid: water, pure water, chemicals (compatible with wetted materials)
MEG2-6 Type: 3-port universal | Port: Rc1/8 | Orifice (mm): approx. 3.0 | Cv: 0.18 | Working pressure COM (MPa): 0-0.2 | Mass (kg): 0.24 | Rated voltage: DC24V, AC100V | Fluid: water, pure water, chemicals (compatible with wetted materials)
Solenoid ValvesCKD
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Metal-Free 2/3-Port Solenoid Valve MEB2, MEG2 Series

Brand CKD·Solenoid Valves

Available part numbers (2)

MEB2-6, MEG2-6

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MEB2-6Type: 2-port NC | Port: Rc1/8 | Orifice (mm): approx. 3.0 | Cv: 0.18 | Working pressure IN (MPa): 0-0.2 | Mass (kg): 0.22 | Rated voltage: DC24V, AC100V | Fluid: water, pure water, chemicals (compatible with wetted materials)
MEG2-6Type: 3-port universal | Port: Rc1/8 | Orifice (mm): approx. 3.0 | Cv: 0.18 | Working pressure COM (MPa): 0-0.2 | Mass (kg): 0.24 | Rated voltage: DC24V, AC100V | Fluid: water, pure water, chemicals (compatible with wetted materials)
