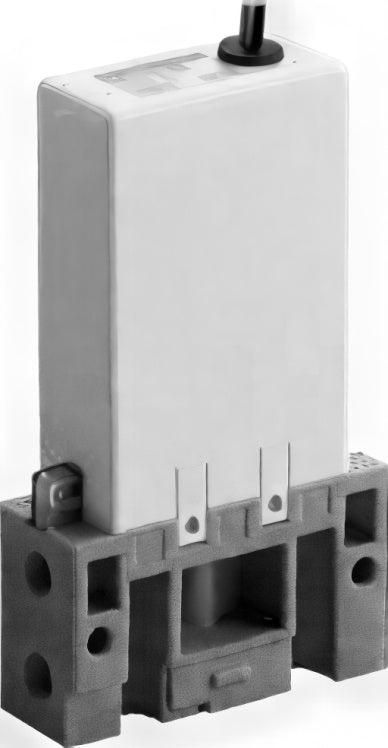

CKD Metal-Free 2/3-Port Solenoid Valve MR16 Series

CKD Metal-Free 2/3-Port Solenoid Valve MR16 Series

Metal-free direct-acting rocker-type diaphragm solenoid valve for water, pure water and chemicals in analytical and medical equipment. 2-port NC and NO and 3-port universal versions, M6 or 1/4-28UNF ports, internal volume 50 uL.

Key features

  • Codes are the base models; port, materials and voltage are added when ordering

Specifications

Port M6, 1/4-28UNF
Orifice (mm) 1.6
Cv 0.05
Working pressure (MPa) -0.08 to 0.3
Fluid temperature (C) 5-40
Mass (g) 75 (actuator type), 85 (direct piping)
Rated voltage DC24V, DC12V
Fluid water, pure water, chemicals (compatible with wetted materials)
MR16-2NC Type: 2-port NC | Port: M6, 1/4-28UNF | Orifice (mm): 1.6 | Cv: 0.05 | Working pressure (MPa): -0.08 to 0.3 | Fluid temperature (C): 5-40 | Mass (g): 75 (actuator type), 85 (direct piping) | Rated voltage: DC24V, DC12V | Fluid: water, pure water, chemicals (compatible with wetted materials)
MR16-2NO Type: 2-port NO | Port: M6, 1/4-28UNF | Orifice (mm): 1.6 | Cv: 0.05 | Working pressure (MPa): -0.08 to 0.3 | Fluid temperature (C): 5-40 | Mass (g): 75 (actuator type), 85 (direct piping) | Rated voltage: DC24V, DC12V | Fluid: water, pure water, chemicals (compatible with wetted materials)
MR16-3 Type: 3-port universal | Port: M6, 1/4-28UNF | Orifice (mm): 1.6 | Cv: 0.05 | Working pressure (MPa): -0.08 to 0.3 | Fluid temperature (C): 5-40 | Mass (g): 75 (actuator type), 85 (direct piping) | Rated voltage: DC24V, DC12V | Fluid: water, pure water, chemicals (compatible with wetted materials)
Solenoid ValvesCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Metal-Free 2/3-Port Solenoid Valve MR16 Series

Brand CKD·Solenoid Valves

Available part numbers (3)

MR16-2NC, MR16-2NO, MR16-3

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MR16-2NCType: 2-port NC | Port: M6, 1/4-28UNF | Orifice (mm): 1.6 | Cv: 0.05 | Working pressure (MPa): -0.08 to 0.3 | Fluid temperature (C): 5-40 | Mass (g): 75 (actuator type), 85 (direct piping) | Rated voltage: DC24V, DC12V | Fluid: water, pure water, chemicals (compatible with wetted materials)
MR16-2NOType: 2-port NO | Port: M6, 1/4-28UNF | Orifice (mm): 1.6 | Cv: 0.05 | Working pressure (MPa): -0.08 to 0.3 | Fluid temperature (C): 5-40 | Mass (g): 75 (actuator type), 85 (direct piping) | Rated voltage: DC24V, DC12V | Fluid: water, pure water, chemicals (compatible with wetted materials)
MR16-3Type: 3-port universal | Port: M6, 1/4-28UNF | Orifice (mm): 1.6 | Cv: 0.05 | Working pressure (MPa): -0.08 to 0.3 | Fluid temperature (C): 5-40 | Mass (g): 75 (actuator type), 85 (direct piping) | Rated voltage: DC24V, DC12V | Fluid: water, pure water, chemicals (compatible with wetted materials)
