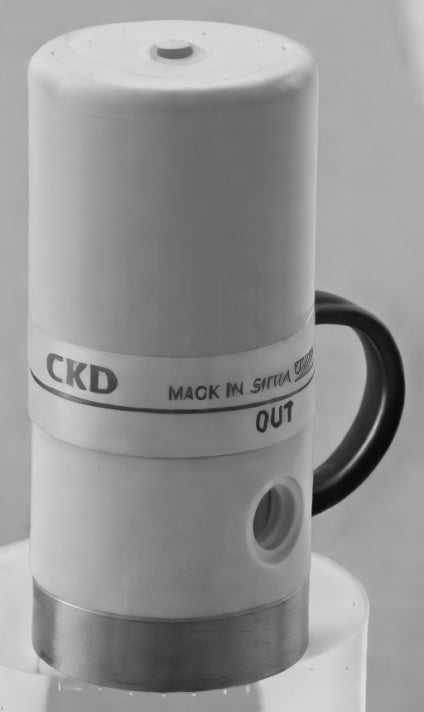

CKD Metal-Free 2/3-Port Solenoid Valve MYB1, MYG1 Series

CKD Metal-Free 2/3-Port Solenoid Valve MYB1, MYG1 Series

Metal-free 2-port (MYB1, NC) and 3-port (MYG1, universal) solenoid valve with M6 port for water, pure water and chemicals.

Key features

  • Codes are the base models; materials and voltage are added when ordering

Specifications

Port M6
Orifice (mm) approx. 2.0
Cv 0.1
Mass (kg) 0.14
Rated voltage DC12V, DC24V, AC100V
Fluid water, pure water, chemicals (compatible with wetted materials)
MYB1-M6 Type: 2-port NC | Port: M6 | Orifice (mm): approx. 2.0 | Cv: 0.1 | Working pressure IN (MPa): 0-0.2 | Mass (kg): 0.14 | Rated voltage: DC12V, DC24V, AC100V | Fluid: water, pure water, chemicals (compatible with wetted materials)
MYG1-M6 Type: 3-port universal | Port: M6 | Orifice (mm): approx. 2.0 | Cv: 0.1 | Working pressure COM (MPa): 0-0.2 | Mass (kg): 0.14 | Rated voltage: DC12V, DC24V, AC100V | Fluid: water, pure water, chemicals (compatible with wetted materials)
Solenoid ValvesCKD
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Metal-Free 2/3-Port Solenoid Valve MYB1, MYG1 Series

Brand CKD·Solenoid Valves

Available part numbers (2)

MYB1-M6, MYG1-M6

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MYB1-M6Type: 2-port NC | Port: M6 | Orifice (mm): approx. 2.0 | Cv: 0.1 | Working pressure IN (MPa): 0-0.2 | Mass (kg): 0.14 | Rated voltage: DC12V, DC24V, AC100V | Fluid: water, pure water, chemicals (compatible with wetted materials)
MYG1-M6Type: 3-port universal | Port: M6 | Orifice (mm): approx. 2.0 | Cv: 0.1 | Working pressure COM (MPa): 0-0.2 | Mass (kg): 0.14 | Rated voltage: DC12V, DC24V, AC100V | Fluid: water, pure water, chemicals (compatible with wetted materials)
