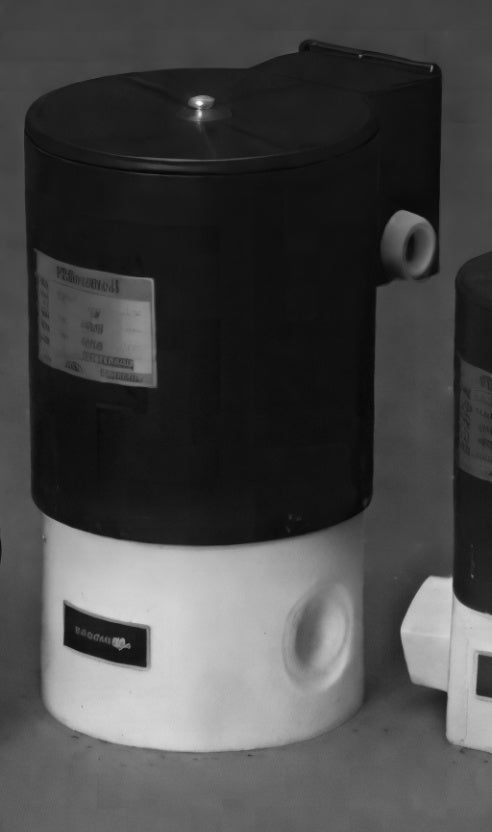

CKD Metal-Free 2-Port Solenoid Valve EMB41, EMB51 Series (NC)

CKD Metal-Free 2-Port Solenoid Valve EMB41, EMB51 Series (NC)

Metal-free normally closed 2-port solenoid valve for water, pure water and chemicals with Rc3/8 or Rc1/2 ports.

Key features

  • Zero seat leakage with water; AC100V, AC200V or DC24V coil, VCTF 0.75 mm2 2-core lead

Specifications

Type NC
Rated voltage AC100V, AC200V, DC24V
Fluid water, pure water, chemicals (compatible with wetted materials)
EMB41-10-3 Port: Rc3/8 | Orifice (mm): 6 | Cv: 0.68 | Working pressure (MPa): 0-0.25 | Back pressure (MPa): 0.1 | Ambient temperature (C): 0-50 | Power (W): 11 | Mass (kg): 0.86 | Type: NC | Rated voltage: AC100V, AC200V, DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
EMB41-10-5 Port: Rc3/8 | Orifice (mm): 8 | Cv: 0.83 | Working pressure (MPa): 0-0.2 | Back pressure (MPa): 0.07 | Ambient temperature (C): 0-50 | Power (W): 11 | Mass (kg): 0.86 | Type: NC | Rated voltage: AC100V, AC200V, DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
EMB51-10-3 Port: Rc3/8 | Orifice (mm): 10 | Cv: 2.05 | Working pressure (MPa): 0-0.15 | Back pressure (MPa): 0.06 | Ambient temperature (C): 0-55 | Power (W): 16 | Mass (kg): 2.05 | Type: NC | Rated voltage: AC100V, AC200V, DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
EMB51-15-4 Port: Rc1/2 | Orifice (mm): 12 | Cv: 2.7 | Working pressure (MPa): 0-0.12 | Back pressure (MPa): 0.06 | Ambient temperature (C): 0-55 | Power (W): 16 | Mass (kg): 2.05 | Type: NC | Rated voltage: AC100V, AC200V, DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
EMB51-15-5 Port: Rc1/2 | Orifice (mm): 15 | Cv: 3.6 | Working pressure (MPa): 0-0.05 | Back pressure (MPa): 0.03 | Ambient temperature (C): 0-55 | Power (W): 16 | Mass (kg): 2.05 | Type: NC | Rated voltage: AC100V, AC200V, DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
Solenoid ValvesCKD
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Metal-Free 2-Port Solenoid Valve EMB41, EMB51 Series (NC)

Brand CKD·Solenoid Valves

Available part numbers (5)

EMB41-10-3, EMB41-10-5, EMB51-10-3, EMB51-15-4, EMB51-15-5

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EMB41-10-3Port: Rc3/8 | Orifice (mm): 6 | Cv: 0.68 | Working pressure (MPa): 0-0.25 | Back pressure (MPa): 0.1 | Ambient temperature (C): 0-50 | Power (W): 11 | Mass (kg): 0.86 | Type: NC | Rated voltage: AC100V, AC200V, DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
EMB41-10-5Port: Rc3/8 | Orifice (mm): 8 | Cv: 0.83 | Working pressure (MPa): 0-0.2 | Back pressure (MPa): 0.07 | Ambient temperature (C): 0-50 | Power (W): 11 | Mass (kg): 0.86 | Type: NC | Rated voltage: AC100V, AC200V, DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
EMB51-10-3Port: Rc3/8 | Orifice (mm): 10 | Cv: 2.05 | Working pressure (MPa): 0-0.15 | Back pressure (MPa): 0.06 | Ambient temperature (C): 0-55 | Power (W): 16 | Mass (kg): 2.05 | Type: NC | Rated voltage: AC100V, AC200V, DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
EMB51-15-4Port: Rc1/2 | Orifice (mm): 12 | Cv: 2.7 | Working pressure (MPa): 0-0.12 | Back pressure (MPa): 0.06 | Ambient temperature (C): 0-55 | Power (W): 16 | Mass (kg): 2.05 | Type: NC | Rated voltage: AC100V, AC200V, DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
EMB51-15-5Port: Rc1/2 | Orifice (mm): 15 | Cv: 3.6 | Working pressure (MPa): 0-0.05 | Back pressure (MPa): 0.03 | Ambient temperature (C): 0-55 | Power (W): 16 | Mass (kg): 2.05 | Type: NC | Rated voltage: AC100V, AC200V, DC24V | Fluid: water, pure water, chemicals (compatible with wetted materials)
