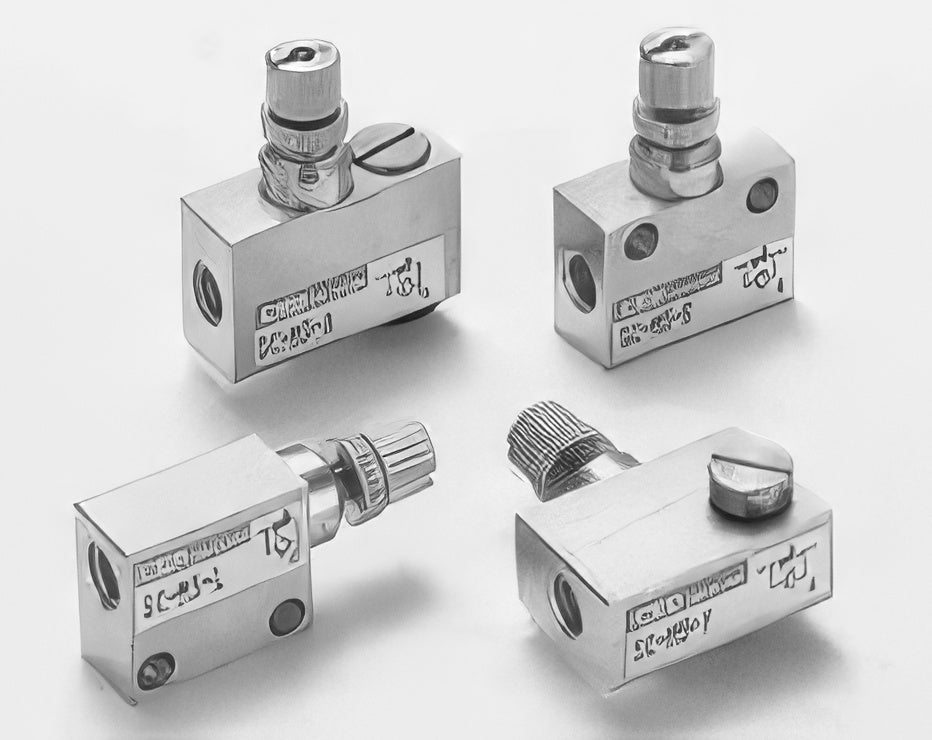

CKD Micro Speed Controller SC-M3/M5 and In/Out Speed Controller SCD-M3/M5

CKD Micro Speed Controller SC-M3/M5 and In/Out Speed Controller SCD-M3/M5

Ultra-small speed controllers for M3 and M5 ports of small cylinders.

Key features

  • SC types control one direction; SCD types control flow in and out
  • Values in brackets are for the low-speed / low-flow / micro-flow variants

Specifications

Fluid Compressed air
SC-M3 Port: M3 | Effective area free flow (mm2): 0.3 | Effective area controlled flow (mm2): 0.25 | Flow free flow at 0.5 MPa (L/min ANR): 20 | Flow controlled flow at 0.5 MPa (L/min ANR): 16 | Applicable cylinder bore (mm): 2.5 to 10 | Fluid: Compressed air
SCD-M3 Port: M3 | Effective area controlled flow (mm2): 0.2 | Flow controlled flow at 0.5 MPa (L/min ANR): 13 | Applicable cylinder bore (mm): 4 to 8 | Fluid: Compressed air
SCD-M5 Port: M5 | Effective area controlled flow (mm2): 0.55 (0.1) | Flow controlled flow at 0.5 MPa (L/min ANR): 37 (6.7) | Applicable cylinder bore (mm): 6 to 25 | Fluid: Compressed air
Speed ControllersCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Micro Speed Controller SC-M3/M5 and In/Out Speed Controller SCD-M3/M5

Brand CKD·Speed Controllers

Available part numbers (3)

SC-M3, SCD-M3, SCD-M5

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC-M3Port: M3 | Effective area free flow (mm2): 0.3 | Effective area controlled flow (mm2): 0.25 | Flow free flow at 0.5 MPa (L/min ANR): 20 | Flow controlled flow at 0.5 MPa (L/min ANR): 16 | Applicable cylinder bore (mm): 2.5 to 10 | Fluid: Compressed air
SCD-M3Port: M3 | Effective area controlled flow (mm2): 0.2 | Flow controlled flow at 0.5 MPa (L/min ANR): 13 | Applicable cylinder bore (mm): 4 to 8 | Fluid: Compressed air
SCD-M5Port: M5 | Effective area controlled flow (mm2): 0.55 (0.1) | Flow controlled flow at 0.5 MPa (L/min ANR): 37 (6.7) | Applicable cylinder bore (mm): 6 to 25 | Fluid: Compressed air
