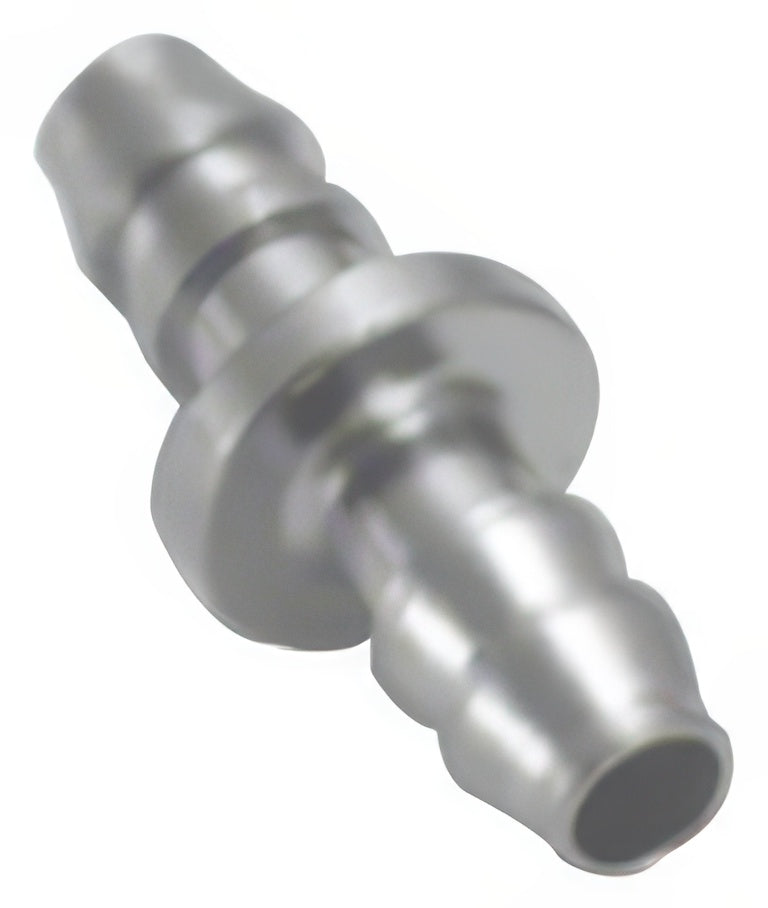

CKD Miniature Fittings F Series (Barb, Clamp, Socket, Nipple, Oil-Free P80)

CKD Miniature Fittings F Series (Barb, Clamp, Socket, Nipple, Oil-Free P80)

Miniature M5/R1/8 fittings for small cylinders and valves in oil-free clean specification (P80): barb and clamp fittings for 3.2-6 mm urethane tube, nipples, sockets, adjustable sockets, bushings, bulkhead unions, plugs, extension, manifold and gaskets.

Key features

  • Metal parts are electroless nickel-plated brass with NBR seals and no grease

Specifications

Max pressure (MPa) 0.7
Clean spec P80 (oil-free)
FSL-M5-P80 Type: Double-thread nipple, elbow | Thread: 2-M5x0.8 | Eff. area (mm2): 8 | Mass (g): 5.9 | Max pressure (MPa): 0.7 | Clean spec: P80 (oil-free)
FST-M5-P80 Type: Socket, branch tee | Thread: 3-M5x0.8 | Eff. area (mm2): 8 | Mass (g): 5.1 | Max pressure (MPa): 0.7 | Clean spec: P80 (oil-free)
FAX-M5-P80 Type: Adjustable socket, cross | Thread: 4-M5x0.8 | Eff. area (mm2): 1.7 | Mass (g): 7.4 | Max pressure (MPa): 0.7 | Clean spec: P80 (oil-free)
FAY-M5-P80 Type: Adjustable socket, offset tee | Thread: 3-M5x0.8 | Eff. area (mm2): 1.7 | Mass (g): 7.0 | Max pressure (MPa): 0.7 | Clean spec: P80 (oil-free)
FLS-M5-P80 Type: Extension | Thread: M5x0.8 | Eff. area (mm2): 2.1 | Mass (g): 3.7 | Max pressure (MPa): 0.7 | Clean spec: P80 (oil-free)
FMB-M56-P80 Type: Manifold | Ports: 6-M5, Rc1/8 inlet | Mass (g): 50 | Sales unit: 1 pc | Max pressure (MPa): 0.7 | Clean spec: P80 (oil-free)
Pneumatic FittingsCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Miniature Fittings F Series (Barb, Clamp, Socket, Nipple, Oil-Free P80)

Brand CKD·Pneumatic Fittings

Available part numbers (6)

FSL-M5-P80, FST-M5-P80, FAX-M5-P80, FAY-M5-P80, FLS-M5-P80, FMB-M56-P80

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FSL-M5-P80Type: Double-thread nipple, elbow | Thread: 2-M5x0.8 | Eff. area (mm2): 8 | Mass (g): 5.9 | Max pressure (MPa): 0.7 | Clean spec: P80 (oil-free)
FST-M5-P80Type: Socket, branch tee | Thread: 3-M5x0.8 | Eff. area (mm2): 8 | Mass (g): 5.1 | Max pressure (MPa): 0.7 | Clean spec: P80 (oil-free)
FAX-M5-P80Type: Adjustable socket, cross | Thread: 4-M5x0.8 | Eff. area (mm2): 1.7 | Mass (g): 7.4 | Max pressure (MPa): 0.7 | Clean spec: P80 (oil-free)
FAY-M5-P80Type: Adjustable socket, offset tee | Thread: 3-M5x0.8 | Eff. area (mm2): 1.7 | Mass (g): 7.0 | Max pressure (MPa): 0.7 | Clean spec: P80 (oil-free)
FLS-M5-P80Type: Extension | Thread: M5x0.8 | Eff. area (mm2): 2.1 | Mass (g): 3.7 | Max pressure (MPa): 0.7 | Clean spec: P80 (oil-free)
FMB-M56-P80Type: Manifold | Ports: 6-M5, Rc1/8 inlet | Mass (g): 50 | Sales unit: 1 pc | Max pressure (MPa): 0.7 | Clean spec: P80 (oil-free)
