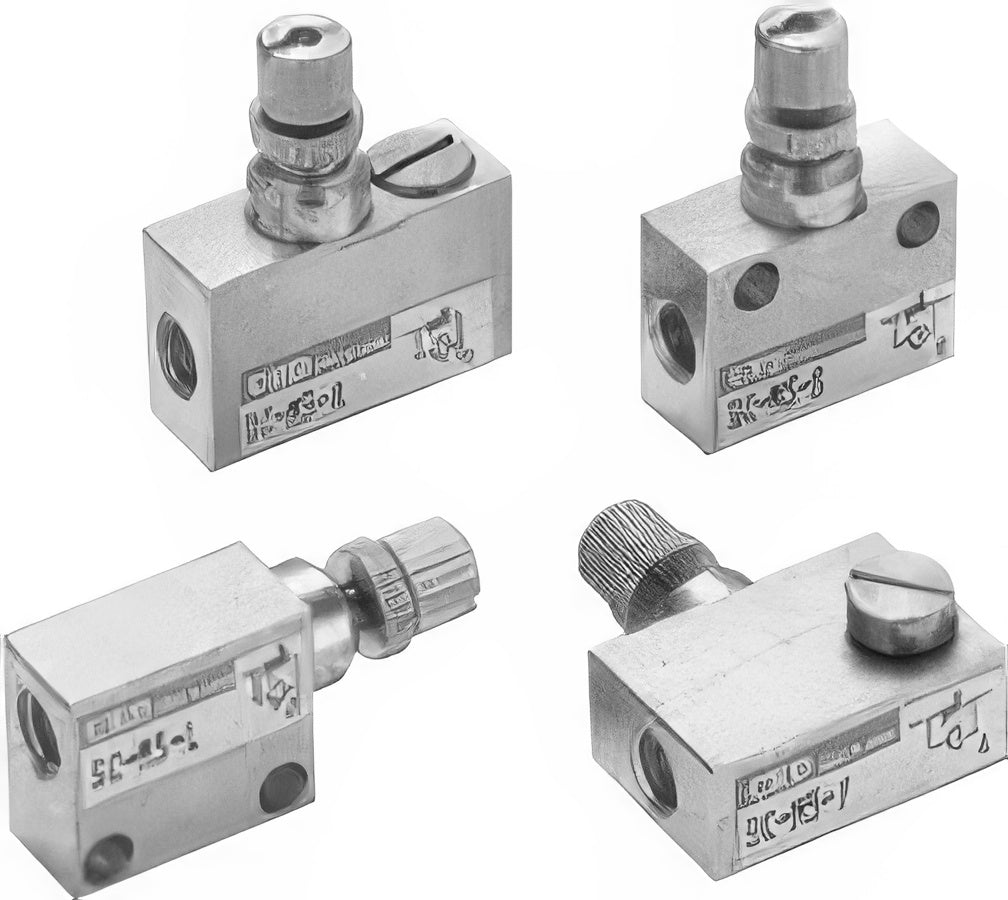

CKD Miniature Speed Controller SC-M3, SC-M5 Series

CKD Miniature Speed Controller SC-M3, SC-M5 Series

Miniature speed controller with M3 or M5 threads, available in several body styles (S, L, F, A).

Specifications

Fluid Compressed air
Max. working pressure (MPa) 0.7
Min. working pressure (MPa) 0.1
Proof pressure (MPa) 1.05
SC-M3-S Fluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 1.7 | Dim. A (mm): 18.5(max21) | Dim. B (mm): 9 | Dim. C (mm): 7.3 | Dim. D (mm): 2.5 | Dim. E (mm): 2.5 | Dim. F (mm): 8 | Dim. G (mm): 13
SC-M3-L Fluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 1.5 | Dim. A (mm): 20.3(max22.8) | Dim. B (mm): 10.5 | Dim. C (mm): 7 | Dim. D (mm): 1.9 | Dim. E (mm): 2.5 | Dim. F (mm): 6.5 | Dim. G (mm): 9
SC-M3-F Fluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 2.4 | Dim. A (mm): 18.5(max21) | Dim. B (mm): 9 | Dim. C (mm): 3.4 | Dim. D (mm): 2.7 | Dim. E (mm): 6.5 | Dim. F (mm): 13 | Dim. G (mm): 5
SC-M3-A Fluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 2.4 | Dim. A (mm): 18.5(max21) | Dim. B (mm): 9 | Dim. C (mm): 3 | Dim. D (mm): 3.2 | Dim. E (mm): 8 | Dim. F (mm): 14.5 | Dim. G (mm): M3×0.5
SC-M5-L Fluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 4.8(5.2) | Dim. A (mm): 27.5(max31) | Dim. B (mm): 16 | Dim. C (mm): 11.5 | Dim. D (mm): 2.2 | Dim. E (mm): 4.3 | Dim. F (mm): 11.2 | Dim. G (mm): 13.5
SC-M5-F Fluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 7.9(8.3) | Dim. A (mm): 25(max28.5) | Dim. B (mm): 13.5 | Dim. C (mm): 5.1 | Dim. D (mm): 4 | Dim. E (mm): 10.5 | Dim. F (mm): 20 | Dim. G (mm): 8
SC-M5-A Fluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 8.5(8.9) | Dim. A (mm): 25(max28.5) | Dim. B (mm): 13.5 | Dim. C (mm): 3.5 | Dim. D (mm): 4.5 | Dim. E (mm): 12.5 | Dim. F (mm): 22 | Dim. G (mm): M5×0.8
Speed ControllersCKD
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Miniature Speed Controller SC-M3, SC-M5 Series

Brand CKD·Speed Controllers

Available part numbers (7)

SC-M3-S, SC-M3-L, SC-M3-F, SC-M3-A, SC-M5-L, SC-M5-F, SC-M5-A

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC-M3-SFluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 1.7 | Dim. A (mm): 18.5(max21) | Dim. B (mm): 9 | Dim. C (mm): 7.3 | Dim. D (mm): 2.5 | Dim. E (mm): 2.5 | Dim. F (mm): 8 | Dim. G (mm): 13
SC-M3-LFluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 1.5 | Dim. A (mm): 20.3(max22.8) | Dim. B (mm): 10.5 | Dim. C (mm): 7 | Dim. D (mm): 1.9 | Dim. E (mm): 2.5 | Dim. F (mm): 6.5 | Dim. G (mm): 9
SC-M3-FFluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 2.4 | Dim. A (mm): 18.5(max21) | Dim. B (mm): 9 | Dim. C (mm): 3.4 | Dim. D (mm): 2.7 | Dim. E (mm): 6.5 | Dim. F (mm): 13 | Dim. G (mm): 5
SC-M3-AFluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 2.4 | Dim. A (mm): 18.5(max21) | Dim. B (mm): 9 | Dim. C (mm): 3 | Dim. D (mm): 3.2 | Dim. E (mm): 8 | Dim. F (mm): 14.5 | Dim. G (mm): M3×0.5
SC-M5-LFluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 4.8(5.2) | Dim. A (mm): 27.5(max31) | Dim. B (mm): 16 | Dim. C (mm): 11.5 | Dim. D (mm): 2.2 | Dim. E (mm): 4.3 | Dim. F (mm): 11.2 | Dim. G (mm): 13.5
SC-M5-FFluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 7.9(8.3) | Dim. A (mm): 25(max28.5) | Dim. B (mm): 13.5 | Dim. C (mm): 5.1 | Dim. D (mm): 4 | Dim. E (mm): 10.5 | Dim. F (mm): 20 | Dim. G (mm): 8
SC-M5-AFluid: Compressed air | Max. working pressure (MPa): 0.7 | Min. working pressure (MPa): 0.1 | Proof pressure (MPa): 1.05 | Mass (g): 8.5(8.9) | Dim. A (mm): 25(max28.5) | Dim. B (mm): 13.5 | Dim. C (mm): 3.5 | Dim. D (mm): 4.5 | Dim. E (mm): 12.5 | Dim. F (mm): 22 | Dim. G (mm): M5×0.8
