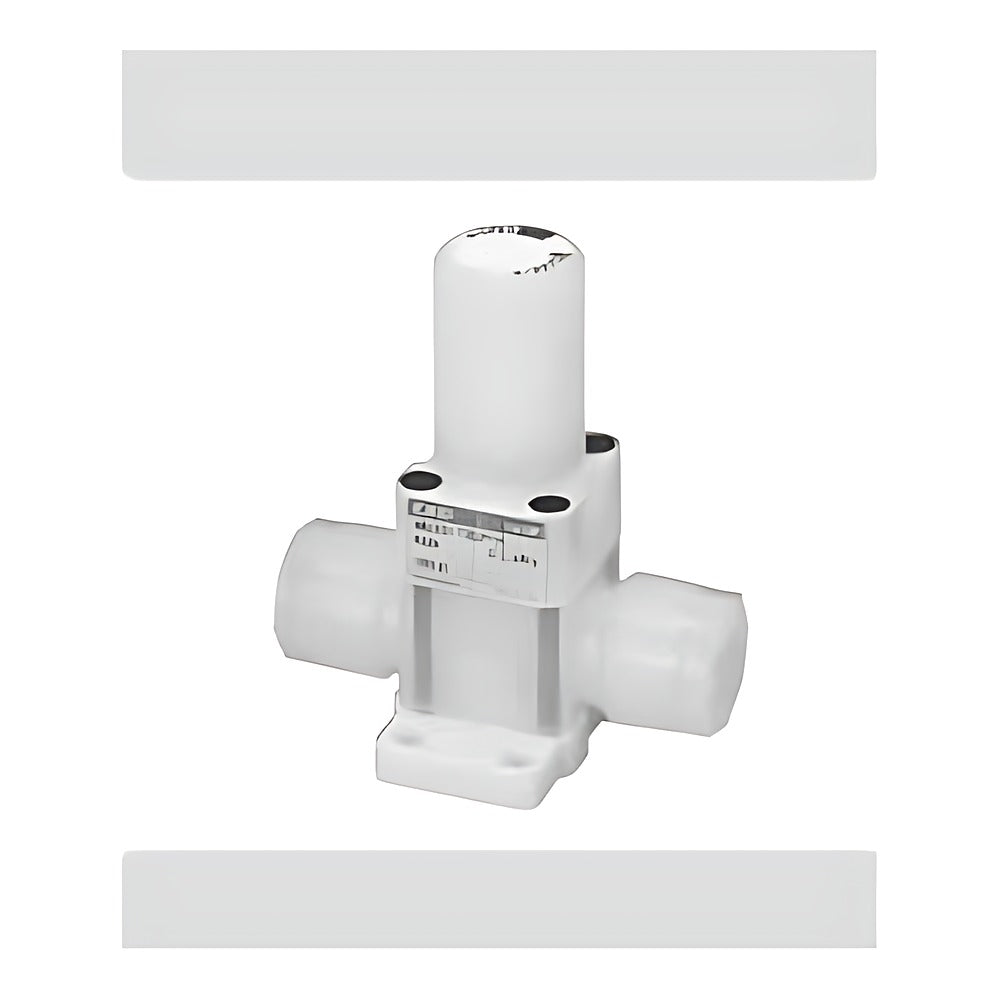

CKD MMD*02 Chemical Manual Valve (Part2, Integrated Fittings)

CKD MMD*02 Chemical Manual Valve (Part2, Integrated Fittings)

CKD MMD302/402/502 Part2 series manual diaphragm valves with integrated resin tube fittings for chemical and pure water lines.

Key features

  • Seal-stable diaphragm structure, PTFE diaphragm
  • Fittings: Super type Pillar, Super 300 Pillar P, F-LOCK 20A/60, Final Lock, Flare Tech
  • Tube 10, 12, 25 mm and 3/8, 1/2, 3/4, 1 in
  • Fluid symbol U (general chemicals) or P (hydrofluoric acid); X suffix = bottom mounting
  • For full open/close use only, not for flow regulation; PTFE machined bodies made to order

Specifications

Valve type Manual diaphragm 2-port valve (open/close only)
Fluid Chemicals, pure water, air, N2
Fluid temperature 5 to 90 C (HF over 40 C: contact CKD)
Operating pressure 0-0.4 MPa (both directions)
Proof pressure 1.2 MPa
Cv 0.8 to 8 (by size)
Body PFA molded or PTFE machined (per connection)
Source CKD Korea catalog CB-031K-15, p. 168-175
MMD302-10US-8-U Model: MMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10US-8-UX Model: MMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10US-8-P Model: MMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10US-8-PX Model: MMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10BUS-8-U Model: MMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10BUS-8-UX Model: MMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10BUS-8-P Model: MMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10BUS-8-PX Model: MMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10UP-8-U Model: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10UP-8-UX Model: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10UP-8-P Model: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10UP-8-PX Model: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10BUP-8-U Model: MMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10BUP-8-UX Model: MMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10BUP-8-P Model: MMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10BUP-8-PX Model: MMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10UA-8-U Model: MMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10UA-8-UX Model: MMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10UA-8-P Model: MMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10UA-8-PX Model: MMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10BUA-8-U Model: MMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10BUA-8-UX Model: MMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10BUA-8-P Model: MMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10BUA-8-PX Model: MMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10UR-8-U Model: MMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10UR-8-UX Model: MMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10UR-8-P Model: MMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10UR-8-PX Model: MMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10BUR-8-U Model: MMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6.4 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10BUR-8-UX Model: MMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6.4 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10BUR-8-P Model: MMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6.4 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10BUR-8-PX Model: MMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6.4 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10UK-8-U Model: MMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10UK-8-UX Model: MMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10UK-8-P Model: MMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10UK-8-PX Model: MMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10BUK-8-U Model: MMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 7.5 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10BUK-8-UX Model: MMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 7.5 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10BUK-8-P Model: MMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 7.5 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10BUK-8-PX Model: MMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 7.5 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10BUW-8-U Model: MMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10BUW-8-UX Model: MMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10BUW-8-P Model: MMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10BUW-8-PX Model: MMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-12US-10-U Model: MMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-12US-10-UX Model: MMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-12US-10-P Model: MMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-12US-10-PX Model: MMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-15BUS-10-U Model: MMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-15BUS-10-UX Model: MMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-15BUS-10-P Model: MMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-15BUS-10-PX Model: MMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-12UP-10-U Model: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-12UP-10-UX Model: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-12UP-10-P Model: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-12UP-10-PX Model: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-15BUP-10-U Model: MMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-15BUP-10-UX Model: MMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-15BUP-10-P Model: MMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-15BUP-10-PX Model: MMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-12UA-10-U Model: MMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-12UA-10-UX Model: MMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-12UA-10-P Model: MMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-12UA-10-PX Model: MMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-15BUA-10-U Model: MMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-15BUA-10-UX Model: MMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-15BUA-10-P Model: MMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-15BUA-10-PX Model: MMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-12UR-10-U Model: MMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Fluid: General chemicals | Mounting: Standard
MMD302-12UR-10-UX Model: MMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-12UR-10-P Model: MMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-12UR-10-PX Model: MMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-15BUR-10-U Model: MMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Fluid: General chemicals | Mounting: Standard
MMD302-15BUR-10-UX Model: MMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-15BUR-10-P Model: MMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-15BUR-10-PX Model: MMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-12UK-10-U Model: MMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-12UK-10-UX Model: MMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-12UK-10-P Model: MMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-12UK-10-PX Model: MMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-15BUK-10-U Model: MMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-15BUK-10-UX Model: MMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-15BUK-10-P Model: MMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-15BUK-10-PX Model: MMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-15BUW-10-U Model: MMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Fluid: General chemicals | Mounting: Standard
MMD302-15BUW-10-UX Model: MMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-15BUW-10-P Model: MMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-15BUW-10-PX Model: MMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD402-20BUS-16-U Model: MMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Standard
MMD402-20BUS-16-UX Model: MMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Bottom
MMD402-20BUS-16-P Model: MMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD402-20BUS-16-PX Model: MMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD402-20BUP-16-U Model: MMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Standard
MMD402-20BUP-16-UX Model: MMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Bottom
MMD402-20BUP-16-P Model: MMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD402-20BUP-16-PX Model: MMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD402-20BUA-16-U Model: MMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Standard
MMD402-20BUA-16-UX Model: MMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Bottom
MMD402-20BUA-16-P Model: MMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD402-20BUA-16-PX Model: MMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD402-20BUR-16-U Model: MMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Fluid: General chemicals | Mounting: Standard
MMD402-20BUR-16-UX Model: MMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Fluid: General chemicals | Mounting: Bottom
MMD402-20BUR-16-P Model: MMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD402-20BUR-16-PX Model: MMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD402-20BUK-16-U Model: MMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Standard
MMD402-20BUK-16-UX Model: MMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Bottom
MMD402-20BUK-16-P Model: MMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD402-20BUK-16-PX Model: MMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD402-20BUW-16-U Model: MMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Fluid: General chemicals | Mounting: Standard
MMD402-20BUW-16-UX Model: MMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Fluid: General chemicals | Mounting: Bottom
MMD402-20BUW-16-P Model: MMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD402-20BUW-16-PX Model: MMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25US-20-U Model: MMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25US-20-UX Model: MMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25US-20-P Model: MMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25US-20-PX Model: MMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25BUS-20-U Model: MMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25BUS-20-UX Model: MMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25BUS-20-P Model: MMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25BUS-20-PX Model: MMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25UP-20-U Model: MMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25UP-20-UX Model: MMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25UP-20-P Model: MMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25UP-20-PX Model: MMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25BUP-20-U Model: MMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25BUP-20-UX Model: MMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25BUP-20-P Model: MMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25BUP-20-PX Model: MMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25BUA-20-U Model: MMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25BUA-20-UX Model: MMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25BUA-20-P Model: MMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25BUA-20-PX Model: MMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25UR-20-U Model: MMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25UR-20-UX Model: MMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25UR-20-P Model: MMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25UR-20-PX Model: MMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25BUR-20-U Model: MMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25BUR-20-UX Model: MMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25BUR-20-P Model: MMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25BUR-20-PX Model: MMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25UK-20-U Model: MMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25UK-20-UX Model: MMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25UK-20-P Model: MMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25UK-20-PX Model: MMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25BUK-20-U Model: MMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25BUK-20-UX Model: MMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25BUK-20-P Model: MMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25BUK-20-PX Model: MMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25BUW-20-U Model: MMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25BUW-20-UX Model: MMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25BUW-20-P Model: MMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25BUW-20-PX Model: MMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
Chemical ValvesCKD
152 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MMD*02 Chemical Manual Valve (Part2, Integrated Fittings)

Brand CKD·Chemical Valves

Available part numbers (152)

MMD302-10US-8-U, MMD302-10US-8-UX, MMD302-10US-8-P, MMD302-10US-8-PX, MMD302-10BUS-8-U, MMD302-10BUS-8-UX, MMD302-10BUS-8-P, MMD302-10BUS-8-PX, MMD302-10UP-8-U, MMD302-10UP-8-UX + 142 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MMD302-10US-8-UModel: MMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10US-8-UXModel: MMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10US-8-PModel: MMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10US-8-PXModel: MMD302 | Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10BUS-8-UModel: MMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10BUS-8-UXModel: MMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10BUS-8-PModel: MMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10BUS-8-PXModel: MMD302 | Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10UP-8-UModel: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10UP-8-UXModel: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10UP-8-PModel: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10UP-8-PXModel: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10BUP-8-UModel: MMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10BUP-8-UXModel: MMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10BUP-8-PModel: MMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10BUP-8-PXModel: MMD302 | Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10UA-8-UModel: MMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10UA-8-UXModel: MMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10UA-8-PModel: MMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10UA-8-PXModel: MMD302 | Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10BUA-8-UModel: MMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10BUA-8-UXModel: MMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10BUA-8-PModel: MMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10BUA-8-PXModel: MMD302 | Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10UR-8-UModel: MMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10UR-8-UXModel: MMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10UR-8-PModel: MMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10UR-8-PXModel: MMD302 | Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10BUR-8-UModel: MMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6.4 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10BUR-8-UXModel: MMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6.4 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10BUR-8-PModel: MMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6.4 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10BUR-8-PXModel: MMD302 | Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Orifice: 6.4 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10UK-8-UModel: MMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10UK-8-UXModel: MMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10UK-8-PModel: MMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10UK-8-PXModel: MMD302 | Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Orifice: 7.5 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10BUK-8-UModel: MMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 7.5 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10BUK-8-UXModel: MMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 7.5 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10BUK-8-PModel: MMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 7.5 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10BUK-8-PXModel: MMD302 | Fitting: Final Lock | Tube: 3/8 x 1/4 in | Orifice: 7.5 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-10BUW-8-UModel: MMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Fluid: General chemicals | Mounting: Standard
MMD302-10BUW-8-UXModel: MMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-10BUW-8-PModel: MMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-10BUW-8-PXModel: MMD302 | Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Orifice: 6.3 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-12US-10-UModel: MMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-12US-10-UXModel: MMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-12US-10-PModel: MMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-12US-10-PXModel: MMD302 | Fitting: Super type Pillar | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-15BUS-10-UModel: MMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-15BUS-10-UXModel: MMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-15BUS-10-PModel: MMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-15BUS-10-PXModel: MMD302 | Fitting: Super type Pillar | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-12UP-10-UModel: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-12UP-10-UXModel: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-12UP-10-PModel: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-12UP-10-PXModel: MMD302 | Fitting: Super 300 Pillar P | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-15BUP-10-UModel: MMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-15BUP-10-UXModel: MMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-15BUP-10-PModel: MMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-15BUP-10-PXModel: MMD302 | Fitting: Super 300 Pillar P | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-12UA-10-UModel: MMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-12UA-10-UXModel: MMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-12UA-10-PModel: MMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-12UA-10-PXModel: MMD302 | Fitting: F-LOCK 20A | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-15BUA-10-UModel: MMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-15BUA-10-UXModel: MMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-15BUA-10-PModel: MMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-15BUA-10-PXModel: MMD302 | Fitting: F-LOCK 20A | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-12UR-10-UModel: MMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Fluid: General chemicals | Mounting: Standard
MMD302-12UR-10-UXModel: MMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-12UR-10-PModel: MMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-12UR-10-PXModel: MMD302 | Fitting: F-LOCK 60 | Tube: OD 12 x ID 10 mm | Orifice: 9.5 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-15BUR-10-UModel: MMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Fluid: General chemicals | Mounting: Standard
MMD302-15BUR-10-UXModel: MMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-15BUR-10-PModel: MMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-15BUR-10-PXModel: MMD302 | Fitting: F-LOCK 60 | Tube: 1/2 x 3/8 in | Orifice: 9.5 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-12UK-10-UModel: MMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-12UK-10-UXModel: MMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-12UK-10-PModel: MMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-12UK-10-PXModel: MMD302 | Fitting: Final Lock | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-15BUK-10-UModel: MMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Standard
MMD302-15BUK-10-UXModel: MMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-15BUK-10-PModel: MMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-15BUK-10-PXModel: MMD302 | Fitting: Final Lock | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD302-15BUW-10-UModel: MMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Fluid: General chemicals | Mounting: Standard
MMD302-15BUW-10-UXModel: MMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Fluid: General chemicals | Mounting: Bottom
MMD302-15BUW-10-PModel: MMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD302-15BUW-10-PXModel: MMD302 | Fitting: Flare Tech | Tube: 1/2 x 3/8 in | Orifice: 9.4 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD402-20BUS-16-UModel: MMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Standard
MMD402-20BUS-16-UXModel: MMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Bottom
MMD402-20BUS-16-PModel: MMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD402-20BUS-16-PXModel: MMD402 | Fitting: Super type Pillar | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD402-20BUP-16-UModel: MMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Standard
MMD402-20BUP-16-UXModel: MMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Bottom
MMD402-20BUP-16-PModel: MMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD402-20BUP-16-PXModel: MMD402 | Fitting: Super 300 Pillar P | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD402-20BUA-16-UModel: MMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Standard
MMD402-20BUA-16-UXModel: MMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Bottom
MMD402-20BUA-16-PModel: MMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD402-20BUA-16-PXModel: MMD402 | Fitting: F-LOCK 20A | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD402-20BUR-16-UModel: MMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Fluid: General chemicals | Mounting: Standard
MMD402-20BUR-16-UXModel: MMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Fluid: General chemicals | Mounting: Bottom
MMD402-20BUR-16-PModel: MMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD402-20BUR-16-PXModel: MMD402 | Fitting: F-LOCK 60 | Tube: 3/4 x 5/8 in | Orifice: 15.9 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD402-20BUK-16-UModel: MMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Standard
MMD402-20BUK-16-UXModel: MMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: General chemicals | Mounting: Bottom
MMD402-20BUK-16-PModel: MMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD402-20BUK-16-PXModel: MMD402 | Fitting: Final Lock | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD402-20BUW-16-UModel: MMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Fluid: General chemicals | Mounting: Standard
MMD402-20BUW-16-UXModel: MMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Fluid: General chemicals | Mounting: Bottom
MMD402-20BUW-16-PModel: MMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD402-20BUW-16-PXModel: MMD402 | Fitting: Flare Tech | Tube: 3/4 x 5/8 in | Orifice: 14.7 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25US-20-UModel: MMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25US-20-UXModel: MMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25US-20-PModel: MMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25US-20-PXModel: MMD502 | Fitting: Super type Pillar | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25BUS-20-UModel: MMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25BUS-20-UXModel: MMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25BUS-20-PModel: MMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25BUS-20-PXModel: MMD502 | Fitting: Super type Pillar | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25UP-20-UModel: MMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25UP-20-UXModel: MMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25UP-20-PModel: MMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25UP-20-PXModel: MMD502 | Fitting: Super 300 Pillar P | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25BUP-20-UModel: MMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25BUP-20-UXModel: MMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25BUP-20-PModel: MMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25BUP-20-PXModel: MMD502 | Fitting: Super 300 Pillar P | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25BUA-20-UModel: MMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25BUA-20-UXModel: MMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25BUA-20-PModel: MMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25BUA-20-PXModel: MMD502 | Fitting: F-LOCK 20A | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25UR-20-UModel: MMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25UR-20-UXModel: MMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25UR-20-PModel: MMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25UR-20-PXModel: MMD502 | Fitting: F-LOCK 60 | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25BUR-20-UModel: MMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25BUR-20-UXModel: MMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25BUR-20-PModel: MMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25BUR-20-PXModel: MMD502 | Fitting: F-LOCK 60 | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25UK-20-UModel: MMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25UK-20-UXModel: MMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25UK-20-PModel: MMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25UK-20-PXModel: MMD502 | Fitting: Final Lock | Tube: OD 25 x ID 22 mm | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25BUK-20-UModel: MMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25BUK-20-UXModel: MMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25BUK-20-PModel: MMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25BUK-20-PXModel: MMD502 | Fitting: Final Lock | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom
MMD502-25BUW-20-UModel: MMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Standard
MMD502-25BUW-20-UXModel: MMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: General chemicals | Mounting: Bottom
MMD502-25BUW-20-PModel: MMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Standard
MMD502-25BUW-20-PXModel: MMD502 | Fitting: Flare Tech | Tube: 1 x 7/8 in | Orifice: 20 mm | Fluid: Hydrofluoric acid | Mounting: Bottom

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
