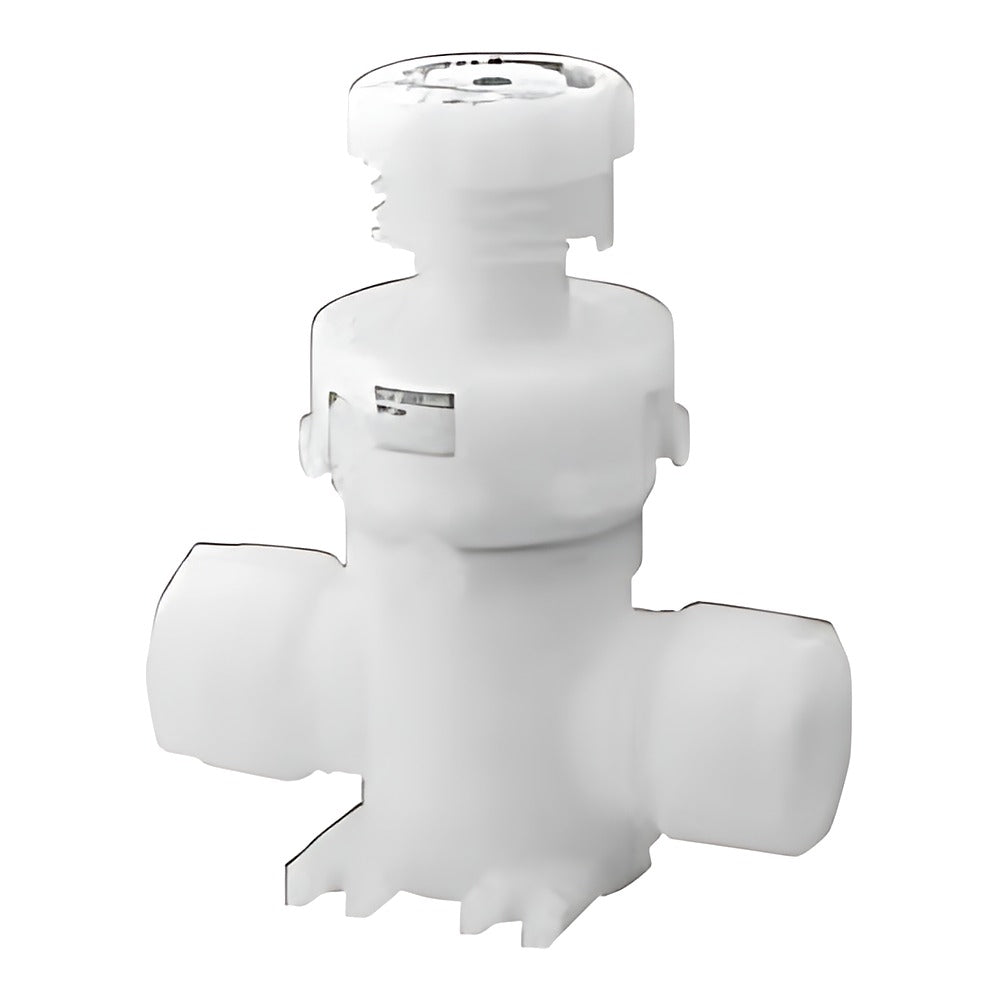

CKD MMD*0M Metalless Chemical Manual Valve (Strong Acid Lines)

CKD MMD*0M Metalless Chemical Manual Valve (Strong Acid Lines)

CKD MMD30M/MMD50M metalless manual diaphragm valves designed for strong acid (hydrochloric, hydrofluoric) lines in semiconductor plants.

Key features

  • No metal parts: PFA body, PTFE diaphragm, PP or PVDF actuator
  • Integrated Super 300 type Pillar fitting P series
  • Tube 10, 12, 25 mm and 3/8, 1/2, 3/4, 1 in
  • Orifice 8-22 mm, Cv 1.25-9.5

Specifications

Valve type Manual diaphragm valve, metalless
Connection Super 300 Pillar P fitting integrated
Body / diaphragm PFA / PTFE
Fluid Chemicals, pure water, air, N2
Fluid temperature 5 to 40 C
Operating pressure 0-0.5 MPa
Proof pressure 1.0 MPa
Source CKD Korea catalog CB-031K-15, p. 194-197
MMD30M-3BJ Model: MMD30M | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Cv: 1.25
MMD30M-10J Model: MMD30M | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Cv: 1.25
MMD30M-4BJ Model: MMD30M | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Cv: 1.8
MMD30M-12J Model: MMD30M | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Cv: 1.8
MMD50M-6BJ Model: MMD50M | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Cv: 5.5
MMD50M-8BJ Model: MMD50M | Tube: 1 x 7/8 in | Orifice: 22 mm | Cv: 9.5
MMD50M-25J Model: MMD50M | Tube: OD 25 x ID 22 mm | Orifice: 22 mm | Cv: 9.5
Chemical ValvesCKD
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MMD*0M Metalless Chemical Manual Valve (Strong Acid Lines)

Brand CKD·Chemical Valves

Available part numbers (7)

MMD30M-3BJ, MMD30M-10J, MMD30M-4BJ, MMD30M-12J, MMD50M-6BJ, MMD50M-8BJ, MMD50M-25J

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MMD30M-3BJModel: MMD30M | Tube: 3/8 x 1/4 in | Orifice: 8 mm | Cv: 1.25
MMD30M-10JModel: MMD30M | Tube: OD 10 x ID 8 mm | Orifice: 8 mm | Cv: 1.25
MMD30M-4BJModel: MMD30M | Tube: 1/2 x 3/8 in | Orifice: 10 mm | Cv: 1.8
MMD30M-12JModel: MMD30M | Tube: OD 12 x ID 10 mm | Orifice: 10 mm | Cv: 1.8
MMD50M-6BJModel: MMD50M | Tube: 3/4 x 5/8 in | Orifice: 16 mm | Cv: 5.5
MMD50M-8BJModel: MMD50M | Tube: 1 x 7/8 in | Orifice: 22 mm | Cv: 9.5
MMD50M-25JModel: MMD50M | Tube: OD 25 x ID 22 mm | Orifice: 22 mm | Cv: 9.5
