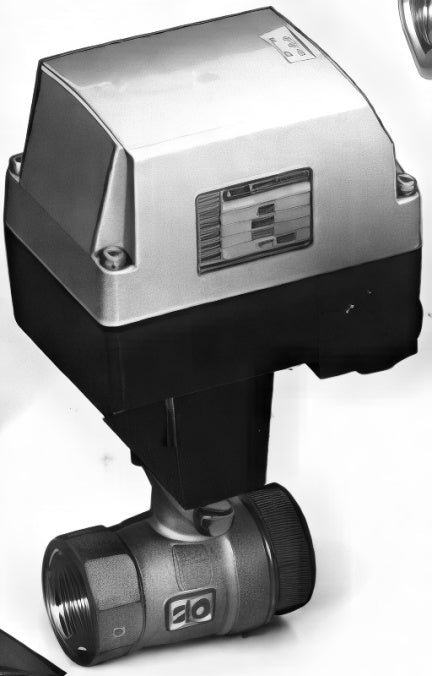

CKD MSB1/MSB1F Motorized 2-Port Ball Valve for Steam

CKD MSB1/MSB1F Motorized 2-Port Ball Valve for Steam

CKD MSB1 (standard bore) and MSB1F (full bore) are motor-driven 2-port ball valves for steam and water, Rc3/8 to Rc2.

Key features

  • For steam and water up to 164 C
  • Reinforced PTFE seat; bronze or stainless body (full bore: bronze only)
  • AC100V or AC200V
  • Other options: T 3-core cable (no signal), B round terminal box, L/R lamp terminal box, M manual device
  • Size 10 is full bore although ordered as MSB1

Specifications

Fluid Steam, water
Operating pressure 0 to 0.6 MPa (size 50 / F40: 0 to 0.5 MPa)
Proof pressure 2.0 MPa (water)
Fluid temperature 0 to 164 C (size 50 / F40: 0 to 158 C)
Ambient temperature / humidity -10 to 50 C / 95% RH or less
Protection IPX3 rainproof (standard)
Frequency 1 cycle/min or less
Code format MSB1[F]-[size]-[H/W][option][M]-[voltage]
Source CKD Korea catalog CB-03-1SK-9, p. 836-839
