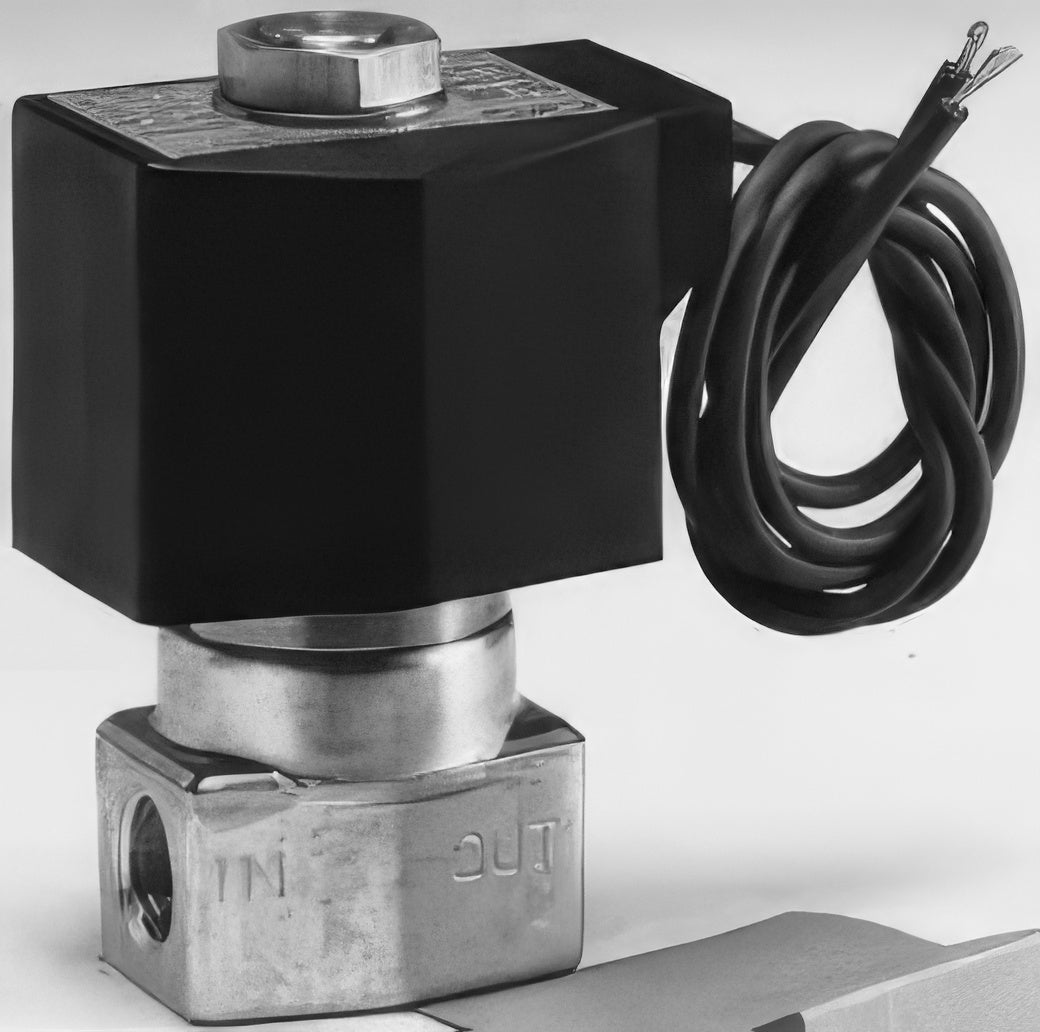

CKD MULTILEX Direct Acting 2-Port Solenoid Valve AB31, AB41, AB42 Series (Single Unit)

CKD MULTILEX Direct Acting 2-Port Solenoid Valve AB31, AB41, AB42 Series (Single Unit)

Direct-acting poppet 2-port solenoid valve, single-unit type, from the MULTILEX multi-fluid range.

Key features

  • AB31 and AB41 are normally closed, AB42 normally open; Rc1/8 to Rc1/2 ports
  • Handles air, low vacuum, water, kerosene and oil as standard, hot water and steam as options
  • Codes give port and orifice; seal/body, coil option and voltage are added when ordering

Specifications

Fluid air, low vacuum, water, kerosene, oil (standard); hot water, steam (option)
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB31-01-1 Port: Rc1/8 | Orifice (mm): 1.5 | Max op. pressure diff. air AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. oil AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB31-02-1 Port: Rc1/4 | Orifice (mm): 1.5 | Max op. pressure diff. air AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. oil AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB31-01-2 Port: Rc1/8 | Orifice (mm): 2.0 | Max op. pressure diff. air AC/DC (MPa): 1.5/1.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.5 | Max op. pressure diff. oil AC/DC (MPa): 1.5/1.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB31-02-2 Port: Rc1/4 | Orifice (mm): 2.0 | Max op. pressure diff. air AC/DC (MPa): 1.5/1.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.5 | Max op. pressure diff. oil AC/DC (MPa): 1.5/1.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB31-01-3 Port: Rc1/8 | Orifice (mm): 3.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB31-02-3 Port: Rc1/4 | Orifice (mm): 3.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB31-01-4 Port: Rc1/8 | Orifice (mm): 3.5 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. steam AC (MPa): 0.5 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB31-02-4 Port: Rc1/4 | Orifice (mm): 3.5 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. steam AC (MPa): 0.5 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB31-01-5 Port: Rc1/8 | Orifice (mm): 4.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.25 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.3/0.25 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. steam AC (MPa): 0.3 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB31-02-5 Port: Rc1/4 | Orifice (mm): 4.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.25 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.3/0.25 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. steam AC (MPa): 0.3 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB31-01-6 Port: Rc1/8 | Orifice (mm): 5.0 | Max op. pressure diff. air AC/DC (MPa): 0.2/0.15 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. oil AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. steam AC (MPa): 0.15 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB31-02-6 Port: Rc1/4 | Orifice (mm): 5.0 | Max op. pressure diff. air AC/DC (MPa): 0.2/0.15 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. oil AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. steam AC (MPa): 0.15 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-02-1 Port: Rc1/4 | Orifice (mm): 1.5 | Max op. pressure diff. air AC/DC (MPa): 5.0/4.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 4.5/4.0 | Max op. pressure diff. oil AC/DC (MPa): 4.0/4.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-03-1 Port: Rc3/8 | Orifice (mm): 1.5 | Max op. pressure diff. air AC/DC (MPa): 5.0/4.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 4.5/4.0 | Max op. pressure diff. oil AC/DC (MPa): 4.0/4.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-02-2 Port: Rc1/4 | Orifice (mm): 2.0 | Max op. pressure diff. air AC/DC (MPa): 3.0/2.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 2.7/2.5 | Max op. pressure diff. oil AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-03-2 Port: Rc3/8 | Orifice (mm): 2.0 | Max op. pressure diff. air AC/DC (MPa): 3.0/2.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 2.7/2.5 | Max op. pressure diff. oil AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-02-3 Port: Rc1/4 | Orifice (mm): 3.0 | Max op. pressure diff. air AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.3/0.9 | Max op. pressure diff. oil AC/DC (MPa): 0.9/0.9 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-03-3 Port: Rc3/8 | Orifice (mm): 3.0 | Max op. pressure diff. air AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.3/0.9 | Max op. pressure diff. oil AC/DC (MPa): 0.9/0.9 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-02-4 Port: Rc1/4 | Orifice (mm): 3.5 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.9/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 0.9 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-03-4 Port: Rc3/8 | Orifice (mm): 3.5 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.9/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 0.9 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-02-5 Port: Rc1/4 | Orifice (mm): 4.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-03-5 Port: Rc3/8 | Orifice (mm): 4.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-02-6 Port: Rc1/4 | Orifice (mm): 5.0 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.25 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.25 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-03-6 Port: Rc3/8 | Orifice (mm): 5.0 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.25 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.25 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-02-7 Port: Rc1/4 | Orifice (mm): 7.0 | Max op. pressure diff. air AC/DC (MPa): 0.25/0.1 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.2/0.1 | Max op. pressure diff. oil AC/DC (MPa): 0.15/0.1 | Max op. pressure diff. steam AC (MPa): 0.2 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-03-7 Port: Rc3/8 | Orifice (mm): 7.0 | Max op. pressure diff. air AC/DC (MPa): 0.25/0.1 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.2/0.1 | Max op. pressure diff. oil AC/DC (MPa): 0.15/0.1 | Max op. pressure diff. steam AC (MPa): 0.2 | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.43 (Rc1/4), 0.45 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-03-8 Port: Rc3/8 | Orifice (mm): 10.0 | Max op. pressure diff. air AC/DC (MPa): 0.1/0.05 (0.03) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.1/0.05 (0.03) | Max op. pressure diff. oil AC/DC (MPa): 0.05/0.05 (0.03) | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.54 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB41-04-8 Port: Rc1/2 | Orifice (mm): 10.0 | Max op. pressure diff. air AC/DC (MPa): 0.1/0.05 (0.03) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.1/0.05 (0.03) | Max op. pressure diff. oil AC/DC (MPa): 0.05/0.05 (0.03) | Type: NC | Max working pressure (MPa): 5 | Mass (kg): 0.54 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-02-1 Port: Rc1/4 | Orifice (mm): 1.5 | Max op. pressure diff. air AC/DC (MPa): 2.0/2.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 2.0/2.0 | Max op. pressure diff. oil AC/DC (MPa): 2.0/2.0 | Max op. pressure diff. steam AC (MPa): 2.0 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-03-1 Port: Rc3/8 | Orifice (mm): 1.5 | Max op. pressure diff. air AC/DC (MPa): 2.0/2.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 2.0/2.0 | Max op. pressure diff. oil AC/DC (MPa): 2.0/2.0 | Max op. pressure diff. steam AC (MPa): 2.0 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-02-2 Port: Rc1/4 | Orifice (mm): 2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-03-2 Port: Rc3/8 | Orifice (mm): 2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-02-3 Port: Rc1/4 | Orifice (mm): 3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-03-3 Port: Rc3/8 | Orifice (mm): 3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-02-4 Port: Rc1/4 | Orifice (mm): 3.5 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-03-4 Port: Rc3/8 | Orifice (mm): 3.5 | Max op. pressure diff. air AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-02-5 Port: Rc1/4 | Orifice (mm): 4.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-03-5 Port: Rc3/8 | Orifice (mm): 4.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-02-6 Port: Rc1/4 | Orifice (mm): 5.0 | Max op. pressure diff. air AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. steam AC (MPa): 0.25 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-03-6 Port: Rc3/8 | Orifice (mm): 5.0 | Max op. pressure diff. air AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. steam AC (MPa): 0.25 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-02-7 Port: Rc1/4 | Orifice (mm): 7.0 | Max op. pressure diff. air AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. oil AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. steam AC (MPa): 0.15 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AB42-03-7 Port: Rc3/8 | Orifice (mm): 7.0 | Max op. pressure diff. air AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. oil AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. steam AC (MPa): 0.15 | Type: NO | Max working pressure (MPa): 2 | Mass (kg): 0.50 (Rc1/4), 0.52 (Rc3/8) | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
Solenoid ValvesCKD
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Direct Acting 2-Port Solenoid Valve AB31, AB41, AB42 Series (Single Unit)

Brand CKD·Solenoid Valves

Available part numbers (42)

AB31-01-1, AB31-02-1, AB31-01-2, AB31-02-2, AB31-01-3, AB31-02-3, AB31-01-4, AB31-02-4, AB31-01-5, AB31-02-5 + 32 more — see full table ↓
