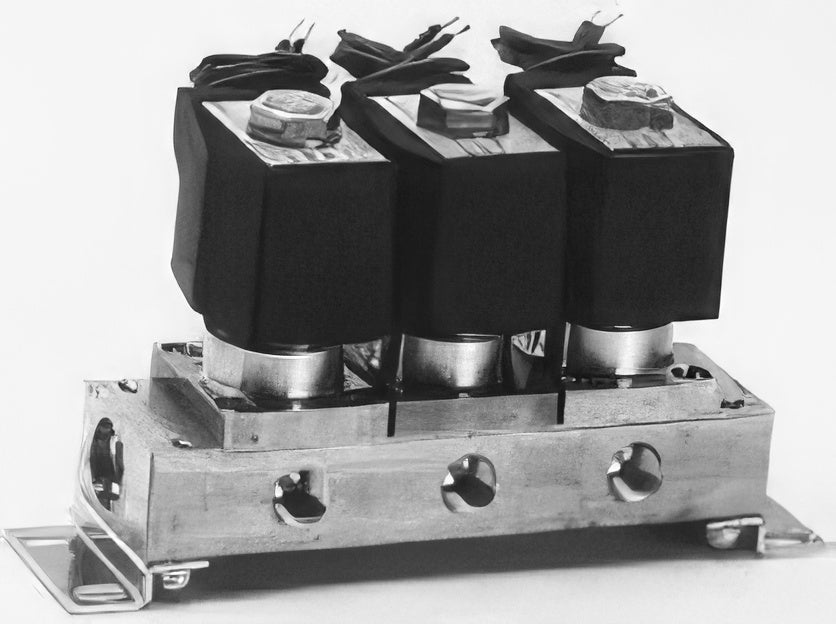

CKD MULTILEX Direct Acting 2-Port Solenoid Valve Manifold/Actuator GAB312, GAB352, GAB412, GAB452 Series (NC)

CKD MULTILEX Direct Acting 2-Port Solenoid Valve Manifold/Actuator GAB312, GAB352, GAB412, GAB452 Series (NC)

Manifold-mount actuator version of the MULTILEX AB31/AB41 direct-acting 2-port solenoid valve.

Key features

  • Normally closed, for air, low vacuum, water, kerosene and oil
  • Codes give model and orifice; port sizes, station count, coil option and voltage are added when ordering

Specifications

Type NC
Fluid air, low vacuum, water, kerosene, oil (standard); hot water, steam (option)
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB312-1 Orifice (mm): 1.5 | Max op. pressure diff. air AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. oil AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB352-1 Orifice (mm): 1.5 | Max op. pressure diff. air AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. oil AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB312-2 Orifice (mm): 2.0 | Max op. pressure diff. air AC/DC (MPa): 1.5/1.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.5 | Max op. pressure diff. oil AC/DC (MPa): 1.5/1.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB352-2 Orifice (mm): 2.0 | Max op. pressure diff. air AC/DC (MPa): 1.5/1.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.5 | Max op. pressure diff. oil AC/DC (MPa): 1.5/1.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB312-3 Orifice (mm): 3.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB352-3 Orifice (mm): 3.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB312-4 Orifice (mm): 3.5 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. steam AC (MPa): 0.5 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB352-4 Orifice (mm): 3.5 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.4 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. steam AC (MPa): 0.5 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB312-5 Orifice (mm): 4.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.25 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.3/0.25 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. steam AC (MPa): 0.3 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB352-5 Orifice (mm): 4.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.25 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.3/0.25 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. steam AC (MPa): 0.3 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB312-6 Orifice (mm): 5.0 | Max op. pressure diff. air AC/DC (MPa): 0.2/0.15 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. oil AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. steam AC (MPa): 0.15 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB352-6 Orifice (mm): 5.0 | Max op. pressure diff. air AC/DC (MPa): 0.2/0.15 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. oil AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. steam AC (MPa): 0.15 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB412-1 Orifice (mm): 1.5 | Max op. pressure diff. air AC/DC (MPa): 5.0/4.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 4.5/4.0 | Max op. pressure diff. oil AC/DC (MPa): 4.0/4.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB452-1 Orifice (mm): 1.5 | Max op. pressure diff. air AC/DC (MPa): 5.0/4.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 4.5/4.0 | Max op. pressure diff. oil AC/DC (MPa): 4.0/4.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB412-2 Orifice (mm): 2.0 | Max op. pressure diff. air AC/DC (MPa): 3.0/2.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 2.7/2.5 | Max op. pressure diff. oil AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB452-2 Orifice (mm): 2.0 | Max op. pressure diff. air AC/DC (MPa): 3.0/2.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 2.7/2.5 | Max op. pressure diff. oil AC/DC (MPa): 2.5/2.5 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB412-3 Orifice (mm): 3.0 | Max op. pressure diff. air AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.3/0.9 | Max op. pressure diff. oil AC/DC (MPa): 0.9/0.9 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB452-3 Orifice (mm): 3.0 | Max op. pressure diff. air AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.3/0.9 | Max op. pressure diff. oil AC/DC (MPa): 0.9/0.9 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB412-4 Orifice (mm): 3.5 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.9/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 0.9 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB452-4 Orifice (mm): 3.5 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.6 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.9/0.6 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 | Max op. pressure diff. steam AC (MPa): 0.9 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB412-5 Orifice (mm): 4.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB452-5 Orifice (mm): 4.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.5 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.5 | Max op. pressure diff. oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB412-6 Orifice (mm): 5.0 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.25 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.25 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB452-6 Orifice (mm): 5.0 | Max op. pressure diff. air AC/DC (MPa): 0.6/0.25 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.25 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB412-7 Orifice (mm): 7.0 | Max op. pressure diff. air AC/DC (MPa): 0.25/0.1 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.2/0.1 | Max op. pressure diff. oil AC/DC (MPa): 0.15/0.1 | Max op. pressure diff. steam AC (MPa): 0.2 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB452-7 Orifice (mm): 7.0 | Max op. pressure diff. air AC/DC (MPa): 0.25/0.1 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.2/0.1 | Max op. pressure diff. oil AC/DC (MPa): 0.15/0.1 | Max op. pressure diff. steam AC (MPa): 0.2 | Type: NC | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
Solenoid ValvesCKD
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Direct Acting 2-Port Solenoid Valve Manifold/Actuator GAB312, GAB352, GAB412, GAB452 Series (NC)

Brand CKD·Solenoid Valves

Available part numbers (26)

GAB312-1, GAB352-1, GAB312-2, GAB352-2, GAB312-3, GAB352-3, GAB312-4, GAB352-4, GAB312-5, GAB352-5 + 16 more — see full table ↓
