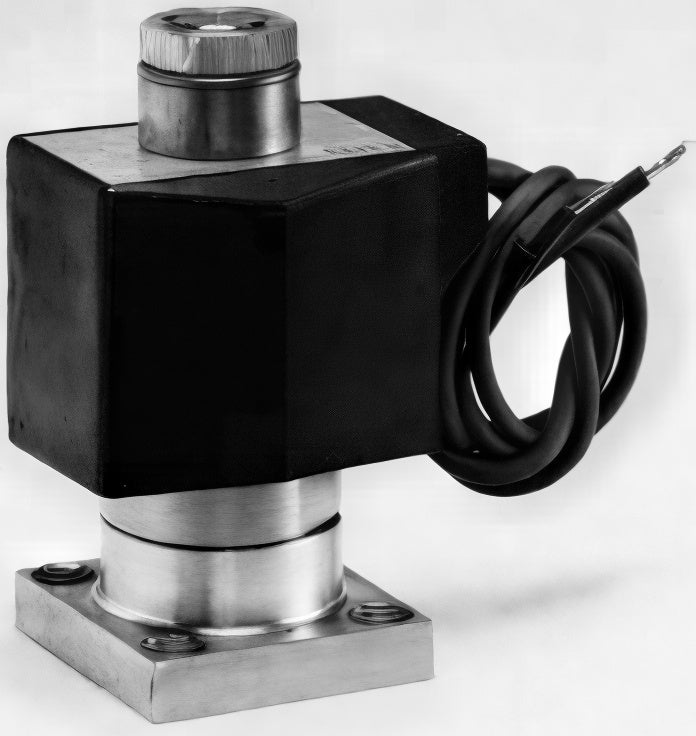

CKD MULTILEX Direct Acting 2-Port Solenoid Valve Manifold/Actuator GAB422 Series (NO)

CKD MULTILEX Direct Acting 2-Port Solenoid Valve Manifold/Actuator GAB422 Series (NO)

Manifold-mount actuator version of the MULTILEX AB42 normally open direct-acting 2-port solenoid valve with common supply (C port pressurized).

Key features

  • For air, low vacuum, water, kerosene and oil
  • Codes give model and orifice; ports, station count, coil and voltage are added when ordering

Specifications

Type NO
Max working pressure (MPa) 2
Actuator mass (kg) 0.47
Fluid air, low vacuum, water, kerosene, oil (standard); hot water, steam (option)
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-1 Orifice (mm): 1.5 | Max op. pressure diff. air/water/oil AC/DC (MPa): 2.0/2.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-2 Orifice (mm): 2.0 | Max op. pressure diff. air/water/oil AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-3 Orifice (mm): 3.0 | Max op. pressure diff. air/water/oil AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-4 Orifice (mm): 3.5 | Max op. pressure diff. air/water/oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-5 Orifice (mm): 4.0 | Max op. pressure diff. air/water/oil AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-6 Orifice (mm): 5.0 | Max op. pressure diff. air/water/oil AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. steam AC (MPa): 0.25 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-7 Orifice (mm): 7.0 | Max op. pressure diff. air/water/oil AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. steam AC (MPa): 0.15 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
Solenoid ValvesCKD
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Direct Acting 2-Port Solenoid Valve Manifold/Actuator GAB422 Series (NO)

Brand CKD·Solenoid Valves

Available part numbers (7)

GAB422-1, GAB422-2, GAB422-3, GAB422-4, GAB422-5, GAB422-6, GAB422-7

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAB422-1Orifice (mm): 1.5 | Max op. pressure diff. air/water/oil AC/DC (MPa): 2.0/2.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-2Orifice (mm): 2.0 | Max op. pressure diff. air/water/oil AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-3Orifice (mm): 3.0 | Max op. pressure diff. air/water/oil AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-4Orifice (mm): 3.5 | Max op. pressure diff. air/water/oil AC/DC (MPa): 0.5/0.5 | Max op. pressure diff. steam AC (MPa): 0.5 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-5Orifice (mm): 4.0 | Max op. pressure diff. air/water/oil AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-6Orifice (mm): 5.0 | Max op. pressure diff. air/water/oil AC/DC (MPa): 0.25/0.25 | Max op. pressure diff. steam AC (MPa): 0.25 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAB422-7Orifice (mm): 7.0 | Max op. pressure diff. air/water/oil AC/DC (MPa): 0.15/0.15 | Max op. pressure diff. steam AC (MPa): 0.15 | Type: NO | Max working pressure (MPa): 2 | Actuator mass (kg): 0.47 | Fluid: air, low vacuum, water, kerosene, oil (standard); hot water, steam (option) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
