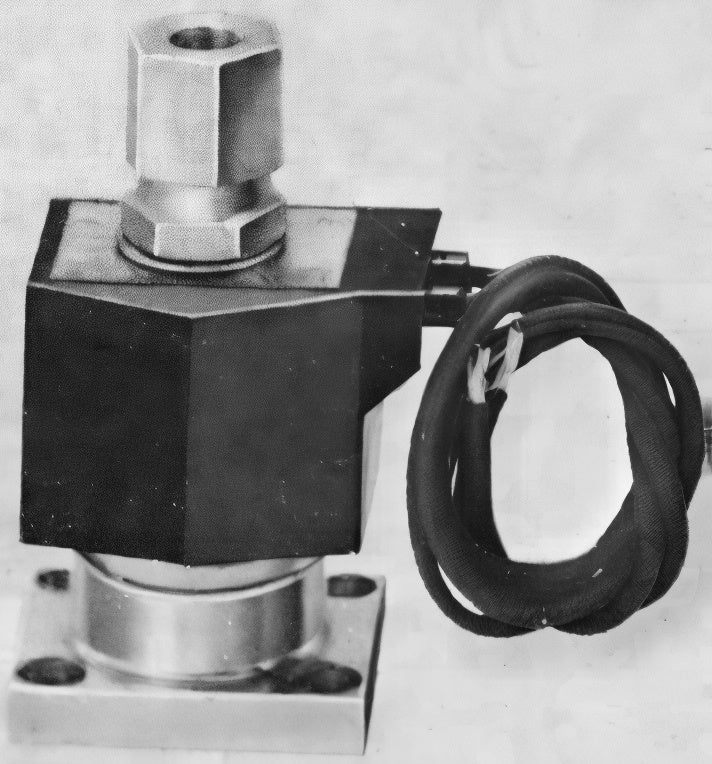

CKD MULTILEX Direct Acting 3-Port Solenoid Valve Actuator GAG341, GAG342, GAG442, GAG443 Series

CKD MULTILEX Direct Acting 3-Port Solenoid Valve Actuator GAG341, GAG342, GAG442, GAG443 Series

Manifold-mount actuator version of the MULTILEX AG34/AG44 direct-acting 3-port solenoid valve (NO-pressurized type).

Key features

  • NO-port sizes Rc1/8 to Rc3/8
  • Codes give model and orifice; port sizes, station count, coil and voltage are added when ordering

Specifications

Type NO pressurized
Fluid air, low vacuum, water, kerosene, oil (standard)
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG341-1 Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.7 | Type: NO pressurized | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG341-2 Port: Rc1/8 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.45 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 (0.45) | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 | Type: NO pressurized | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG342-1 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.7 | Type: NO pressurized | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG342-2 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.45 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 (0.45) | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 | Type: NO pressurized | Mass (kg): 0.35 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG442-1 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Mass (kg): 0.44 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG442-3 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 2.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Mass (kg): 0.44 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG442-4 Port: Rc1/4 (NO port) | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.3 | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 (0.15) | Type: NO pressurized | Mass (kg): 0.44 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG443-1 Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG443-3 Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 2.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
GAG443-4 Port: Rc3/8 (NO port) | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.3 | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 (0.15) | Type: NO pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
