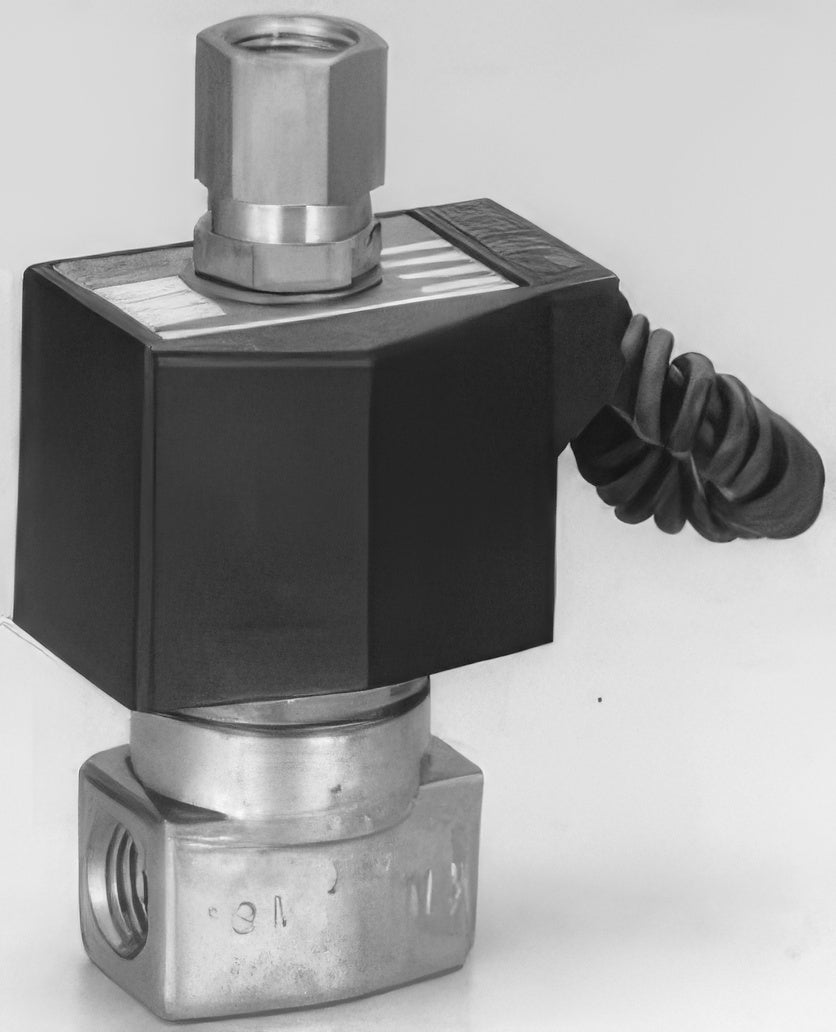

CKD MULTILEX Direct Acting 3-Port Solenoid Valve AG31, AG41 Series (Single Unit, Universal)

CKD MULTILEX Direct Acting 3-Port Solenoid Valve AG31, AG41 Series (Single Unit, Universal)

Direct-acting 3-port universal solenoid valve, single-unit type, from the MULTILEX multi-fluid range.

Key features

  • Rc1/8 to Rc3/8 ports, for air, low vacuum, water, kerosene and oil
  • Codes give port and orifice; seal, coil option and voltage are added when ordering

Specifications

Type universal
Fluid air, low vacuum, water, kerosene, oil (standard)
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG31-01-1 Port: Rc1/8 | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 (0.5) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG31-01-2 Port: Rc1/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.35) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.2 (0.15) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: universal | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG31-02-1 Port: Rc1/4 | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 (0.5) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG31-02-2 Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.35) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.2 (0.15) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: universal | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG41-02-1 Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 (0.45) | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. steam AC (MPa): 1.0 | Type: universal | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG41-02-2 Port: Rc1/4 | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 (0.1) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG41-03-1 Port: Rc3/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 (0.45) | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. steam AC (MPa): 1.0 | Type: universal | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG41-03-2 Port: Rc3/8 | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 (0.1) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
Solenoid ValvesCKD
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Direct Acting 3-Port Solenoid Valve AG31, AG41 Series (Single Unit, Universal)

Brand CKD·Solenoid Valves

Available part numbers (8)

AG31-01-1, AG31-01-2, AG31-02-1, AG31-02-2, AG41-02-1, AG41-02-2, AG41-03-1, AG41-03-2

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AG31-01-1Port: Rc1/8 | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 (0.5) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG31-01-2Port: Rc1/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.35) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.2 (0.15) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: universal | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG31-02-1Port: Rc1/4 | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.6/0.6 (0.5) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG31-02-2Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.35) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.2 (0.15) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: universal | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG41-02-1Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 (0.45) | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. steam AC (MPa): 1.0 | Type: universal | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG41-02-2Port: Rc1/4 | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 (0.1) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG41-03-1Port: Rc3/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.0/0.7 (0.45) | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. steam AC (MPa): 1.0 | Type: universal | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG41-03-2Port: Rc3/8 | Orifice TOP/BODY (mm): 2.3/2.3 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.4 | Max op. pressure diff. oil AC/DC (MPa): 0.25/0.15 (0.1) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: universal | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
