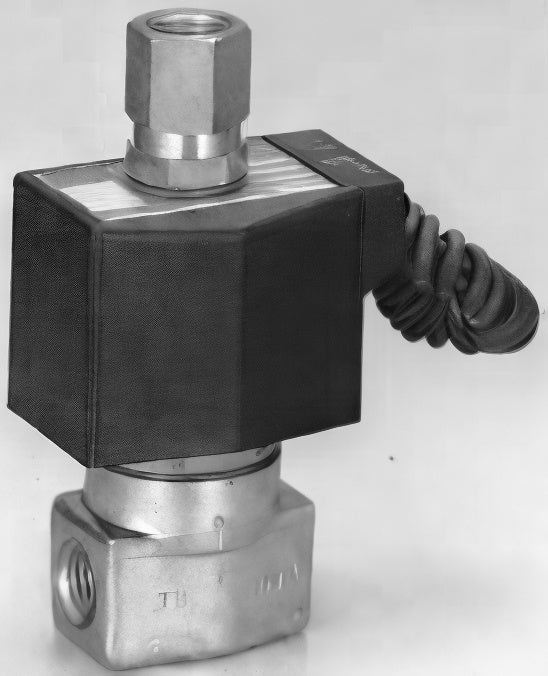

CKD MULTILEX Direct Acting 3-Port Solenoid Valve AG33, AG43 Series (Single Unit)

CKD MULTILEX Direct Acting 3-Port Solenoid Valve AG33, AG43 Series (Single Unit)

Direct-acting 3-port solenoid valve (NC-pressurized type), single-unit type, from the MULTILEX range.

Key features

  • Rc1/8 to Rc3/8 ports, for air, low vacuum, water, kerosene and oil
  • Codes give port and orifice; coil option and voltage are added when ordering

Specifications

Type NC pressurized
Fluid air, low vacuum, water, kerosene, oil (standard)
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG33-01-1 Port: Rc1/8 | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG33-01-2 Port: Rc1/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG33-02-1 Port: Rc1/4 | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG33-02-2 Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG43-02-4 Port: Rc1/4 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG43-02-5 Port: Rc1/4 | Orifice TOP/BODY (mm): 3.5/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG43-03-4 Port: Rc3/8 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG43-03-5 Port: Rc3/8 | Orifice TOP/BODY (mm): 3.5/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC pressurized | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
Solenoid ValvesCKD
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Direct Acting 3-Port Solenoid Valve AG33, AG43 Series (Single Unit)

Brand CKD·Solenoid Valves

Available part numbers (8)

AG33-01-1, AG33-01-2, AG33-02-1, AG33-02-2, AG43-02-4, AG43-02-5, AG43-03-4, AG43-03-5

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AG33-01-1Port: Rc1/8 | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG33-01-2Port: Rc1/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG33-02-1Port: Rc1/4 | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. steam AC (MPa): 1.0 | Type: NC pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG33-02-2Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG43-02-4Port: Rc1/4 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG43-02-5Port: Rc1/4 | Orifice TOP/BODY (mm): 3.5/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG43-03-4Port: Rc3/8 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. oil AC/DC (MPa): 0.7/0.7 (0.55) | Max op. pressure diff. steam AC (MPa): 0.7 | Type: NC pressurized | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG43-03-5Port: Rc3/8 | Orifice TOP/BODY (mm): 3.5/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. oil AC/DC (MPa): 0.4/0.4 (0.25) | Max op. pressure diff. steam AC (MPa): 0.4 | Type: NC pressurized | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
