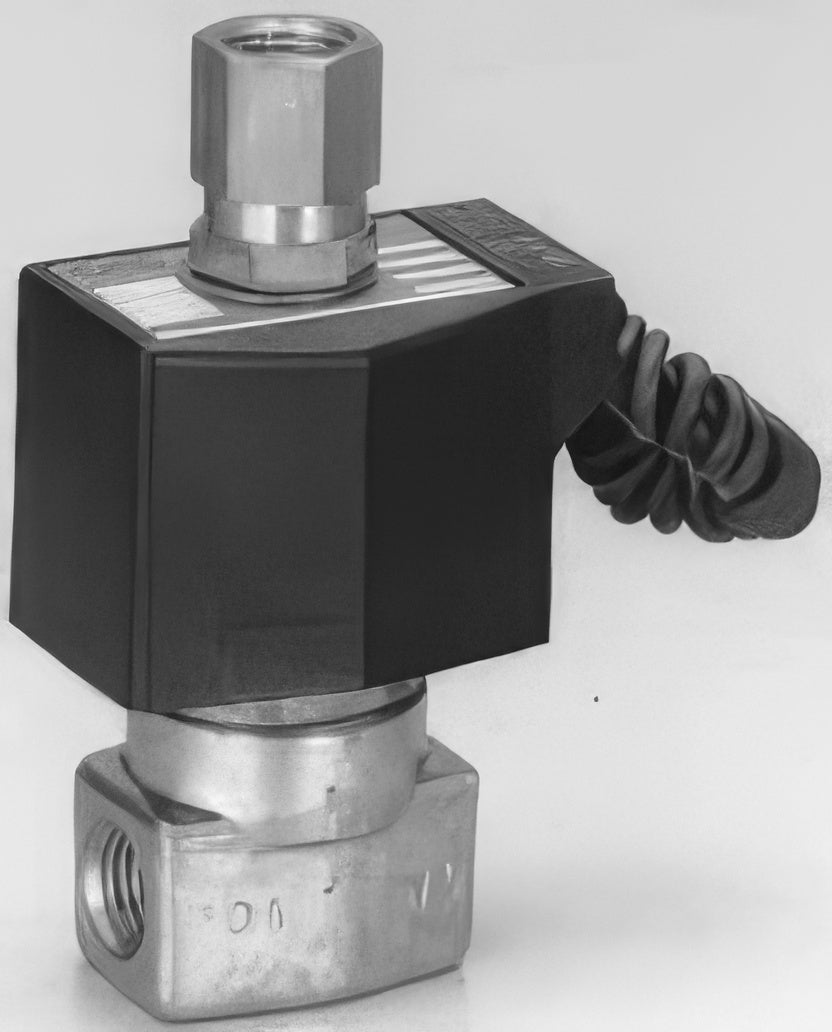

CKD MULTILEX Direct Acting 3-Port Solenoid Valve AG34, AG44 Series (Single Unit)

CKD MULTILEX Direct Acting 3-Port Solenoid Valve AG34, AG44 Series (Single Unit)

Direct-acting 3-port solenoid valve (NO-pressurized type), single-unit type, from the MULTILEX range.

Key features

  • Rc1/8 to Rc3/8 ports, for air, low vacuum, water, kerosene and oil
  • Codes give port and orifice; coil option and voltage are added when ordering

Specifications

Type NO pressurized
Fluid air, low vacuum, water, kerosene, oil (standard)
Coil voltage AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG34-01-1 Port: Rc1/8 | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.7 | Type: NO pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG34-01-2 Port: Rc1/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.45 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 (0.45) | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 | Type: NO pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG34-02-1 Port: Rc1/4 | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.7 | Type: NO pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG34-02-2 Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.45 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 (0.45) | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 | Type: NO pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG44-02-1 Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG44-02-3 Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG44-02-4 Port: Rc1/4 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.3 | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 (0.15) | Type: NO pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG44-03-1 Port: Rc3/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG44-03-3 Port: Rc3/8 | Orifice TOP/BODY (mm): 2.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG44-03-4 Port: Rc3/8 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.3 | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 (0.15) | Type: NO pressurized | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
Solenoid ValvesCKD
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MULTILEX Direct Acting 3-Port Solenoid Valve AG34, AG44 Series (Single Unit)

Brand CKD·Solenoid Valves

Available part numbers (10)

AG34-01-1, AG34-01-2, AG34-02-1, AG34-02-2, AG44-02-1, AG44-02-3, AG44-02-4, AG44-03-1, AG44-03-3, AG44-03-4

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AG34-01-1Port: Rc1/8 | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.7 | Type: NO pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG34-01-2Port: Rc1/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.45 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 (0.45) | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 | Type: NO pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG34-02-1Port: Rc1/4 | Orifice TOP/BODY (mm): 1.5/1.5 | Max op. pressure diff. air AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.0/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.7 | Type: NO pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG34-02-2Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 0.7/0.45 | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.7/0.6 (0.45) | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 | Type: NO pressurized | Mass (kg): 0.36 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG44-02-1Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG44-02-3Port: Rc1/4 | Orifice TOP/BODY (mm): 2.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG44-02-4Port: Rc1/4 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.3 | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 (0.15) | Type: NO pressurized | Mass (kg): 0.45 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG44-03-1Port: Rc3/8 | Orifice TOP/BODY (mm): 2.0/2.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/1.0 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG44-03-3Port: Rc3/8 | Orifice TOP/BODY (mm): 2.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 1.2/0.75 | Max op. pressure diff. water/kerosene AC/DC (MPa): 1.5/0.9 | Max op. pressure diff. oil AC/DC (MPa): 1.0/0.45 | Type: NO pressurized | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
AG44-03-4Port: Rc3/8 | Orifice TOP/BODY (mm): 3.0/3.0 | Max op. pressure diff. air AC/DC (MPa): 0.4/0.3 (0.25) | Max op. pressure diff. water/kerosene AC/DC (MPa): 0.5/0.3 | Max op. pressure diff. oil AC/DC (MPa): 0.3/0.2 (0.15) | Type: NO pressurized | Mass (kg): 0.48 | Fluid: air, low vacuum, water, kerosene, oil (standard) | Coil voltage: AC100V, AC200V, DC12V, DC24V, DC48V, DC100V
